| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI7682DP-T1-GE3MOSFET N-CH 30V 20A PPAK SO-8 |
3,853 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Tc) | 4.5V, 10V | 9mOhm @ 20A, 10V | 2.5V @ 250µA | 38 nC @ 10 V | ±20V | 1595 pF @ 15 V | - | 5W (Ta), 27.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7840BDP-T1-E3MOSFET N-CH 30V 11A PPAK SO-8 |
3,714 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 8.5mOhm @ 16.5A, 10V | 3V @ 250µA | 21 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7840BDP-T1-GE3MOSFET N-CH 30V 11A PPAK SO-8 |
3,008 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 8.5mOhm @ 16.5A, 10V | 3V @ 250µA | 21 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7856ADP-T1-E3MOSFET N-CH 30V 15A PPAK SO-8 |
3,900 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 3.7mOhm @ 25A, 10V | 3V @ 250µA | 55 nC @ 4.5 V | ±20V | - | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7856ADP-T1-GE3MOSFET N-CH 30V 15A PPAK SO-8 |
2,475 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 3.7mOhm @ 25A, 10V | 3V @ 250µA | 55 nC @ 4.5 V | ±20V | - | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7860ADP-T1-GE3MOSFET N-CH 30V 11A PPAK SO-8 |
2,677 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 9.5mOhm @ 16A, 10V | 3V @ 250µA | 18 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7860DP-T1-GE3MOSFET N-CH 30V 11A PPAK SO-8 |
3,957 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 8mOhm @ 18A, 10V | 3V @ 250µA | 18 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7866ADP-T1-GE3MOSFET N-CH 20V 40A PPAK SO-8 |
3,755 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 40A (Tc) | 4.5V, 10V | 2.4mOhm @ 20A, 10V | 2.2V @ 250µA | 125 nC @ 10 V | ±20V | 5415 pF @ 10 V | - | 5.4W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7882DP-T1-E3MOSFET N-CH 12V 13A PPAK SO-8 |
2,904 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 13A (Ta) | 2.5V, 4.5V | 5.5mOhm @ 17A, 4.5V | 1.4V @ 250µA | 30 nC @ 4.5 V | ±8V | - | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7886ADP-T1-E3MOSFET N-CH 30V 15A PPAK SO-8 |
3,255 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 4mOhm @ 25A, 10V | 1.5V @ 250µA | 60 nC @ 4.5 V | ±12V | 6450 pF @ 15 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7886ADP-T1-GE3MOSFET N-CH 30V 15A PPAK SO-8 |
3,561 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 4mOhm @ 25A, 10V | 1.5V @ 250µA | 60 nC @ 4.5 V | ±12V | 6450 pF @ 15 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7888DP-T1-E3MOSFET N-CH 30V 9.4A PPAK SO-8 |
2,042 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.4A (Ta) | 4.5V, 10V | 12mOhm @ 12.4A, 10V | 2V @ 250µA | 10.5 nC @ 5 V | ±12V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7888DP-T1-GE3MOSFET N-CH 30V 9.4A PPAK SO-8 |
3,526 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.4A (Ta) | 4.5V, 10V | 12mOhm @ 12.4A, 10V | 2V @ 250µA | 10.5 nC @ 5 V | ±12V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

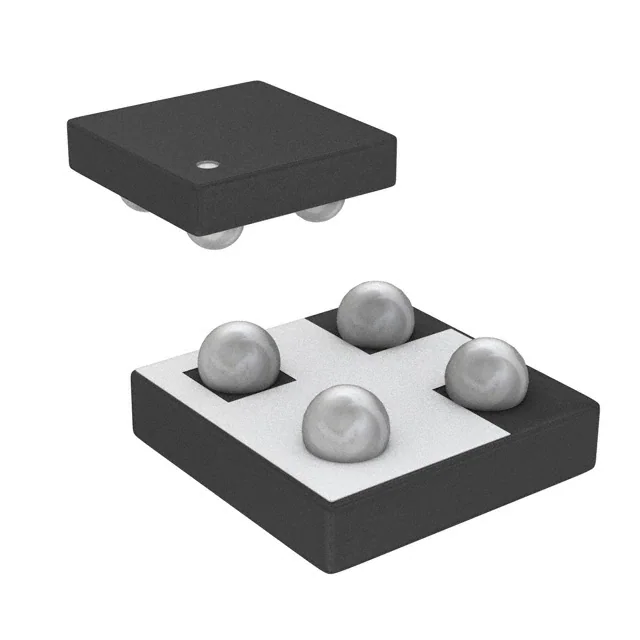

SI8405DB-T1-E3MOSFET P-CH 12V 3.6A 4MICROFOOT |
3,506 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 3.6A (Ta) | 1.8V, 4.5V | 55mOhm @ 1A, 4.5V | 950mV @ 250µA | 21 nC @ 4.5 V | ±8V | - | - | 1.47W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI8417DB-T2-E1MOSFET P-CH 12V 14.5A 6MICROFOOT |
2,951 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 14.5A (Tc) | 1.8V, 4.5V | 21mOhm @ 1A, 4.5V | 900mV @ 250µA | 57 nC @ 5 V | ±8V | 2220 pF @ 6 V | - | 2.9W (Ta), 6.57W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI8441DB-T2-E1MOSFET P-CH 20V 10.5A 6MICROFOOT |
2,235 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 10.5A (Tc) | 1.2V, 4.5V | 80mOhm @ 1A, 4.5V | 700mV @ 250µA | 13 nC @ 5 V | ±5V | 600 pF @ 10 V | - | 2.77W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI9410BDY-T1-GE3MOSFET N-CH 30V 6.2A 8SO |
2,325 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.2A (Ta) | 4.5V, 10V | 24mOhm @ 8.1A, 10V | 3V @ 250µA | 23 nC @ 10 V | ±20V | - | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI9424BDY-T1-GE3MOSFET P-CH 20V 5.6A 8SO |
2,921 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.6A (Ta) | 2.5V, 4.5V | 25mOhm @ 7.1A, 4.5V | 850mV @ 250µA | 40 nC @ 4.5 V | ±9V | - | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI9434BDY-T1-GE3MOSFET P-CH 20V 4.5A 8SO |
3,628 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 2.5V, 4.5V | 40mOhm @ 6.3A, 4.5V | 1.5V @ 250µA | 18 nC @ 4.5 V | ±8V | - | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIA438EDJ-T1-GE3MOSFET N-CH 20V 6A PPAK SC70-6 |
3,377 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Tc) | 2.5V, 4.5V | 46mOhm @ 3.9A, 4.5V | 1.4V @ 250µA | 12 nC @ 10 V | ±12V | 350 pF @ 10 V | - | 2.4W (Ta), 11.4W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
