| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

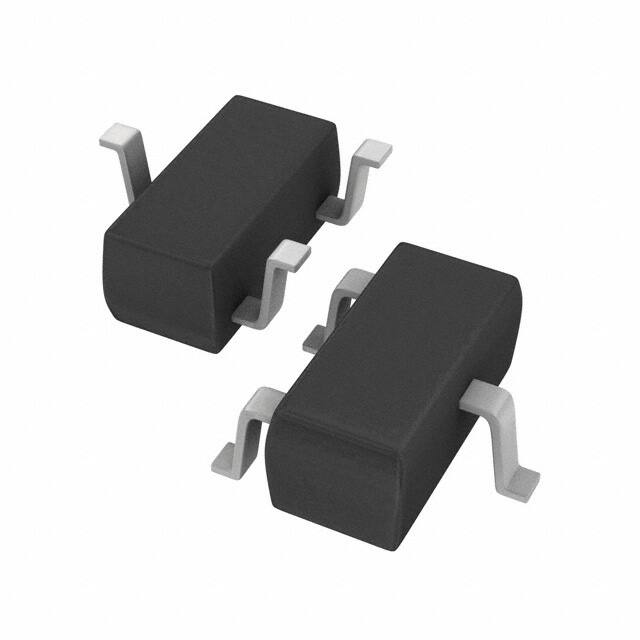

SI1046R-T1-GE3MOSFET N-CH 20V SC75A |
2,124 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 606mA ( Ta) | 1.8V, 4.5V | 420mOhm @ 606mA, 4.5V | 950mV @ 250µA | 1.49 nC @ 5 V | ±8V | 66 pF @ 10 V | - | 250mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI1046X-T1-GE3MOSFET N-CH 20V SC89-3 |
2,876 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 606mA ( Ta) | 1.8V, 4.5V | 420mOhm @ 606mA, 4.5V | 950mV @ 250µA | 1.49 nC @ 5 V | ±8V | 66 pF @ 10 V | - | 250mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI1051X-T1-GE3MOSFET P-CH 8V 1.2A SC89-6 |
2,011 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 1.2A (Ta) | 1.5V, 4.5V | 122mOhm @ 1.2A, 4.5V | 1V @ 250µA | 9.45 nC @ 5 V | ±5V | 560 pF @ 4 V | - | 236mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI1054X-T1-GE3MOSFET N-CH 12V 1.32A SC89-6 |
3,426 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 1.32A (Ta) | 1.8V, 4.5V | 95mOhm @ 1.32A, 4.5V | 1V @ 250µA | 8.57 nC @ 5 V | ±8V | 480 pF @ 6 V | - | 236mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI1069X-T1-GE3MOSFET P-CH 20V 0.94A SC89-6 |
3,096 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 940mA (Ta) | 2.5V, 4.5V | 184mOhm @ 940mA, 4.5V | 1.5V @ 250µA | 6.86 nC @ 5 V | ±12V | 308 pF @ 10 V | - | 236mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI1073X-T1-GE3MOSFET P-CH 30V 0.98A SC89-6 |
3,202 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 980mA (Ta) | 4.5V, 10V | 173mOhm @ 980mA, 10V | 3V @ 250µA | 9.45 nC @ 10 V | ±20V | 265 pF @ 15 V | - | 236mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI2305ADS-T1-GE3MOSFET P-CH 8V 5.4A SOT23-3 |
2,724 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 5.4A (Tc) | 1.8V, 4.5V | 40mOhm @ 4.1A, 4.5V | 800mV @ 250µA | 15 nC @ 4.5 V | ±8V | 740 pF @ 4 V | - | 960mW (Ta), 1.7W (Tc) | -50°C ~ 150°C (TJ) | Surface Mount |
|
SI5406CDC-T1-GE3MOSFET N-CH 12V 6A 1206-8 |
2,013 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 6A (Tc) | 1.8V, 4.5V | 20mOhm @ 6.5A, 4.5V | 1V @ 250µA | 32 nC @ 8 V | ±8V | 1100 pF @ 6 V | - | 2.3W (Ta), 5.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI5410DU-T1-GE3MOSFET N-CH 40V 12A PPAK |
3,895 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Tc) | 4.5V, 10V | 18mOhm @ 6.6A, 10V | 3V @ 250µA | 32 nC @ 10 V | ±20V | 1350 pF @ 20 V | - | 3.1W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI5432DC-T1-GE3MOSFET N-CH 20V 6A 1206-8 |
3,435 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Tc) | 2.5V, 4.5V | 20mOhm @ 8.3A, 4.5V | 1.5V @ 250µA | 33 nC @ 10 V | ±12V | 1200 pF @ 10 V | - | 2.5W (Ta), 6.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI5475DDC-T1-GE3MOSFET P-CH 12V 6A 1206-8 |
3,488 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 6A (Tc) | 1.8V, 4.5V | 32mOhm @ 5.4A, 4.5V | 1V @ 250µA | 50 nC @ 8 V | ±8V | 1600 pF @ 6 V | - | 2.3W (Ta), 5.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI7102DN-T1-GE3MOSFET N-CH 12V 35A PPAK1212-8 |
3,138 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 35A (Tc) | 2.5V, 4.5V | 3.8mOhm @ 15A, 4.5V | 1V @ 250µA | 110 nC @ 8 V | ±8V | 3720 pF @ 6 V | - | 3.8W (Ta), 52W (Tc) | -50°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7123DN-T1-GE3MOSFET P-CH 20V 10.2A PPAK1212-8 |
3,224 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 10.2A (Ta) | 1.8V, 4.5V | 10.6mOhm @ 15A, 4.5V | 1V @ 250µA | 90 nC @ 4.5 V | ±8V | 3729 pF @ 10 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI7160DP-T1-GE3MOSFET N-CH 30V 20A PPAK SO-8 |
2,707 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Tc) | 4.5V, 10V | 8.7mOhm @ 15A, 10V | 2.5V @ 250µA | 66 nC @ 10 V | ±16V | 2970 pF @ 15 V | - | 5W (Ta), 27.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7170DP-T1-GE3MOSFET N-CH 30V 40A PPAK SO-8 |
3,863 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Tc) | 4.5V, 10V | 3.4mOhm @ 15A, 10V | 2.6V @ 250µA | 100 nC @ 10 V | ±20V | 4355 pF @ 15 V | - | 5W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7186DP-T1-GE3MOSFET N-CH 80V 32A PPAK SO-8 |
3,195 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 32A (Tc) | 10V | 12.5mOhm @ 10A, 10V | 4.5V @ 250µA | 70 nC @ 10 V | ±20V | 2840 pF @ 40 V | - | 5.2W (Ta), 64W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7194DP-T1-GE3MOSFET N-CH 25V 60A PPAK SO-8 |
2,387 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 60A (Tc) | 4.5V, 10V | 2mOhm @ 20A, 10V | 2.6V @ 250µA | 145 nC @ 10 V | ±20V | 6590 pF @ 15 V | - | 5.4W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7196DP-T1-GE3MOSFET N-CH 30V 16A PPAK SO-8 |
2,348 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Tc) | 4.5V, 10V | 11mOhm @ 12A, 10V | 3V @ 250µA | 38 nC @ 10 V | ±20V | 1577 pF @ 15 V | - | 5W (Ta), 41.6W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7405BDN-T1-GE3MOSFET P-CH 12V 16A PPAK1212-8 |
2,580 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 16A (Tc) | 1.8V, 4.5V | 13mOhm @ 13.5A, 4.5V | 1V @ 250µA | 115 nC @ 8 V | ±8V | 3500 pF @ 6 V | - | 3.6W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7601DN-T1-GE3MOSFET P-CH 20V 16A PPAK1212-8 |
3,854 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 16A (Tc) | 2.5V, 4.5V | 19.2mOhm @ 11A, 4.5V | 1.6V @ 250µA | 27 nC @ 5 V | ±12V | 1870 pF @ 10 V | - | 3.8W (Ta), 52W (Tc) | -50°C ~ 150°C (TJ) | Surface Mount |
