| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DI110N03PQMOSFET N-CH 30V 110A 8QFN |
5,000 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 110A (Tc) | 4.5V, 10V | 2.65mOhm @ 20A, 10V | 2.5V @ 250µA | 14 nC @ 4.5 V | ±20V | 1860 pF @ 15 V | - | 56W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
MMBT7002KMOSFET, SOT-23, 60V, 0.3A, N, 0. |
3,590 | 0.34 |
RFQ |
Datasheet |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 4.5V, 10V | 3Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
2N7002MOSFET, SOT-23, 60V, 0.28A, N, 0 |
2,849 | 0.35 |
RFQ |
Datasheet |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 280mA (Ta) | 5V, 10V | 5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±30V | 50 pF @ 25 V | - | 350mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
MMBT7002K-AQMOSFET, SOT-23, 60V, 0.3A, N, 0. |
3,824 | 0.35 |
RFQ |
Datasheet |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 4.5V, 10V | 3Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
MMFTP84WMOSFET, 50V, 0.13A, P, 0.25W |
3,184 | 0.37 |
RFQ |
Tape & Reel (TR),Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 130mA | 45V | 10Ohm @ 130mA, 10V | 2V @ 1mA | - | ±20V | 45 pF @ 25 V | - | 200mW | 150°C (TJ) | Surface Mount | |
|
|
MMFTN138MOSFET, SOT-23, 50V, 0.22A, N, 0 |
3,462 | 0.38 |
RFQ |
Datasheet |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 220mA (Ta) | 4.5V, 10V | 3.5Ohm @ 220mA, 10V | 1.6V @ 1mA | - | ±20V | 60 pF @ 25 V | - | 360mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
MMFTN170MOSFET, SOT-23, 60V, 0.5A, N, 0. |
2,582 | 0.42 |
RFQ |
Datasheet |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 500mA (Ta) | 10V | 5Ohm @ 200mA, 10V | 3V @ 1mA | - | ±20V | 40 pF @ 10 V | - | 300mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
MMFTN123MOSFET, SOT-23, 100V, 0.17A, N |
3,626 | 0.00 |
RFQ |
Datasheet |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 170mA (Ta) | 4.5V, 10V | 6Ohm @ 170mA, 10V | 2V @ 1mA | - | ±20V | 73 pF @ 25 V | - | 360mW | 150°C (TJ) | |
|
|
MMFTN20MOSFET, SOT-23, 50V, 0.1A, N, 0. |
2,386 | 0.42 |
RFQ |
Datasheet |
Strip | - | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 100mA (Ta) | 2.5V, 10V | 15Ohm @ 100mA, 10V | 1.8V @ 1mA | - | ±20V | 15 pF @ 10 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
MMFTN3404AMOSFET 30V 5.6A N 1.25W |
3,524 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.6A (Ta) | 4.5V, 10V | 23mOhm @ 5.6A, 10V | 2.1V @ 250µA | - | ±20V | 744 pF @ 0 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

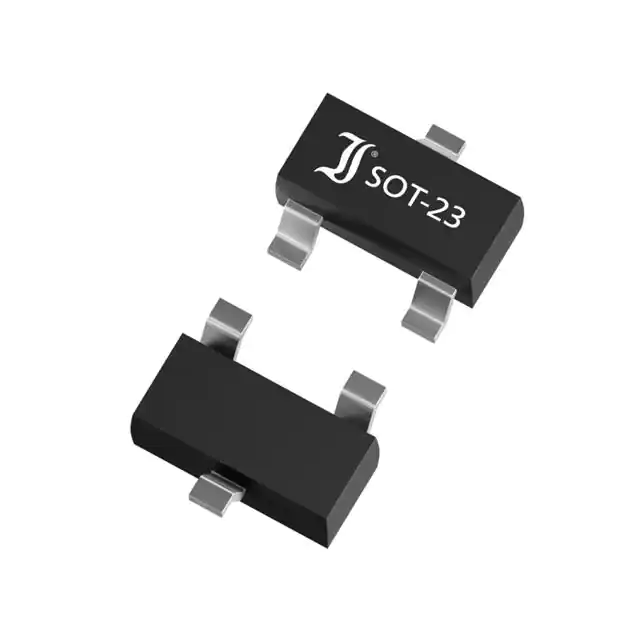

MMFTN3422KMOSFET, 30V, 4.2A, N, 1.25W |
3,104 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.2A (Tj) | 2.5V, 10V | 42mOhm @ 4.2A, 10V | 1.2V @ 250µA | 14.5 nC @ 10 V | ±12V | 387 pF @ 25 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DI045N03PTMOSFET, 30V, 45A, 16W |
2,274 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 45A (Tc) | 4.5V, 10V | 4.4mOhm @ 24A, 10V | 2.5V @ 250µA | 53 nC @ 10 V | ±20V | 2300 pF @ 15 V | - | 16W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MMFTP3401-AQMOSFET 30V 4A P 1.4W |
2,691 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3A (Ta) | 2.5V, 10V | 65mOhm @ 4A, 10V | 1.3V @ 250µA | - | ±12V | 954 pF @ 0 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MMFTP3334K-AQMOSFET, 30V, 4A, P, 1W |
2,145 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Tj) | 4V, 10V | 71mOhm @ 3A, 10V | 2V @ 100µA | 5.9 nC @ 10 V | ±20V | 280 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DI010N03PWMOSFET, 30V, 10A, N, 1.4W |
2,577 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Tc) | 4.5V, 10V | 12mOhm @ 10A, 10V | 2V @ 250µA | 25 nC @ 10 V | ±20V | 1120 pF @ 15 V | - | 1.4W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MMFTP5618MOSFET -60V -1.25A P 0.5W |
3,850 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.25A (Ta) | 4.5V, 10V | 170mOhm @ 1.25A, 10V | 3V @ 1mA | 7 nC @ 10 V | ±20V | 361 pF @ 30 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MMFTN3404A-AQMOSFET 30V 5.6A N 1.25W |
3,516 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.6A (Ta) | 4.5V, 10V | 23mOhm @ 5.6A, 10V | 2.1V @ 250µA | - | ±20V | 744 pF @ 0 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DI006P02PWMOSFET, -20V, -6A, P, 2W |
2,033 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Tc) | 2.5V, 4.5V | 25mOhm @ 6A, 4.5V | 1V @ 250µA | 13 nC @ 4.5 V | ±12V | 1242 pF @ 10 V | - | 2W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DI010N03PW-AQMOSFET, 30V, 10A, 1.4W |
3,106 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Tc) | 4.5V, 10V | 12mOhm @ 10A, 10V | 2V @ 250µA | 25 nC @ 10 V | ±20V | 1120 pF @ 15 V | - | 1.4W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DI068N03PQ-AQMOSFET, 30V, 68A, 25W |
3,373 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Bulk | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 68A (Tc) | - | 4mOhm @ 20A, 10V | 2.5V @ 250µA | 79 nC @ 10 V | ±20V | 3650 pF @ 15 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
