| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | FETFeature | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | InputCapacitance(Ciss)(Max)@Vds | Power-Max | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXH040P120MNF1PTGPIM F1 SIC HALFBRIDGE 1200V 40MO |
2,349 | 87.33 |
RFQ |
Datasheet |
Tray | - | Active | 2 N-Channel (Dual) Common Source | Silicon Carbide (SiC) | 1200V (1.2kV) | 30A (Tc) | 56mOhm @ 25A, 20V | 4.3V @ 10mA | 122.1nC @ 20V | 1505pF @ 800V | 74W | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
NXH040F120MNF1PTGPIM F1 SIC FULL BRIDGE 1200V 40M |
2,369 | 113.79 |
RFQ |
Datasheet |
Tray | - | Active | 4 N-Channel | Silicon Carbide (SiC) | 1200V (1.2kV) | 30A (Tc) | 56mOhm @ 25A, 20V | 4.3V @ 10mA | 122.1nC @ 20V | 1505pF @ 800V | 74W (Tj) | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
NXH020P120MNF1PTGPIM F1 SIC HALFBRIDGE 1200V 20MO |
2,800 | 113.79 |
RFQ |
Datasheet |
Tray | - | Active | 2 N-Channel (Dual) Common Source | Silicon Carbide (SiC) | 1200V (1.2kV) | 51A (Tc) | 30mOhm @ 50A, 20V | 4.3V @ 20mA | 213.5nC @ 20V | 2420pF @ 800V | 119W (Tj) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
NXH010P90MNF1PTGPIM F1 SIC HALFBRIDGE 900V 10MOH |
2,890 | 121.35 |
RFQ |
Datasheet |
Tray | - | Active | 2 N-Channel (Dual) Common Source | Silicon Carbide (SiC) | 900V | 154A (Tc) | 14mOhm @ 100A, 15V | 4.3V @ 40mA | 546.4nC @ 15V | 7007pF @ 450V | 328W (Tj) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
NXH010P120MNF1PTGPIM F1 SIC HALFBRIDGE 1200V 10MO |
2,051 | 145.82 |
RFQ |
Datasheet |
Tray | - | Active | 2 N-Channel (Dual) Common Source | Silicon Carbide (SiC) | 1200V (1.2kV) | 114A (Tc) | 14mOhm @ 100A, 20V | 4.3V @ 40mA | 454nC @ 20V | 4707pF @ 800V | 250W (Tj) | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
NXH020F120MNF1PTGPIM F1 SIC FULL BRIDGE 1200V 20M |
2,124 | 152.73 |
RFQ |
Datasheet |
Tray | - | Active | 4 N-Channel (Half Bridge) | Standard | 1200V (1.2kV) | 51A (Tc) | 30mOhm @ 50A, 20V | 4.3V @ 20mA | 213.5nC @ 20V | 2420pF @ 800V | 119W (Tj) | -40°C ~ 175°C (TJ) | Chassis Mount |
|
MCH6663-TL-WMOSFET N/P-CH 30V 1.8/1.5A MCPH6 |
2,905 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N and P-Channel | Logic Level Gate, 4V Drive | 30V | 1.8A, 1.5A | 188mOhm @ 900mA, 10V | 2.6V @ 1mA | 2nC @ 10V | 88pF @ 10V | 800mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDG6320CMOSFET N/P-CH 25V 220/140MA SC88 |
3,655 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N and P-Channel | Logic Level Gate | 25V | 220mA, 140mA | 4Ohm @ 220mA, 4.5V | 1.5V @ 250µA | 0.4nC @ 4.5V | 9.5pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
EFC6605R-V-TRMOSFET N-CH DUAL 10A 24V 6XFLGA |
2,501 | 0.14 |
RFQ |
Tape & Reel (TR),Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | |
|
|
STZD3155CT1GMOSFET N/P-CH 20V 540MA SOT563 |
3,740 | 0.15 |
RFQ |
Tape & Reel (TR),Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | |
|
|

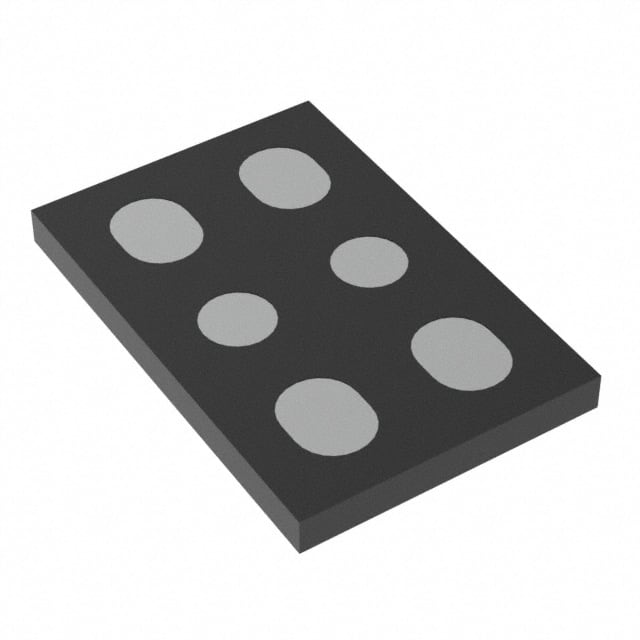

EFC2J004NUZTDGMOSFET NCH 12V WLCSP6 DUAL |
3,614 | 0.18 |
RFQ |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | |
|
EFC2K101NUZTDGNCH 12V 15A WLCSP DUAL |
3,487 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 N-Channel (Dual) Common Drain | Logic Level Gate, 2.5V Drive | 12V | 15A (Ta) | 6.2mOhm @ 5A, 4.5V | 1.3V @ 1mA | 16nC @ 3.8V | - | 1.4W (Ta) | 150°C (TJ) | Surface Mount |
|
NTLUD4C26NTAGMOSFET 2 N-CH 30V 9.1A 6UDFN |
3,639 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | µCool™ | Obsolete | 2 N-Channel (Dual) | Standard | 30V | 9.1A (Ta) | 21mOhm @ 6A, 10V | 1.1V @ 250µA | 9nC @ 4.5V | 460pF @ 15V | 2.63W | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMA1028NZ-F021MOSFET 2N-CH 20V 3.7A MICROFET |
2,718 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | 2 N-Channel (Dual) | Logic Level Gate | 20V | 3.7A | 68mOhm @ 3.7A, 4.5V | 1.5V @ 250µA | 6nC @ 4.5V | 340pF @ 10V | 700mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
ECH8655R-R-TL-HMOSFET 2N-CH 24V 9A ECH8 |
2,683 | 0.29 |
RFQ |
Tape & Reel (TR) | - | Not For New Designs | - | - | - | - | - | - | - | - | - | - | Surface Mount | |
|
|
EFC2J022NUZTCGMOSFET N-CH 12V 2.2MOHM WLCSP10 |
2,562 | 0.30 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | |
|
FDS4897ACMOSFET N/P-CH 40V 6.1A/5.2A 8SO |
2,351 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N and P-Channel | Logic Level Gate | 40V | 6.1A, 5.2A | 26mOhm @ 6.1A, 10V | 3V @ 250µA | 21nC @ 10V | 1055pF @ 20V | 900mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ECH8691-TL-WMOSFET 2P-CH ECH8 |
3,024 | 0.38 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | |
|
FDMS7620S-F106MOSFET 2N-CH 30V POWER56 |
2,020 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Active | 2 N-Channel (Half Bridge) | Standard | 30V | 10.1A, 12.4A | 20mOhm @ 10.1A, 10V | 3V @ 250µA | 11nC @ 10V | 608pF @ 15V | 1W | - | Surface Mount |
|
NVMFD5877NLT3GMOSFET 2N-CH 60V 6A 8SOIC |
3,119 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Not For New Designs | 2 N-Channel (Dual) | Logic Level Gate | 60V | 6A | 39mOhm @ 7.5A, 10V | 3V @ 250µA | 20nC @ 10V | 540pF @ 25V | 3.2W | -55°C ~ 175°C (TJ) | Surface Mount |
