| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | FETFeature | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | InputCapacitance(Ciss)(Max)@Vds | Power-Max | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF7342QTRPBFMOSFET 2P-CH 55V 3.4A 8SOIC |
3,129 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | - | Obsolete | 2 P-Channel (Dual) | Logic Level Gate | 55V | 3.4A | 105mOhm @ 3.4A, 10V | 1V @ 250µA | 38nC @ 10V | 690pF @ 25V | 2W | - | Surface Mount |
|
IRF7750GTRPBFMOSFET 2P-CH 20V 4.7A 8TSSOP |
3,082 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | 2 P-Channel (Dual) | Logic Level Gate | 20V | 4.7A | 30mOhm @ 4.7A, 4.5V | 1.2V @ 250µA | 39nC @ 5V | 1700pF @ 15V | 1W | -55°C ~ 150°C (TJ) | Surface Mount |
|

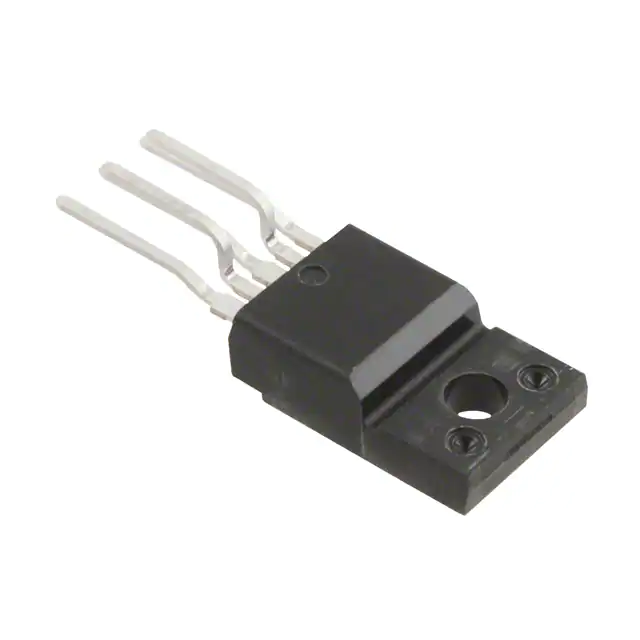

IRFI4019H-117PMOSFET 2N-CH 150V 8.7A TO220-5 |
2,023 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Obsolete | 2 N-Channel (Dual) | Standard | 150V | 8.7A | 95mOhm @ 5.2A, 10V | 4.9V @ 50µA | 20nC @ 10V | 810pF @ 25V | 18W | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFI4024H-117PMOSFET 2N-CH 55V 11A TO-220FP-5 |
2,866 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 N-Channel (Dual) | Standard | 55V | 11A | 60mOhm @ 7.7A, 10V | 4V @ 25µA | 13nC @ 10V | 320pF @ 50V | 14W | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFI4212H-117PMOSFET 2N-CH 100V 11A TO220-5 |
2,263 | 0.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Obsolete | 2 N-Channel (Dual) | Standard | 100V | 11A | 72.5mOhm @ 6.6A, 10V | 5V @ 250µA | 18nC @ 10V | 490pF @ 50V | 18W | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFI4020H-117PMOSFET 2N-CH 200V 9.1A TO-220FP |
2,715 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 N-Channel (Dual) | Standard | 200V | 9.1A | 100mOhm @ 5.5A, 10V | 4.9V @ 100µA | 29nC @ 10V | 1240pF @ 25V | 21W | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF7751TRPBFMOSFET 2P-CH 30V 4.5A 8TSSOP |
3,916 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | 2 P-Channel (Dual) | Logic Level Gate | 30V | 4.5A | 35mOhm @ 4.5A, 10V | 2.5V @ 250µA | 44nC @ 10V | 1464pF @ 25V | 1W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF7756TRPBFMOSFET 2P-CH 12V 4.3A 8TSSOP |
3,266 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | 2 P-Channel (Dual) | Logic Level Gate | 12V | 4.3A | 40mOhm @ 4.3A, 4.5V | 900mV @ 250µA | 18nC @ 4.5V | 1400pF @ 10V | 1W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF7750TRPBFMOSFET 2P-CH 20V 4.7A 8TSSOP |
2,583 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | 2 P-Channel (Dual) | Logic Level Gate | 20V | 4.7A | 30mOhm @ 4.7A, 4.5V | 1.2V @ 250µA | 39nC @ 5V | 1700pF @ 15V | 1W | -55°C ~ 150°C (TJ) | Surface Mount |
|
2N7002DW L6327MOSFET 2N-CH 60V 0.3A SOT363 |
3,198 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | 2 N-Channel (Dual) | Logic Level Gate | 60V | 300mA | 3Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.6nC @ 10V | 20pF @ 25V | 500mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSD223P L6327MOSFET 2P-CH 20V 0.39A SOT363 |
2,233 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | 2 P-Channel (Dual) | Logic Level Gate | 20V | 390mA | 1.2Ohm @ 390mA, 4.5V | 1.2V @ 1.5µA | 0.62nC @ 4.5V | 56pF @ 15V | 250mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
BTS7904BATMA1MOSFET N/P-CH 55V/30V 40A TO263 |
3,570 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | N and P-Channel | Logic Level Gate | 55V, 30V | 40A | 11.7mOhm @ 20A, 10V | 2.2V @ 40µA | 121nC @ 10V | 6100pF @ 25V | 69W, 96W | -55°C ~ 150°C (TJ) | Surface Mount |
|
BTS7904SAKSA1MOSFET N/P-CH 55V/30V 40A TO220 |
3,152 | 0.00 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Obsolete | N and P-Channel | Logic Level Gate | 55V, 30V | 40A | 12mOhm @ 20A, 10V | 2.2V @ 40µA | 123nC @ 10V | 6100pF @ 25V | 69W, 96W | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF8313PBFMOSFET 2N-CH 30V 9.7A 8-SOIC |
3,832 | 1.00 |
RFQ |
Datasheet |
Tube,Tube | - | Discontinued at Mosen | 2 N-Channel (Dual) | Logic Level Gate | 30V | 9.7A | 15.5mOhm @ 9.7A, 10V | 2.35V @ 25µA | 90nC @ 4.5V | 760pF @ 15V | 2W | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF8513PBFMOSFET 2N-CH 30V 8A/11A 8-SOIC |
3,771 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 N-Channel (Dual) | Logic Level Gate | 30V | 8A, 11A | 15.5mOhm @ 8A, 10V | 2.35V @ 25µA | 8.6nC @ 4.5V | 766pF @ 15V | 1.5W, 2.4W | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF8513TRPBFMOSFET 2N-CH 30V 8A/11A 8-SOIC |
3,359 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | 2 N-Channel (Dual) | Logic Level Gate | 30V | 8A, 11A | 15.5mOhm @ 8A, 10V | 2.35V @ 25µA | 8.6nC @ 4.5V | 766pF @ 15V | 1.5W, 2.4W | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF7351PBFMOSFET 2N-CH 60V 8A 8-SOIC |
3,289 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Discontinued at Mosen | 2 N-Channel (Dual) | Logic Level Gate | 60V | 8A | 17.8mOhm @ 8A, 10V | 4V @ 50µA | 36nC @ 10V | 1330pF @ 30V | 2W | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSC072N03LDGATMA1MOSFET 2N-CH 30V 11.5A 8TDSON |
3,582 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Obsolete | 2 N-Channel (Dual) | Logic Level Gate | 30V | 11.5A | 7.2mOhm @ 20A, 10V | 2.2V @ 250µA | 41nC @ 10V | 3500pF @ 15V | 57W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSC750N10NDGATMA1MOSFET 2N-CH 100V 3.2A 8TDSON |
2,043 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Obsolete | 2 N-Channel (Dual) | Standard | 100V | 3.2A | 75mOhm @ 13A, 10V | 4V @ 12µA | 11nC @ 10V | 720pF @ 50V | 26W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSD235C L6327MOSFET N/P-CH 20V SOT-363 |
3,467 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Obsolete | N and P-Channel | Logic Level Gate | 20V | 950mA, 530mA | 350mOhm @ 950mA, 4.5V | 1.2V @ 1.6µA | 0.34nC @ 4.5V | 47pF @ 10V | 500mW | -55°C ~ 150°C (TJ) | Surface Mount |
