| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | FETFeature | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | InputCapacitance(Ciss)(Max)@Vds | Power-Max | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMC3016LSD-13MOSFET N/P-CH 30V 8.2A/6.2A 8SO |
2,891 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel | Logic Level Gate | 30V | 8.2A, 6.2A | 16mOhm @ 12A, 10V | 2.3V @ 250µA | 25.1nC @ 10V | 1415pF @ 15V | 1.2W | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMG8601UFG-7MOSFET 2N-CH 20V 6.1A DFN |
3,405 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 6.1A | 23mOhm @ 6.5A, 4.5V | 1.05V @ 250µA | 8.8nC @ 4.5V | 143pF @ 10V | 920mW | -55°C ~ 150°C (TJ) | Surface Mount |
|

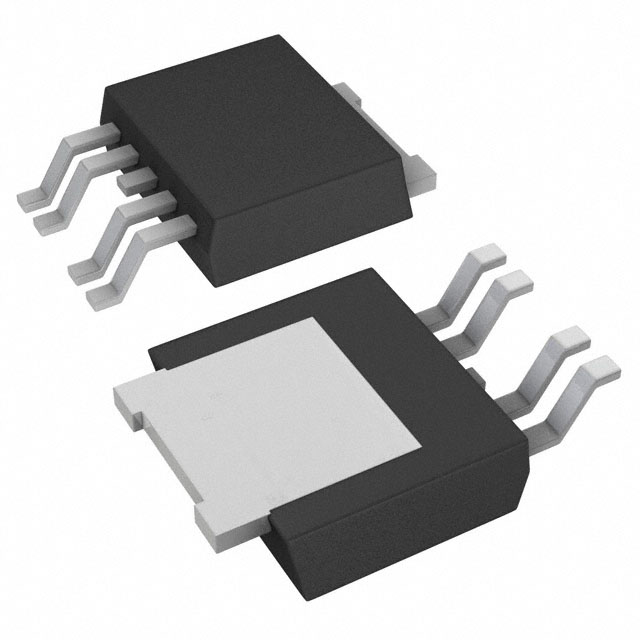

DMC3021LK4-13MOSFET N/P-CH 30V TO252-4L |
2,501 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel, Common Drain | Logic Level Gate | 30V | 9.4A, 6.8A | 21mOhm @ 7A, 10V | 2.1V @ 250µA | 17.4nC @ 10V | 751pF @ 10V | 2.7W | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2016UTS-13MOSFET 2N-CH 20V 8.58A 8-TSSOP |
2,368 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 8.58A | 14.5mOhm @ 9.4A, 4.5V | 1V @ 250µA | 16.5nC @ 4.5V | 1495pF @ 10V | 880mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2035UTS-13MOSFET 2P-CH 20V 6.04A 8TSSOP |
2,335 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 P-Channel (Dual) Common Drain | Logic Level Gate | 20V | 6.04A | 35mOhm @ 4A, 4.5V | 1V @ 250µA | 15.4nC @ 4.5V | 1610pF @ 10V | 890mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN6040SSDQ-13MOSFET N-CH 60V 5.0A SO-8 |
2,366 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 2 N-Channel (Dual) | Standard | 60V | 5A (Ta) | 40mOhm @ 4.5A, 10V | 3V @ 250µA | 22.4nC @ 10V | 1287pF @ 25V | 1.3W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP6110SSD-13MOSFET 2P-CH 60V 3.3A 8SO |
3,589 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 P-Channel (Dual) | Standard | 60V | 3.3A | 105mOhm @ 4.5A, 10V | 3V @ 250µA | 17.2nC @ 10V | 969pF @ 30V | 1.2W | -55°C ~ 150°C (TJ) | Surface Mount |
|

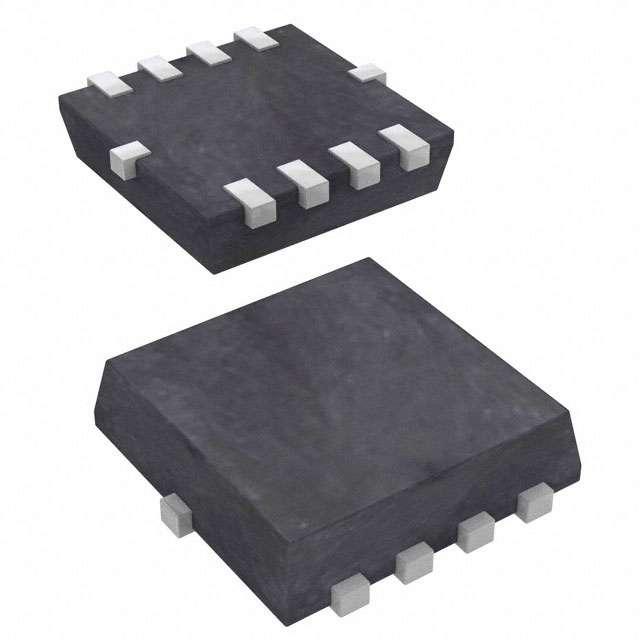

DMN2022UNS-7MOSFET 2 N-CH 20V POWERDI3333-8 |
3,693 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 N-Channel (Dual) Common Drain | Standard | 20V | 10.7A (Ta) | 10.8mOhm @ 4A, 4.5V | 1V @ 250µA | 20.3nC @ 4.5V | 1870pF @ 10V | 1.2W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMC4028SSD-13MOSFET N/P-CH 40V 8SOIC |
3,408 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel | Logic Level Gate | 40V | 6.5A, 4.8A | 28mOhm @ 6A, 10V | 3V @ 250µA | 12.9nC @ 10V | 604pF @ 20V | 1.8W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2016LFG-7MOSFET 2N-CH 20V 5.2A 8UDFN |
3,951 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 5.2A | 18mOhm @ 6A, 4.5V | 1.1V @ 250µA | 16nC @ 4.5V | 1472pF @ 10V | 770mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMC4047LSD-13MOSFET N/P-CH 40V 7A/5.1A 8SOIC |
2,674 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel | Logic Level Gate | 40V | 7A, 5.1A | 24mOhm @ 6A, 10V | 2.4V @ 250µA | 19.1nC @ 10V | 1060pF @ 20V | 1.3W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMC4029SK4-13MOSFET N/P-CH 40V 8.3A TO252 |
3,515 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel Complementary | Standard | 40V | 8.3A | 24mOhm @ 6A, 10V | 3V @ 250µA | 19.1nC @ 20V | 1060pF @ 20V | 1.5W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG4822SSD-13MOSFET 2N-CH 30V 10A 8SO |
3,572 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 N-Channel (Dual) | Logic Level Gate | 30V | 10A | 20mOhm @ 8.5A, 10V | 3V @ 250µA | 10.5nC @ 10V | 478.9pF @ 16V | 1.42W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMC4050SSD-13MOSFET N/P-CH 40V 5.3A 8SO |
2,875 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel | Logic Level Gate | 40V | 5.3A | 45mOhm @ 3A, 10V | 1.8V @ 250µA | 37.56nC @ 10V | 1790.8pF @ 20V | 1.8W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMC6040SSD-13MOSFET N/P-CH 60V 5.1A/3.1A 8-SO |
3,819 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel | Logic Level Gate | 60V | 5.1A, 3.1A | 40mOhm @ 8A, 10V | 3V @ 250µA | 20.8nC @ 10V | 1130pF @ 15V | 1.24W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG4511SK4-13MOSFET N/P-CH 35V TO252-4L |
2,518 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel, Common Drain | Logic Level Gate | 35V | 5.3A, 5A | 35mOhm @ 8A, 10V | 3V @ 250µA | 18.7nC @ 10V | 850pF @ 25V | 1.54W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMC2020USD-13MOSFET N/P-CH 20V 7.8A/6.3A 8SO |
3,251 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel | Logic Level Gate | 20V | 7.8A, 6.3A | 20mOhm @ 7A, 4.5V | 1.5V @ 250µA | 11.6nC @ 4.5V | 1149pF @ 10V | 1.8W | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMC2041UFDB-7MOSFET N/P-CH 20V 6UDFN |
3,257 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel | Standard | 20V | 4.7A, 3.2A | 40mOhm @ 4.2A, 4.5V | 1.4V @ 250µA | 15nC @ 8V | 713pF @ 10V | 1.4W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMC4040SSD-13MOSFET N/P-CH 40V 6.8A 8SO |
2,982 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N and P-Channel | Logic Level Gate | 40V | 6.8A | 25mOhm @ 3A, 10V | 1.8V @ 250µA | 37.6nC @ 10V | 1790pF @ 20V | 1.8W | -55°C ~ 150°C (TJ) | Surface Mount |
|

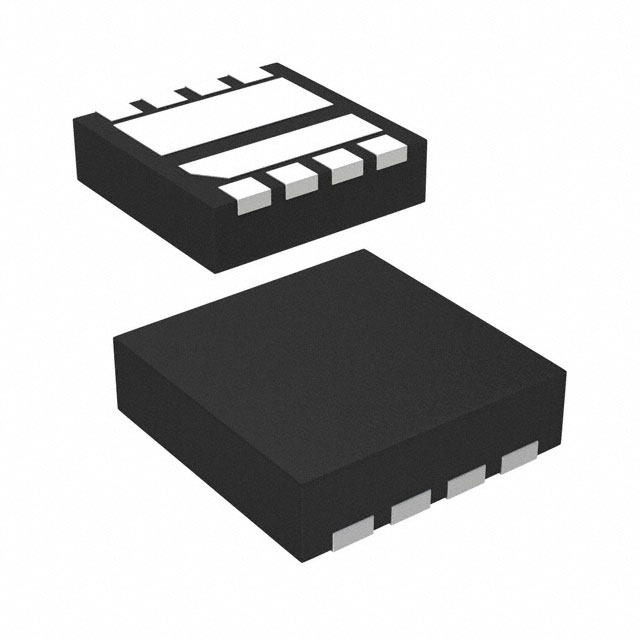

DMT3011LDT-7MOSFET 2N-CH 30V 8A V-DFN3030-8 |
3,490 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 N-Channel (Dual) Asymmetrical | Standard | 30V | 8A, 10.7A | 20mOhm @ 6A, 10V | 3V @ 250µA | 13.2nC @ 10V | 641pF @ 15V | 1.9W | -55°C ~ 155°C (TJ) | Surface Mount |
