| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

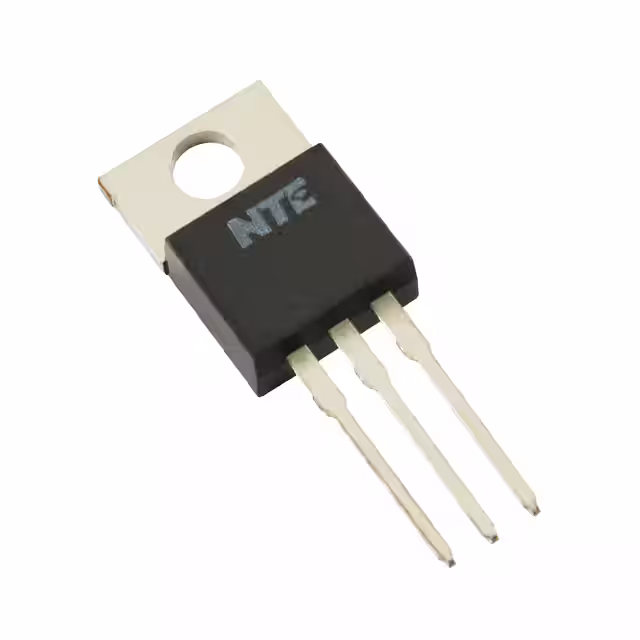

TIP101TRANS NPN DARL 80V 8A TO220-3 |
3,148 | 1.08 |
RFQ |
Datasheet |
Bag | - | Active | NPN - Darlington | 8 A | 80 V | 2.5V @ 80mA, 8A | 50µA | 1000 @ 3A, 4V | 80 W | 4MHz | -65°C ~ 150°C (TJ) | Through Hole |
|
MMBT3904TRANS NPN 40V 0.2A SOT23-3 |
2,155 | 0.12 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 200 mA | 40 V | 300mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 350 mW | 300MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|

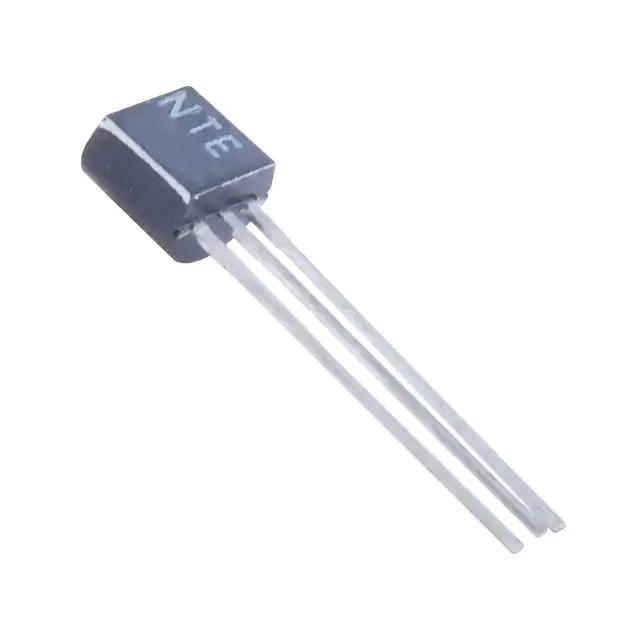

2N3904TRANS NPN 40V 0.2A TO92 |
3,271 | 0.12 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 200 mA | 40 V | 300mV @ 5mA, 50mA | 50nA | 30 @ 100mA, 1V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
2N4401TRANS NPN 40V 0.6A TO92 |
3,480 | 0.12 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 600 mA | 40 V | 750mV @ 50mA, 500mA | 100nA | 100 @ 150mA, 1V | 625 mW | 250MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
MPSA12TRANS NPN DARL 20V TO92 |
3,451 | 0.16 |
RFQ |
Datasheet |
Bag | - | Active | NPN - Darlington | - | 20 V | 1V @ 10µA, 10mA | 100nA (ICBO) | 20000 @ 10mA, 5V | 625 mW | - | -55°C ~ 150°C (TJ) | Through Hole |
|
2N5401TRANS PNP 150V 0.6A TO92 |
2,556 | 0.12 |
RFQ |
Datasheet |
Bag | - | Active | PNP | 600 mA | 150 V | 500mV @ 5mA, 50mA | 50nA (ICBO) | 60 @ 10mA, 5V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
MPSA56TRANS PNP 80V 0.5A TO92 |
2,428 | 0.17 |
RFQ |
Datasheet |
Bag | - | Active | PNP | 500 mA | 80 V | 250mV @ 10mA, 100mA | 100nA | 50 @ 10mA, 1V | 625 mW | 50MHz | -55°C ~ 175°C (TJ) | Through Hole |
|
BC337TRANS NPN 45V 0.8A TO92 |
740 | 0.17 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 800 mA | 45 V | 700mV @ 50mA, 500mA | 100nA | 100 @ 100mA, 1V | 625 mW | 100MHz | 150°C (TJ) | Through Hole |
|
MPSA13TRANS NPN DARL 30V 0.5A TO92 |
2,482 | 0.20 |
RFQ |
Datasheet |
Bag | - | Active | NPN - Darlington | 500 mA | 30 V | 1.5V @ 100µA, 100mA | 100nA (ICBO) | 10000 @ 100mA, 5V | 625 mW | 125MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
MMBT5551TRANS NPN 160V 0.6A SOT23-3 |
2,812 | 0.20 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 600 mA | 160 V | 200mV @ 5mA, 50mA | 50nA (ICBO) | 80 @ 10mA, 5V | 350 mW | 100MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
2N3417TRANS NPN 50V 0.5A TO92-3 |
2,650 | 0.22 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 500 mA | 50 V | 300mV @ 3mA, 50mA | 100nA (ICBO) | 180 @ 2mA, 4.5V | 625 mW | - | -55°C ~ 150°C (TJ) | Through Hole |
|
MPSA44TRANS NPN 400V 0.3A TO92 |
3,963 | 0.22 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 300 mA | 400 V | 750mV @ 5mA, 50mA | 500nA | 50 @ 10mA, 10V | 625 mW | - | -55°C ~ 150°C (TJ) | Through Hole |
|
2N4402TRANS PNP 40V 0.6A TO92 |
3,855 | 0.18 |
RFQ |
Datasheet |
Bag | - | Active | PNP | 600 mA | 40 V | 750mV @ 50mA, 500mA | 100nA | 50 @ 150mA, 2V | 625 mW | 150MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
2N5551TRANS NPN 160V 0.2A TO92 |
3,613 | 0.19 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 200 mA | 160 V | 200mV @ 5mA, 50mA | - | 80 @ 10mA, 5V | 625 mW | 300MHz | - | Through Hole |
|
MPS4355TRANS PNP 60V 1A TO92 |
2,803 | 0.26 |
RFQ |
Datasheet |
Bag | - | Active | PNP | 1 A | 60 V | 900mV @ 50mA, 500mA | 50nA | 100 @ 10mA, 10V | 625 mW | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
BCW61CTRANS PNP 32V 0.1A SOT23 |
3,134 | 0.28 |
RFQ |
Datasheet |
Bag | - | Active | PNP | 100 mA | 32 V | 550mV @ 1.25mA, 50mA | 20nA (ICBO) | 250 @ 2mA, 5V | 250 mW | 100MHz | 150°C (TJ) | Surface Mount |
|
MPSA28TRANS NPN DARL 80V 0.5A TO92 |
2,889 | 0.32 |
RFQ |
Datasheet |
Bag | - | Active | NPN - Darlington | 500 mA | 80 V | 1.5V @ 100µA, 100mA | 500nA | 10000 @ 100mA, 5V | 625 mW | 200MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
NTE2408TRANS NPN 65V 0.1A SOT23 |
2,402 | 0.66 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 100 mA | 65 V | 600mV @ 5mA, 100mA | 15nA (ICBO) | 290 @ 2mA, 5V | 200 mW | 300MHz | 150°C (TJ) | Surface Mount |
|

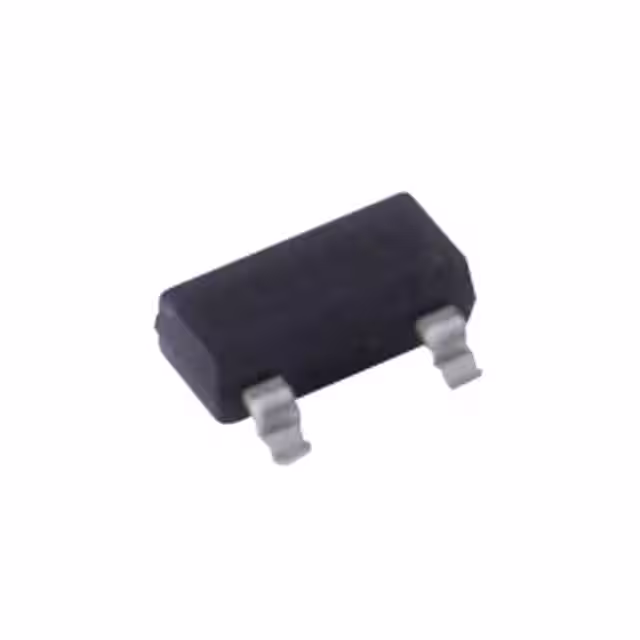

NTE2406TRANS NPN 40V 0.6A SOT23 |
2,363 | 0.69 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 600 mA | 40 V | 1V @ 50mA, 500mA | 10nA | 100 @ 150mA, 10V | 225 mW | 300MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|

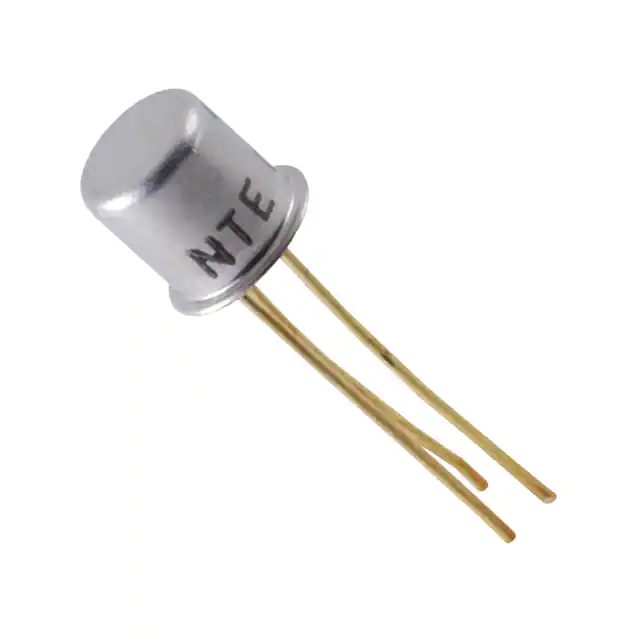

2N2222ATRANS NPN 40V 0.8A TO18 |
2,702 | 0.63 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 800 mA | 40 V | 1V @ 50mA, 500mA | - | 100 @ 150mA, 10V | 500 mW | - | - | Through Hole |
