| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SB1121S-TD-ETRANS PNP 25V 2A PCP |
849 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PNP | 2 A | 25 V | 600mV @ 75mA, 1.5A | 100nA (ICBO) | 100 @ 100mA, 2V | 500 mW | 150MHz | 150°C (TJ) | Surface Mount |
|
2SD1801S-TL-ETRANS NPN 50V 2A TPFA |
210 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 2 A | 50 V | 400mV @ 50mA, 1A | 100nA (ICBO) | 100 @ 100mA, 2V | 800 mW | 150MHz | 150°C (TJ) | Surface Mount |
|

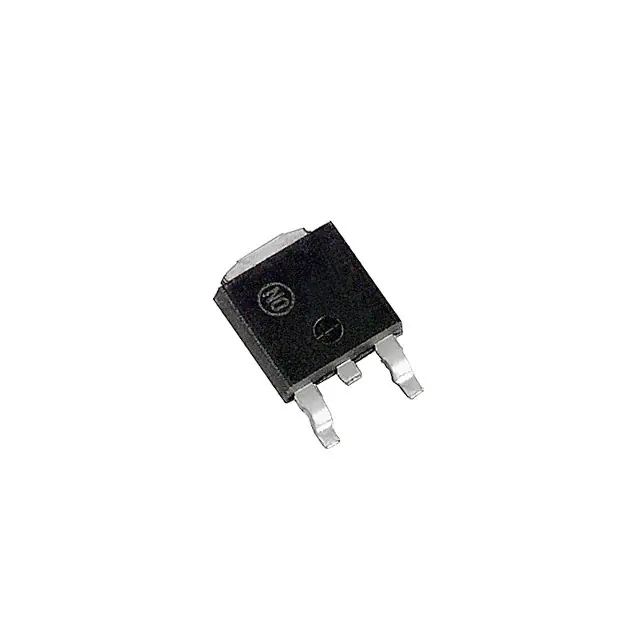

MJD340RLGTRANS NPN 300V 0.5A DPAK |
355 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | NPN | 500 mA | 300 V | - | 100µA | 30 @ 50mA, 10V | 15 W | 10MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
NSV40301MZ4T1GTRANS NPN 40V 3A SOT223 |
445 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | NPN | 3 A | 40 V | 200mV @ 300mA, 3A | 100nA (ICBO) | 200 @ 1A, 1V | 800 mW | 215MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
NJVMJD122T4G-VF01TRANS NPN DARL 100V 8A DPAK |
244 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN - Darlington | 8 A | 100 V | 4V @ 8A, 80mA | 10µA | 1000 @ 4A, 4V | 1.75 W | - | -65°C ~ 150°C (TJ) | Surface Mount |
, SC-63.JPG)
|
MJD50TFTRANS NPN 400V 1A DPAK |
643 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | NPN | 1 A | 400 V | 1V @ 200mA, 1A | 200µA | 30 @ 300mA, 10V | 1.56 W | 10MHz | 150°C (TJ) | Surface Mount |
.JPG)
|
MJE3439GTRANS NPN 350V 0.3A TO126 |
137 | 0.70 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 300 mA | 350 V | 500mV @ 4mA, 50mA | 20µA | 15 @ 20mA, 10V | 15 W | 15MHz | -65°C ~ 150°C (TJ) | Through Hole |
|
|
NSS1C200MZ4T1GTRANS PNP 100V 2A SOT223 |
975 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | PNP | 2 A | 100 V | 220mV @ 200mA, 2A | 100nA (ICBO) | 120 @ 500mA, 2V | 800 mW | 120MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BD179GTRANS NPN 80V 3A TO126 |
161 | 0.72 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 3 A | 80 V | 800mV @ 100mA, 1A | 100µA (ICBO) | 63 @ 150mA, 2V | 30 W | 3MHz | -65°C ~ 150°C (TJ) | Through Hole |
|
|
NJT4031NT3GTRANS NPN 40V 3A SOT223 |
165 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | NPN | 3 A | 40 V | 300mV @ 300mA, 3A | 100nA (ICBO) | 200 @ 1A, 1V | 2 W | 215MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
2SA1593T-TL-ETRANS PNP 100V 2A TP-FA |
225 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PNP | 2 A | 100 V | 600mV @ 100mA, 1A | 100nA (ICBO) | 200 @ 100mA, 5V | 1 W | 120MHz | 150°C (TJ) | Surface Mount |
|
|
MJD44E3T4GTRANS NPN DARL 80V 10A DPAK |
168 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | NPN - Darlington | 10 A | 80 V | 2V @ 20mA, 10A | 10µA | 1000 @ 5A, 5V | 1.75 W | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MJD45H11RLGTRANS PNP 80V 8A DPAK |
384 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | PNP | 8 A | 80 V | 1V @ 400mA, 8A | 1µA | 40 @ 4A, 1V | 1.75 W | 90MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
2SA2126-HTRANS PNP 50V 3A TP |
651 | 0.77 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 3 A | 50 V | 520mV @ 100mA, 2A | 1µA (ICBO) | 200 @ 100mA, 2V | 800 mW | 390MHz | 150°C (TJ) | Through Hole |
|
|
2SC5566-TD-ETRANS NPN 50V 4A PCP |
465 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | NPN | 4 A | 50 V | 225mV @ 100mA, 2A | 1µA (ICBO) | 200 @ 500mA, 2V | 1.3 W | 400MHz | 150°C (TJ) | Surface Mount |
|
|
2SD1624T-TD-ETRANS NPN 50V 3A PCP |
186 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | NPN | 3 A | 50 V | 500mV @ 100mA, 2A | 1µA (ICBO) | 200 @ 100mA, 2V | 500 mW | 150MHz | 150°C (TJ) | Surface Mount |
|
|
2SD1802T-ETRANS NPN 50V 5A TP |
847 | 0.79 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 5 A | 50 V | 0.5V @ 100mA, 2A | 1µA (ICBO) | 200 @ 100mA, 2V | 1 W | 150MHz | 150°C (TJ) | Through Hole |
|
|
NSV60600MZ4T1GTRANS PNP 60V 6A SOT223 |
3,203 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | PNP | 6 A | 60 V | 350mV @ 600mA, 6A | 100nA (ICBO) | 120 @ 1A, 2V | 800 mW | 100MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
FZT790ATRANS PNP 40V 3A SOT223-4 |
223 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | PNP | 3 A | 40 V | 750mV @ 50mA, 2A | 100nA (ICBO) | 300 @ 10mA, 2V | 2 W | 100MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
2SA1552T-TL-HTRANS PNP 160V 1.5A TP-FA |
452 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PNP | 1.5 A | 160 V | 500mV @ 50mA, 500mA | 1µA (ICBO) | 200 @ 100mA, 5V | 1 W | 120MHz | 150°C (TJ) | Surface Mount |
