| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_straightlead.jpg)
|
ZTX749A_J05ZTRANS PNP 35V 2A TO92-3 |
3,178 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 2 A | 35 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 1A, 2V | 1 W | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
ZTX749A_J61ZTRANS PNP 35V 2A TO92-3 |
2,885 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 2 A | 35 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 1A, 2V | 1 W | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
ZTX749_D26ZTRANS PNP 25V 2A TO226 |
2,888 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 2 A | 25 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 1A, 2V | 1 W | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
ZTX749_D27ZTRANS PNP 25V 2A TO226 |
3,786 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 2 A | 25 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 1A, 2V | 1 W | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
ZTX749_J61ZTRANS PNP 25V 2A TO92-3 |
2,266 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 2 A | 25 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 1A, 2V | 1 W | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
MJD200T5GTRANS NPN 25V 5A DPAK |
3,810 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 5 A | 25 V | 1.8V @ 1A, 5A | 100nA (ICBO) | 45 @ 2A, 1V | 1.4 W | 65MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
2N3904RL1GTRANS NPN 40V 0.2A TO92 |
2,725 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 200 mA | 40 V | 300mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
2N3906RL1GTRANS PNP 40V 0.2A TO92 |
3,352 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | PNP | 200 mA | 40 V | 400mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 625 mW | 250MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MPS2222ARLGTRANS NPN 40V 0.6A TO92 |
2,586 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | NPN | 600 mA | 40 V | 1V @ 50mA, 500mA | 10nA (ICBO) | 100 @ 150mA, 10V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MPS4126RLRAGTRANS PNP 25V 0.2A TO92 |
2,879 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | PNP | 200 mA | 25 V | 400mV @ 5mA, 50mA | 50nA (ICBO) | 120 @ 2mA, 1V | 625 mW | 170MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MPS5172RLRMGTRANS NPN 25V 0.1A TO92 |
2,873 | 1.00 |
RFQ |
Datasheet |
Cut Tape (CT),Bulk,Tape & Box (TB) | - | Obsolete | NPN | 100 mA | 25 V | 250mV @ 1mA, 10mA | 100nA | 100 @ 10mA, 10V | 625 mW | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MPS751RLRAGTRANS PNP 60V 2A TO92 |
3,439 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | PNP | 2 A | 60 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 75 @ 1A, 2V | 625 mW | 75MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MPSA06RLRMGTRANS NPN 80V 0.5A TO92 |
2,610 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Bulk,Tape & Box (TB) | - | Obsolete | NPN | 500 mA | 80 V | 250mV @ 10mA, 100mA | 100nA | 100 @ 100mA, 1V | 625 mW | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MPSA14RLRAGTRANS NPN DARL 30V 0.5A TO92 |
2,429 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN - Darlington | 500 mA | 30 V | 1.5V @ 100µA, 100mA | 100nA (ICBO) | 20000 @ 100mA, 5V | 625 mW | 125MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MPSA56RLRMGTRANS PNP 80V 0.5A TO92 |
2,315 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 500 mA | 80 V | 250mV @ 10mA, 100mA | 100nA | 100 @ 100mA, 1V | 625 mW | 50MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MPSA63RLRAGTRANS PNP DARL 30V 0.5A TO92 |
2,288 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PNP - Darlington | 500 mA | 30 V | 1.5V @ 100µA, 100mA | 100nA (ICBO) | 10000 @ 100mA, 5V | 625 mW | 125MHz | -55°C ~ 150°C (TJ) | Through Hole |
,TO-226_bentlead.jpg)
|
MPSW45ARLRAGTRANS NPN DARL 50V 1A TO92 |
2,495 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN - Darlington | 1 A | 50 V | 1.5V @ 2mA, 1A | 100nA (ICBO) | 25000 @ 200mA, 5V | 1 W | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MPSW92RLRAGTRANS PNP 300V 0.5A TO92 |
3,610 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PNP | 500 mA | 300 V | 500mV @ 2mA, 20mA | 250nA (ICBO) | 25 @ 30mA, 10V | 1 W | 50MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
MMBT2222ATTRANS NPN 40V 0.6A SC89-3 |
2,568 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 600 mA | 40 V | 1V @ 50mA, 500mA | - | 100 @ 150mA, 1V | 250 mW | 300MHz | 150°C (TJ) | Surface Mount |
|

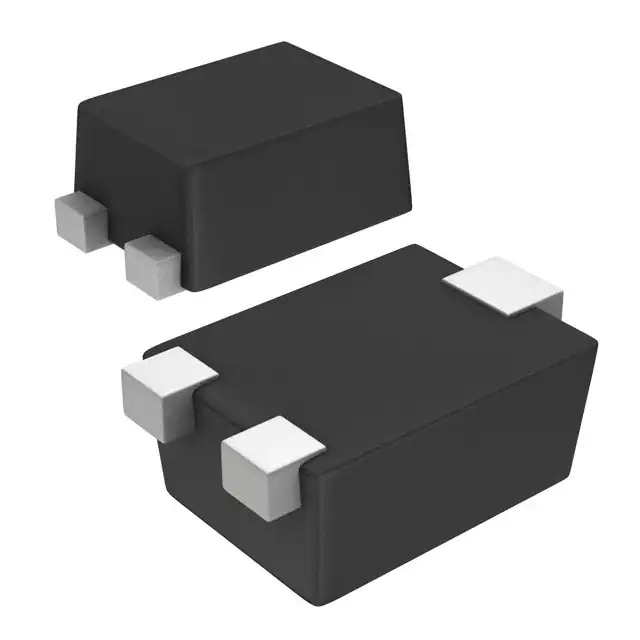

MMBT3906SLTRANS PNP 40V 0.2A SOT923F |
2,008 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PNP | 200 mA | 40 V | 400mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 227 mW | 250MHz | 150°C (TJ) | Surface Mount |
