| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

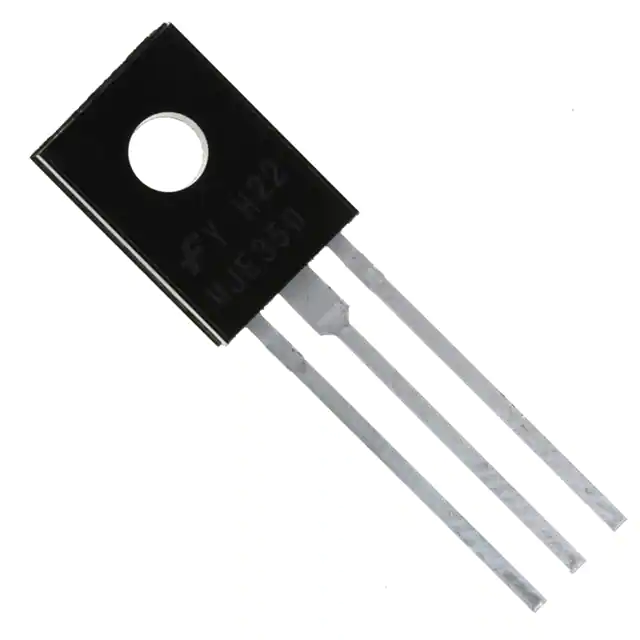

KSE350STUTRANS PNP 300V 0.5A TO126-3 |
2,914 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | PNP | 500 mA | 300 V | - | 100µA (ICBO) | 30 @ 50mA, 10V | 20 W | - | 150°C (TJ) | Through Hole |
|
ZTX614TRANS NPN DARL 100V 0.8A TO226 |
2,943 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN - Darlington | 800 mA | 100 V | 1.25V @ 8mA, 800mA | 100nA (ICBO) | 10000 @ 500mA, 5V | 1 W | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
KSE13003H1ASTRANS NPN 400V 1.5A TO126-3 |
3,974 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | - | 9 @ 500mA, 2V | 20 W | 4MHz | 150°C (TJ) | Through Hole |
|
|
KSE13003H2ASTRANS NPN 400V 1.5A TO126-3 |
3,042 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | - | 14 @ 500mA, 2V | 20 W | 4MHz | 150°C (TJ) | Through Hole |
|
|
KSE13003ASTRANS NPN 400V 1.5A TO126-3 |
3,288 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | - | 8 @ 500mA, 2V | 20 W | 4MHz | 150°C (TJ) | Through Hole |
|
|
KSE13003ASTUTRANS NPN 400V 1.5A TO126-3 |
3,313 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | - | 8 @ 500mA, 2V | 20 W | 4MHz | 150°C (TJ) | Through Hole |
,TO-226_straightlead.jpg)
|
FPN530ATRANS NPN 30V 3A TO226 |
2,699 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 3 A | 30 V | 250mV @ 100mA, 1A | 100nA (ICBO) | 250 @ 100mA, 2V | 1 W | 150MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
MJE180PWDTRANS NPN 40V 3A TO126 |
3,559 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 3 A | 40 V | 1.7V @ 600mA, 3A | 100nA (ICBO) | 50 @ 100mA, 1V | 1.5 W | 50MHz | 150°C (TJ) | Through Hole |
|
FPN660A_D26ZTRANS PNP 60V 3A TO226 |
3,697 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 3 A | 60 V | 400mV @ 200mA, 2A | 100nA (ICBO) | 250 @ 500mA, 2V | 1 W | 75MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FPN660ATRANS PNP 60V 3A TO226 |
3,806 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 3 A | 60 V | 400mV @ 200mA, 2A | 100nA (ICBO) | 250 @ 500mA, 2V | 1 W | 75MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FPN630ATRANS PNP 30V 3A TO226 |
3,942 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 3 A | 30 V | 250mV @ 100mA, 1A | 100nA (ICBO) | 250 @ 100mA, 2V | 1 W | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FPN530TRANS NPN 30V 3A TO226 |
2,290 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 3 A | 30 V | 300mV @ 100mA, 1A | 100nA (ICBO) | 100 @ 100mA, 2V | 1 W | 150MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
ZTX749TRANS PNP 25V 2A TO226 |
3,623 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 2 A | 25 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 1A, 2V | 1 W | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FPN560A_D75ZTRANS NPN 60V 3A TO92-3 |
3,244 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | NPN | 3 A | 60 V | 300mV @ 200mA, 2A | 100nA (ICBO) | 250 @ 500mA, 2V | 1 W | 75MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FPN560ATRANS NPN 60V 3A TO226 |
3,354 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 3 A | 60 V | 300mV @ 200mA, 2A | 100nA (ICBO) | 250 @ 500mA, 2V | 1 W | 75MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
KSD794YSTUTRANS NPN 45V 3A TO126-3 |
3,035 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | NPN | 3 A | 45 V | 2V @ 150mA, 1.5A | 1µA (ICBO) | 160 @ 500mA, 5V | 1 W | 60MHz | 150°C (TJ) | Through Hole |
|
|
KSB795OSTUTRANS PNP DARL 80V 1.5A TO126-3 |
3,116 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | PNP - Darlington | 1.5 A | 80 V | 1.5V @ 1mA, 1A | 10µA (ICBO) | 4000 @ 1A, 2V | 1 W | - | 150°C (TJ) | Through Hole |
|
|
KSB794OSTUTRANS PNP DARL 60V 1.5A TO126-3 |
2,475 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | PNP - Darlington | 1.5 A | 60 V | 1.5V @ 1mA, 1A | 10µA (ICBO) | 4000 @ 1A, 2V | 1 W | - | 150°C (TJ) | Through Hole |
|
|
KSB1149YSTRANS PNP DARL 100V 3A TO126-3 |
3,028 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP - Darlington | 3 A | 100 V | 1.2V @ 1.5mA, 1.5A | 10µA (ICBO) | 4000 @ 1.5A, 2V | 1.3 W | - | 150°C (TJ) | Through Hole |
|
|
KSE701STUTRANS PNP DARL 60V 4A TO126-3 |
3,713 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | PNP - Darlington | 4 A | 60 V | 2.8V @ 40mA, 2A | 100µA | 750 @ 2A, 3V | 40 W | - | 150°C (TJ) | Through Hole |
