| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BC547B-APTRANS NPN 45V 0.1A TO92 |
3,008 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | NPN | 100 mA | 45 V | 300mV @ 5mA, 100mA | - | 200 @ 2mA, 5V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
MPSA42-APTRANS NPN 300V 0.3A TO92 |
3,426 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | NPN | 300 mA | 300 V | 500mV @ 2mA, 20mA | 250nA (ICBO) | 80 @ 10mA, 10V | 625 mW | 50MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
BC847BM-TPTRANS NPN 45V 0.1A SOT883 |
3,590 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 100 mA | 45 V | 400mV @ 5mA, 100mA | 15nA | 220 @ 2mA, 5V | - | 100MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BC856BM-TPTRANS PNP 65V 0.1A SOT883 |
3,247 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PNP | 100 mA | 65 V | 500mV @ 5mA, 100mA | 100nA | 220 @ 2mA, 5V | - | 100MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BC857BM-TPTRANS PNP 45V 0.1A SOT883 |
3,462 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PNP | 100 mA | 45 V | 400mV @ 100mA, 5mA | 15nA | 220 @ 2mA, 5V | - | 100MHz | -55°C ~ 150°C (TJ) | Surface Mount |
,TO-226_bentlead.jpg)
|
2N5401-APTRANS PNP 150V 0.6A TO92 |
3,172 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 600 mA | 150 V | 500mV @ 5mA, 50mA | 50nA (ICBO) | 60 @ 10mA, 5V | 1.5 W | 100MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
2SA1201-Y-TPTRANS PNP 120V 0.8A SOT89 |
2,981 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 800 mA | 120 V | 1V @ 50mA, 500mA | 100nA (ICBO) | 80 @ 100mA, 5V | 1 W | 120MHz | 150°C (TJ) | Surface Mount |
|
MPSA13-APTRANS NPN DARL 30V 0.5A TO92 |
3,386 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN - Darlington | 500 mA | 30 V | 1.5V @ 100µA, 100mA | 100nA (ICBO) | 10000 @ 100mA, 5V | 1.5 W | 125MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
2SA1952-TPTRANS PNP 60V 5A DPAK |
2,767 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 5 A | 60 V | 500mV @ 200mA, 4A | 10µA (ICBO) | 120 @ 1A, 2V | 1 W | 80MHz | 150°C (TJ) | Surface Mount |
|
|
2SB1182-Q-TPTRANS PNP 32V 2A DPAK |
2,209 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 2 A | 32 V | 800mV @ 200mA, 2A | 1µA (ICBO) | 82 @ 500mA, 3V | 1.5 W | 100MHz | 150°C (TJ) | Surface Mount |
|
|
2SB1182-R-TPTRANS PNP 32V 2A DPAK |
2,745 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 2 A | 32 V | 800mV @ 200mA, 2A | 1µA (ICBO) | 82 @ 500mA, 3V | 1.5 W | 100MHz | 150°C (TJ) | Surface Mount |
|
|
2SC2983-Y-TPTRANS NPN 160V 1.5A DPAK |
3,097 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 1.5 A | 160 V | 1.5V @ 50mA, 500mA | 1µA (ICBO) | 70 @ 100mA, 5V | 1 W | 100MHz | 150°C (TJ) | Surface Mount |
|
|
2SC3303-Y-TPTRANS NPN 80V 5A DPAK |
3,251 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 5 A | 80 V | 400mV @ 150mA, 3A | 1µA (ICBO) | 70 @ 1A, 1V | 1 W | 20MHz | 150°C (TJ) | Surface Mount |
|
|
2N4123-APTRANS NPN 30V 0.2A TO92 |
3,983 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | NPN | 200 mA | 30 V | 300mV @ 5mA, 50mA | 50nA (ICBO) | 50 @ 2mA, 1V | 625 mW | 250MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
2N4400-APTRANS NPN 40V 0.6A TO92 |
3,758 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | NPN | 600 mA | 40 V | 750mV @ 50mA, 500mA | 100nA | 50 @ 150mA, 1V | 625 mW | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
2N4402-APTRANS PNP 40V 0.6A TO92 |
2,842 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | PNP | 600 mA | 40 V | 750mV @ 50mA, 500mA | 100nA | 50 @ 150mA, 2V | 625 mW | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
2N5550-APTRANS NPN 140V 0.6A TO92 |
2,936 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | NPN | 600 mA | 140 V | 250mV @ 5mA, 50mA | 100nA (ICBO) | 60 @ 10mA, 5V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | Through Hole |
|

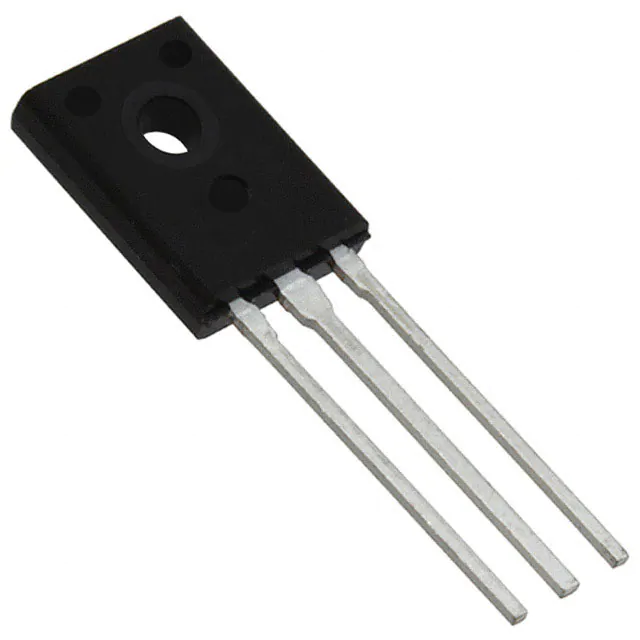

2N6036-APTRANS PNP DARL 80V 4A TO126 |
2,151 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | PNP - Darlington | 4 A | 80 V | 3V @ 40mA, 4A | 100µA | 750 @ 2A, 3V | 40 W | - | -55°C ~ 150°C (TJ) | Through Hole |
|
2N6045-APTRANS NPN DARL 100V 8A TO220AB |
3,948 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | NPN - Darlington | 8 A | 100 V | 4V @ 80mA, 8A | 20µA (ICBO) | 1000 @ 3A, 4V | 75 W | - | -60°C ~ 150°C (TJ) | Through Hole |
|
|
2N6107-APTRANS PNP 70V 7A TO220AB |
3,288 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | PNP | 7 A | 70 V | 3.5V @ 3A, 7A | 1mA | 30 @ 2A, 4V | 40 W | 10MHz | -55°C ~ 150°C (TJ) | Through Hole |
