Transistors - Bipolar (BJT) - Single(23316)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

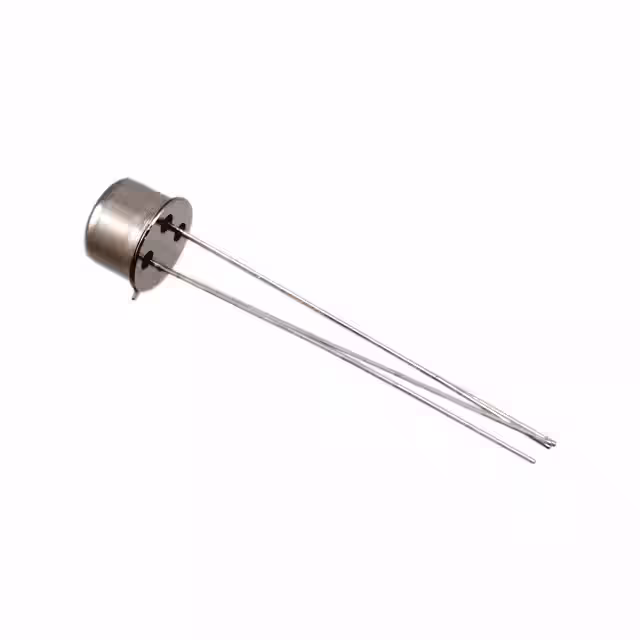

JAN2N6351TRANS NPN DARL 150V 5A TO33 |
2,712 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/472 | Active | NPN - Darlington | 5 A | 150 V | 2.5V @ 10mA, 5A | - | 1000 @ 5A, 5V | 1 W | - | -65°C ~ 200°C (TJ) | Through Hole |
|
JANS2N5339U3TRANS NPN 100V 5A SMD5 |
2,520 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/560 | Discontinued at Mosen | NPN | 5 A | 100 V | 1.2V @ 500mA, 5A | 100µA | 60 @ 2A, 2V | 1 W | - | -65°C ~ 200°C (TJ) | Surface Mount |
|
JANTX2N1613TRANS NPN 30V 0.5A TO39 |
2,461 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/181 | Discontinued at Mosen | NPN | 500 mA | 30 V | 1.5V @ 15mA, 150mA | 10µA (ICBO) | 40 @ 150mA, 10V | 800 mW | - | -65°C ~ 200°C (TJ) | Through Hole |
|

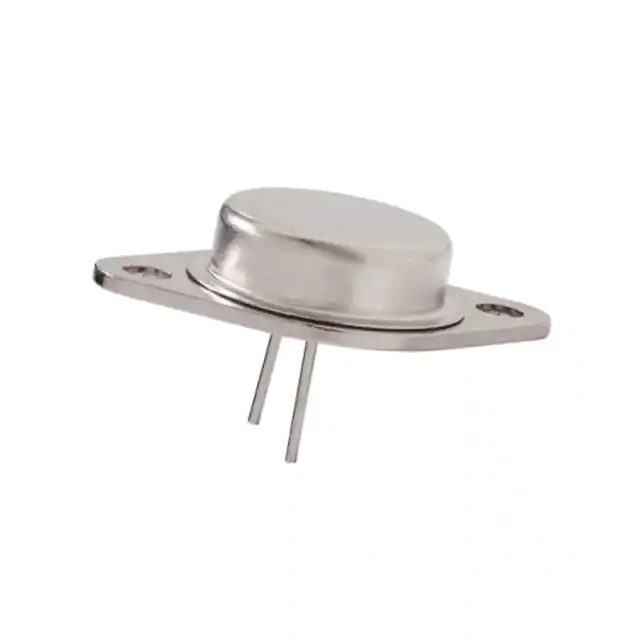

JANTX2N3055TRANS NPN 70V 15A TO3 |
2,747 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/407 | Obsolete | NPN | 15 A | 70 V | 2V @ 3.3A, 10A | 1mA | 20 @ 4A, 4V | 6 W | - | -65°C ~ 200°C (TJ) | Through Hole |
|
|
JANTX2N3251ATRANS PNP 60V 0.2A TO39 |
2,353 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/323 | Obsolete | PNP | 200 mA | 60 V | 500mV @ 5mA, 50mA | 10µA (ICBO) | 100 @ 10mA, 1V | 360 mW | - | -65°C ~ 200°C (TJ) | Through Hole |
|
|
JANTX2N3468TRANS PNP 50V 1A TO39 |
3,523 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/348 | Active | PNP | 1 A | 50 V | 1.2V @ 100mA, 1A | 100nA (ICBO) | 25 @ 500mA, 1V | 1 W | - | -55°C ~ 175°C (TJ) | Through Hole |
|
JANTX2N3740TRANS PNP 60V 4A TO66 |
2,556 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/441 | Active | PNP | 4 A | 60 V | 600mV @ 125mA, 1A | 10µA | 30 @ 250mA, 1V | 25 W | - | -65°C ~ 200°C (TJ) | Through Hole |
|
|
JANTX2N3743TRANS PNP 300V 0.2A TO39 |
2,213 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/397 | Active | PNP | 200 mA | 300 V | 1.2V @ 3mA, 30mA | 250nA (ICBO) | 50 @ 30mA, 10V | 1 W | - | - | Through Hole |
|
|
JANTX2N3763TRANS PNP 60V 1.5A TO39 |
3,396 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/396 | Active | PNP | 1.5 A | 60 V | 900mV @ 100mA, 1A | 10µA (ICBO) | 20 @ 1A, 1.5V | 1 W | - | -55°C ~ 200°C (TJ) | Through Hole |
|
JANTX2N3960TRANS NPN 12V TO18 |
2,340 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/399 | Discontinued at Mosen | NPN | - | 12 V | 300mV @ 3mA, 30mA | 10µA (ICBO) | 60 @ 10mA, 1V | 400 mW | - | -65°C ~ 200°C (TJ) | Through Hole |
|
JANTX2N4261TRANS PNP 15V 0.03A TO72 |
3,512 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/511 | Active | PNP | 30 mA | 15 V | 350mV @ 1mA, 10mA | 10µA (ICBO) | 30 @ 10mA, 1V | 200 mW | - | -65°C ~ 200°C (TJ) | Through Hole |
|
|
JANTX2N5109TRANS NPN TO39 |
2,542 | 0.00 |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | Through Hole | |
|
JANTX2N5237TRANS NPN 120V 10A TO5 |
2,175 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/394 | Active | NPN | 10 A | 120 V | 2.5V @ 1A, 10A | 10µA | 40 @ 5A, 5V | 1 W | - | -65°C ~ 200°C (TJ) | Through Hole |
|
|
JANTX2N5663TRANS NPN 300V 2A TO5 |
3,246 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/454 | Active | NPN | 2 A | 300 V | 800mV @ 400mA, 2A | 200nA | 25 @ 500mA, 5V | 1 W | - | -65°C ~ 200°C (TJ) | Through Hole |
|
|
JANTX2N6298TRANS PNP DARL 60V 8A |
3,705 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/540 | Discontinued at Mosen | PNP - Darlington | 8 A | 60 V | 2V @ 80mA, 8A | 500µA | 750 @ 4A, 3V | 64 W | - | -65°C ~ 175°C (TJ) | Through Hole |
|

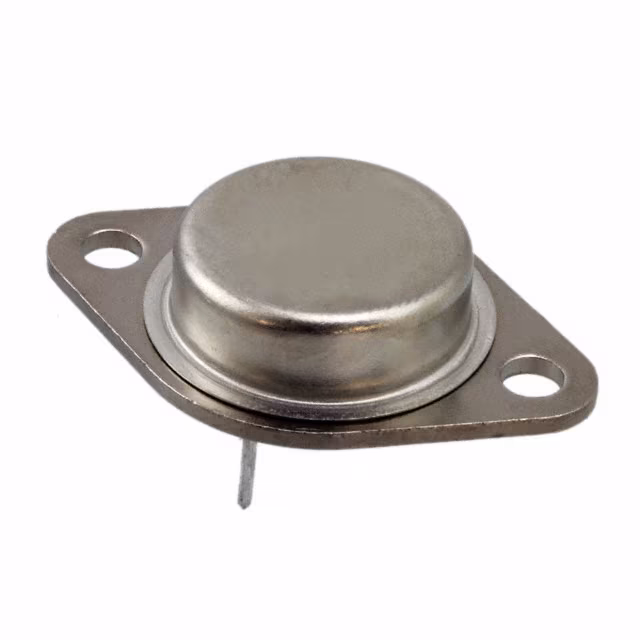

JANTX2N6650TRANS PNP DARL 80V 10A TO204AA |
2,786 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/527 | Discontinued at Mosen | PNP - Darlington | 10 A | 80 V | 3V @ 100µA, 10A | 1mA | 1000 @ 5A, 3V | 5 W | - | -65°C ~ 175°C (TJ) | Through Hole |
|
|
JANTXV2N2369ATRANS NPN 15V TO206AA |
2,816 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/317 | Active | NPN | - | 15 V | 450mV @ 10mA, 100mA | 400nA | 20 @ 100mA, 1V | 360 mW | - | -65°C ~ 200°C (TJ) | Through Hole |
|
|
JANTXV2N2432ATRANS NPN 45V 0.1A TO18 |
3,723 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/313 | Active | NPN | 100 mA | 45 V | 0.15mV @ 500µA, 10V | 10nA | 80 @ 1mA, 5V | 300 mW | - | -65°C ~ 175°C (TJ) | Through Hole |
|
|
JANTXV2N5662TRANS NPN 200V 2A TO5 |
2,167 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/454 | Active | NPN | 2 A | 200 V | 800mV @ 400mA, 2A | 200nA | 40 @ 500mA, 5V | 1 W | - | -65°C ~ 200°C (TJ) | Through Hole |
|
JANTXV2N6052TRANS PNP DARL 100V 12A TO3 |
3,665 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/501 | Discontinued at Mosen | PNP - Darlington | 12 A | 100 V | 3V @ 120mA, 12A | 1mA | 1000 @ 6A, 3V | 150 W | - | -55°C ~ 175°C (TJ) | Through Hole |
