| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Voltage-CollectorEmitterBreakdown(Max) | Frequency-Transition | NoiseFigure(dBTyp@f) | Gain | Power-Max | DCCurrentGain(hFE)(Min)@IcVce | Current-Collector(Ic)(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTE237RF TRANS NPN 60V 300MHZ TO39 |
120 | 5.40 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 60V | 300MHz | - | - | 10W | 10 @ 500mA, 5V | 2A | 175°C (TJ) | Through Hole |
|
NTE235RF TRANS NPN 75V 150MHZ TO220 |
2,890 | 6.30 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 75V | 150MHz | - | - | 1.2W | 25 @ 500mA, 5V | 3A | 150°C (TJ) | Through Hole |
|
NTE236RF TRANS NPN 25V TO220 |
420 | 12.07 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 25V | - | - | 12dB | 1.7W | 90 @ 10mA, 12V | 6A | 150°C (TJ) | Through Hole |
|
NTE2634T-PNP SI VIDEO DR 1GHZ TO-126 |
2,839 | 1.94 |
RFQ |
Datasheet |
Bag | - | Active | PNP | 95V | 1.2GHz | - | - | 3W | 20 @ 50mA, 10V | 300mA | 175°C (TJ) | Through Hole |
|
MPSH10RF TRANS NPN 25V 650MHZ |
966 | 0.15 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 25V | 650MHz | - | - | 350mW | 60 @ 4mA, 10V | - | -65°C ~ 150°C (TJ) | Through Hole |
|
NTE319PRF TRANS NPN 20V 500MHZ TO92 |
2,453 | 1.04 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 20V | 500MHz | 2.7dB @ 45MHz | 29dB | 625mW | 20 @ 2mA, 10V | 50mA | 150°C (TJ) | Through Hole |
|
NTE107RF TRANS NPN 12V 2.1GHZ TO92 |
315 | 1.10 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 12V | 2.1GHz | 6.5dB @ 60MHz | - | 200mW | 20 @ 8mA, 10V | 25mA | 100°C (TJ) | Through Hole |
|
NTE15RF TRANS NPN 19V 1.1GHZ 3SIP |
2,616 | 1.46 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 19V | 1.1GHz | - | - | 300mW | 39 @ 5mA, 10V | 50mA | 125°C (TJ) | Through Hole |
|

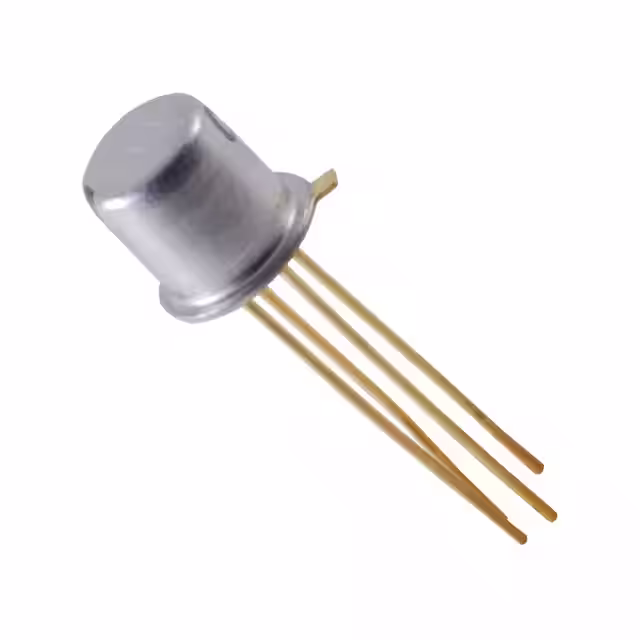

NTE319RF TRANS NPN 20V TO72 |
2,806 | 1.60 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 20V | - | 2.7dB @ 45MHz | 29dB | 175mW | 20 @ 2mA, 10V | - | 175°C (TJ) | Through Hole |
|
NTE108RF TRANS NPN 15V 600MHZ TO92 |
2,199 | 1.64 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 15V | 600MHz | 6dB @ 60MHz | 15dB | 625mW | 20 @ 8mA, 10V | 50mA | -55°C ~ 150°C (TJ) | Through Hole |
|

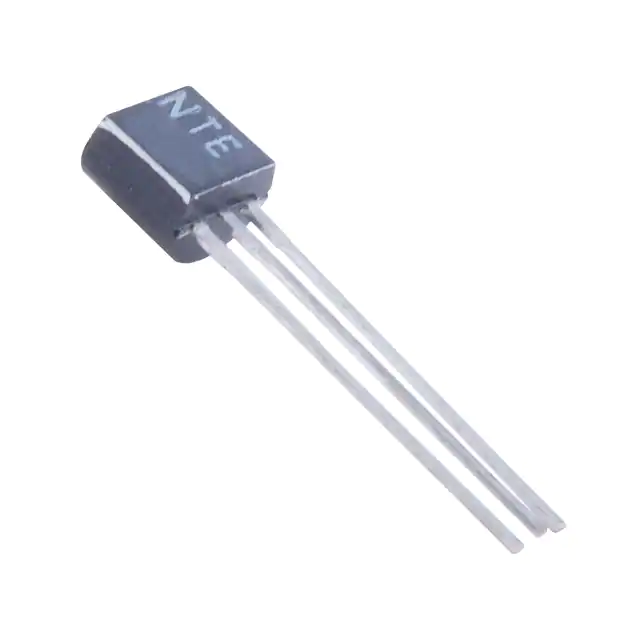

NTE229RF TRANS NPN 30V 500MHZ TO92 |
2,881 | 1.88 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 30V | 500MHz | 6dB @ 45MHz | 28dB | 425mW | 30 @ 5mA, 10V | 50mA | 150°C (TJ) | Through Hole |
|
NTE23RF TRANS NPN 14V 2GHZ TO92 |
100 | 1.96 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 14V | 2GHz | 3dB @ 500MHz | 15dB | 250mW | 25 @ 10mA, 10V | 50mA | 150°C (TJ) | Through Hole |
|

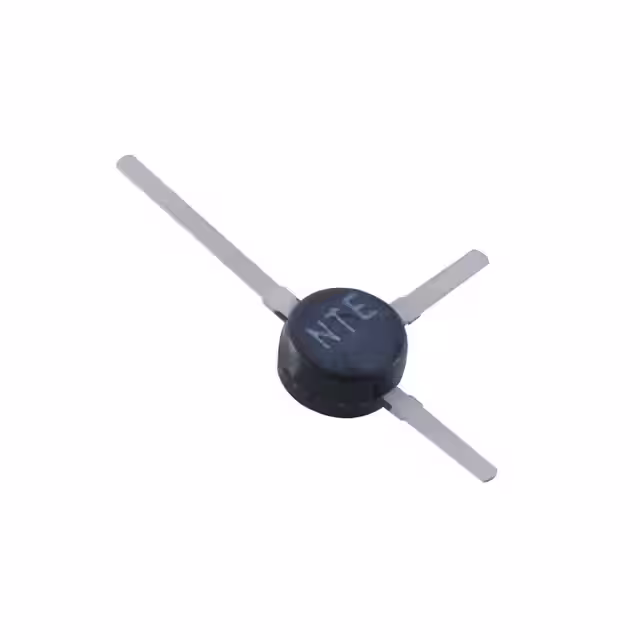

NTE65RF TRANS NPN 15V 5GHZ 3SMD |
3,381 | 2.70 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 15V | 5GHz | 2.4dB ~ 3dB @ 500MHz ~ 1GHz | 18dB | 180mW | 25 @ 14mA, 10V | 30mA | - | Surface Mount |
|

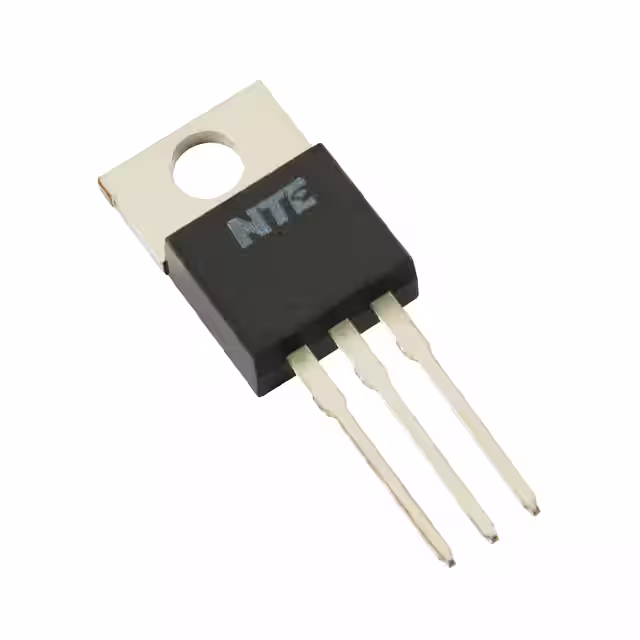

NTE54RF TRANS NPN 150V 30MHZ TO220 |
2,796 | 3.74 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 150V | 30MHz | - | - | 2W | 40 @ 2A, 2V | 8A | -65°C ~ 150°C (TJ) | Through Hole |
|

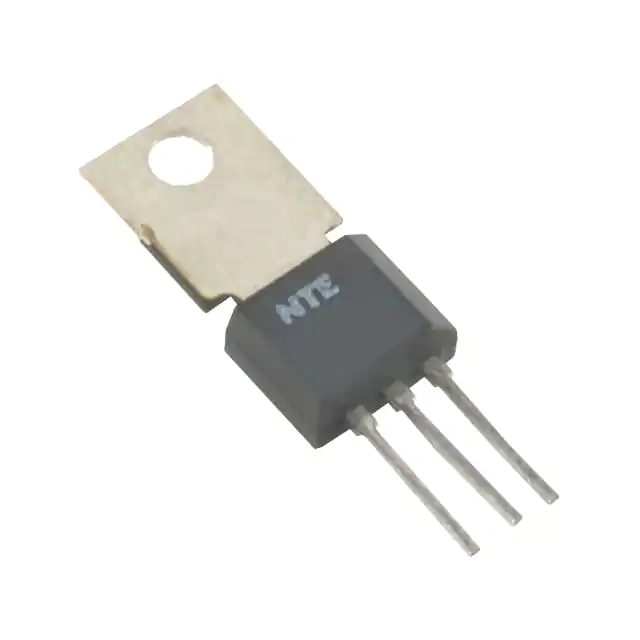

NTE78RF TRANS NPN 75V 16DIP |
3,483 | 3.82 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 75V | - | - | - | 1.5W | 35 @ 100mA, 10V | 4A | 150°C (TJ) | Through Hole |
|
NTE346RF TRANS NPN 20V 500MHZ TO39 |
3,638 | 4.00 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 20V | 500MHz | - | 10dB | 1W | 10 @ 100mA, 5V | 400mA | - | Through Hole |
|

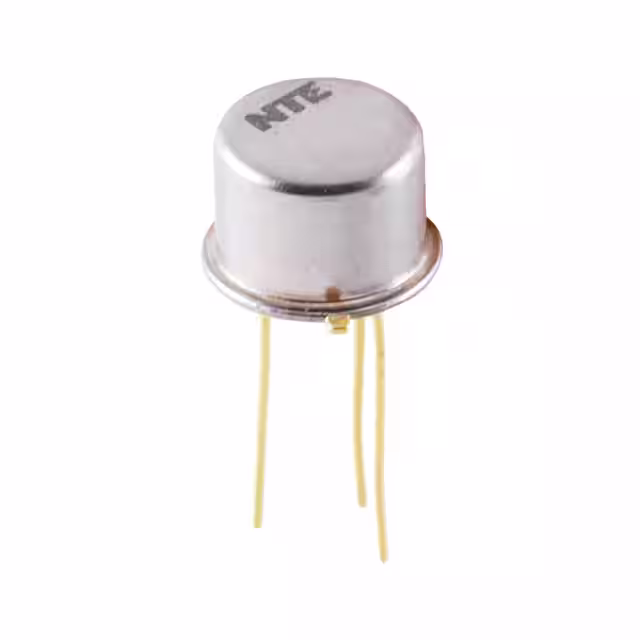

NTE77RF TRANS NPN 30V 1.8GHZ TO39 |
3,307 | 6.17 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 30V | 1.8GHz | 2.7dB ~ 7dB @ 200MHz ~ 216MHz | 7.2dB | 3.5W | 30 @ 50mA, 15V | 400mA | 200°C (TJ) | Through Hole |
|
NTE311RF TRANS NPN 30V 800MHZ TO39 |
3,713 | 6.46 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 30V | 800MHz | - | 10dB | 5W | 25 @ 50mA, 5V | 400mA | - | Through Hole |
|

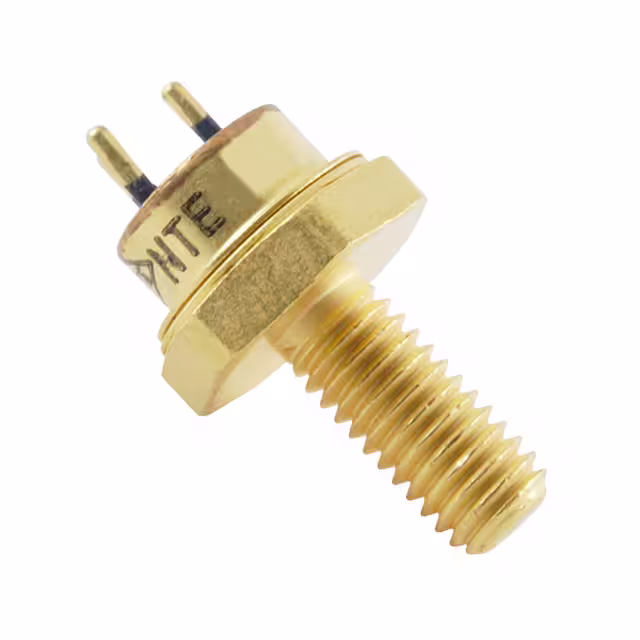

NTE16003T-NPN SI RF PO=7.5 WATTS |
3,233 | 45.38 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 40V | 500MHz | - | - | 11.6W | - | 1.5A | -65°C ~ 200°C (TJ) | Stud Mount |
|
MPSH17RF TRANS NPN 15V 800MHZ TO92-3 |
2,191 | 0.13 |
RFQ |
Datasheet |
Bag | - | Active | NPN | 15V | 800MHz | 6dB @ 200MHz | 24dB | 350mW | 25 @ 5mA, 10V | - | -55°C ~ 150°C (TJ) | Through Hole |
