| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Voltage-CollectorEmitterBreakdown(Max) | Frequency-Transition | NoiseFigure(dBTyp@f) | Gain | Power-Max | DCCurrentGain(hFE)(Min)@IcVce | Current-Collector(Ic)(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2304RF TRANS NPN 45V 2.3GHZ 55BT |
2,406 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 45V | 2.3GHz | - | 8dB | 10.2W | 10 @ 300mA, 5V | 600mA | 200°C (TJ) | Chassis Mount |
|
|
MS1509RF TRANS NPN 33V 500MHZ M168 |
3,424 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 33V | 500MHz | - | 5.5dBi | 260W | 20 @ 1mA, 5V | 15A | 200°C (TJ) | Chassis Mount |
|
|
10A015RF TRANS NPN 24V 2.7GHZ 55FT |
3,900 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 24V | 2.7GHz | - | 9dB ~ 9.5dB | 6W | 20 @ 100mA, 5V | 750mA | 200°C (TJ) | Stud Mount |
|
|
TPR1000RF TRANS NPN 65V 1.09GHZ 55KV |
3,231 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 65V | 1.09GHz | - | 6dB | 2900W | 10 @ 1A, 5V | 80A | 200°C (TJ) | Chassis Mount |
|
|
UMIL10RF TRANS NPN 30V 400MHZ 55FT |
2,455 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 30V | 100MHz ~ 400MHz | - | 10dB | 28W | 10 @ 200mA, 5V | 1.5A | 200°C (TJ) | Chassis, Stud Mount |
|
|
DME375ARF TRANS NPN 55V 1.15GHZ 55AW |
2,582 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 55V | 1.025GHz ~ 1.15GHz | - | 6.5dB | 375W | 10 @ 300mA, 5V | 30A | 200°C (TJ) | Chassis Mount |
|
|
1035MPRF TRANS NPN 65V 1.15GHZ 55FW-1 |
3,544 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 65V | 1.025GHz ~ 1.15GHz | - | 10dB ~ 10.5dB | 125W | 20 @ 100mA, 5V | 2.5A | 200°C (TJ) | Chassis Mount |
|
|
23A025RF TRANS NPN 22V 3.7GHZ 55BT |
3,975 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 22V | 3.7GHz | - | 6dB ~ 6.3dB | 9W | 20 @ 420mA, 5V | 1.2A | 200°C (TJ) | Chassis Mount |
|
|
TAN350RF TRANS NPN 65V 1.215GHZ 55ST |
3,242 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 65V | 960MHz ~ 1.215GHz | - | 7dB ~ 7.5dB | 1450W | 10 @ 1A, 5V | 40A | 230°C (TJ) | Chassis Mount |
|
|
BFY90RF TRANS NPN 15V 1.3GHZ TO72 |
2,285 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 15V | 1.3GHz | 2.5dB ~ 5dB @ 500MHz | 20dB | 200mW | 20 @ 25mA, 1V | 50mA | - | Through Hole |
|
|
MDS140LRF TRANS NPN 70V 1.09GHZ 55AW |
3,700 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 70V | 1.03GHz ~ 1.09GHz | - | 9.5dB | 500W | 20 @ 1A, 5V | 12A | 200°C (TJ) | Chassis Mount |
; ; 3.jpg)
|
MRF517RF TRANS NPN 20V 4GHZ TO39 |
3,645 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 20V | 4GHz | - | 9dB ~ 10dB | 2.5W | 50 @ 60mA, 10V | 150mA | - | Through Hole |
|
|
MS2206RF TRANS NPN 20V 1.15GHZ M115 |
3,123 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 20V | 1.025GHz ~ 1.15GHz | - | 10dB | 7.5W | 20 @ 100mA, 5V | 1A | 200°C (TJ) | Chassis Mount |
|
|
UTV005RF TRANS NPN 24V 860MHZ 55FT |
2,681 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 24V | 470MHz ~ 860MHz | - | 11dB | 8W | 20 @ 100mA, 5V | 750mA | 200°C (TJ) | Chassis, Stud Mount |
|
|
MS2204RF TRANS NPN 20V 1.09GHZ M115 |
2,036 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 20V | 1.09GHz | - | 10.8dB | 600mW | 15 @ 100mA, 5V | 300mA | 200°C (TJ) | Chassis Mount |
|
|
MS2203RF TRANS NPN 20V 1.09GHZ M220 |
2,136 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 20V | 1.09GHz | - | 10.8dB ~ 12.3dB | 5W | 120 @ 100mA, 5V | 300mA | 200°C (TJ) | Chassis Mount |
|

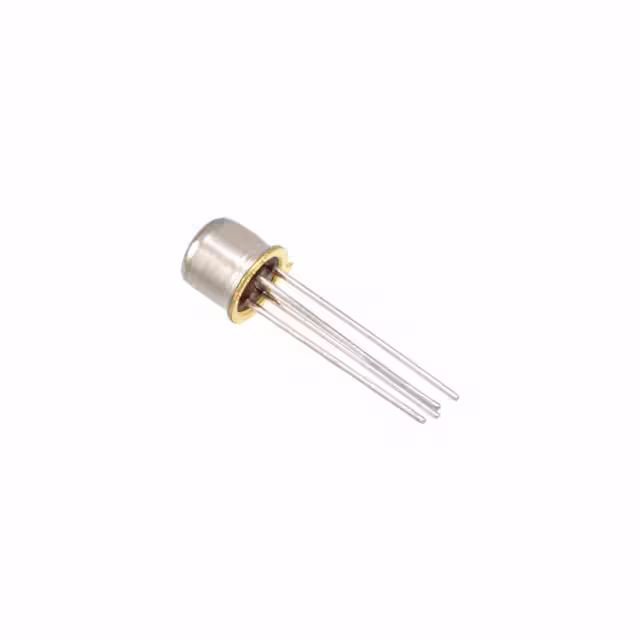

JANTX2N2857RF TRANS NPN 15V 500MHZ TO72 |
3,463 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/343 | Obsolete | NPN | 15V | 500MHz | 4.5dB @ 450MHz | 12.5dB ~ 21dB @ 450MHz | 200mW | 30 @ 3mA, 1V | 40mA | -65°C ~ 200°C (TJ) | Through Hole |
|
JAN2N2857RF TRANS NPN 15V 500MHZ TO72 |
2,847 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/343 | Obsolete | NPN | 15V | 500MHz | 4.5dB @ 450MHz | 12.5dB ~ 21dB @ 450MHz | 200mW | 30 @ 3mA, 1V | 40mA | -65°C ~ 200°C (TJ) | Through Hole |
|
|
JANTXV2N2857RF TRANS NPN 15V 500MHZ TO72 |
2,765 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/343 | Obsolete | NPN | 15V | 500MHz | 4.5dB @ 450MHz | 12.5dB ~ 21dB @ 450MHz | 200mW | 30 @ 3mA, 1V | 40mA | -65°C ~ 200°C (TJ) | Through Hole |
|
2N2857UBRF TRANS NPN 15V 0.04A UB |
3,286 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 15V | - | 4.5dB @ 450MHz | 21dB | 200mW | 30 @ 3mA, 1V | 40mA | -65°C ~ 200°C (TJ) | Surface Mount |
