| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

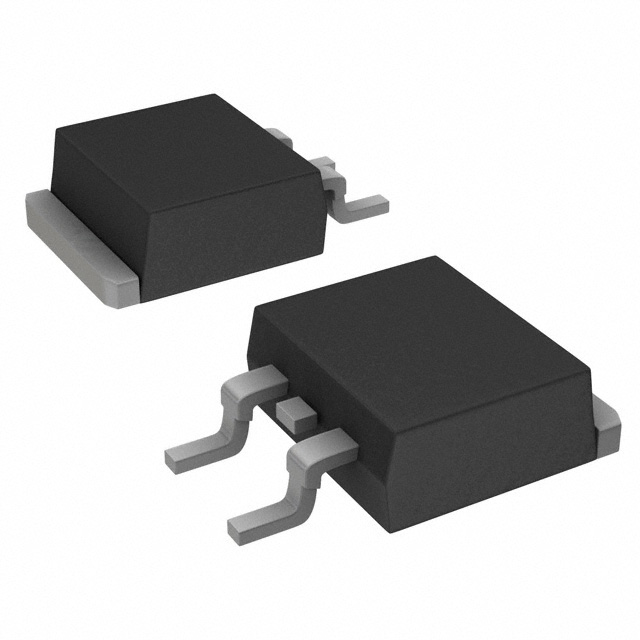

SJ4040N2ARP40 AMP STANDARD SCR TO-263 |
2,060 | 2.95 |
RFQ |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SJ6040N2ARP40 AMP STANDARD SCR TO-263 |
3,227 | 2.99 |
RFQ |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
HS4040RAQ3TPSCR 400V 40A TO220AB |
2,099 | 3.02 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, Teccor® | Active | 400 V | 1.5 V | 65 mA | 1.8 V | 25 A | 40 A | 200 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
|
S8055NTPSCR 800V 55A TO263 |
2,625 | 3.07 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
SK040NTPSCR 1KV 40A TO263 |
2,829 | 3.09 |
RFQ |
Datasheet |
Tube | - | Active | 1 kV | 1.5 V | 40 mA | 1.8 V | 25 A | 40 A | 60 mA | 30 µA | 430A, 520A | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
S6040NRPSCR 600V 40A TO263 |
2,271 | 3.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 600 V | 1.5 V | 40 mA | 1.8 V | 25 A | 40 A | 60 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
HS4040RAQTPSCR 400V 40A TO220AB |
2,502 | 3.21 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, Teccor® | Active | 400 V | 1.5 V | 35 mA | 1.6 V | 25 A | 40 A | 70 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
|
|
SK055NTPSCR 1KV 55A TO263 |
3,467 | 3.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 kV | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 30 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
S8040NRPSCR 800V 40A TO263 |
2,746 | 3.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 25 A | 40 A | 60 mA | 20 µA | 430A, 520A | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
SK040NRPSCR 1KV 40A TO263 |
2,124 | 3.53 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 kV | 1.5 V | 40 mA | 1.8 V | 25 A | 40 A | 60 mA | 30 µA | 430A, 520A | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
HS4040NAQ2RPSCR 400V 40A TO263 |
2,177 | 3.77 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, Teccor® | Active | 400 V | 1.5 V | 45 mA | 1.6 V | 25 A | 40 A | 120 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
HS4040NAQRPSCR 400V 40A TO263 |
3,757 | 3.77 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, Teccor® | Active | 400 V | 1.5 V | 35 mA | 1.6 V | 25 A | 40 A | 70 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
HS4040NAQ3RPSCR 400V 40A TO263 |
2,252 | 3.88 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, Teccor® | Active | 400 V | 1.5 V | 65 mA | 1.8 V | 25 A | 40 A | 200 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 150°C (TJ) | Surface Mount |
, TO-218AC.jpg)
|
S6055MTPSCR 600V 55A TO218-3 |
3,193 | 4.31 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 10 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
SK035KTPSCR 1KV 35A TO218 |
2,232 | 4.57 |
RFQ |
Datasheet |
Tube | - | Active | 1 kV | 1.5 V | 40 mA | 1.8 V | 22 A | 35 A | 50 mA | 20 µA | 425A, 500A | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
S4055WTPSCR 400V 55A TO218X |
3,329 | 4.57 |
RFQ |
Datasheet |
Tube | - | Active | 400 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 10 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
|
S8055WTPSCR 800V 55A TO218X |
3,949 | 4.77 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
S8035JTPSCR 800V 35A TO218X |
3,759 | 4.79 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 22 A | 35 A | 50 mA | 20 µA | 425A, 500A | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
|
S6055WTPSCR 600V 55A TO218X |
2,949 | 4.89 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 10 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | Through Hole |
.jpg)
|
S4040RQ2TPSCR 400V 40A TO220 |
2,779 | 5.46 |
RFQ |
Tube | - | Active | 400 V | 1.5 V | 40 mA | 1.8 V | 25 A | 40 A | 60 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 125°C | Through Hole |
