| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
TS1220-600BSCR 600V 12A DPAK |
3,731 | 1.70 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 800 mV | 200 µA | 1.6 V | 8 A | 12 A | 5 mA | 5 µA | 110A, 115A | Sensitive Gate | -40°C ~ 125°C | Surface Mount |
|

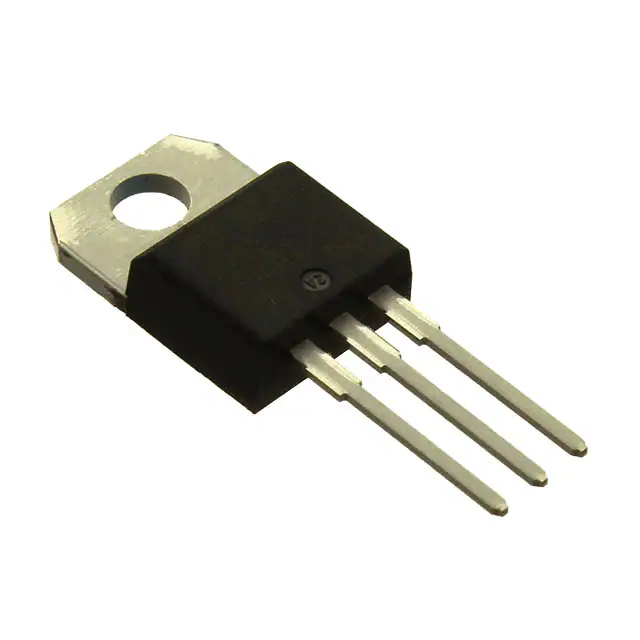

TYN1012RGSCR 1KV 12A TO220AB |
2,537 | 2.96 |
RFQ |
Datasheet |
Tube | - | Active | 1 kV | 1.3 V | 15 mA | 1.6 V | 8 A | 12 A | 30 mA | 5 µA | 140A, 145A | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
|
TYN058RGSCR 50V 8A TO220AB |
3,059 | 1.99 |
RFQ |
Datasheet |
Tube | - | Active | 50 V | 1.5 V | 25 mA | 1.6 V | 5 A | 8 A | 45 mA | 5 µA | 80A, 84A | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
BTW69-200RGSCR 200V 50A TOP3 |
3,820 | 9.97 |
RFQ |
Datasheet |
Tube | - | Active | 200 V | 1.5 V | 80 mA | 1.9 V | 32 A | 50 A | 150 mA | 10 µA | 580A, 610A | Standard Recovery | -40°C ~ 125°C | Through Hole |
,TO-226_straightlead.jpg)
|
X0205MA 2BL2SCR 600V 1.25A TO92-3 |
2,318 | 0.69 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Active | 600 V | 800 mV | 50 µA | 1.45 V | 800 mA | 1.25 A | 5 mA | 5 µA | 22.5A, 25A | Sensitive Gate | -40°C ~ 125°C | Through Hole |
|
TS110-8UFSCR 800V 1.25A SMBFLAT-3L |
3,753 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 800 V | 800 mV | 100 µA | 1.6 V | 800 mA | 1.25 A | 12 mA | - | 20A, 21A | Sensitive Gate | -40°C ~ 125°C | Surface Mount |
|
P0109AL 5AA4SCR 100V 250MA SOT23-3L |
3,813 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 100 V | 800 mV | 1 µA | 1.7 V | 160 mA | 250 mA | 6 mA | 1 µA | 6A, 7A | Sensitive Gate | -40°C ~ 125°C | Surface Mount |
|
P0111MN 5AA4SCR 600V 800MA SOT223 |
3,807 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 600 V | 800 mV | 25 µA | 1.95 V | 500 mA | 800 mA | 5 mA | 10 µA | 7A, 8A | Sensitive Gate | -40°C ~ 125°C | Surface Mount |
 Formed Leads.jpg)
|
TS110-8A1-APSCR 800V 1.25A TO92 |
3,123 | 0.76 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Active | 800 V | 800 mV | 100 µA | 1.6 V | 800 mA | 1.25 A | 12 mA | 1 µA | 20A, 21A | Sensitive Gate | -40°C ~ 125°C | Through Hole |
|
|
X00602MA 1AA2SCR 600V 800MA TO92-3 |
3,594 | 0.49 |
RFQ |
Datasheet |
Bulk | - | Active | 600 V | 800 mV | 200 µA | 1.35 V | 500 mA | 800 mA | 5 mA | 1 µA | 9A, 10A | Sensitive Gate | -40°C ~ 125°C | Through Hole |
|
TN1605H-6G-TRSCR 600V 16A D2PAK |
2,246 | 1.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 600 V | 1.3 V | 6 mA | 1.6 V | 10 A | 16 A | 20 mA | 5 µA | 140A, 153A | Standard Recovery | -40°C ~ 150°C | Surface Mount |
|
|
TN1215-600B-TRSCR 600V 12A DPAK |
3,961 | 1.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 600 V | 1.3 V | 15 mA | 1.6 V | 8 A | 12 A | 40 mA | 5 µA | 115A, 110A | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
TN1605H-6GSCR 600V 16A D2PAK |
3,567 | 1.23 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 1.3 V | 6 mA | 1.6 V | 10 A | 16 A | 20 mA | 5 µA | 140A, 153A | Standard Recovery | -40°C ~ 150°C | Surface Mount |
|
|
TN1205H-6TSCR 600V 12A TO220AB |
2,041 | 1.08 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 1.3 V | 5 mA | 1.6 V | 7.6 A | 12 A | 20 mA | 5 µA | 120A, 126A | Standard Recovery | -40°C ~ 150°C | Through Hole |
|
|
TS420-600BSCR 600V 4A DPAK |
3,148 | 1.50 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 800 mV | 200 µA | 1.6 V | 2.5 A | 4 A | 5 mA | 5 µA | 30A, 33A | Sensitive Gate | -40°C ~ 125°C | Surface Mount |
|
TN2540-600G-TRSCR 600V 25A D2PAK |
2,807 | 2.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 600 V | 1.3 V | 40 mA | 1.6 V | 16 A | 25 A | 50 mA | 5 µA | 300A, 314A | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
TN2540-12G-TRSCR 1.2KV 25A D2PAK |
3,484 | 2.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ECOPACK®2 | Active | 1.2 kV | 1.3 V | 40 mA | 1.6 V | 16 A | 25 A | 80 mA | 10 µA | 300A, 314A | Standard Recovery | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
TS820-600BSCR 600V 8A DPAK |
3,379 | 1.66 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 800 mV | 200 µA | 1.6 V | 5 A | 8 A | 5 mA | 5 µA | 70A, 73A | Sensitive Gate | -40°C ~ 125°C | Surface Mount |
|
|
TN22-1500TSCR 400V 2A TO220AB |
3,554 | 1.66 |
RFQ |
Datasheet |
Tube | - | Active | 400 V | 3 V | 1.5 mA | 3.1 V | 1.8 A | 2 A | 175 mA | 100 µA | 20A, 22A | Standard Recovery | -40°C ~ 110°C | Through Hole |
|
TN3015H-6ISCR 600MV 30A TO220AB |
2,556 | 1.73 |
RFQ |
Datasheet |
Tube | ECOPACK®2 | Active | 600 mV | 1.3 V | 15 mA | 1.6 V | 19 A | 30 A | 60 mA | 10 µA | 270A, 295A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
