| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

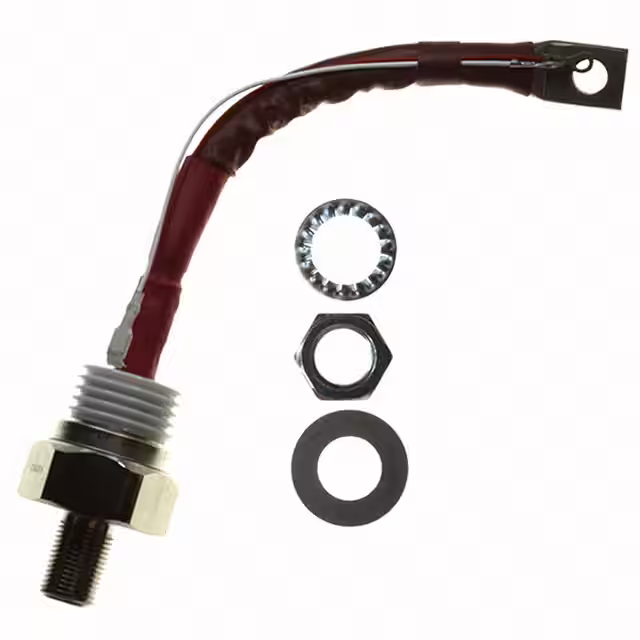

VS-ST300S20P0SCR 2KV 470A TO209AE |
3,429 | 0.00 |
RFQ |
Bulk | - | Obsolete | 2 kV | 3 V | 200 mA | 1.66 V | 300 A | 470 A | 600 mA | 30 mA | 8000A, 8380A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount | |
|
VS-ST110S14P0SCR 1.4KV 175A TO209AC |
2,257 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1.4 kV | 3 V | 150 mA | 1.52 V | 110 A | 175 A | 600 mA | 20 mA | 2700A, 2830A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-ST230S14P0SCR 1.4KV 360A TO209AB |
2,998 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1.4 kV | 3 V | 150 mA | 1.55 V | 230 A | 360 A | 600 mA | 30 mA | 5700A, 5970A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
VS-ST333S04PFM0SCR 400V 518A TO209AE |
2,221 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 400 V | 3 V | 200 mA | 1.96 V | 330 A | 518 A | 600 mA | 50 mA | 11000A, 11520A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
;K.jpg)
|
ST1000C12K0SCR 1.2KV 2913A A24 |
2,109 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1.2 kV | 3 V | 200 mA | 1.8 V | 1473 A | 2913 A | 600 mA | 100 mA | 20A, 21.2A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
ST3230C10R0SCR 1KV 5970A RPUK |
3,883 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 kV | 4 V | 400 mA | 1.3 V | 2785 A | 5970 A | - | 250 mA | 61200A, 64000A | Standard Recovery | - | Chassis Mount |
|
|
ST2100C36R0SCR 3.6KV 3850A RPUK |
3,086 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 3.6 kV | 4 V | 400 mA | 1.875 V | 1770 A | 3850 A | - | 250 mA | 36250A, 38000A | Standard Recovery | - | Chassis Mount |
|
|
ST3230C16R0SCR 1.6KV 5970A RPUK |
3,781 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1.6 kV | 4 V | 400 mA | 1.3 V | 2785 A | 5970 A | - | 250 mA | 61200A, 64000A | Standard Recovery | - | Chassis Mount |
|
|
ST2100C38R0SCR 3.8KV 3850A RPUK |
3,649 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 3.8 kV | 4 V | 400 mA | 1.875 V | 1770 A | 3850 A | - | 250 mA | 36250A, 38000A | Standard Recovery | - | Chassis Mount |
|
|
ST2600C26R0SCR 2.6KV 4800A RPUK |
2,902 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 2.6 kV | 4 V | 400 mA | 1.45 V | 2220 A | 4800 A | - | 250 mA | 46000A, 48200A | Standard Recovery | - | Chassis Mount |
|
|
112RKI40SCR 400V 172A TO209AC |
3,564 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 400 V | 2 V | 120 mA | 1.57 V | 110 A | 172 A | 200 mA | 20 mA | 2080A, 2180A | Standard Recovery | -40°C ~ 140°C | Chassis, Stud Mount |
|
|
112RKI80SCR 800V 172A TO209AC |
3,113 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 800 V | 2 V | 120 mA | 1.57 V | 110 A | 172 A | 200 mA | 20 mA | 2080A, 2180A | Standard Recovery | -40°C ~ 140°C | Chassis, Stud Mount |
|
16TTS08STRLSCR 800V 16A D2PAK |
2,871 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 800 V | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 100 mA | 500 µA | 200A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
16TTS08STRRSCR 800V 16A D2PAK |
3,019 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 800 V | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 100 mA | 500 µA | 200A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
16TTS12STRLSCR 1.2KV 16A D2PAK |
2,479 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1.2 kV | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 100 mA | 500 µA | 200A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
16TTS12STRRSCR 1.2KV 16A D2PAK |
3,340 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1.2 kV | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 100 mA | 500 µA | 200A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
25TTS08STRRSCR 800V 25A D2PAK |
3,261 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 800 V | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 100 mA | 500 µA | 350A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
25TTS12STRLSCR 1.2KV 25A D2PAK |
2,286 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1.2 kV | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 100 mA | 500 µA | 350A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
25TTS12STRRSCR 1.2KV 25A D2PAK |
3,649 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1.2 kV | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 100 mA | 500 µA | 350A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
30TPS08SCR 800V 30A TO247AC |
3,386 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 800 V | 2 V | 45 mA | 1.3 V | 20 A | 30 A | 100 mA | 500 µA | 300A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Through Hole |
