| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-ST180S16P1SCR 1.6KV 314A TO209AB |
3,639 | 127.05 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 150 mA | 1.75 V | 200 A | 314 A | 600 mA | 30 mA | 4200A, 4400A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-ST083S08MFM1PSCR 800V 135A TO209AC |
2,253 | 129.38 |
RFQ |
Datasheet |
Bulk | - | Active | 800 V | 3 V | 200 mA | 2.15 V | 85 A | 135 A | 600 mA | 30 mA | 2060A, 2160A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
VS-ST303C12CFJ0SCR 1.2KV 1180A TO200AB |
3,054 | 132.72 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 200 mA | 2.16 V | 620 A | 1180 A | 600 mA | 50 mA | 7950A, 8320A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST303C12CFJ1SCR 1.2KV 1180A TO200AB |
2,813 | 132.72 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 200 mA | 2.16 V | 620 A | 1180 A | 600 mA | 50 mA | 6690A, 7000A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST230S12M0VPBFSCR 1.2KV 360A TO209AB |
2,226 | 133.42 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 150 mA | 1.55 V | 230 A | 360 A | 600 mA | 30 mA | 5700A, 5970A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-ST180S16M0LPBFSCR 1.6KV 314A TO209AB |
2,050 | 133.43 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 150 mA | 1.75 V | 200 A | 314 A | 600 mA | 30 mA | 5000A, 5230A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-ST230S16M1PBFSCR 1.6KV 360A TO209AB |
3,697 | 133.58 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 150 mA | 1.55 V | 230 A | 360 A | 600 mA | 30 mA | 5700A, 5970A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-ST183S04PFL0SCR 400V 306A TO209AB |
3,776 | 133.65 |
RFQ |
Datasheet |
Bulk | - | Active | 400 V | 3 V | 200 mA | 1.8 V | 195 A | 306 A | 600 mA | 40 mA | 4900A, 5130A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-ST183S04PFL1SCR 400V 306A TO209AB |
3,627 | 133.65 |
RFQ |
Datasheet |
Bulk | - | Active | 400 V | 3 V | 200 mA | 1.8 V | 195 A | 306 A | 600 mA | 40 mA | 4120A, 4310A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-ST110S16P1SCR 1.6KV 175A TO209AC |
2,930 | 134.08 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 150 mA | 1.52 V | 110 A | 175 A | 600 mA | 20 mA | 2700A, 2830A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-ST300S12P0PBFSCR 1.2KV 470A TO209AE |
2,787 | 135.18 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 200 mA | 1.66 V | 300 A | 470 A | 600 mA | 30 mA | 6730A, 7040A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|

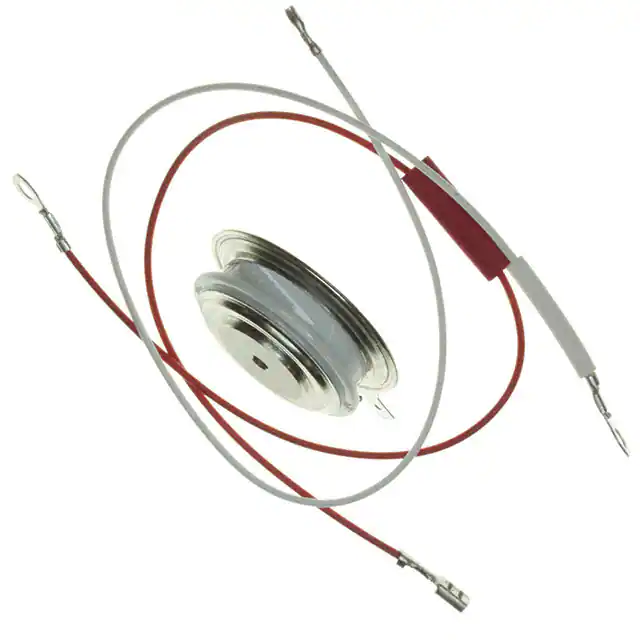

VS-ST180C20C0SCR 2KV 660A A-PUK |
3,361 | 135.43 |
RFQ |
Datasheet |
Bulk | - | Active | 2 kV | 3 V | 150 mA | 1.96 V | 350 A | 660 A | 600 mA | 30 mA | 5000A, 5230A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST180C20C1SCR 2KV 660A A-PUK |
2,444 | 135.43 |
RFQ |
Datasheet |
Bulk | - | Active | 2 kV | 3 V | 150 mA | 1.96 V | 350 A | 660 A | 600 mA | 30 mA | 4200A, 4400A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST303C12CFK1SCR 1.2KV 1180A TO200AB |
2,136 | 135.43 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 200 mA | 2.16 V | 620 A | 1180 A | 600 mA | 50 mA | 6690A, 7000A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST303C12CFK1LSCR 1.2KV 1180A TO200AB |
3,348 | 135.43 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 200 mA | 2.16 V | 620 A | 1180 A | 600 mA | 50 mA | 6690A, 7000A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|

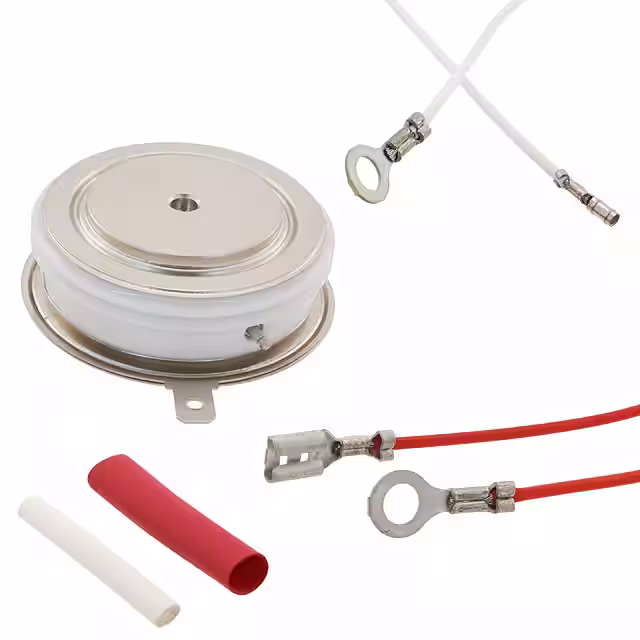

VS-ST303C12CFK0LSCR 1.2KV 1180A TO200AB |
2,334 | 135.43 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 200 mA | 2.16 V | 620 A | 1180 A | 600 mA | 50 mA | 6690A, 7000A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST230S04M1VPBFSCR 400V 360A TO209AB |
3,119 | 135.80 |
RFQ |
Datasheet |
Bulk | - | Active | 400 V | 3 V | 150 mA | 1.55 V | 230 A | 360 A | 600 mA | 30 mA | 5700A, 5970A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
VS-ST700C12L0SCR 1.2KV 1857A B-PUK |
3,982 | 138.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 200 mA | 1.8 V | 910 A | 1857 A | 600 mA | 80 mA | 15700A, 16400A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST730C08L0SCR 800V 2000A B-PUK |
2,647 | 138.85 |
RFQ |
Datasheet |
Bulk | - | Active | 800 V | 3 V | 200 mA | 1.62 V | 990 A | 2000 A | 600 mA | 80 mA | 17800A, 18700A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST730C20L0SCR 2KV 2000A B-PUK |
2,622 | 139.46 |
RFQ |
Datasheet |
Bulk | - | Active | 2 kV | 3 V | 200 mA | 1.62 V | 990 A | 2000 A | 600 mA | 80 mA | 15000A, 15700A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
