| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Structure | NumberofSCRsDiodes | Voltage-OffState | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Current-NonRepSurge5060Hz(Itsm) | Current-Hold(Ih)(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T620062004DNSCR PHASE CTRL MOD 600V 200A |
3,755 | 59.88 |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 600 V | 200 A | 315 A | 3 V | 150 mA | 3650A, 4000A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead |
|
|
T620063004DNSCR PHASE CTRL MOD 600V 300A |
2,961 | 61.99 |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 600 V | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead |
|
|
T620082004DNSCR PHASE CTRL MOD 800V 200A |
3,407 | 63.27 |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 800 V | 200 A | 315 A | 3 V | 150 mA | 3650A, 4000A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead |
|
|
CD630815CSCR MODULE DUAL 150A 800V |
3,438 | 64.37 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | - |
|
|
CD631415CSCR MODULE DUAL 150A 1400V |
3,309 | 64.71 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | Screw Mount |
|
|
CD631015CSCR MODULE DUAL 150A 1000V |
2,227 | 64.72 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1 kV | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | - |
|
|
T620083004DNSCR PHASE CTRL MOD 800V 300A |
3,244 | 65.36 |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 800 V | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead |
|
|
CD631215CSCR MODULE DUAL 150A 1200V |
2,092 | 65.57 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | Screw Mount |
|

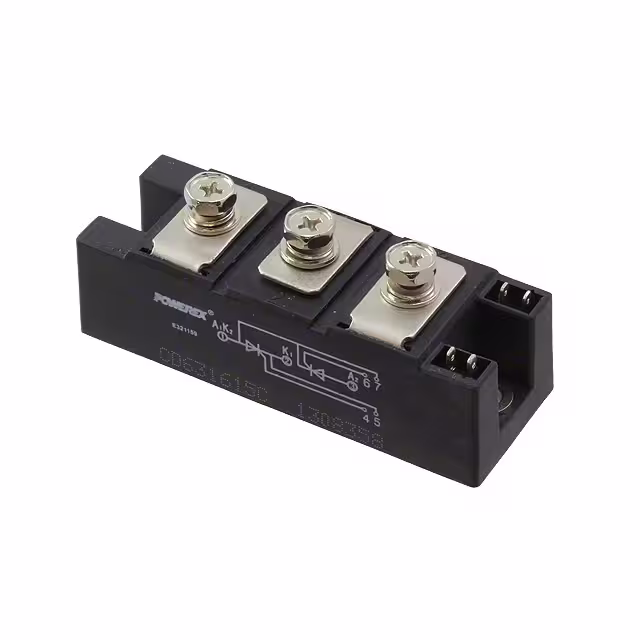

CD631615CSCR MODULE DUAL 150A 1600V |
2,728 | 66.40 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | Screw Mount |
|
|
T620102004DNSCR PHASE CTRL MOD 1000V 200A |
3,059 | 67.46 |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 1 kV | 200 A | 315 A | 3 V | 150 mA | 3650A, 4000A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead |
|

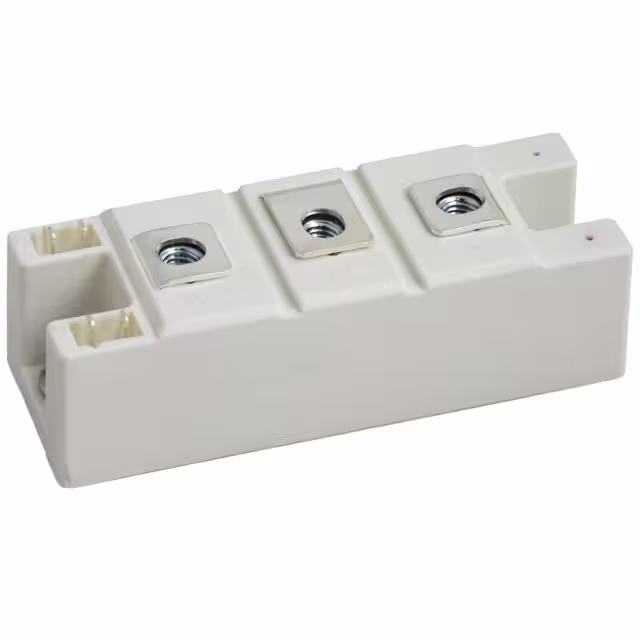

CD631615BSCR MOD DUAL 1600V 150A |
3,906 | 68.36 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | 235 A | 2 V | 150 mA | 5000A, 5250A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
CD631815CSCR MODULE DUAL 150A 1800V |
3,199 | 69.48 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | Screw Mount |
|
|
T620103004DNSCR PHASE CTRL MOD 1000V 300A |
3,194 | 69.53 |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 1 kV | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead |
|
|
T620122004DNSCR PHASE CTRL MOD 1200V 200A |
2,793 | 71.60 |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 1.2 kV | 200 A | 315 A | 3 V | 150 mA | 3650A, 4000A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead |
|
|
CD630815BSCR MOD DUAL 800V 150A |
2,964 | 71.78 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
CD631015BSCR MOD DUAL 1000V 150A |
2,439 | 71.78 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1 kV | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
CD631215BSCR MOD DUAL 1200V 150A |
3,305 | 71.78 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
CD631415BSCR MOD DUAL 1400V 150A |
3,207 | 71.78 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
T620123004DNSCR PHASE CTRL MOD 1200V 300A |
2,138 | 73.70 |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 1.2 kV | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead |
|
|
T7H8027504DNSCR PHASE CTRL MOD 200V 750A |
2,971 | 76.82 |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 200 V | 750 A | 1180 A | 3 V | 150 mA | 9600A, 10500A | - | -40°C ~ 125°C (TJ) | Chassis Mount |
