| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Structure | NumberofSCRsDiodes | Voltage-OffState | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Current-NonRepSurge5060Hz(Itsm) | Current-Hold(Ih)(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

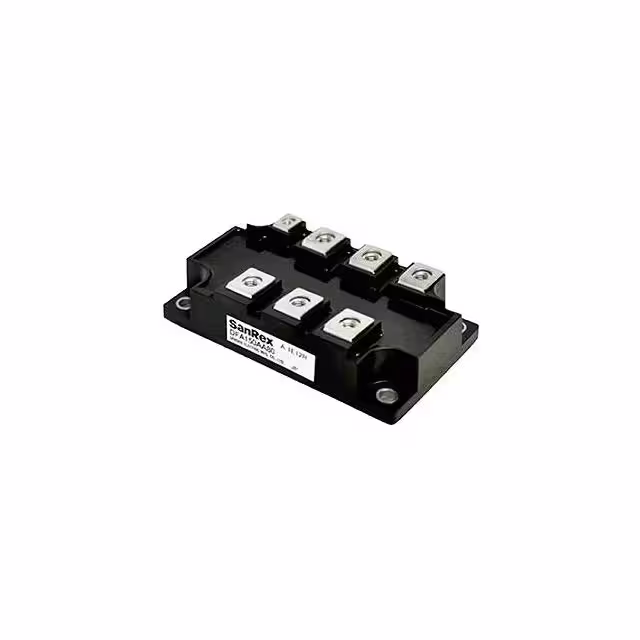

DFA150AA160DIODE MODULE 1600V 150A |
2,907 | 127.18 |
RFQ |
Datasheet |
Tray | - | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 150 A | - | 3 V | 70 mA | 1460A, 1600A | - | -40°C ~ 150°C (TJ) | Chassis Mount |
|
SCA240DA160THYRISTOR MODULE 1600V 240A |
3,810 | 127.31 |
RFQ |
Datasheet |
Tray | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 240 A | 376 A | 3 V | 100 mA | 6000A, 6500A | 140 mA | -40°C ~ 125°C (TJ) | Chassis Mount |
|
DFA200CB80DIODE MODULE 800V 200A |
2,330 | 138.63 |
RFQ |
Datasheet |
Tray | - | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 800 V | 200 A | - | 3 V | 100 mA | 1850A, 2000A | 100 mA | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
DFA200AA80DIODE MODULE 800V 200A |
2,220 | 141.71 |
RFQ |
Datasheet |
Tray | - | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 800 V | 200 A | - | 3 V | 100 mA | 1850A, 2000A | - | -30°C ~ 150°C (TJ) | Chassis Mount |
|
|
DFA200AA160DIODE MODULE 1600V 200A |
2,111 | 141.71 |
RFQ |
Datasheet |
Tray | - | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 200 A | - | 3 V | 100 mA | 1850A, 2000A | - | -30°C ~ 150°C (TJ) | Chassis Mount |
|
SSA500AA80THYRISTOR MODULE 800V 500A |
3,896 | 236.08 |
RFQ |
Datasheet |
Tray | - | Active | Single | 1 SCR | 800 V | 500 A | 785 A | 3 V | 200 mA | 9100A, 10000A | - | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|

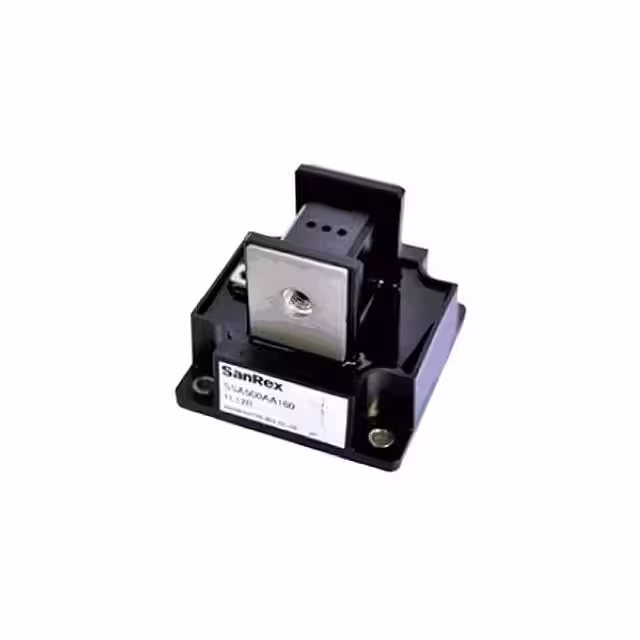

SSA500AA160THYRISTOR MODULE 1600V 500A |
3,144 | 236.08 |
RFQ |
Datasheet |
Tray | - | Active | Single | 1 SCR | 1.6 kV | 500 A | 785 A | 3 V | 200 mA | 9100A, 10000A | - | -40°C ~ 125°C (TJ) | Chassis Mount |
|
SBB500AA80THYRISTOR MODULE 800V 500A |
2,032 | 332.53 |
RFQ |
Datasheet |
Tray | - | Active | Independent - SCR/Diode | 1 SCR, 1 Diode | 800 V | 500 A | 785 A | 3 V | 200 mA | 9100A, 10000A | - | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
SBA500AA80THYRISTOR MODULE 800V 500A |
2,730 | 350.52 |
RFQ |
Datasheet |
Tray | - | Active | Independent - All SCRs | 2 SCRs | 800 V | 500 A | 785 A | 3 V | 200 mA | 9100A, 10000A | - | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|

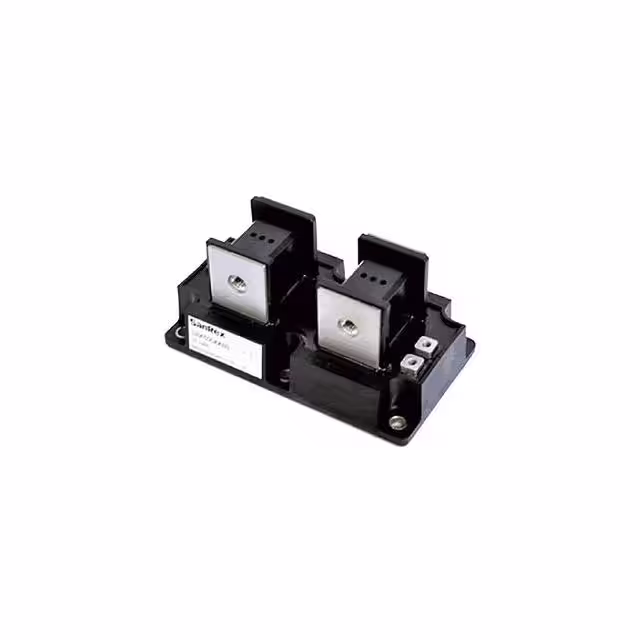

SBB500AA160THYRISTOR MODULE 1600V 500A |
3,552 | 365.64 |
RFQ |
Datasheet |
Tray | - | Active | Independent - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 500 A | 785 A | 3 V | 200 mA | 9100A, 10000A | - | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
SBA500AA160THYRISTOR MODULE 1600V 500A |
3,571 | 393.30 |
RFQ |
Datasheet |
Tray | - | Active | Independent - All SCRs | 2 SCRs | 1.6 kV | 500 A | 785 A | 3 V | 200 mA | 9100A, 10000A | - | -40°C ~ 125°C (TJ) | Chassis Mount |
