| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45F10KERES 10K OHM 1% 5W AXIAL |
616 | 3.10 |
RFQ |
Datasheet |
Axial | Bulk | Ohmicone® 40 | Active | 10 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343 Dia x 0.937 L (8.70mm x 23.80mm) | - |
|
SM108035003FERES 500K OHM 1% 2.5W RADIAL |
2,516 | 6.49 |
RFQ |
Datasheet |
Radial | Bulk | Slim-Mox | Active | 500 kOhms | ±1% | 2.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 2.080 L x 0.100 W (52.83mm x 2.54mm) | 0.340 (8.64mm) |
|
AP101 4R FRES 4 OHM 1% 100W TO247 |
2,907 | 7.69 |
RFQ |
Datasheet |
TO-247-2 | Tube | ARCOL, AP101 | Active | 4 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
15FR150ERES 0.15 OHM 1% 5W AXIAL |
649 | 2.85 |
RFQ |
Datasheet |
Axial | Bulk | 10 | Active | 150 mOhms | ±1% | 5W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.331 Dia x 0.937 L (8.40mm x 23.80mm) | - |
|

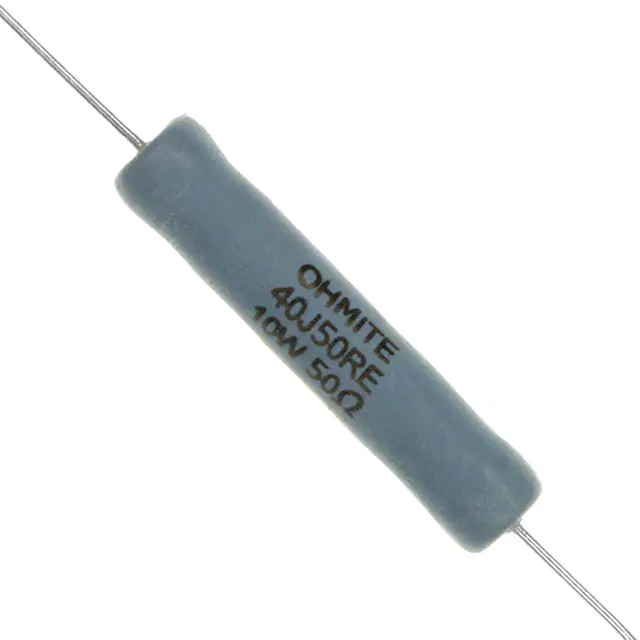

40J50RERES 50 OHM 5% 10W AXIAL |
467 | 3.14 |
RFQ |
Datasheet |
Axial | Bulk | Ohmicone® 40 | Active | 50 Ohms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406 Dia x 1.902 L (10.30mm x 48.30mm) | - |
|
|
45F500ERES 500 OHM 1% 5W AXIAL |
769 | 3.39 |
RFQ |
Datasheet |
Axial | Bulk | Ohmicone® 40 | Active | 500 Ohms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343 Dia x 0.937 L (8.70mm x 23.80mm) | - |
|
MOX70031004BYERES 1M OHM 0.1% 1/4W AXIAL |
2,466 | 3.39 |
RFQ |
Datasheet |
Axial | Tray | MOX700 | Active | 1 MOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106 Dia x 0.276 L (2.70mm x 7.00mm) | - |
|
|
45F25KERES 25K OHM 1% 5W AXIAL |
2,417 | 3.45 |
RFQ |
Datasheet |
Axial | Bulk | Ohmicone® 40 | Active | 25 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343 Dia x 0.937 L (8.70mm x 23.80mm) | - |
|
SM102033005FERES 30M OHM 1% 1W RADIAL |
3,066 | 4.19 |
RFQ |
Datasheet |
Radial | Bulk | Slim-Mox | Active | 30 MOhms | ±1% | 1W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.580 L x 0.100 W (14.73mm x 2.54mm) | 0.340 (8.64mm) |
|

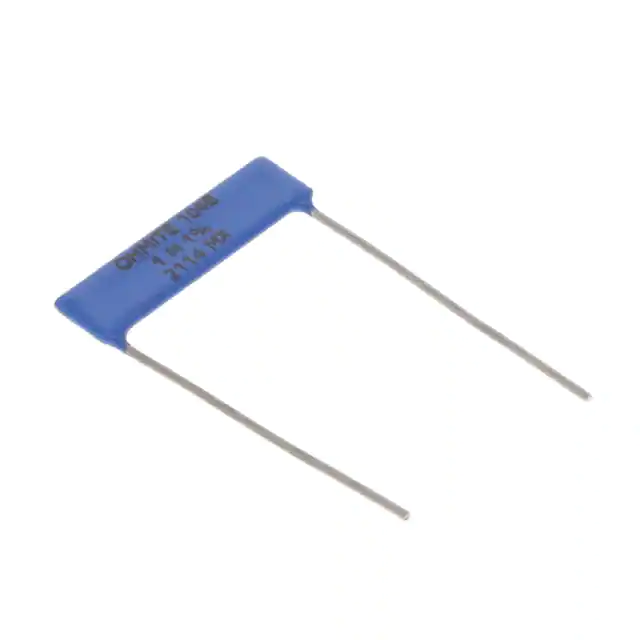

SM104031004FERES 1M OHM 1% 1.5W RADIAL |
3,334 | 4.74 |
RFQ |
Radial | Bulk | Slim-Mox | Active | 1 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080 L x 0.100 W (27.43mm x 2.54mm) | 0.340 (8.64mm) | |
|
MOX300001006FERES 100M OHM 1% 1/2W AXIAL |
2,482 | 5.87 |
RFQ |
Datasheet |
Axial | Bulk | Mini-Mox | Active | 100 MOhms | ±1% | 0.5W, 1/2W | Thick Film | High Voltage, Moisture Resistant | 100ppm/°C | -55°C ~ 155°C | Axial | 0.130 Dia x 0.354 L (3.30mm x 9.00mm) | - |
|
|
SM108033007FERES 3 GOHM 1% 2.5W RADIAL |
3,359 | 5.95 |
RFQ |
Datasheet |
Radial | Bulk | Slim-Mox | Active | 3 GOhms | ±1% | 2.5W | Thick Film | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 110°C | Radial | 2.080 L x 0.100 W (52.83mm x 2.54mm) | 0.340 (8.64mm) |
|
TEH100M2R50FERES 2.5 OHM 1% 100W TO247 |
3,808 | 9.85 |
RFQ |
Datasheet |
TO-247-2 | Tube | TEH100 | Active | 2.5 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | 250ppm/°C | - | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
17FPR010ERES 0.01 OHM 1% 7W AXIAL |
2,757 | 10.67 |
RFQ |
Datasheet |
Axial | Bulk | 10 | Active | 10 mOhms | ±1% | 7W | Metal Element | Current Sense, Non-Inductive | ±100ppm/°C | -55°C ~ 200°C | Axial | 0.375 Dia x 1.500 L (9.53mm x 38.10mm) | - |
|

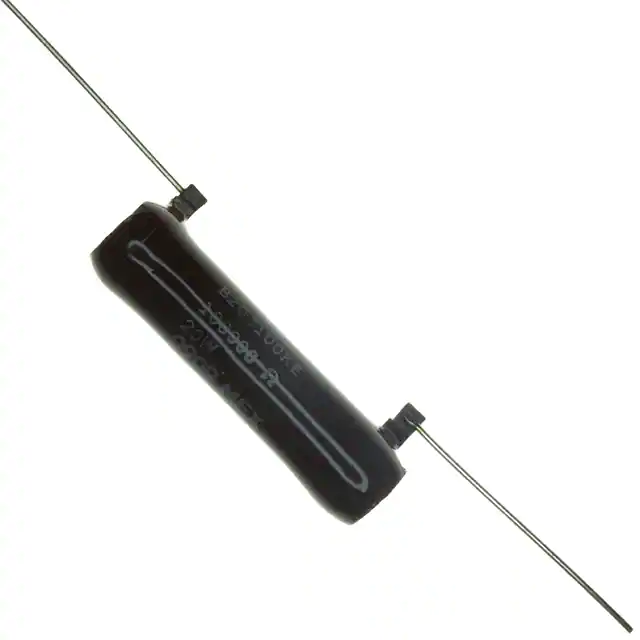

B20J100KERES 100K OHM 5% 20W AXIAL |
2,695 | 11.88 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 100 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|
MOX-1N-135005FERES 50M OHM 1% 2W AXIAL |
100 | 12.11 |
RFQ |
Datasheet |
Axial | Bulk | Maxi-Mox | Active | 50 MOhms | ±1% | 2W | Thick Film | High Voltage, Non-Inductive | ±25ppm/°C | -55°C ~ 210°C | Axial | 0.345 Dia x 1.140 L (8.76mm x 28.96mm) | - |
|

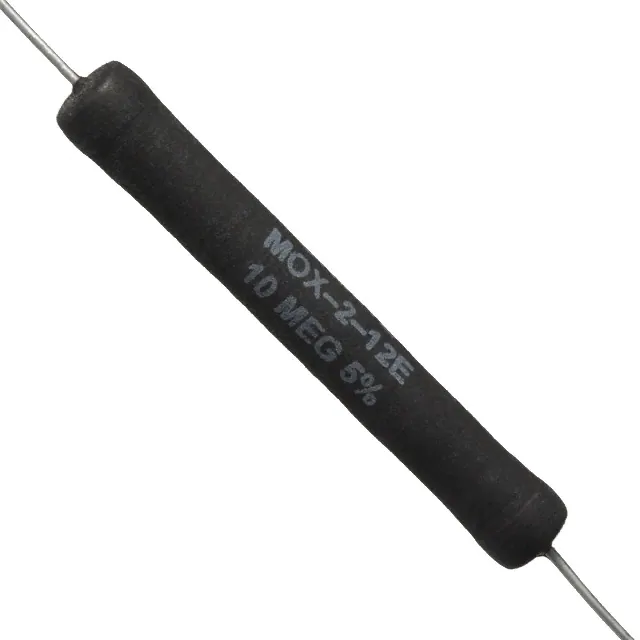

MOX-2-121005JERES 10M OHM 5% 5W AXIAL |
2,477 | 16.41 |
RFQ |
Datasheet |
Axial | Bulk | Maxi-Mox | Active | 10 MOhms | ±5% | 5W | Thick Film | High Voltage | ±25ppm/°C | -55°C ~ 210°C | Axial | 0.310 Dia x 2.120 L (7.87mm x 53.85mm) | - |
|
WHE560FETRES 560 OHM 1% 5W AXIAL |
1,000 | 1.41 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | WH | Active | 560 Ohms | ±1% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.295 Dia x 0.787 L (7.50mm x 20.00mm) | - |
|
|
WHE5K0FETRES 5K OHM 1% 5W AXIAL |
903 | 1.72 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | WH | Active | 5 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.295 Dia x 0.787 L (7.50mm x 20.00mm) | - |
|
TWW5J4R7ERES 4.7 OHM 5% 5W RADIAL |
698 | 0.88 |
RFQ |
Datasheet |
Radial | Bulk | TWW | Active | 4.7 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492 L x 0.354 W (12.50mm x 9.00mm) | 1.024 (26.00mm) |
