| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12FR050ERES 0.05 OHM 1% 2W AXIAL |
10,226 | 3.01 |
RFQ |
Datasheet |
Axial | Bulk | 10 | Active | 50 mOhms | ±1% | 2W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.094 Dia x 0.417 L (2.40mm x 10.60mm) | - |
|

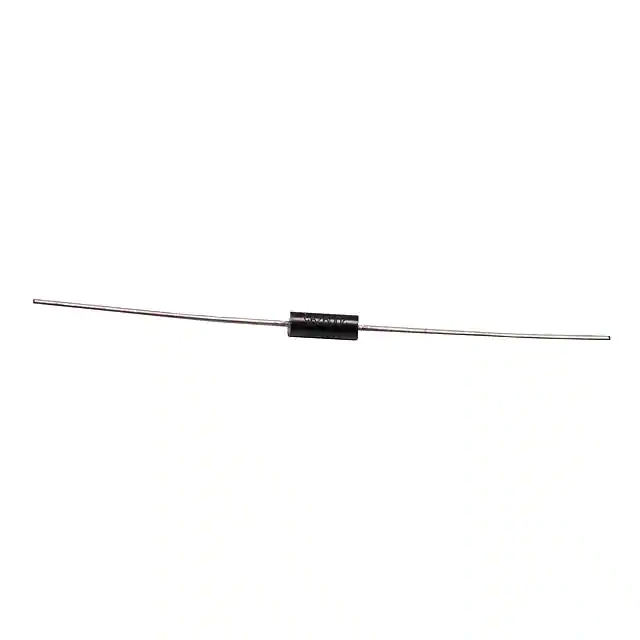

MOX70034991AZERES 4.99K OHM 0.05% 1/4W AXIAL |
127 | 3.48 |
RFQ |
Datasheet |
Axial | Tray | MOX700 | Active | 4.99 kOhms | ±0.05% | 0.25W, 1/4W | Metal Film | - | 5ppm/°C | -55°C ~ 125°C | Axial | 0.106 Dia x 0.276 L (2.70mm x 7.00mm) | - |
|
|
SM101031005FERES 10M OHM 1% 1/2W RADIAL |
465 | 4.74 |
RFQ |
Datasheet |
Radial | Bulk | Slim-Mox | Active | 10 MOhms | ±1% | 0.5W, 1/2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 180°C | Radial | 0.330 L x 0.100 W (8.38mm x 2.54mm) | 0.340 (8.64mm) |
|
|
SM101032205FERES 22M OHM 1% 1/2W RADIAL |
490 | 6.36 |
RFQ |
Datasheet |
Radial | Bulk | Slim-Mox | Active | 22 MOhms | ±1% | 0.5W, 1/2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 180°C | Radial | 0.330 L x 0.100 W (8.38mm x 2.54mm) | 0.340 (8.64mm) |
|
TCH35P5R60JERES 5.6 OHM 5% 35W TO220 |
2,484 | 7.18 |
RFQ |
Datasheet |
TO-220-2 | Tube | TCH | Active | 5.6 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 175°C | TO-220 | 0.400 L x 0.175 W (10.16mm x 4.44mm) | 0.591 (15.00mm) |
|
AP101 56R FRES 56 OHM 1% 100W TO247 |
239 | 7.69 |
RFQ |
Datasheet |
TO-247-2 | Tube | ARCOL, AP101 | Active | 56 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
|
AP101 33R FRES 33 OHM 1% 100W TO247 |
232 | 7.69 |
RFQ |
Datasheet |
TO-247-2 | Tube | ARCOL, AP101 | Active | 33 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
|
AP101 5R FRES 5 OHM 1% 100W TO247 |
115 | 7.69 |
RFQ |
Datasheet |
TO-247-2 | Tube | ARCOL, AP101 | Active | 5 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
|
AP101 25R FRES 25 OHM 1% 100W TO247 |
173 | 7.82 |
RFQ |
Datasheet |
TO-247-2 | Tube | ARCOL, AP101 | Active | 25 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
13FPR015ERES 0.015 OHM 1% 3W AXIAL |
750 | 7.88 |
RFQ |
Datasheet |
Axial | Bulk | 10 | Active | 15 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200 Dia x 0.626 L (5.08mm x 15.90mm) | - |
|

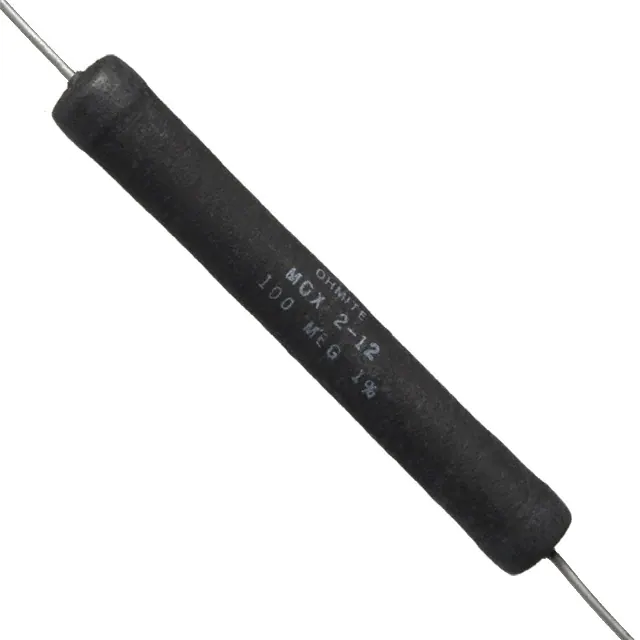

MOX-2-121006FERES 100M OHM 1% 5W AXIAL |
1,148 | 15.65 |
RFQ |
Datasheet |
Axial | Bulk | Maxi-Mox | Active | 100 MOhms | ±1% | 5W | Thick Film | High Voltage | ±25ppm/°C | -55°C ~ 210°C | Axial | 0.310 Dia x 2.120 L (7.87mm x 53.85mm) | - |
|
AY470KERES 47 OHM 10% 4.5W RADIAL |
1,986 | 33.60 |
RFQ |
Datasheet |
Radial | Bulk | PulsEater® A | Active | 47 Ohms | ±10% | 4.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | Radial Lead | 0.984 L x 0.827 W (25.00mm x 21.00mm) | 1.102 (28.00mm) |
|

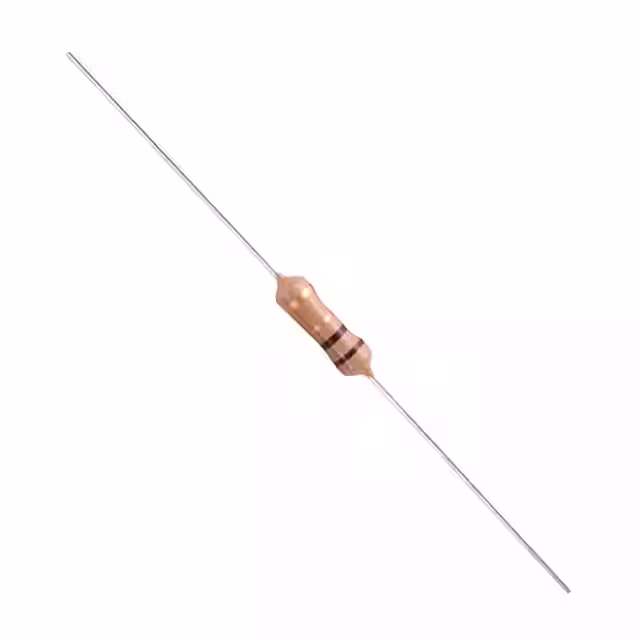

OL11G5E-R52RES 1.1 OHM 5% 1/2W AXIAL |
72,000 | 0.02 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | Little Rebel® OL | Active | 1.1 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | ±350ppm/°C | - | Axial | 0.118 Dia x 0.354 L (3.00mm x 9.00mm) | - |
|

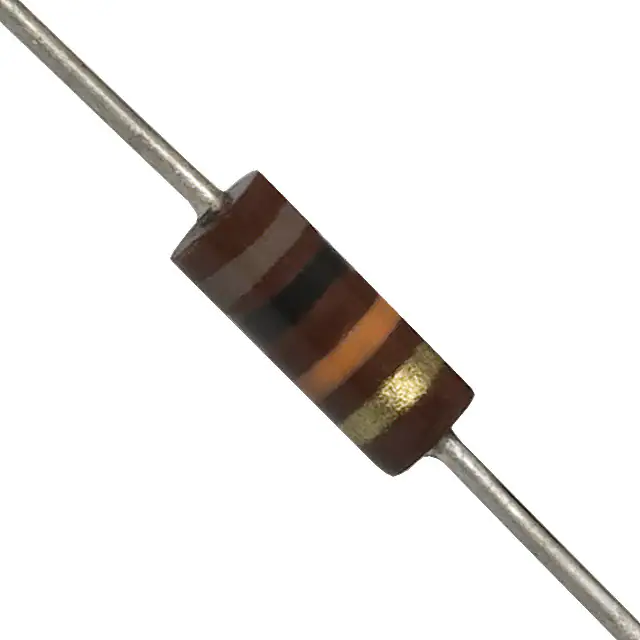

OD103JERES 10K OHM 5% 1/4W AXIAL |
2,612 | 0.84 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OD | Obsolete | 10 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098 Dia x 0.276 L (2.50mm x 7.00mm) | - |
|

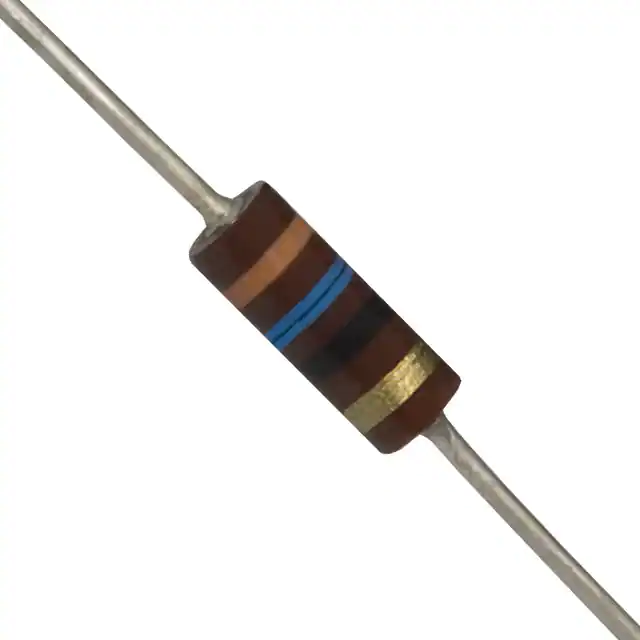

OD360JERES 36 OHM 5% 1/4W AXIAL |
2,505 | 0.84 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OD | Obsolete | 36 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098 Dia x 0.276 L (2.50mm x 7.00mm) | - |
|

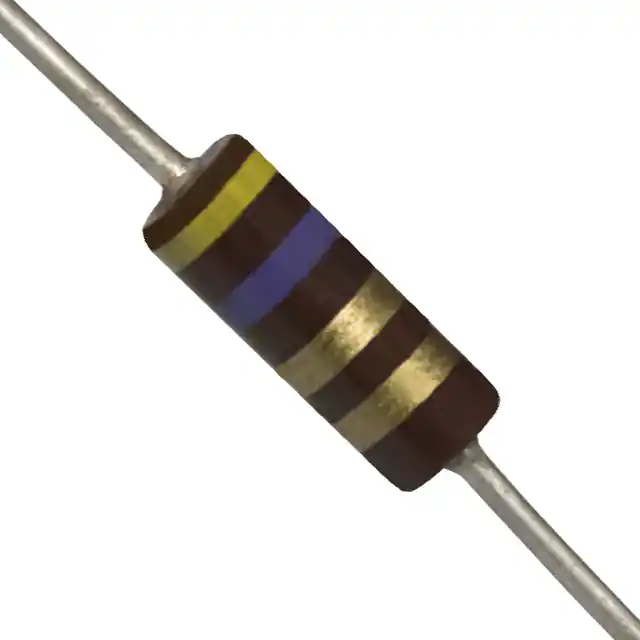

OD47GJERES 4.7 OHM 5% 1/4W AXIAL |
1,980 | 0.84 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OD | Obsolete | 4.7 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098 Dia x 0.276 L (2.50mm x 7.00mm) | - |
|

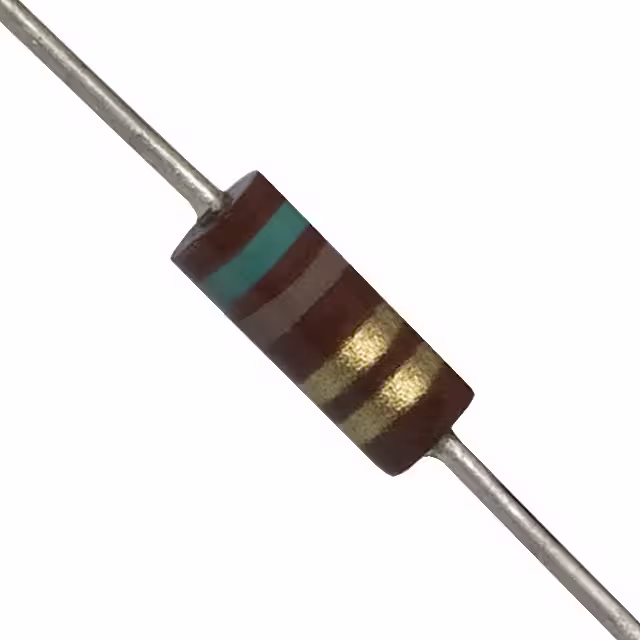

OD51GJERES 5.1 OHM 5% 1/4W AXIAL |
1,256 | 0.84 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OD | Obsolete | 5.1 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098 Dia x 0.276 L (2.50mm x 7.00mm) | - |
|
OD101JERES 100 OHM 5% 1/4W AXIAL |
1,241 | 0.84 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OD | Obsolete | 100 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098 Dia x 0.276 L (2.50mm x 7.00mm) | - |
|
OF473JERES 47K OHM 5% 1/2W AXIAL |
47,280 | 0.94 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OF | Obsolete | 47 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150 Dia x 0.406 L (3.80mm x 10.30mm) | - |
|
OF470JERES 47 OHM 5% 1/2W AXIAL |
18,655 | 0.94 |
RFQ |
Datasheet |
Axial | Strip | Little Demon® OF | Obsolete | 47 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150 Dia x 0.406 L (3.80mm x 10.30mm) | - |
