| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP101 4K3 JRES 4.3K OHM 5% 100W TO247 |
389 | 6.90 |
RFQ |
Datasheet |
TO-247-2 | Tray | ARCOL, AP101 | Active | 4.3 kOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
B12J2K0ERES 2K OHM 5% 12W AXIAL |
1,578 | 6.96 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 2 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313 Dia x 1.750 L (7.94mm x 44.45mm) | - |
|
B20J1K5ERES 1.5K OHM 5% 20W AXIAL |
2,188 | 6.98 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 1.5 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|
B20J500ERES 500 OHM 5% 20W AXIAL |
458 | 6.98 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 500 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|
B20J250ERES 250 OHM 5% 20W AXIAL |
234 | 6.98 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 250 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|
TCH35P22R0JERES 22 OHM 5% 35W TO220 |
8,160 | 7.18 |
RFQ |
Datasheet |
TO-220-2 | Tube | TCH | Active | 22 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400 L x 0.175 W (10.16mm x 4.44mm) | 0.591 (15.00mm) |
|
|
TCH35P2K70JERES 2.7K OHM 5% 35W TO220 |
2,406 | 7.18 |
RFQ |
Datasheet |
TO-220-2 | Tube | TCH | Active | 2.7 kOhms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400 L x 0.175 W (10.16mm x 4.44mm) | 0.591 (15.00mm) |
|
|
TCH35P100RJERES 100 OHM 5% 35W TO220 |
1,469 | 7.18 |
RFQ |
Datasheet |
TO-220-2 | Tube | TCH | Active | 100 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400 L x 0.175 W (10.16mm x 4.44mm) | 0.591 (15.00mm) |
|
|
TCH35P3R30JERES 3.3 OHM 5% 35W TO220 |
455 | 7.18 |
RFQ |
Datasheet |
TO-220-2 | Tube | TCH | Active | 3.3 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 175°C | TO-220 | 0.400 L x 0.175 W (10.16mm x 4.44mm) | 0.591 (15.00mm) |
|
|
TCH35P75R0JERES 75 OHM 5% 35W TO220 |
322 | 7.18 |
RFQ |
Datasheet |
TO-220-2 | Tube | TCH | Active | 75 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400 L x 0.175 W (10.16mm x 4.44mm) | 0.591 (15.00mm) |
|
|
B12J25KERES 25K OHM 5% 12W AXIAL |
124 | 7.47 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 25 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313 Dia x 1.750 L (7.94mm x 44.45mm) | - |
|
|
AP101 22R JRES 22 OHM 5% 100W TO247 |
1,033 | 7.48 |
RFQ |
Datasheet |
TO-247-2 | Tube | ARCOL, AP101 | Active | 22 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
|
AP101 1K5 JRES 1.5K OHM 5% 100W TO247 |
645 | 7.48 |
RFQ |
Datasheet |
TO-247-2 | Tube | ARCOL, AP101 | Active | 1.5 kOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
|
AP101 47R JRES 47 OHM 5% 100W TO247 |
196 | 7.48 |
RFQ |
Datasheet |
TO-247-2 | Tube | ARCOL, AP101 | Active | 47 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
B20J1R0ERES 1 OHM 5% 20W AXIAL |
474 | 7.49 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 1 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|
B20J3R0ERES 3 OHM 5% 20W AXIAL |
409 | 7.49 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 3 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|
TAH20P5K10JERES 5.1K OHM 5% 20W TO220 |
849 | 7.54 |
RFQ |
Datasheet |
TO-220-2 | Tube | TAH | Active | 5.1 kOhms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | ±50ppm/°C | - | TO-220 | 0.410 L x 0.125 W (10.41mm x 3.18mm) | 0.650 (16.52mm) |
|
B20J250RES 250 OHM 5% 20W AXIAL |
202 | 7.61 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 250 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|
B20J1K0RES 1K OHM 5% 20W AXIAL |
160 | 7.61 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 1 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|

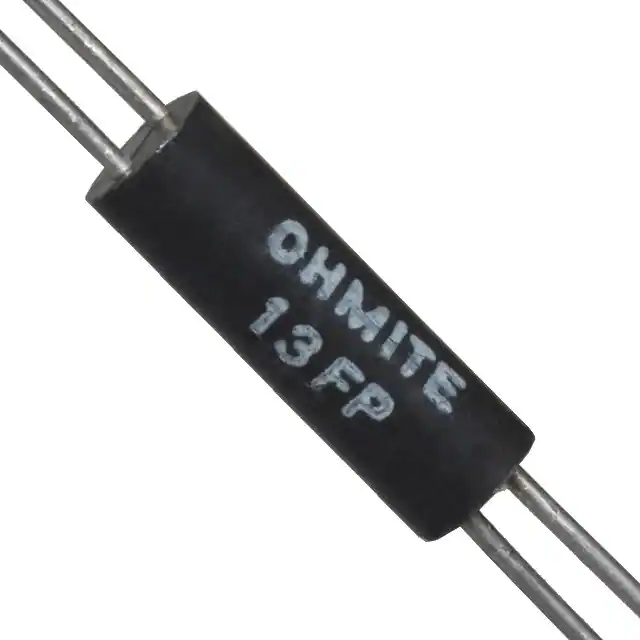

13FPR010ERES 0.01 OHM 1% 3W AXIAL |
949 | 7.88 |
RFQ |
Datasheet |
Axial | Bulk | 10 | Active | 10 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±100ppm/°C | -55°C ~ 200°C | Axial | 0.200 Dia x 0.626 L (5.08mm x 15.90mm) | - |
