| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCR1470RKBRES 470 OHM 10% 1W AXIAL |
945 | 2.51 |
RFQ |
Datasheet |
Axial | Bulk | CCR, CGS | Active | 470 Ohms | ±10% | 1W | Ceramic | Pulse Withstanding | ±1300ppm/°C | -40°C ~ 200°C | Axial | 0.217 Dia x 0.650 L (5.50mm x 16.50mm) | - |
|

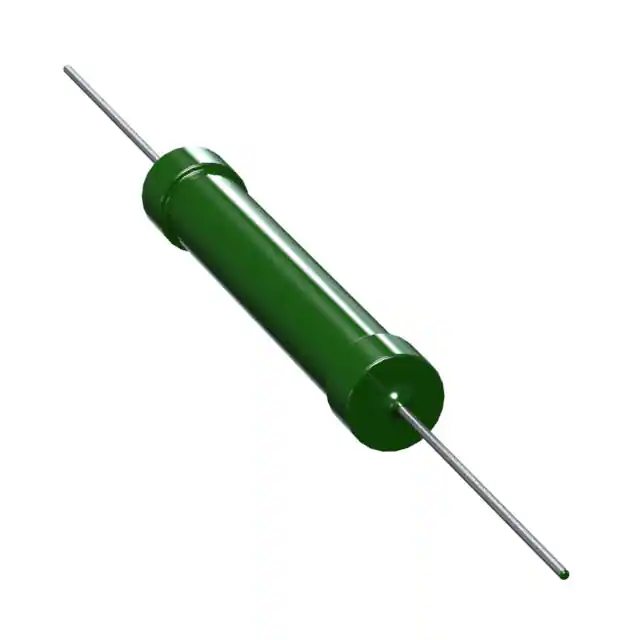

C146R8JLRES 6.8 OHM 5% 14W AXIAL |
400 | 2.91 |
RFQ |
Datasheet |
Axial | Bulk | C, CGS | Active | 6.8 Ohms | ±5% | 14W | Wirewound | - | ±90ppm/°C | -55°C ~ 200°C | Axial | 0.335 Dia x 2.098 L (8.50mm x 53.30mm) | - |
|

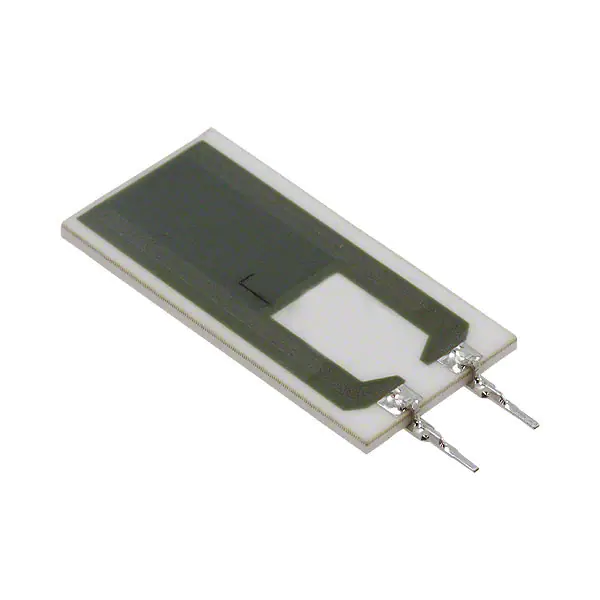

MPC52102JRES 1K OHM 5% 5W RADIAL |
869 | 3.76 |
RFQ |
Datasheet |
Radial | Tray | MPC, CGS | Active | 1 kOhms | ±5% | 5W | Thick Film | Flame Proof, Non-Inductive, Safety | ±100ppm/°C | -55°C ~ 125°C | - | 0.500 L x 0.100 W (12.70mm x 2.54mm) | 1.000 (25.40mm) |
|
|
C1415KJLRES 15K OHM 5% 14W AXIAL |
400 | 3.84 |
RFQ |
Datasheet |
Axial | Bulk | C, CGS | Active | 15 kOhms | ±5% | 14W | Wirewound | - | ±90ppm/°C | -55°C ~ 200°C | Axial | 0.335 Dia x 2.098 L (8.50mm x 53.30mm) | - |
|

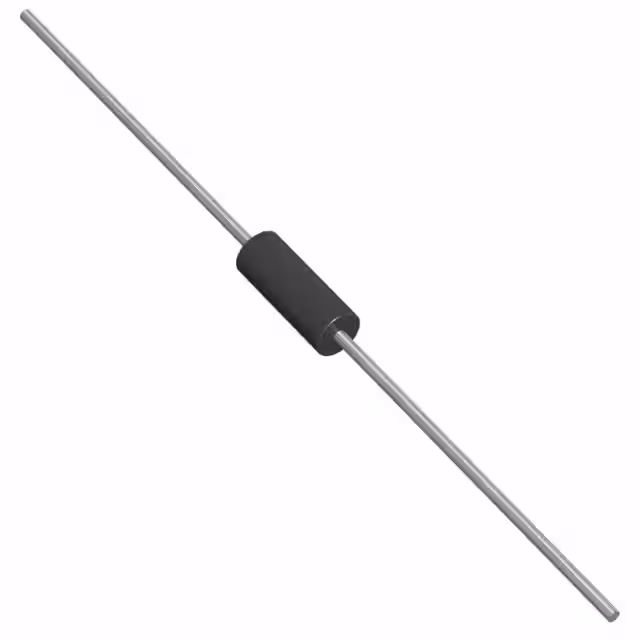

UPF25B120RVRES 120 OHM 0.1% 1/4W AXIAL |
225 | 4.80 |
RFQ |
Datasheet |
Axial | Bulk | UPF, Holsworthy | Active | 120 Ohms | ±0.1% | 0.25W, 1/4W | Metal Film | - | ±5ppm/°C | -55°C ~ 125°C | Axial | 0.106 Dia x 0.276 L (2.70mm x 7.00mm) | - |
|
|
C1447KJLRES 47K OHM 5% 14W AXIAL |
548 | 4.91 |
RFQ |
Datasheet |
Axial | Bulk | C, CGS | Active | 47 kOhms | ±5% | 14W | Wirewound | - | ±90ppm/°C | -55°C ~ 200°C | Axial | 0.335 Dia x 2.098 L (8.50mm x 53.30mm) | - |
|
UPF50B100KVRES 100K OHM 0.1% 1/2W AXIAL |
418 | 4.98 |
RFQ |
Axial | Bulk | UPF, Holsworthy | Active | 100 kOhms | ±0.1% | 0.5W, 1/2W | Metal Film | - | ±5ppm/°C | -55°C ~ 125°C | Axial | 0.157 Dia x 0.402 L (4.00mm x 10.20mm) | - | |
|
HBA22MFZRERES 22M OHM 1% 0.4W RADIAL |
454 | 5.03 |
RFQ |
Datasheet |
Radial | Tray | HB, CGS | Active | 22 MOhms | ±1% | 0.4W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 0.315 L x 0.102 W (8.00mm x 2.60mm) | 0.492 (12.50mm) |
|
HB1500MFZRERES 500M OHM 1% 1W RADIAL |
857 | 8.63 |
RFQ |
Datasheet |
Radial | Tray | HB, CGS | Active | 500 MOhms | ±1% | 1W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 1.043 L x 0.118 W (26.50mm x 3.00mm) | 0.409 (10.40mm) |
|
|
HB1300KFZRERES 300K OHM 1% 1W RADIAL |
676 | 8.63 |
RFQ |
Datasheet |
Radial | Tray | HB, CGS | Active | 300 kOhms | ±1% | 1W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 1.043 L x 0.118 W (26.50mm x 3.00mm) | 0.409 (10.40mm) |
|
|
HB1300MFZRERES 300M OHM 1% 1W RADIAL |
295 | 8.63 |
RFQ |
Datasheet |
Radial | Tray | HB, CGS | Active | 300 MOhms | ±1% | 1W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 1.043 L x 0.118 W (26.50mm x 3.00mm) | 0.409 (10.40mm) |
|
|
HB150MFZRERES 50M OHM 1% 1W RADIAL |
241 | 8.63 |
RFQ |
Datasheet |
Radial | Bulk | HB, CGS | Active | 50 MOhms | ±1% | 1W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 1.043 L x 0.118 W (26.50mm x 3.00mm) | 0.409 (10.40mm) |
|
|
HB13M3CZRERES 3.3M OHM 0.25% 1W RADIAL |
428 | 11.18 |
RFQ |
Datasheet |
Radial | Bulk | HB, CGS | Active | 3.3 MOhms | ±0.25% | 1W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 1.043 L x 0.118 W (26.50mm x 3.00mm) | 0.409 (10.40mm) |
|
HB350MFZRERES 50M OHM 1% 2W RADIAL |
229 | 11.61 |
RFQ |
Datasheet |
Radial | Tray | HB, CGS | Active | 50 MOhms | ±1% | 2W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 2.047 L x 0.118 W (52.00mm x 3.00mm) | 0.409 (10.40mm) |
|
|
HB31G0FZRERES 1 GOHM 1% 2W RADIAL |
877 | 11.61 |
RFQ |
Datasheet |
Radial | Tray | HB, CGS | Active | 1 GOhms | ±1% | 2W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 2.047 L x 0.118 W (52.00mm x 3.00mm) | 0.409 (10.40mm) |
|

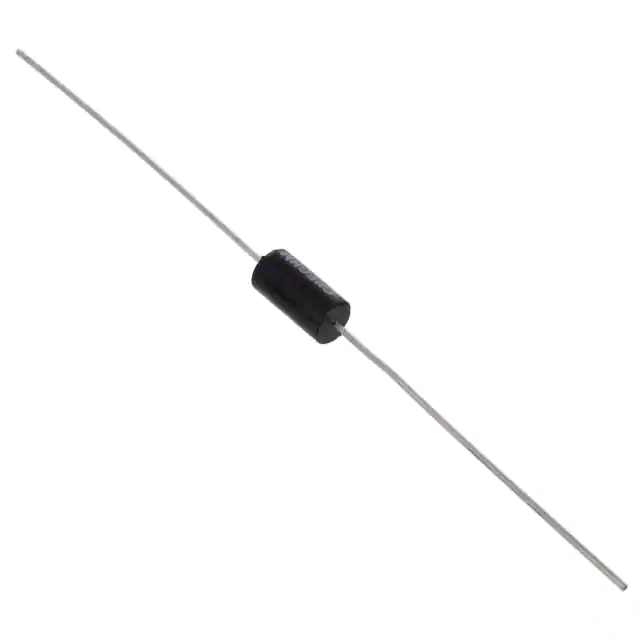

UPW50B250RVRES 250 OHM 0.1% 1/2W AXIAL |
154 | 14.46 |
RFQ |
Datasheet |
Axial | Bulk | UPW, Neohm | Active | 250 Ohms | ±0.1% | 0.5W, 1/2W | Wirewound | - | ±5ppm/°C | -55°C ~ 145°C | Axial | 0.250 Dia x 0.500 L (6.35mm x 12.70mm) | - |
|
ROX05SJ1R8RES 1.8 OHM 5% 1/2W AXIAL |
9,484 | 0.20 |
RFQ |
Datasheet |
Axial | Cut Tape (CT),Tape & Box (TB) | ROX, Neohm | Active | 1.8 Ohms | ±5% | 0.5W, 1/2W | Metal Oxide Film | Flame Proof, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.098 Dia x 0.295 L (2.50mm x 7.50mm) | - |
|
ROX05SJ2R4RES 2.4 OHM 5% 1/2W AXIAL |
9,912 | 0.20 |
RFQ |
Datasheet |
Axial | Cut Tape (CT),Tape & Box (TB) | ROX, Neohm | Active | 2.4 Ohms | ±5% | 0.5W, 1/2W | Metal Oxide Film | Flame Proof, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.138 Dia x 0.394 L (3.50mm x 10.00mm) | - |
|
ROX05SJ3R6RES 3.6 OHM 5% 1/2W AXIAL |
9,865 | 0.20 |
RFQ |
Datasheet |
Axial | Cut Tape (CT),Tape & Box (TB) | ROX, Neohm | Active | 3.6 Ohms | ±5% | 0.5W, 1/2W | Metal Oxide Film | Flame Proof, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.138 Dia x 0.394 L (3.50mm x 10.00mm) | - |
|
ROX05SJ4R3RES 4.3 OHM 5% 1/2W AXIAL |
9,844 | 0.20 |
RFQ |
Datasheet |
Axial | Cut Tape (CT),Tape & Box (TB) | ROX, Neohm | Active | 4.3 Ohms | ±5% | 0.5W, 1/2W | Metal Oxide Film | Flame Proof, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.138 Dia x 0.394 L (3.50mm x 10.00mm) | - |
