| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Applications | IntendedChipset | ChipsetManufacturer | Voltage-Primary | Voltage-Auxiliary | Voltage-Isolation | Inductance@Frequency | Frequency | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO2020SEO-D01V016INDUCTOR/XFRMR |
2,173 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 70 ~ 265V | 12.5V @ 800mA, 15V @ 100mA | 3750Vrms | 550µH @ 10kHz | 50kHz | -30°C ~ 120°C | Through Hole | 0.768 L x 0.886 W (19.50mm x 22.50mm) | 1.063 (27.00mm) | 0.768 L x 0.886 W (19.50mm x 22.50mm) |
|
ECO2020SEO-D02H015INDUCTOR/XFRMR |
2,328 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 75 ~ 326V | 12.7V @ 600mA | 1500Vrms | 534µH @ 10kHz | - | -30°C ~ 120°C | Through Hole | 0.925 L x 1.063 W (23.50mm x 27.00mm) | 0.787 (20.00mm) | 0.925 L x 1.063 W (23.50mm x 27.00mm) |
|
ECO2020SEO-D03V016INDUCTOR/XFRMR |
3,124 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 12V @ 850mA, 17V @ 150mA | 3600Vrms | 764µH @ 100kHz | 124kHz | -30°C ~ 120°C | Through Hole | 0.886 L x 0.768 W (22.50mm x 19.50mm) | 1.063 (27.00mm) | 0.886 L x 0.768 W (22.50mm x 19.50mm) |
|
ECO2020SEO-D04H015INDUCTOR/XFRMR |
2,633 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 96 ~ 144V | 12V @ 1.5A | 3000Vrms | 867µH @ 10kHz | 67kHz | -30°C ~ 120°C | Through Hole | 0.925 L x 1.063 W (23.50mm x 27.00mm) | 0.787 (20.00mm) | 0.925 L x 1.063 W (23.50mm x 27.00mm) |
|
ECO2020SEO-D06H015INDUCTOR/XFRMR |
3,795 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 80 ~ 276V | 19.7V @ 267mA | 1500Vrms | 1.3mH @ 10kHz | 80kHz | -30°C ~ 120°C | Through Hole | 0.925 L x 1.063 W (23.50mm x 27.00mm) | 0.787 (20.00mm) | 0.925 L x 1.063 W (23.50mm x 27.00mm) |
|
ECO2020SEO-D07H016INDUCTOR/XFRMR |
3,076 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 264V | 21.5V @ 465mA | 3600Vrms | 1.3mH @ 100kHz | 65kHz | -30°C ~ 120°C | Through Hole | 0.925 L x 1.063 W (23.50mm x 27.00mm) | 0.787 (20.00mm) | 0.925 L x 1.063 W (23.50mm x 27.00mm) |
|
ECO2020SEO-D08H016INDUCTOR/XFRMR |
3,994 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 264V | 30V @ 333mA | 3000Vrms | 1.3mH @ 100kHz | 65kHz | -30°C ~ 120°C | Through Hole | 0.925 L x 1.063 W (23.50mm x 27.00mm) | 0.787 (20.00mm) | 0.925 L x 1.063 W (23.50mm x 27.00mm) |
|
ECO2020SEO-D09V015INDUCTOR/XFRMR |
2,742 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 154 ~ 312V | 12V @ 500mA | 2000Vrms | 12.6mH @ 10kHz | - | -30°C ~ 120°C | Through Hole | 0.886 L x 0.768 W (22.50mm x 19.50mm) | 1.063 (27.00mm) | 0.886 L x 0.768 W (22.50mm x 19.50mm) |
|
ECO2023SEO-D01H016INDUCTOR/XFRMR |
3,730 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 12V @ 1.3A | 3000Vrms | 489µH @ 10kHz | 100kHz | -30°C ~ 120°C | Through Hole | 0.925 L x 1.161 W (23.50mm x 29.50mm) | 0.787 (20.00mm) | 0.925 L x 1.161 W (23.50mm x 29.50mm) |
|

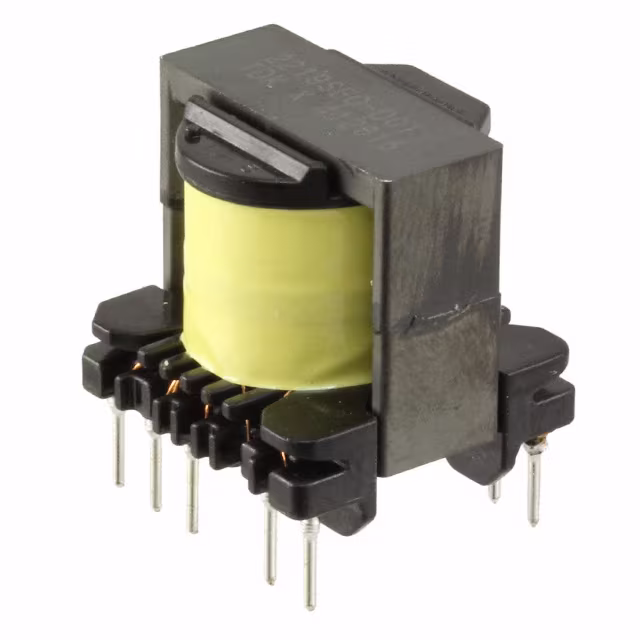

ECO2219SEO-D01V018INDUCTOR/XFRMR |
2,422 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 8V @ 220mA, 8V @ 300mA, 12V @ 320mA | 2500Vrms | 816µH @ 10kHz | - | -30°C ~ 120°C | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.984 (25.00mm) | 0.945 L x 0.906 W (24.00mm x 23.00mm) |
|
ECO2219SEO-D02V016INDUCTOR/XFRMR |
2,922 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 264 ~ 373V | 5V @ 90mA, 12.4V @ 300mA | 1250Vrms | 3.22mH @ 10kHz | 100kHz | -30°C ~ 120°C | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.984 (25.00mm) | 0.945 L x 0.906 W (24.00mm x 23.00mm) |
|
ECO2219SEO-D03V017INDUCTOR/XFRMR |
3,342 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 170 ~ 400V | 5V @ 110mA, 12V @ 540mA, 18V @ 30mA, 19V @ 20mA | 2000Vrms | 1.77mH @ 10kHz | - | -30°C ~ 120°C | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.984 (25.00mm) | 0.945 L x 0.906 W (24.00mm x 23.00mm) |
|
ECO2225SEO-D01H016INDUCTOR/XFRMR |
3,946 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 12V @ 50mA, 12V @ 1.5A | 3000Vrms | 567µH @ 10kHz | 67kHz | -30°C ~ 120°C | Through Hole | 1.024 L x 1.201 W (26.00mm x 30.50mm) | 0.945 (24.00mm) | 1.024 L x 1.201 W (26.00mm x 30.50mm) |
|
ECO2225SEO-D02V0112INDUCTOR/XFRMR |
3,701 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 180 ~ 276V | 12.3V @ 3.2A | 4000Vrms | 1.33mH @ 10kHz | - | -30°C ~ 120°C | Through Hole | 1.122 L x 0.906 W (28.50mm x 23.00mm) | 1.220 (31.00mm) | 1.122 L x 0.906 W (28.50mm x 23.00mm) |
|
ECO2425SLD-D02H0111INDUCTOR/XFRMR |
2,669 | 4.45 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 5V @ 2.2A, 12V @ 200mA | 3000Vrms | 446µH @ 10kHz | 67kHz | -30°C ~ 120°C | Through Hole | 1.024 L x 1.181 W (26.00mm x 30.00mm) | 0.787 (20.00mm) | 1.024 L x 1.181 W (26.00mm x 30.00mm) |
|
ECO2420SEO-D03V018INDUCTOR/XFRMR |
3,352 | 6.34 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 169 ~ 312V | 5V @ 200mA, 12V @ 2.5A | 3000Vrms | 750µH @ 100kHz | 60kHz | -30°C ~ 120°C | Through Hole | 1.240 L x 0.984 W (31.50mm x 25.00mm) | 1.043 (26.50mm) | 1.240 L x 0.984 W (31.50mm x 25.00mm) |
|
ECO2420SEO-D04V0110INDUCTOR/XFRMR |
3,180 | 6.34 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 214 ~ 404V | 12V @ 1.25A, 14V @ 250mA | 1500Vrms | 1.54mH @ 10kHz | - | -30°C ~ 120°C | Through Hole | 1.240 L x 0.984 W (31.50mm x 25.00mm) | 1.043 (26.50mm) | 1.240 L x 0.984 W (31.50mm x 25.00mm) |
|

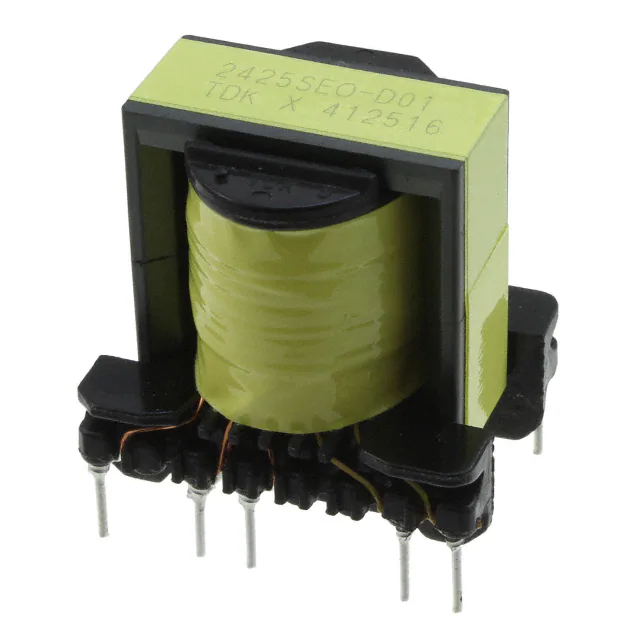

ECO2425SEO-D01V019INDUCTOR/XFRMR |
3,845 | 6.34 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 264 ~ 373V | 5V @ 140mA, 12.7V @ 1.18A, 20V @ 50mA, 20V @ 70mA | 1250Vrms | 1.06mH @ 10kHz | 100kHz | -30°C ~ 120°C | Through Hole | 1.400 L x 0.984 W (35.50mm x 25.00mm) | 1.240 (31.50mm) | 1.400 L x 0.984 W (35.50mm x 25.00mm) |
|
ECO2425SEO-D04V017INDUCTOR/XFRMR |
3,682 | 6.34 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 169 ~ 312V | 22V @ 1.5A | 3000Vrms | 428µH @ 10kHz | 65kHz | -30°C ~ 120°C | Through Hole | 1.240 L x 0.984 W (31.50mm x 25.00mm) | 1.240 (31.50mm) | 1.240 L x 0.984 W (31.50mm x 25.00mm) |
|
ECO2420SEO-D01V019INDUCTOR/XFRMR |
2,876 | 6.34 |
RFQ |
Datasheet |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | 200 ~ 300V | 5V @ 200mA, 12V @ 800mA, 17V @ 20mA, 17V @ 170mA | 2000Vrms | 4.72mH @ 10kHz | - | -30°C ~ 120°C | Through Hole | 1.122 L x 0.945 W (28.50mm x 24.00mm) | 1.043 (26.50mm) | 1.122 L x 0.945 W (28.50mm x 24.00mm) |
