| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD42-4-1241-TMCLPANDRIVE NEMA17, 24V, 0.8NM |
2,180 | 254.25 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 3.3VDC | 3 A | 200 | 1.8° | ±5% | 113.30 / 800 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.1 Ohms | |
|
PD57-2-1160-TMCLSTEPPER MOTOR HYBRID BIPOLAR 48V |
3,405 | 298.22 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 2.8 A | 200 | 1.8° | - | 143.05 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|
PM20S-020-124PERM MAGNET STEP MTR 1.5V 0.8NCM |
3,738 | 13.62 |
RFQ |
Bulk | - | Active | Permanent Magnet | Bipolar | 1.5VDC | 750 mA | 20 | 18° | - | 1.1 / 7.77 | Round - 0.807 Dia (20.50mm) | 8 | 0.059 (1.50mm) | 0.256 (6.50mm) | 1.220 (31.00mm) | Wire Leads with Connector | - | 2 Ohms | |
|
PM35S-048-324FPERM MAGNET STEP MTR 3V 2.8NCM |
3,039 | 16.70 |
RFQ |
Bulk | - | Active | Permanent Magnet | Bipolar | 3VDC | 750 mA | 48 | 7.5° | - | 3.89 / 267.46 | Round - 1.378 Dia (35.00mm) | 14 | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads with Connector | - | 4 Ohms | |
|
|
PD3-108-28-SE-485MECHATRONIC DRIVE WITH STEPPER M |
2,197 | 0.00 |
RFQ |
Bulk | PANdrive™ | Obsolete | Hybrid | Bipolar | 24VDC | 560 mA | 200 | 1.8° | - | 14.16 / 100 | Square - 1.102 x 1.102 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Connector | -40°C ~ 45°C | - | |
|
|
PD2-013-42MECHATRONIC DRIVES WITH STEPPER |
3,536 | 0.00 |
RFQ |
Bulk | PANdrive™ | Obsolete | Hybrid | Bipolar | 12 ~ 24VDC | 1 A | 200 | 1.8° | - | 49.56 / 350 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | - | Connector | -25°C ~ 70°C | - | |
|
|
PD3-013-42MECHATRONIC DRIVES WITH STEPPER |
3,092 | 0.00 |
RFQ |
Bulk | PANdrive™ | Obsolete | Hybrid | Bipolar | 12 ~ 24VDC | 1 A | 200 | 1.8° | - | 69.39 / 490 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | - | Connector | -25°C ~ 70°C | - | |
|
|
PD1-108-28-SE-485MECHATRONIC DRIVE WITH STEPPER M |
2,851 | 0.00 |
RFQ |
Bulk | PANdrive™ | Obsolete | Hybrid | Bipolar | 24VDC | 560 mA | 200 | 1.8° | - | 7.08 / 50 | Square - 1.102 x 1.102 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Connector | -40°C ~ 45°C | - | |
|
|
PD1-013-42MECHATRONIC DRIVES WITH STEPPER |
2,979 | 0.00 |
RFQ |
Bulk | PANdrive™ | Obsolete | Hybrid | Bipolar | 12 ~ 24VDC | 1 A | 200 | 1.8° | - | 38.24 / 270 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | - | Connector | -25°C ~ 70°C | - | |
|
QSH5718-41-28-055STEPPER MOTOR HYBRID BIPOLAR 2V |
2,671 | 62.09 |
RFQ |
Bulk | QMot QSH5718 | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200 | 1.8° | ±5% | 77.89 / 550 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.7 Ohms | |
|
QSH6018-45-28-110STEP MOTOR HYBRID BIPOLAR 2.1V |
2,806 | 72.54 |
RFQ |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 2.1VDC | 2.8 A | 200 | 1.8° | ±5% | 155.77 / 1100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.7 Ohms | |
|
PD42-2-1070STEPPER MOTOR HYBRID BIPOLAR 24V |
3,733 | 121.00 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 51 / 360 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (30.99mm) | Connector | -20°C ~ 50°C | 1.2 Ohms | |
|
PD42-1-1270-TMCLPANDRIVE NEMA17, 24V, 38 OZ IN/ |
2,033 | 137.20 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 31.2 / 220 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1 Ohms | |
|

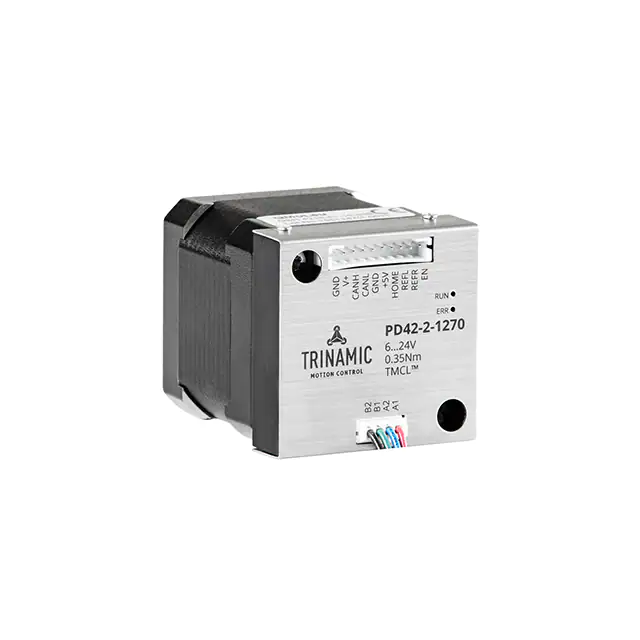

PD42-2-1270-TMCLPANDRIVE NEMA17, 24V, 50 OZ IN/ |
3,426 | 141.00 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 51 / 360 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1.2 Ohms | |
|
PD42-3-1270-TMCLPANDRIVE NEMA17, 24V, 69 OZ IN/ |
2,811 | 153.00 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 62.3 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1.4 Ohms |
|
QSH2818-51-07-012-8KSTEP MOTOR HYBRID NEMA11 ENC 819 |
3,031 | 182.40 |
RFQ |
Bulk | QMot QSH2818 | Active | Hybrid | Bipolar | 6.2VDC | 670 mA | 200 | 1.8° | ±5% | 17 / 120 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads | -20°C ~ 50°C | 9.2 Ohms | |
|
PD42-1-1370-TMCLPANDRIVE NEMA17, 24V, 0.22NM |
2,877 | 222.70 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2VDC | 2 A | 200 | 1.8° | ±5% | 31.16 / 220 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1 Ohms |
|
PD42-2-1370-TMCLPANDRIVE NEMA17, 24V, 0.36NM |
3,292 | 226.20 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.4VDC | 2 A | 200 | 1.8° | ±5% | 50.98 / 360 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1.2 Ohms |
|
QSH6018-65-28-210-10KSTEP MOTOR HYBRID NEMA24 ENC 100 |
3,831 | 228.29 |
RFQ |
Datasheet |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 3.36VDC | 2.8 A | 200 | 1.8° | ±5% | 297.4 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.2 Ohms |
|
PD57-2-1161STEPPER MOTOR HYBRID BIPOLAR 24V |
3,277 | 232.00 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 143.05 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
