| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

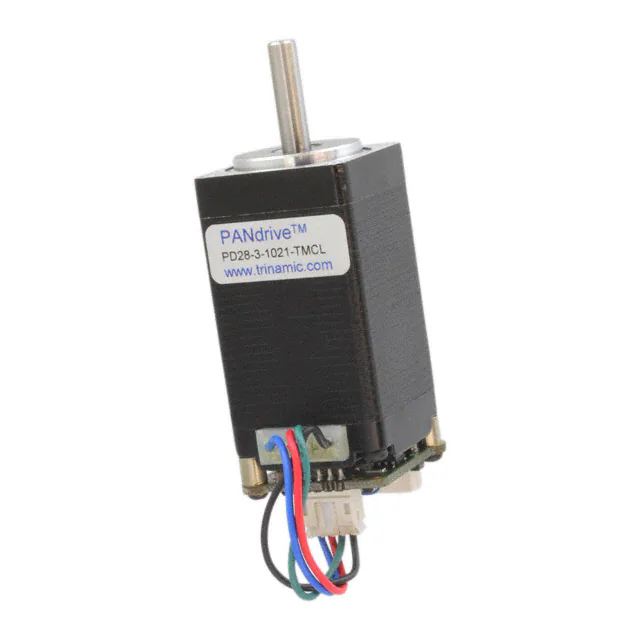

PD28-3-1021-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,552 | 199.38 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 700 mA | 200 | 1.8° | - | 17 / 120 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads with Connector | - | - |
|
PD42-3-1370-TMCLPANDRIVE NEMA17, 24V, 0.44NM |
2,790 | 237.40 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.4VDC | 2 A | 200 | 1.8° | ±5% | 62.31 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1.4 Ohms |
|
PD42-4-1370-TMCLPANDRIVE NEMA17, 24V, 0.7NM |
2,292 | 245.70 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 4.4VDC | 2 A | 200 | 1.8° | ±5% | 99.1 / 700 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 2.3 Ohms | |
|
PD42-4-1241-CANOPENPANDRIVE NEMA17, 24V, 0.8NM |
3,092 | 254.25 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 3.3VDC | 3 A | 200 | 1.8° | ±5% | 113.30 / 800 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.1 Ohms | |
|
PD42-3-1241-TMCLPANDRIVE NEMA17, 24V, 0.4NM |
2,585 | 261.10 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 3 A | 200 | 1.8° | ±5% | 56.66 / 400 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 0.5 Ohms |
|
PD42-3-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
3,649 | 267.17 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 62.3 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | - | Wire Leads with Connector | - | - |
|
PD42-4-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,490 | 278.37 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 99.1 / 700 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | - | Wire Leads with Connector | - | - |
|
PD57-2-1260-TMCLPANDRIVE NEMA23, 48V, 1.01NM |
3,129 | 279.38 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | - | 143.03 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - |
|
PD60-3-1260-CANOPENPANDRIVE NEMA24, 48V, 2.10NM |
3,502 | 313.10 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 4.6VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | |
|
PD60-3-1160-TMCLSTEPPER MOTOR HYBRID BIPOLAR 48V |
2,041 | 345.02 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|
PD60-4-1260-TMCLPANDRIVE NEMA24, 48V, 3.1NM |
3,698 | 356.80 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 6.8VDC | 2.8 A | 200 | 1.8° | - | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | |
|
PD42-1-1070STEPPER MOTOR HYBRID BIPOLAR 24V |
2,624 | 117.20 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 31.2 / 220 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (30.99mm) | Connector | -20°C ~ 50°C | 1 Ohms | |
|
|
PD42-3-1070STEPPER MOTOR HYBRID BIPOLAR 24V |
2,884 | 133.00 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 62.3 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (30.99mm) | Connector | -20°C ~ 50°C | 1.4 Ohms | |
|
QSH4218-35-10-027-10KSTEP MOTOR HYBRID NEMA17 ENC 100 |
2,548 | 168.59 |
RFQ |
Bulk | QMot QSH4218 | Active | Hybrid | Bipolar | 5.3VDC | 1 A | 200 | 1.8° | ±5% | 38.2 / 270 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 5.3 Ohms | |
|
PD28-1-1021-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,088 | 182.38 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 700 mA | 200 | 1.8° | - | 8.49 / 60 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads with Connector | - | - |
|
PD57-1-1161STEPPER MOTOR HYBRID BIPOLAR 24V |
2,794 | 226.88 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 77.89 / 550 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|
PD42-3-1240-TMCLPANDRIVE NEMA17, 24V, 0.44NM |
3,708 | 245.10 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 62.31 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.4 Ohms | |
|

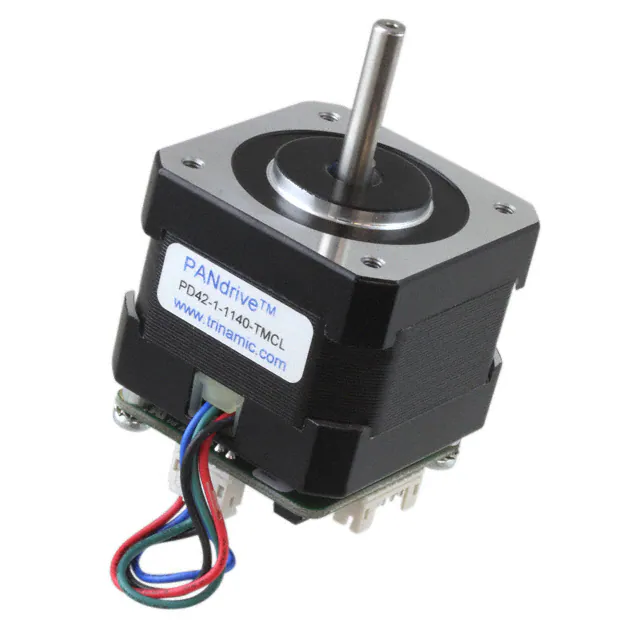

PD42-1-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,157 | 247.32 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 31.2 / 220 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | - | Wire Leads with Connector | - | - |
|
PD42-2-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
3,661 | 252.05 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 51 / 360 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | - | Wire Leads with Connector | - | - |
|
|
PD42-4-1240-TMCLPANDRIVE NEMA17, 24V, 0.7NM |
3,832 | 253.40 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 99.1 / 700 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 2.3 Ohms |
