Springs - Extension, Drawbar(2791)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | WireDiameter | Material | Diameter-Outside | Diameter-Inside | Rate | Load | LoopStyle | DrawbarWireSize |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

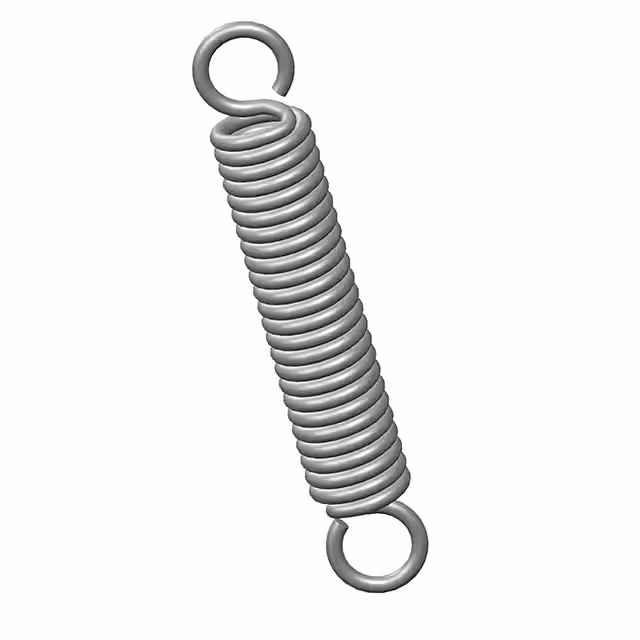

80420CSEXT O= .300,L= 1.75,W= .049 |
876 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.049 (1.24mm) | Music Wire | 0.300 (7.62mm) | - | 18.0 lbs/in | 17.0 lbs | - | - |
|

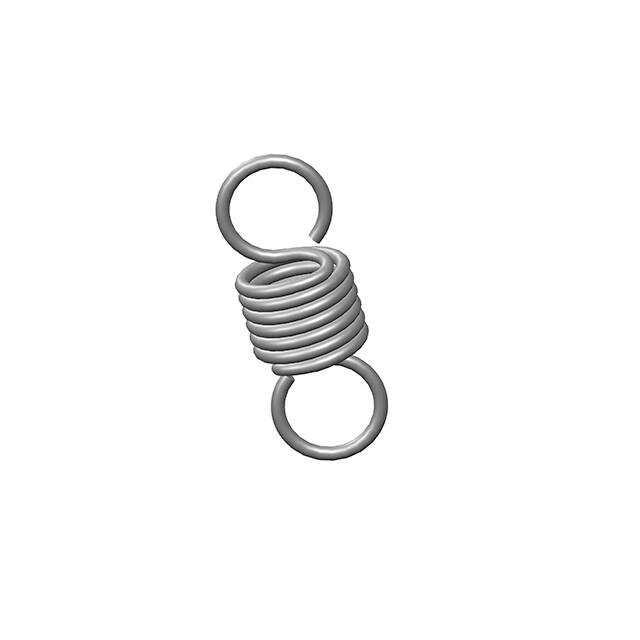

80281CSEXT O= .240,L= .63,W= .029 |
867 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.029 (0.74mm) | Music Wire | 0.240 (6.10mm) | - | 15.0 lbs/in | 5.0 lbs | - | - |
|

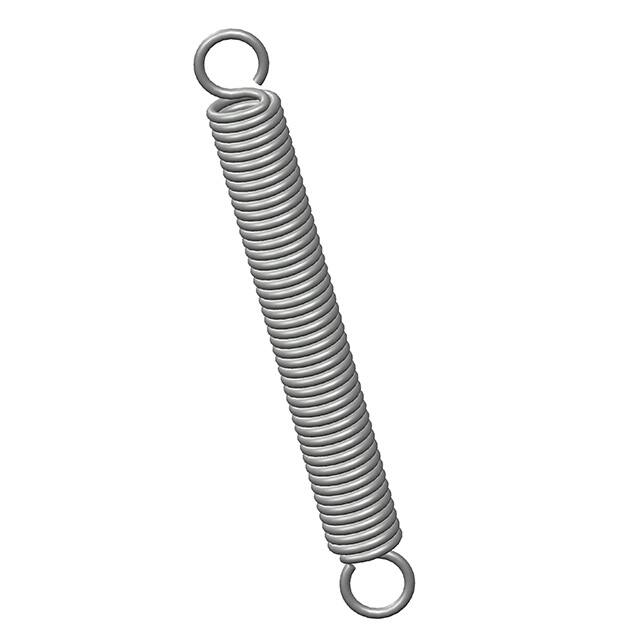

80412CSEXT O= .300,L= 2.50,W= .043 |
852 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.043 (1.09mm) | Music Wire | 0.300 (7.62mm) | - | 5.7 lbs/in | 12.0 lbs | - | - |
|

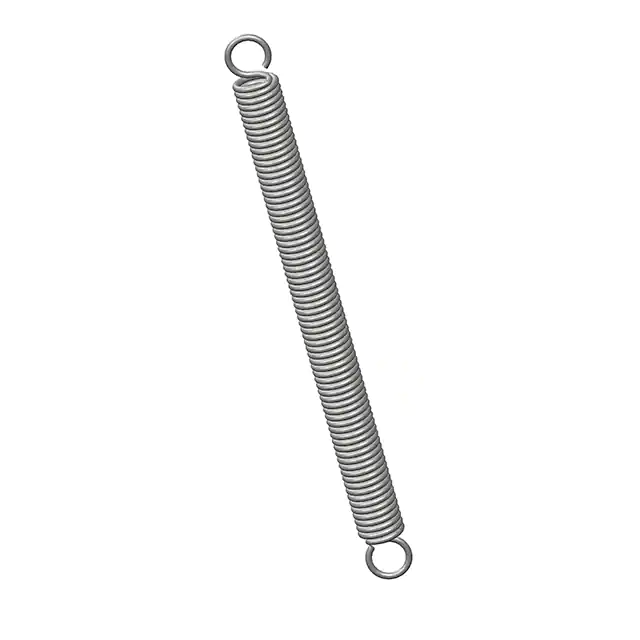

80195CSEXT O= .180,L= 2.25,W= .026 |
848 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.026 (0.66mm) | Music Wire | 0.180 (4.57mm) | - | 2.3 lbs/in | 4.6 lbs | - | - |
|

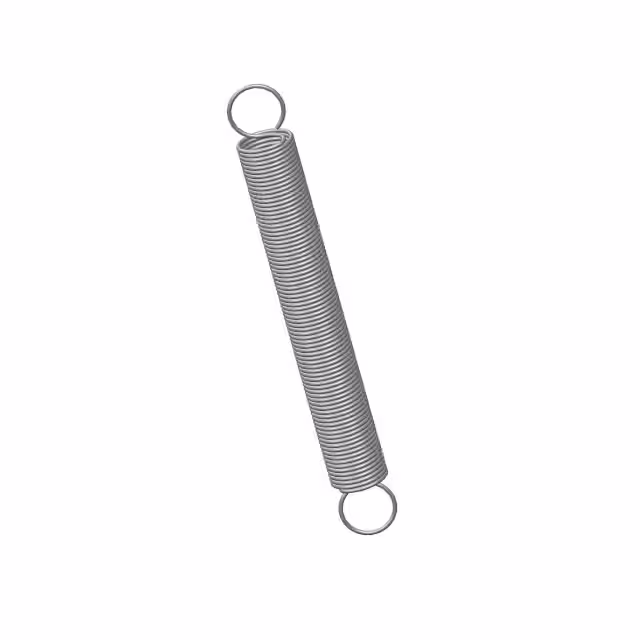

80131CSEXT O= .180,L= 1.50,W= .014 |
839 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.014 (0.36mm) | Music Wire | 0.180 (4.57mm) | - | 0.1 lbs/in | 0.90 lbs | - | - |
|

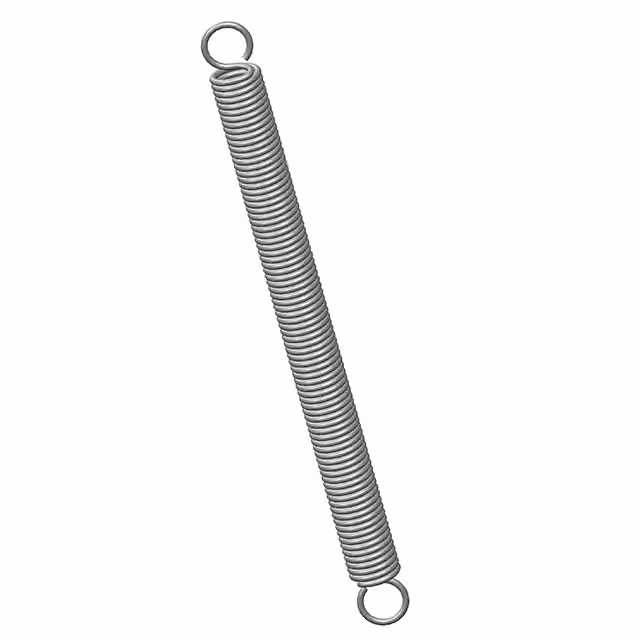

80312CSEXT O= .240,L= 3.00,W= .031 |
385 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.031 (0.79mm) | Music Wire | 0.240 (6.10mm) | - | 1.6 lbs/in | 6.1 lbs | - | - |
|

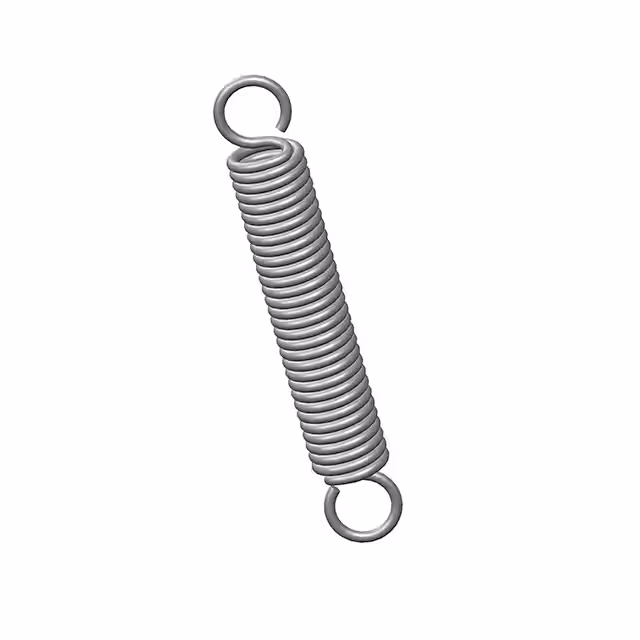

80189CSEXT O= .180,L= 1.13,W= .026 |
381 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.026 (0.66mm) | Music Wire | 0.180 (4.57mm) | - | 5.5 lbs/in | 4.6 lbs | - | - |
|

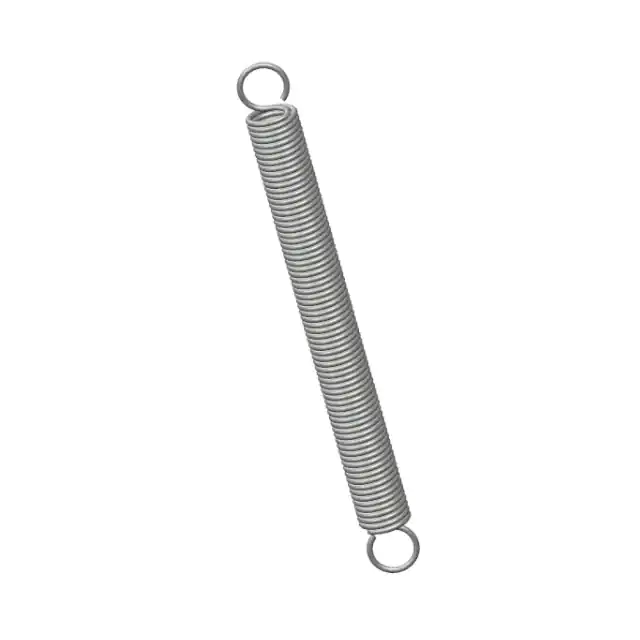

80075CSEXT O= .120,L= 1.25,W= .014 |
353 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.014 (0.36mm) | Music Wire | 0.120 (3.05mm) | - | 0.58 lbs/in | 1.3 lbs | - | - |
|

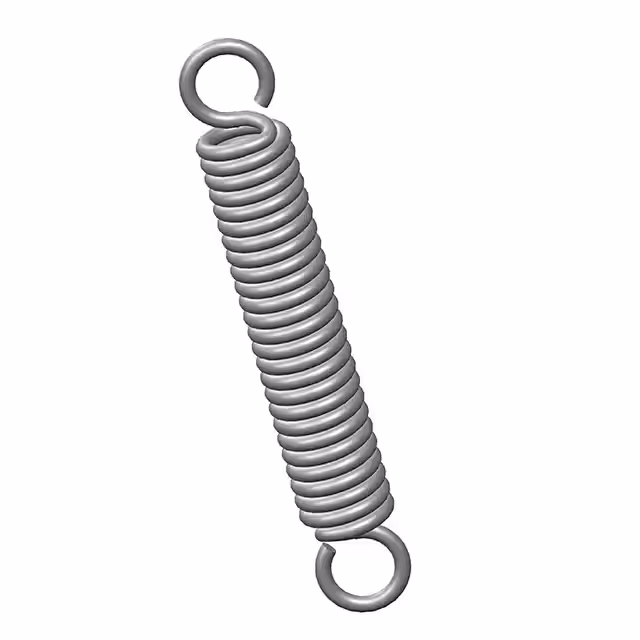

80361CSEXT O= .240,L= 1.50,W= .041 |
349 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.041 (1.04mm) | Music Wire | 0.240 (6.10mm) | - | 18.0 lbs/in | 13.0 lbs | - | - |
|

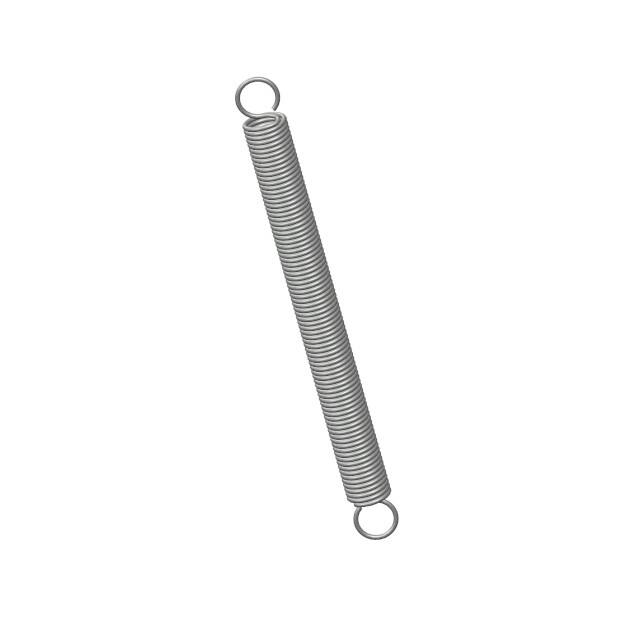

80156CSEXT O= .180,L= 2.00,W= .020 |
349 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.020 (0.51mm) | Music Wire | 0.180 (4.57mm) | - | 0.66 lbs/in | 2.3 lbs | - | - |
|

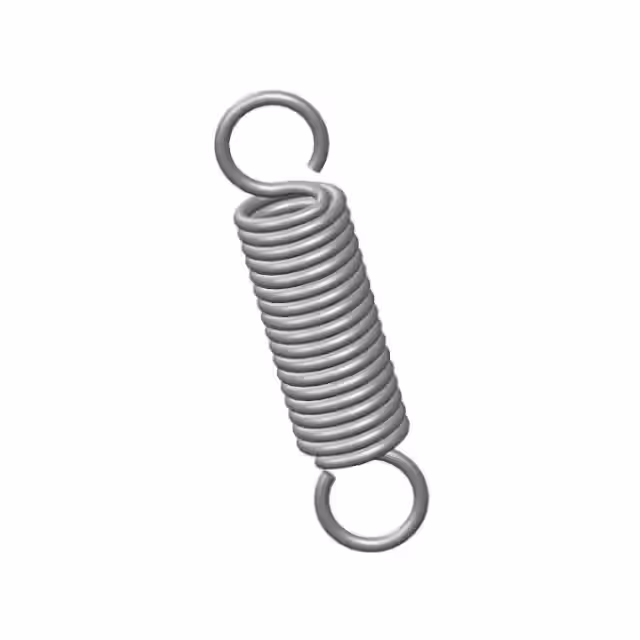

80079CSEXT O= .120,L= .50,W= .016 |
3,143 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.016 (0.41mm) | Music Wire | 0.120 (3.05mm) | - | 4.4 lbs/in | 1.8 lbs | - | - |
|

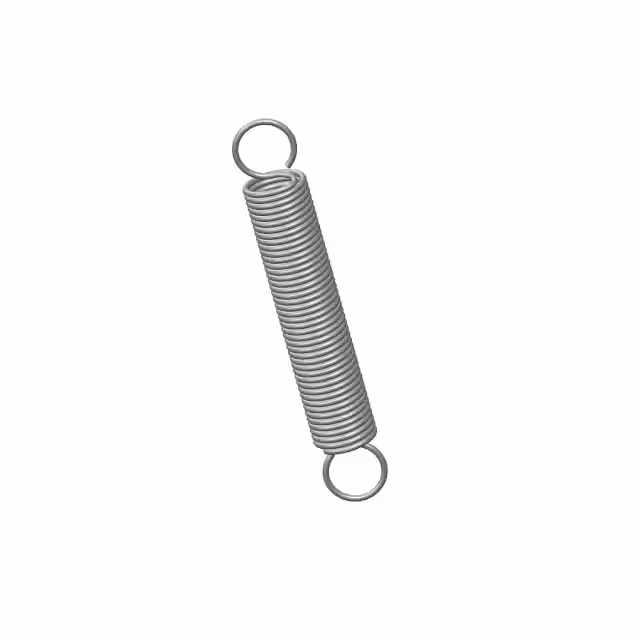

80136CSEXT O= .180,L= 1.13,W= .018 |
3,042 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.018 (0.46mm) | Music Wire | 0.180 (4.57mm) | - | 0.77 lbs/in | 1.7 lbs | - | - |
|

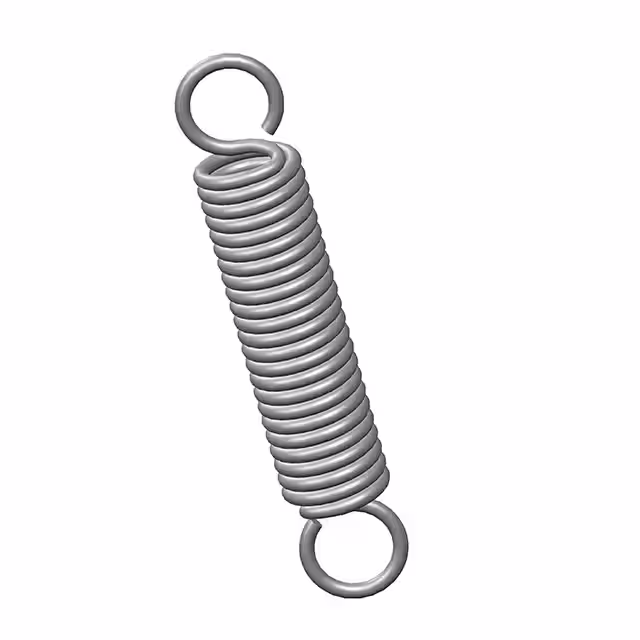

80322CSEXT O= .240,L= 1.25,W= .034 |
3,781 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.034 (0.86mm) | Music Wire | 0.240 (6.10mm) | - | 8.4 lbs/in | 7.9 lbs | - | - |
|

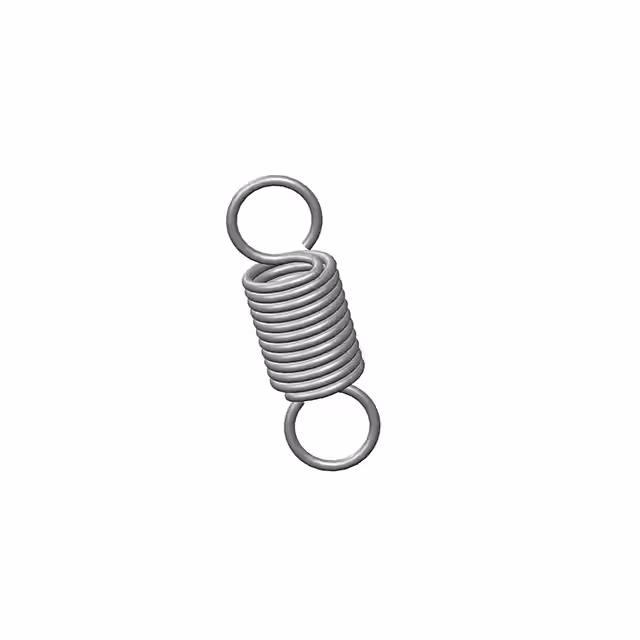

80501CSEXT O= .359,L= 1.13,W= .041 |
3,780 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.041 (1.04mm) | Music Wire | 0.360 (9.14mm) | - | 9.7 lbs/in | 8.9 lbs | - | - |
|

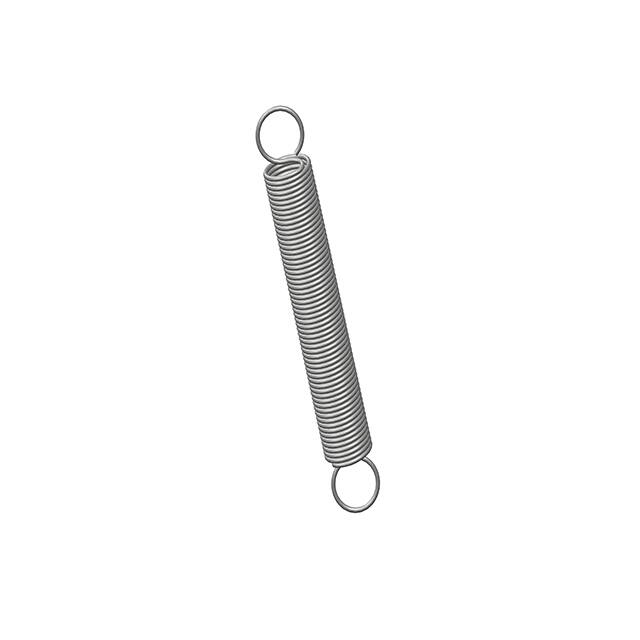

80454CSEXT O= .359,L= 2.50,W= .031 |
3,557 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.031 (0.79mm) | Music Wire | 0.360 (9.14mm) | - | 0.59 lbs/in | 4.1 lbs | - | - |
|

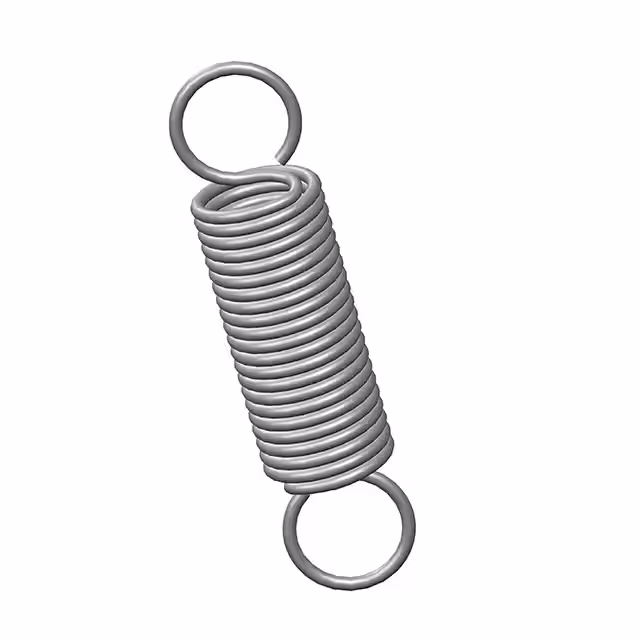

80383CSEXT O= .300,L= 1.25,W= .031 |
2,445 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.031 (0.79mm) | Music Wire | 0.300 (7.62mm) | - | 3.0 lbs/in | 4.8 lbs | - | - |
|

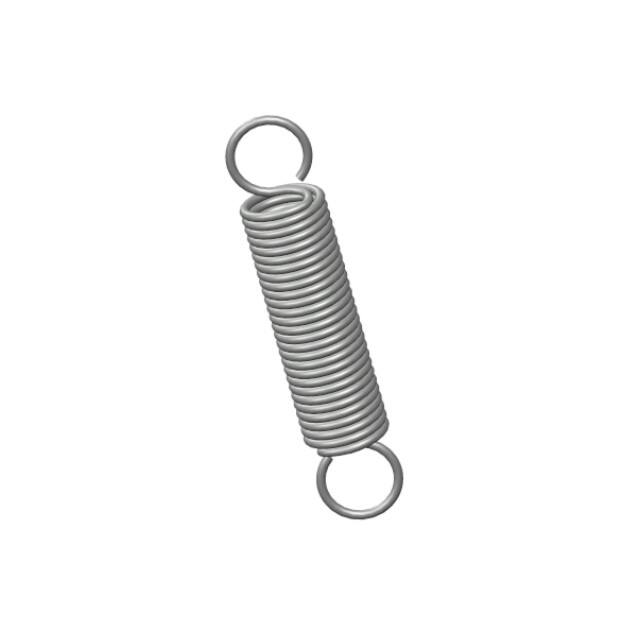

80148CSEXT O= .180,L= .88,W= .020 |
3,554 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.020 (0.51mm) | Music Wire | 0.180 (4.57mm) | - | 1.9 lbs/in | 2.3 lbs | - | - |
|

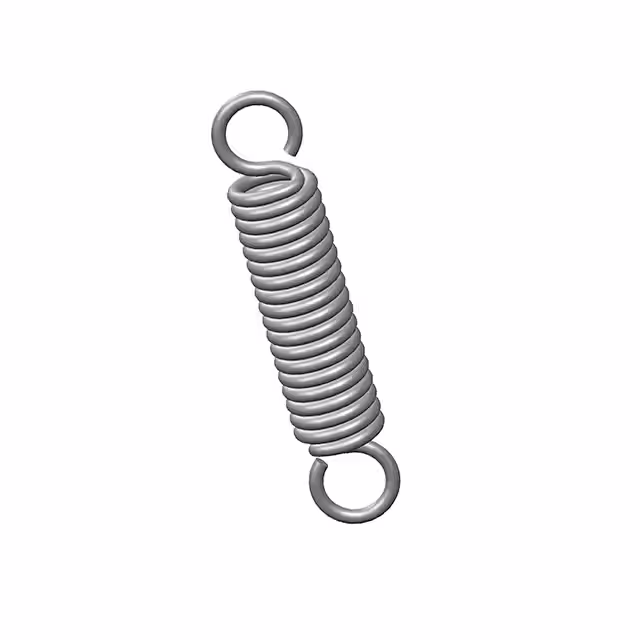

80199CSEXT O= .180,L= .88,W= .029 |
2,435 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.029 (0.74mm) | Music Wire | 0.180 (4.57mm) | - | 14.0 lbs/in | 6.4 lbs | - | - |
|

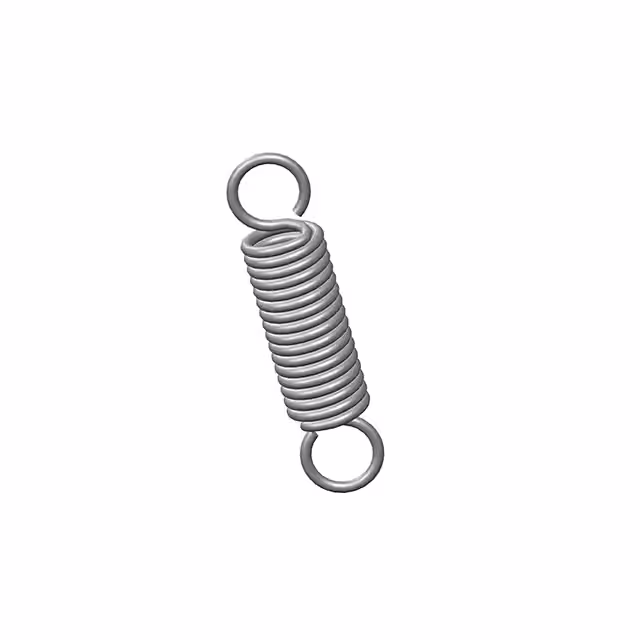

80537CSEXT O= .359,L= 1.50,W= .049 |
3,514 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.049 (1.24mm) | Music Wire | 0.360 (9.14mm) | - | 15.0 lbs/in | 15.0 lbs | - | - |
|

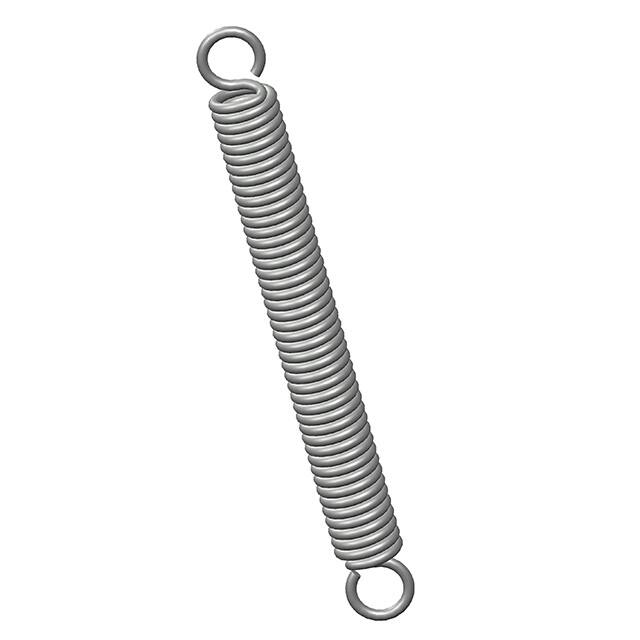

80424CSEXT O= .300,L= 2.75,W= .049 |
2,263 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.049 (1.24mm) | Music Wire | 0.300 (7.62mm) | - | 11.0 lbs/in | 17.0 lbs | - | - |
