Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

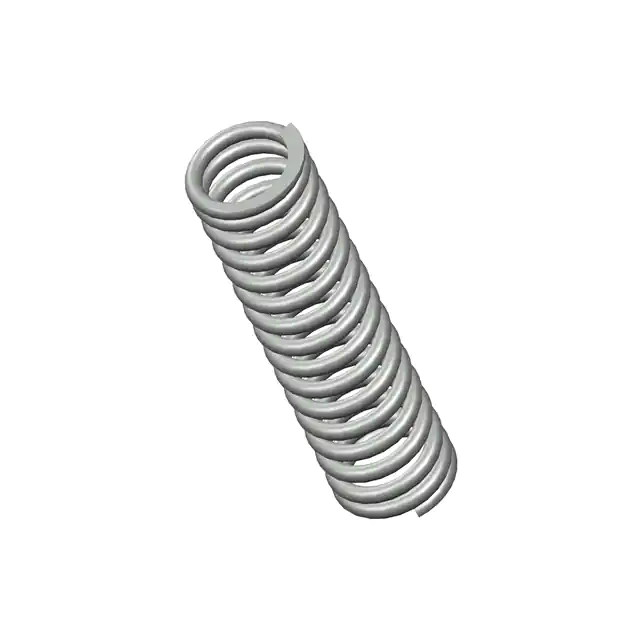

815CSCOMP O=1.188,L= 4.63,W= .162 |
203 | 12.96 |
RFQ |
Datasheet |
Box | - | Active | Hard Drawn | 0.162 (4.11mm) | 1.188 (30.18mm) | 0.864 (21.95mm) | - | - | 4.630 (117.60mm) | - | 64.0 lbs/in | Closed & Ground |
|

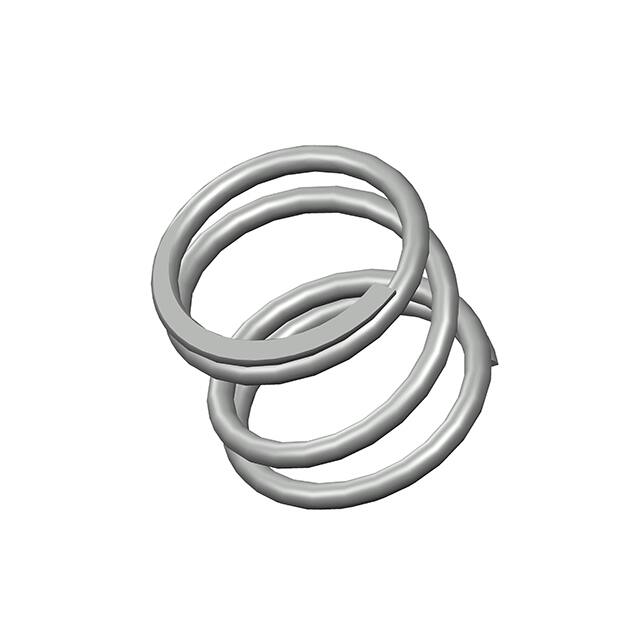

72210CSCOMP O= .850,L= .75,W= .080 |
347 | 12.97 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.080 (2.03mm) | 0.850 (21.59mm) | 0.690 (17.53mm) | - | - | 0.750 (19.05mm) | - | 67.0 lbs/in | Closed & Ground |
|

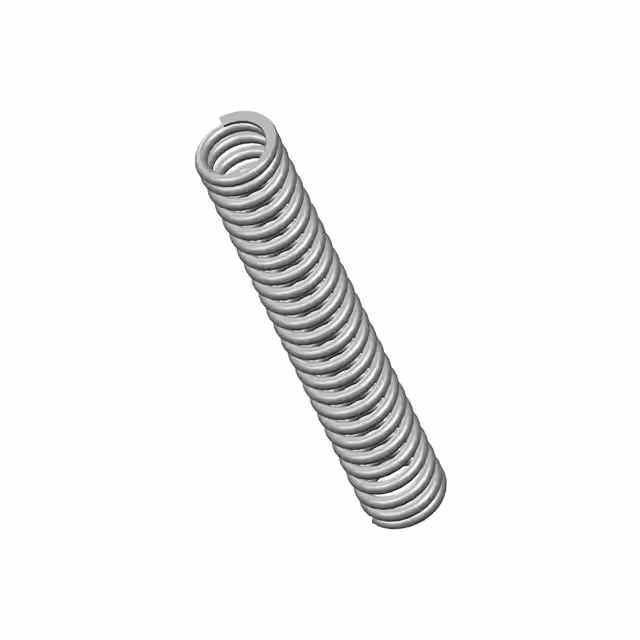

814CSCOMP O=1.125,L=7.00,W=.162 |
2,191 | 12.99 |
RFQ |
Datasheet |
Box | - | Active | Hard Drawn | 0.162 (4.11mm) | 1.125 (28.58mm) | 0.801 (20.35mm) | - | - | 7.000 (177.80mm) | - | 49.0 lbs/in | Closed & Ground |
|

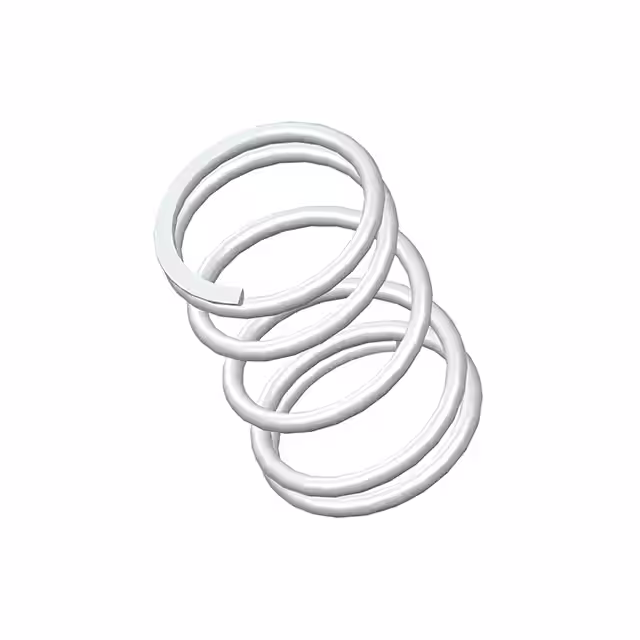

72197SCSCOMP O= .850,L= 1.25,W= .074 |
3,042 | 12.99 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.074 (1.88mm) | 0.850 (21.59mm) | 0.702 (17.83mm) | - | - | 1.250 (31.75mm) | - | 23.0 lbs/in | Closed & Ground |
|

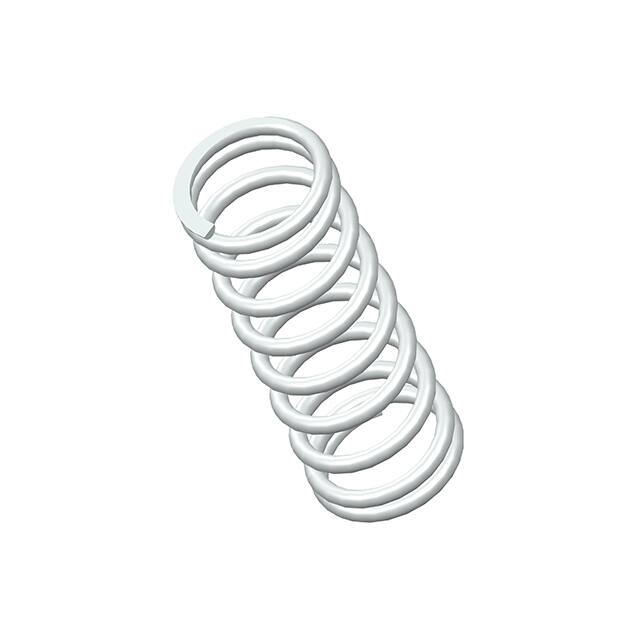

72063SCSCOMP O= .720,L= 2.00,W= .080 |
511 | 12.99 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.081 (2.06mm) | 0.720 (18.29mm) | 0.558 (14.17mm) | - | - | 2.000 (50.80mm) | - | 27.0 lbs/in | Closed & Ground |
|

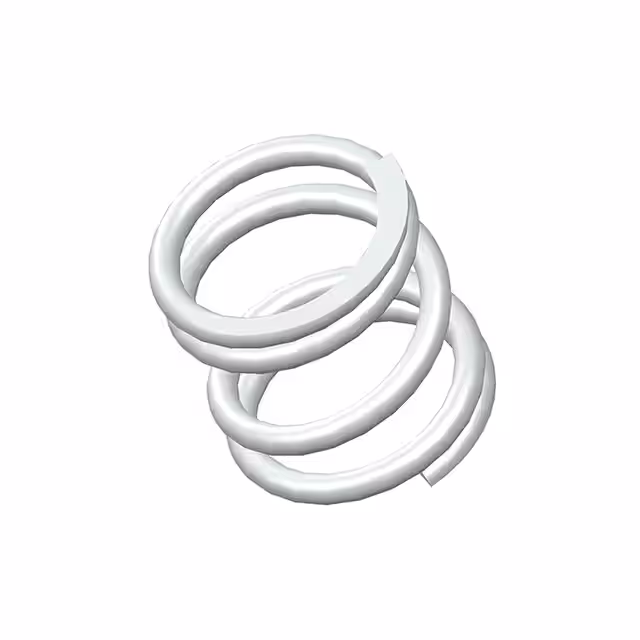

72057SCSCOMP O= .720,L= .75,W= .081 |
371 | 12.99 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.081 (2.06mm) | 0.720 (18.29mm) | 0.558 (14.17mm) | - | - | 0.750 (19.05mm) | - | 88.0 lbs/in | Closed & Ground |
|

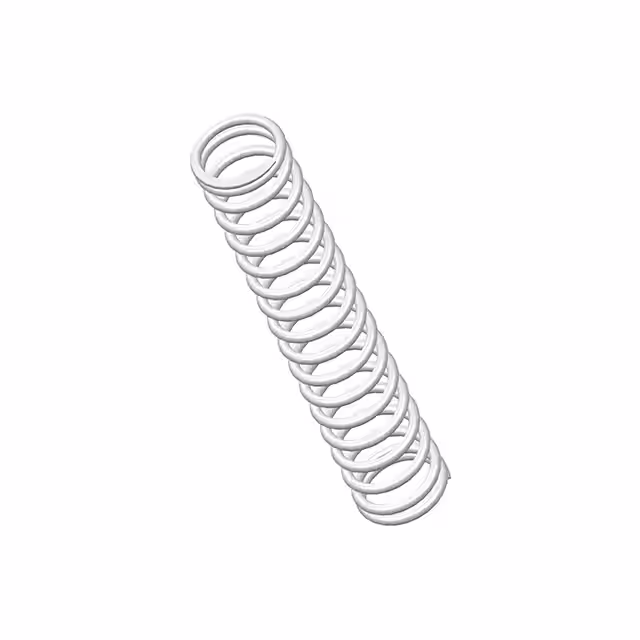

72056SCSCOMP O= .720,L= 4.00,W= .080 |
252 | 12.99 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.080 (2.03mm) | 0.720 (18.29mm) | 0.560 (14.22mm) | - | - | 4.000 (101.60mm) | - | 12.0 lbs/in | Closed & Ground |
|

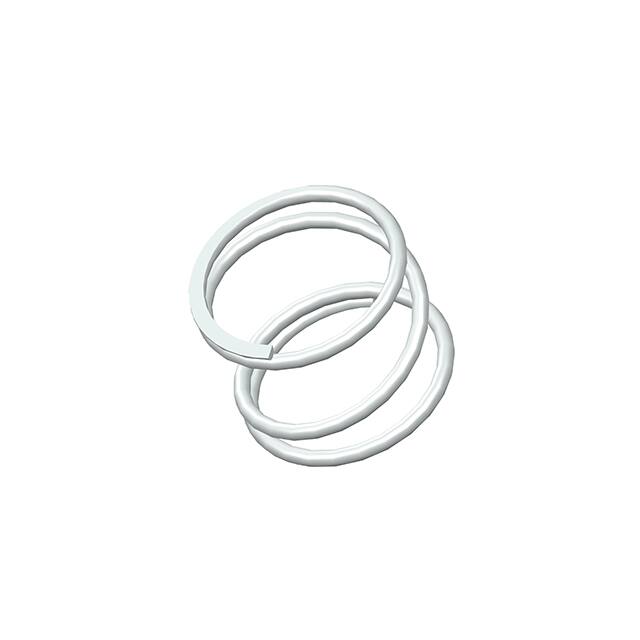

72504SCSCOMP O=1.100,L= .88,W= .082 |
2,636 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.082 (2.08mm) | 1.100 (27.94mm) | 0.942 (23.93mm) | - | - | 0.880 (22.35mm) | - | 36.0 lbs/in | Closed & Ground |
|

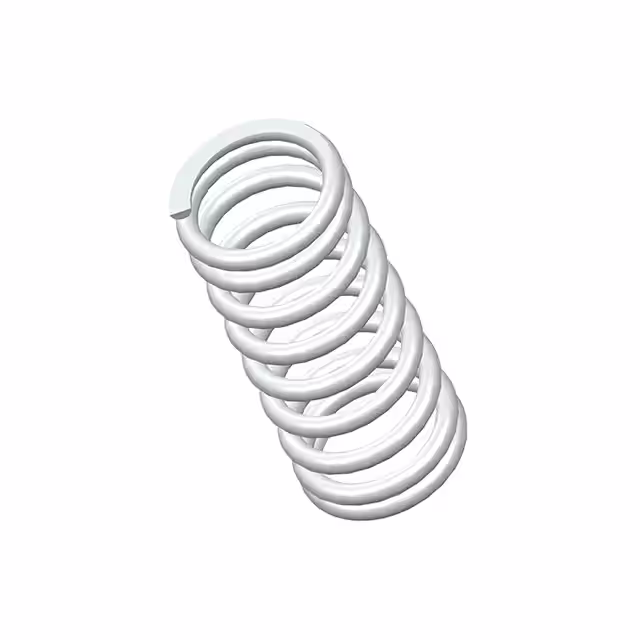

72316SCSCOMP O= .850,L= 2.00,W= .105 |
2,052 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.105 (2.67mm) | 0.850 (21.59mm) | 0.640 (16.25mm) | - | - | 2.000 (50.80mm) | - | 51.0 lbs/in | Closed & Ground |
|

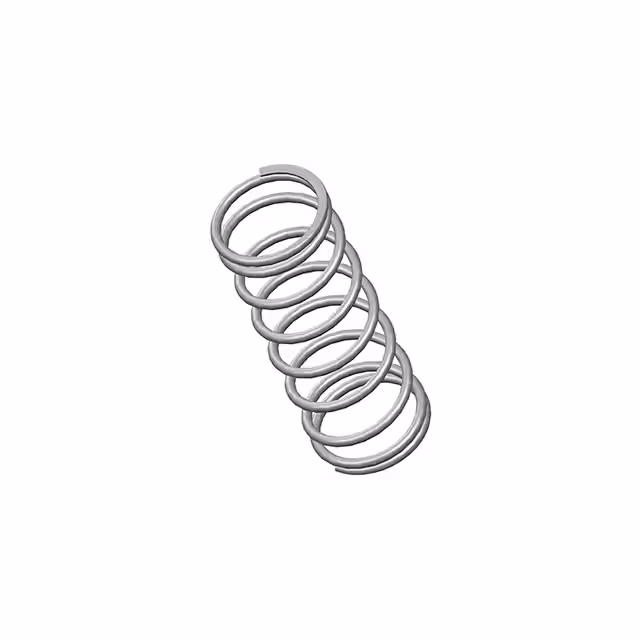

72534CSCOMP O=1.100,L= 3.00,W= .093 |
2,354 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.093 (2.36mm) | 1.100 (27.94mm) | 0.914 (23.22mm) | - | - | 3.000 (76.20mm) | - | 16.0 lbs/in | Closed & Ground |
|

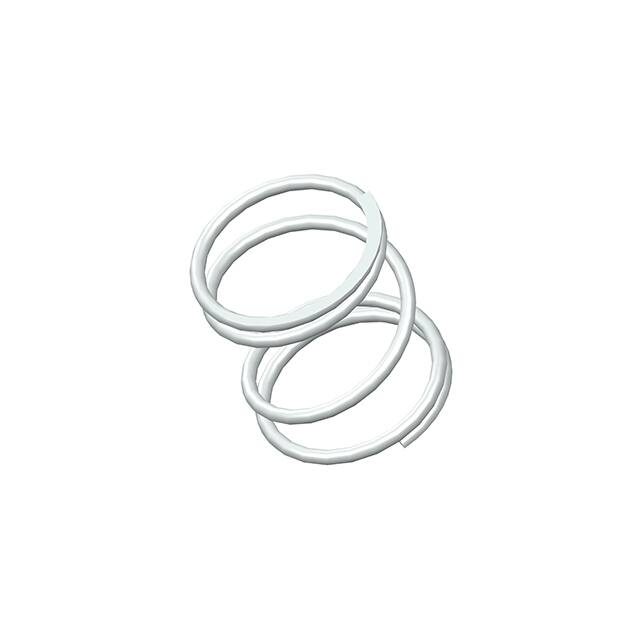

72506SCSCOMP O=1.100,L= 1.25,W= .082 |
3,614 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.082 (2.08mm) | 1.100 (27.94mm) | 0.936 (23.77mm) | - | - | 1.250 (31.75mm) | - | 24.0 lbs/in | Closed & Ground |
|

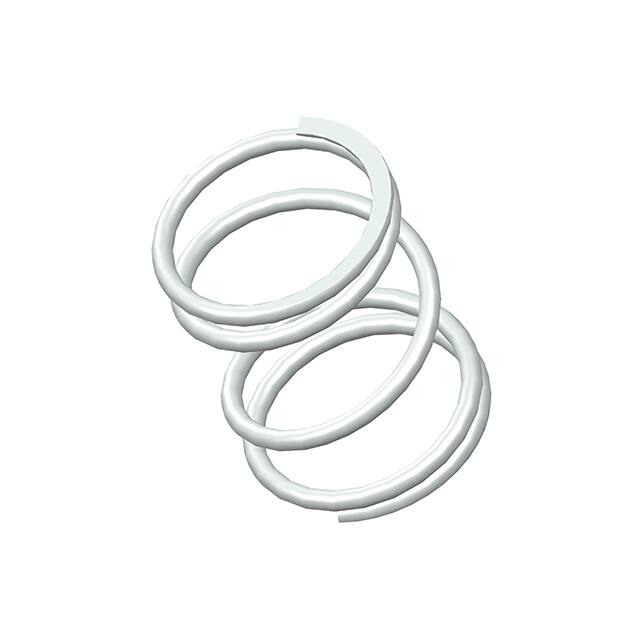

72369SCSCOMP O= .975,L= 1.25,W= .080 |
3,006 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.081 (2.06mm) | 0.975 (24.77mm) | 0.813 (20.65mm) | - | - | 1.250 (31.75mm) | - | 29.0 lbs/in | Closed & Ground |
|

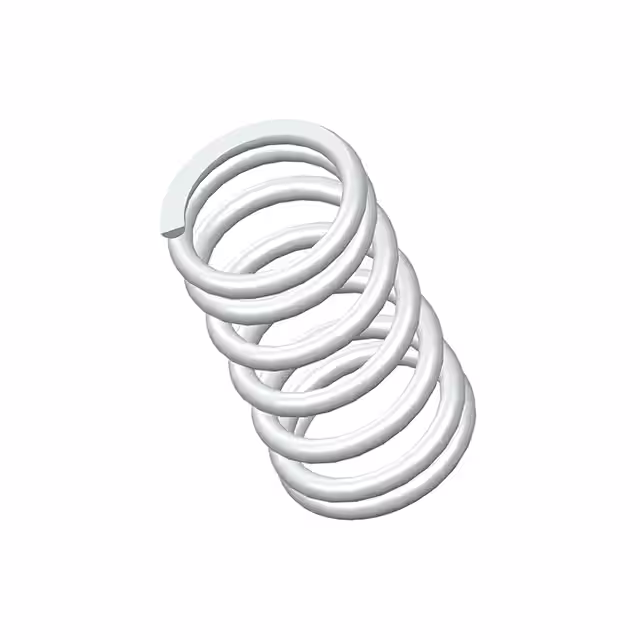

72440SCSCOMP O= .975,L= 1.75,W= .115 |
975 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.115 (2.92mm) | 0.975 (24.77mm) | 0.745 (18.92mm) | - | - | 1.750 (44.45mm) | - | 66.0 lbs/in | Closed & Ground |
|

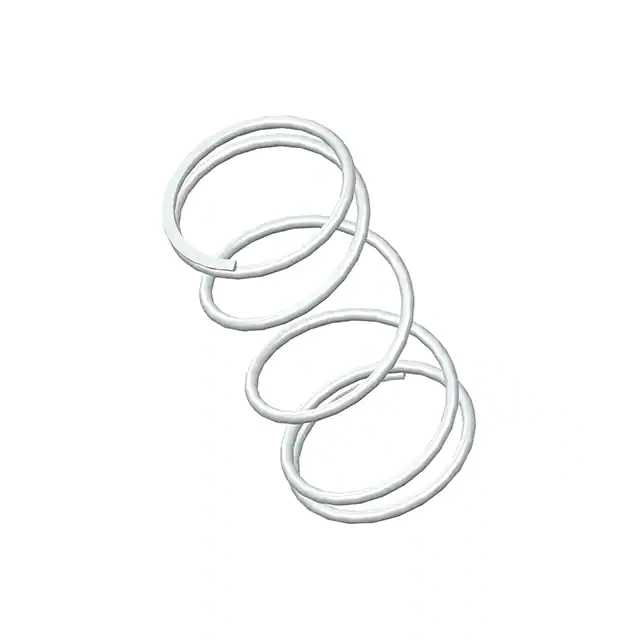

72332SCSCOMP O= .975,L= 2.00,W= .0625 |
960 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.063 (1.60mm) | 0.975 (24.77mm) | 0.849 (21.56mm) | - | - | 2.000 (50.80mm) | - | 7.3 lbs/in | Closed & Ground |
|

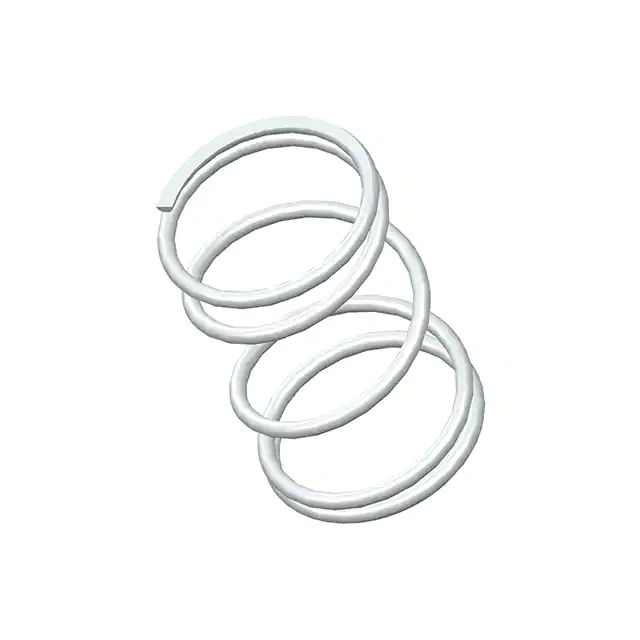

72342SCSCOMP O= .975,L= 1.50,W= .072 |
746 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.072 (1.83mm) | 0.975 (24.77mm) | 0.831 (21.11mm) | - | - | 1.500 (38.10mm) | - | 15.0 lbs/in | Closed & Ground |
|

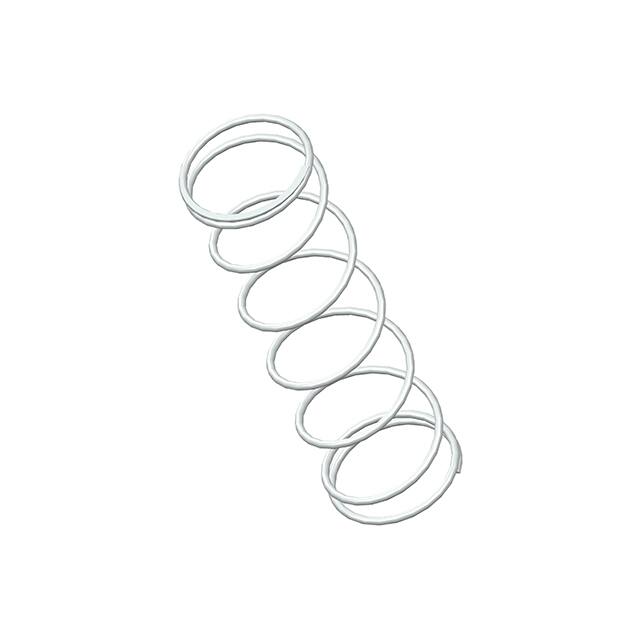

72143SCSCOMP O= .850,L= 3.00,W= .050 |
735 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.050 (1.27mm) | 0.850 (21.59mm) | 0.750 (19.05mm) | - | - | 3.000 (76.20mm) | - | 2.5 lbs/in | Closed & Ground |
|

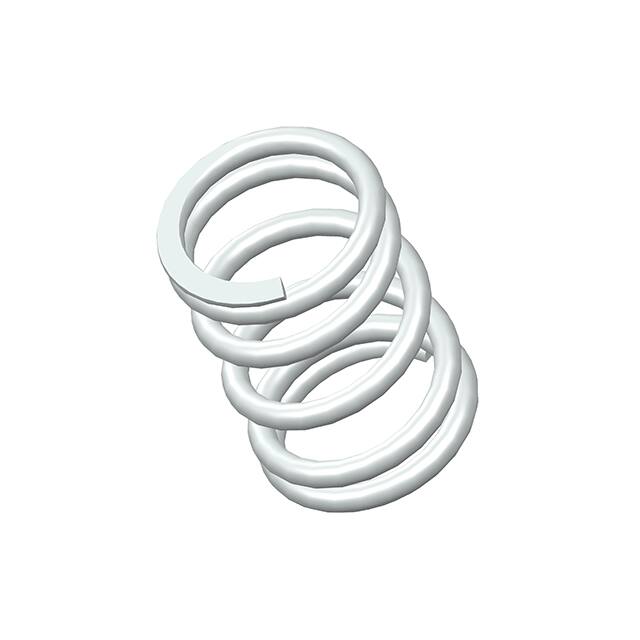

72298SCSCOMP O= .850,L= 1.25,W= .100 |
593 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.100 (2.54mm) | 0.850 (21.59mm) | 0.650 (16.51mm) | - | - | 1.250 (31.75mm) | - | 81.0 lbs/in | Closed & Ground |
|

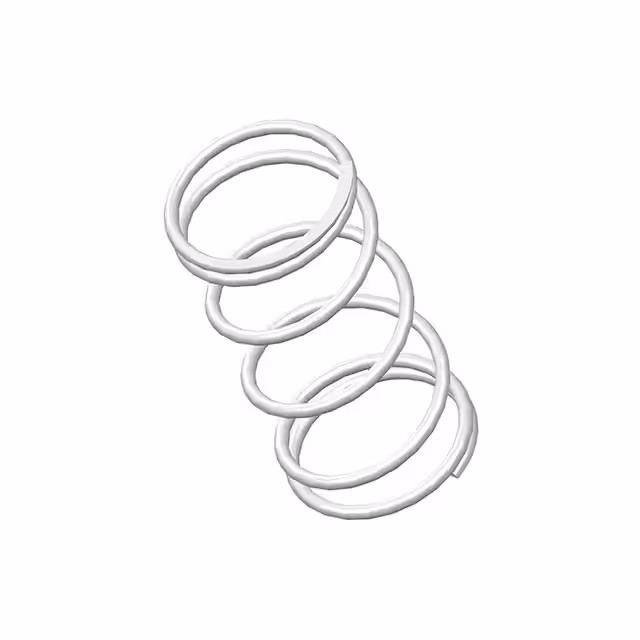

72344SCSCOMP O= .975,L= 2.00,W= .072 |
573 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.072 (1.83mm) | 0.975 (24.77mm) | 0.831 (21.11mm) | - | - | 2.000 (50.80mm) | - | 11.0 lbs/in | Closed & Ground |
|

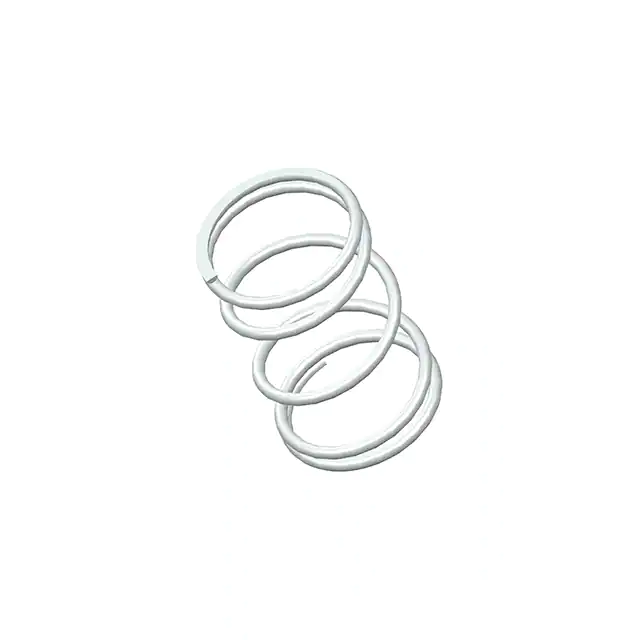

72508SCSCOMP O=1.100,L= 1.75,W= .082 |
563 | 13.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.082 (2.08mm) | 1.100 (27.94mm) | 0.936 (23.77mm) | - | - | 1.750 (44.45mm) | - | 16.0 lbs/in | Closed & Ground |
|

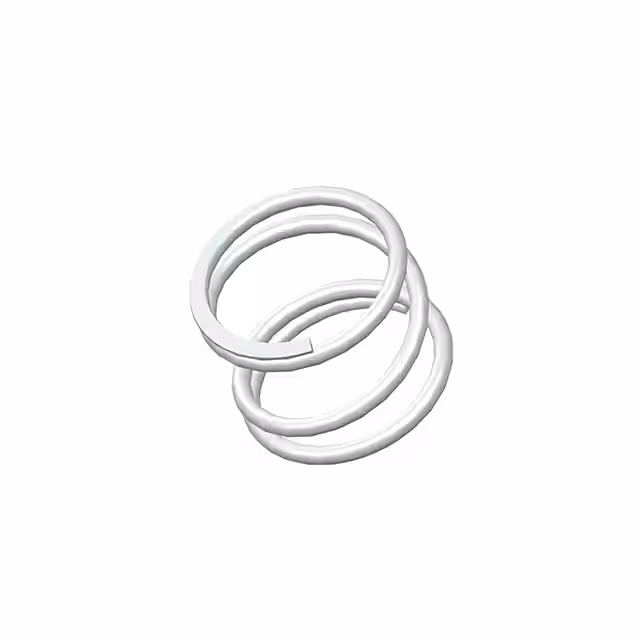

72527SCSCOMP O=1.100,L= .88,W= .093 |
492 | 13.04 |
RFQ |
Box | - | Active | Stainless Steel | 0.093 (2.36mm) | 1.100 (27.94mm) | 0.914 (23.22mm) | - | - | 0.880 (22.35mm) | - | 55.0 lbs/in | Closed & Ground |
