Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

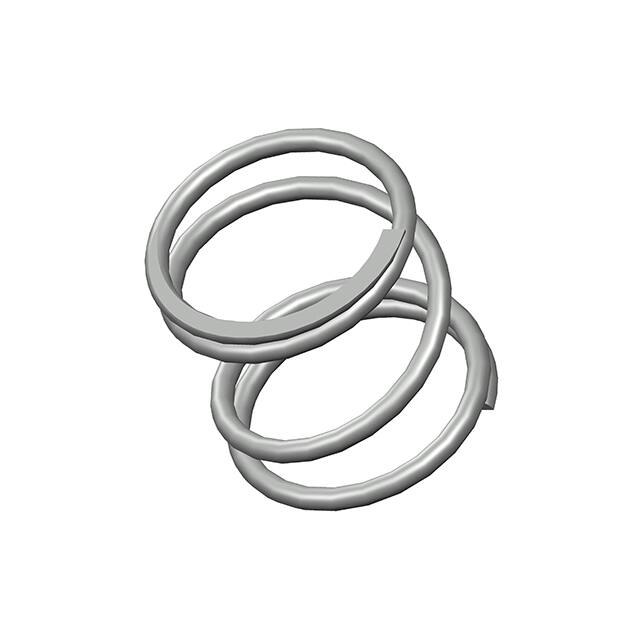

72186CSCOMP O= .850,L= .88,W= .072 |
2,127 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.072 (1.83mm) | 0.850 (21.59mm) | 0.706 (17.93mm) | - | - | 0.880 (22.35mm) | - | 41.0 lbs/in | Closed & Ground |
|

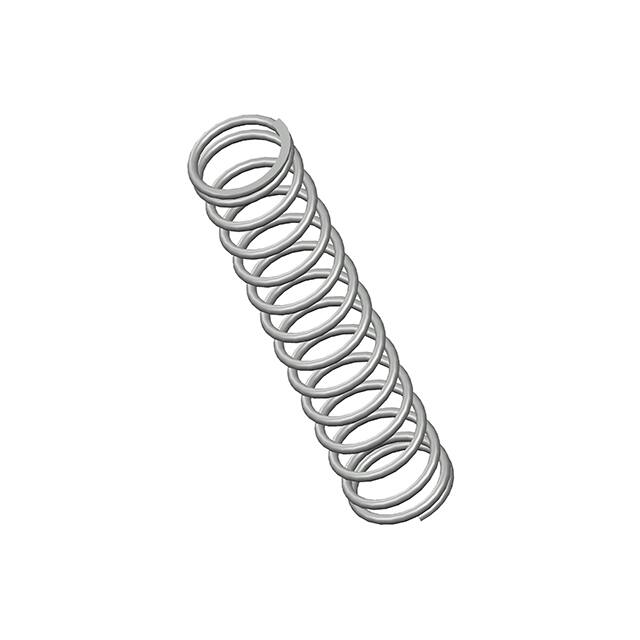

71987CSCOMP O= .720,L= 3.50,W= .067 |
2,060 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.067 (1.70mm) | 0.720 (18.29mm) | 0.586 (14.88mm) | - | - | 3.500 (88.90mm) | - | 8.5 lbs/in | Closed & Ground |
|

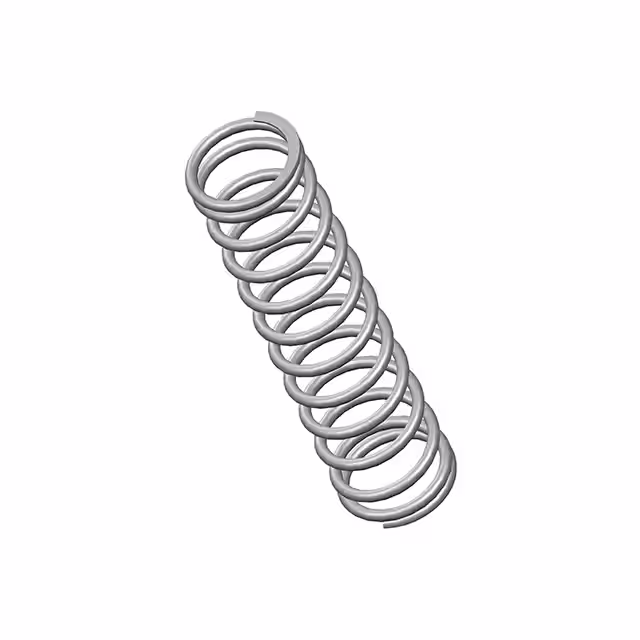

71911CSCOMP O= .660,L= 2.75,W= .067 |
3,918 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.067 (1.70mm) | 0.660 (16.76mm) | 0.526 (13.36mm) | - | - | 2.750 (69.85mm) | - | 13.0 lbs/in | Closed & Ground |
|

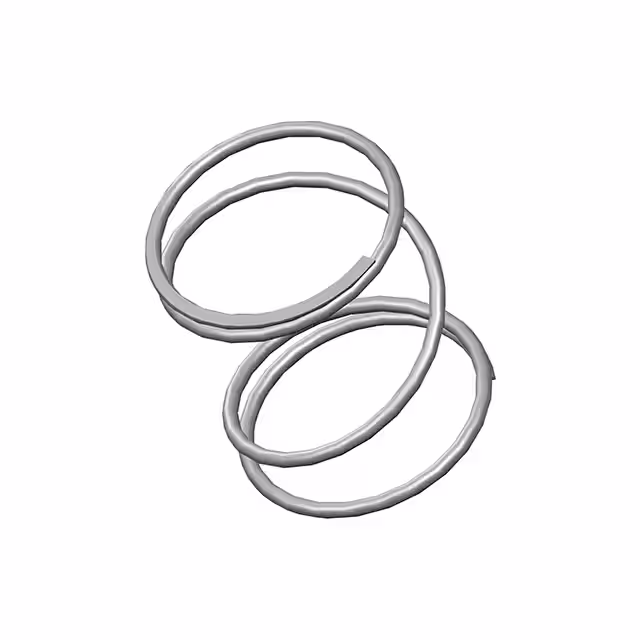

72138CSCOMP O= .850,L= 1.00,W= .050 |
3,409 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.050 (1.27mm) | 0.850 (21.59mm) | 0.750 (19.05mm) | - | - | 1.000 (25.40mm) | - | 9.4 lbs/in | Closed & Ground |
|

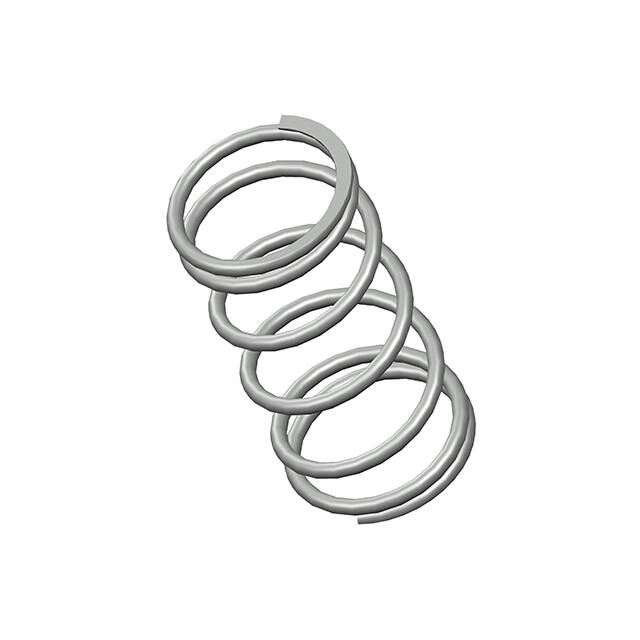

72190CSCOMP O= .850,L= 1.75,W= .072 |
3,293 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.072 (1.83mm) | 0.850 (21.59mm) | 0.706 (17.93mm) | - | - | 1.750 (44.45mm) | - | 18.0 lbs/in | Closed & Ground |
|

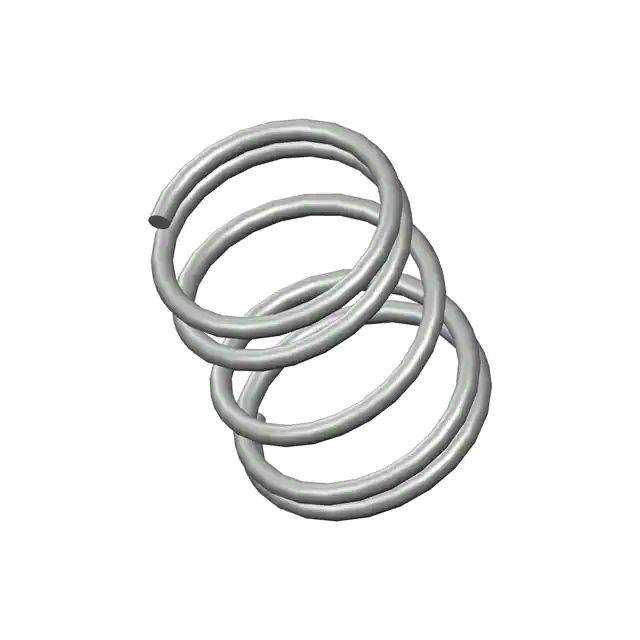

3409CSCOMP O=1.296,L= 1.63,W= .108 |
2,238 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.108 (2.74mm) | 1.296 (32.92mm) | 1.080 (27.43mm) | - | - | 1.630 (41.40mm) | - | 39.0 lbs/in | Closed & Ground |
|

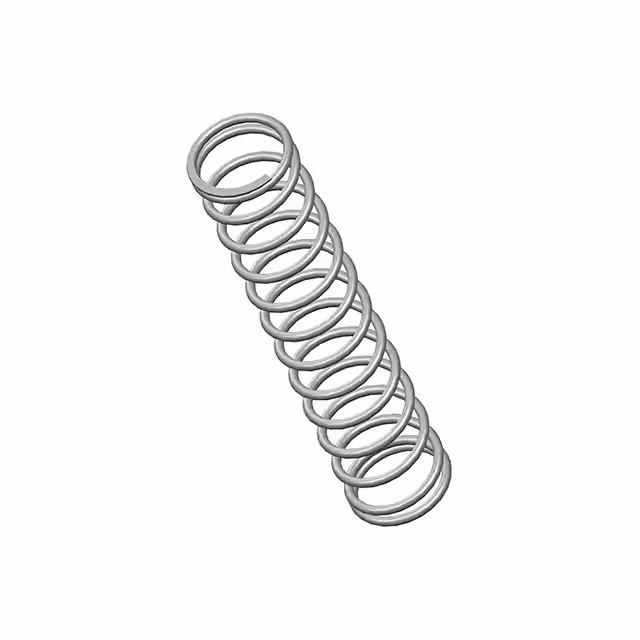

71975CSCOMP O= .720,L= 3.50,W= .065 |
3,312 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.065 (1.65mm) | 0.720 (18.29mm) | 0.590 (14.99mm) | - | - | 3.500 (88.90mm) | - | 7.8 lbs/in | Closed & Ground |
|

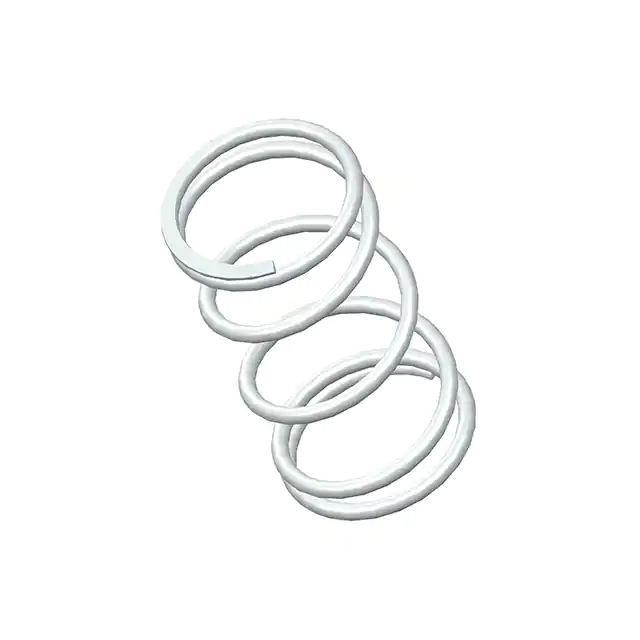

71881SCSCOMP O= .660,L= 1.25,W= .055 |
979 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.055 (1.40mm) | 0.660 (16.76mm) | 0.550 (13.97mm) | - | - | 1.250 (31.75mm) | - | 14.0 lbs/in | Closed & Ground |
|

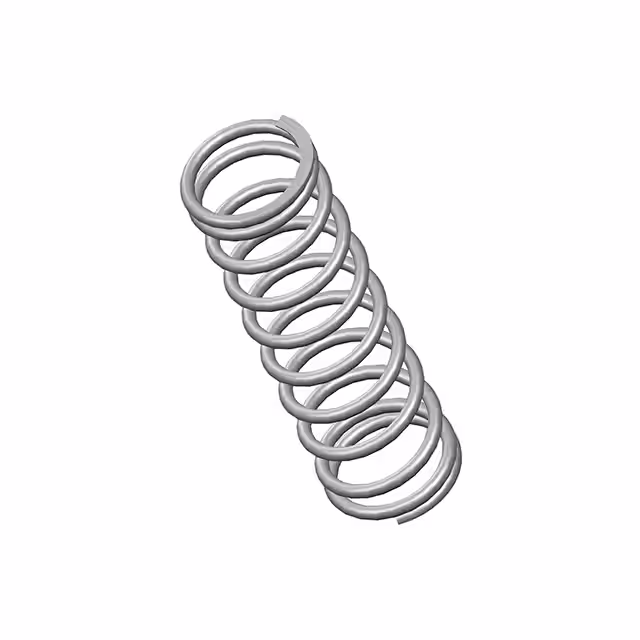

71909CSCOMP O= .660,L= 2.25,W= .067 |
953 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.067 (1.70mm) | 0.660 (16.76mm) | 0.526 (13.36mm) | - | - | 2.250 (57.15mm) | - | 17.0 lbs/in | Closed & Ground |
|

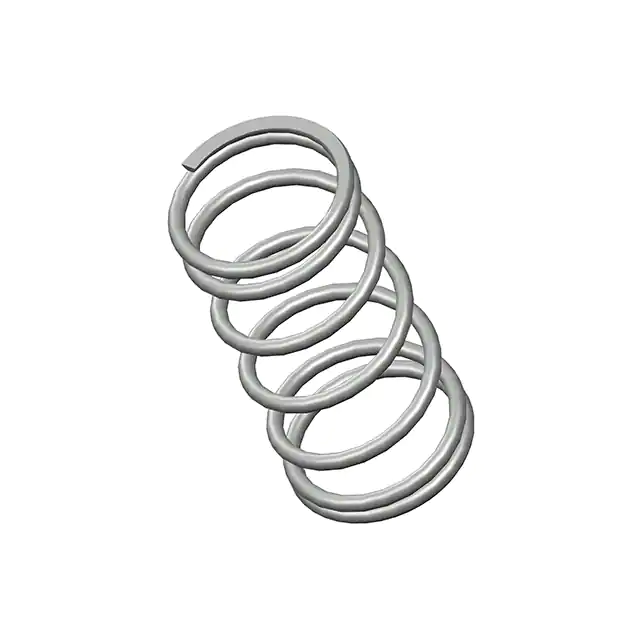

72200CSCOMP O= .850,L= 1.75,W= .074 |
853 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.074 (1.88mm) | 0.850 (21.59mm) | 0.702 (17.83mm) | - | - | 1.750 (44.45mm) | - | 19.0 lbs/in | Closed & Ground |
|

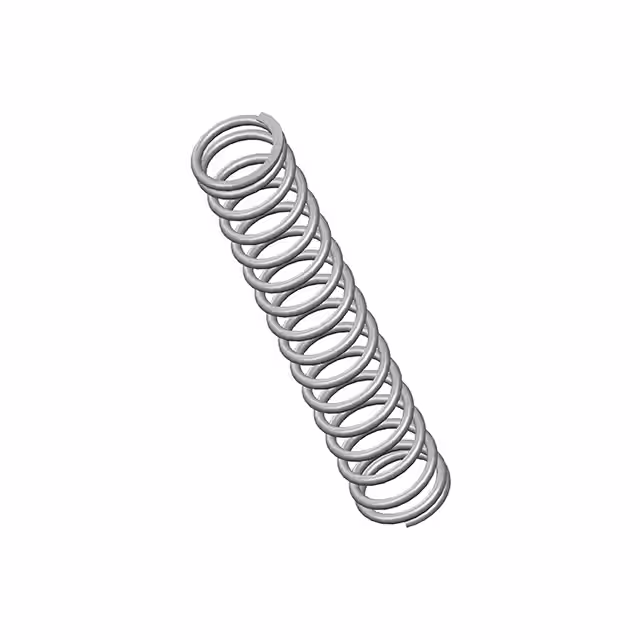

71684CSCOMP O= .540,L= 3.00,W= .058 |
850 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.058 (1.47mm) | 0.540 (13.72mm) | 0.424 (10.77mm) | - | - | 3.000 (76.20mm) | - | 10.0 lbs/in | Closed & Ground |
|

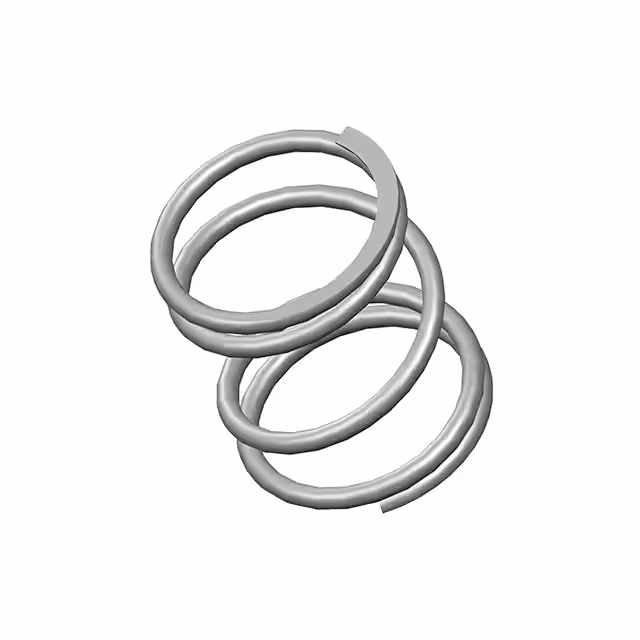

72187CSCOMP O= .850,L= 1.00,W= .072 |
833 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.072 (1.83mm) | 0.850 (21.59mm) | 0.706 (17.93mm) | - | - | 1.000 (25.40mm) | - | 35.0 lbs/in | Closed & Ground |
|

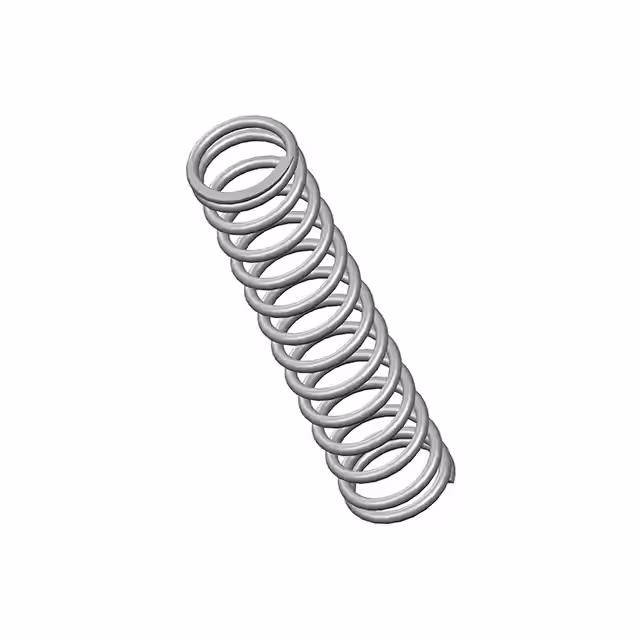

71924CSCOMP O= .660,L= 3.00,W= .072 |
681 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.072 (1.83mm) | 0.660 (16.76mm) | 0.516 (13.11mm) | - | - | 3.000 (76.20mm) | - | 16.0 lbs/in | Closed & Ground |
|
71875CSCOMP O= .660,L= 2.75,W= .049 |
613 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.049 (1.24mm) | 0.660 (16.76mm) | 0.562 (14.27mm) | - | - | 2.750 (69.85mm) | - | 4.5 lbs/in | Closed & Ground |
|

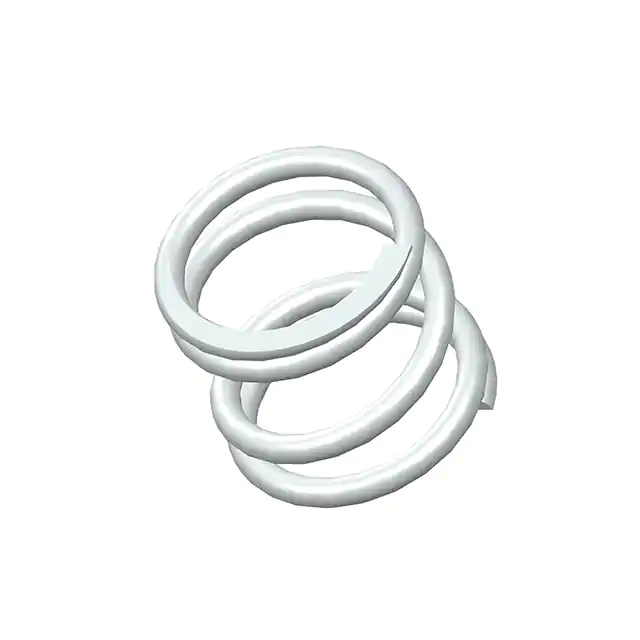

71913SCSCOMP O= .660,L= .63,W= .072 |
501 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.072 (1.83mm) | 0.660 (16.76mm) | 0.516 (13.11mm) | - | - | 0.630 (16.00mm) | - | 80.0 lbs/in | Closed & Ground |
|

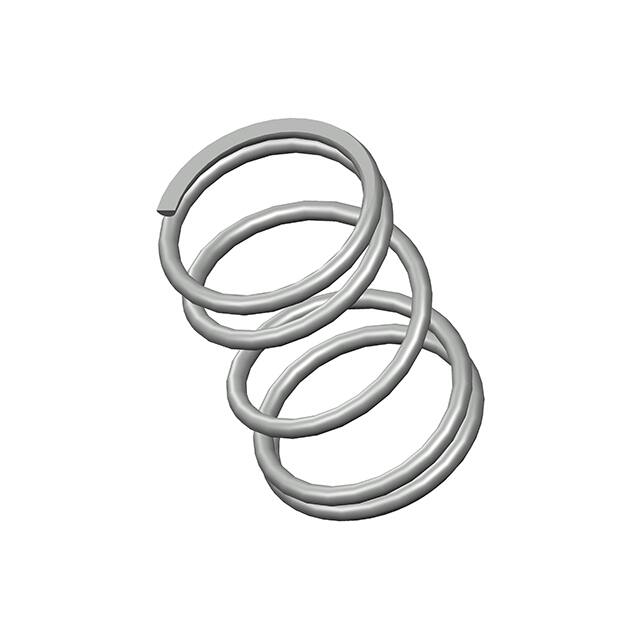

72188CSCOMP O= .850,L= 1.25,W= .072 |
489 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.072 (1.83mm) | 0.850 (21.59mm) | 0.706 (17.93mm) | - | - | 1.250 (31.75mm) | - | 27.0 lbs/in | Closed & Ground |
|

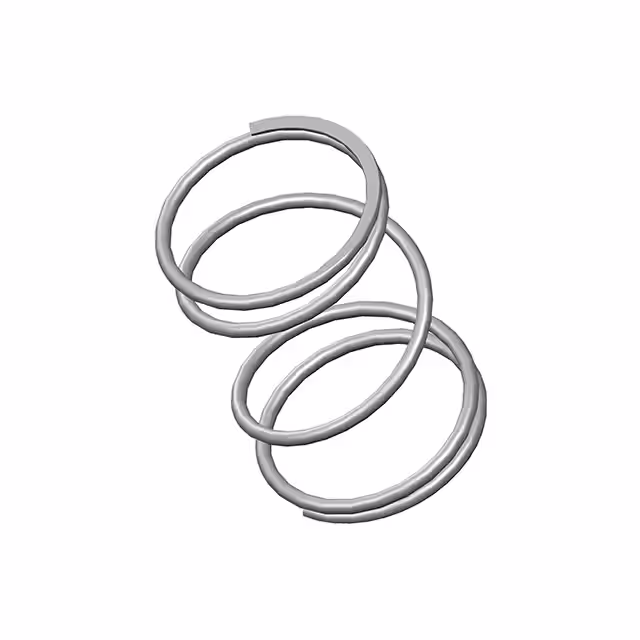

72149CSCOMP O= .850,L= 1.25,W= .055 |
475 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.850 (21.59mm) | 0.740 (18.80mm) | - | - | 1.250 (31.75mm) | - | 10.0 lbs/in | Closed & Ground |
|

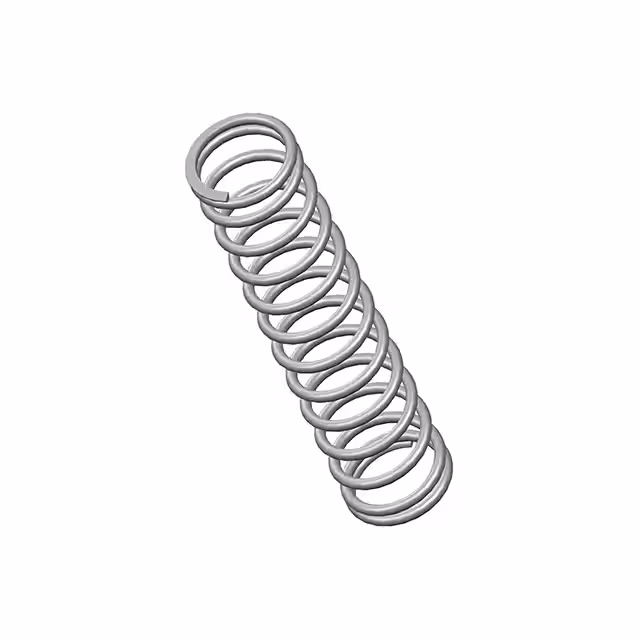

71912CSCOMP O= .660,L= 3.00,W= .067 |
338 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.067 (1.70mm) | 0.660 (16.76mm) | 0.526 (13.36mm) | - | - | 3.000 (76.20mm) | - | 12.0 lbs/in | Closed & Ground |
|

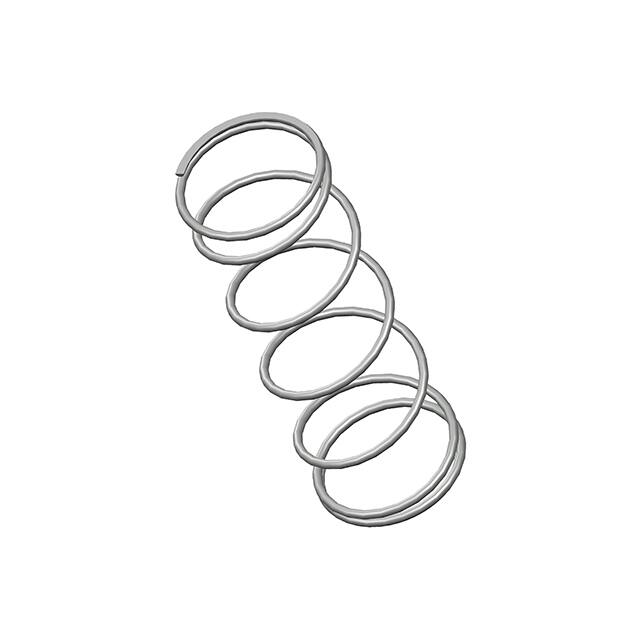

72142CSCOMP O= .850,L= 2.50,W= .050 |
289 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.050 (1.27mm) | 0.850 (21.59mm) | 0.750 (19.05mm) | - | - | 2.500 (63.50mm) | - | 3.5 lbs/in | Closed & Ground |
|

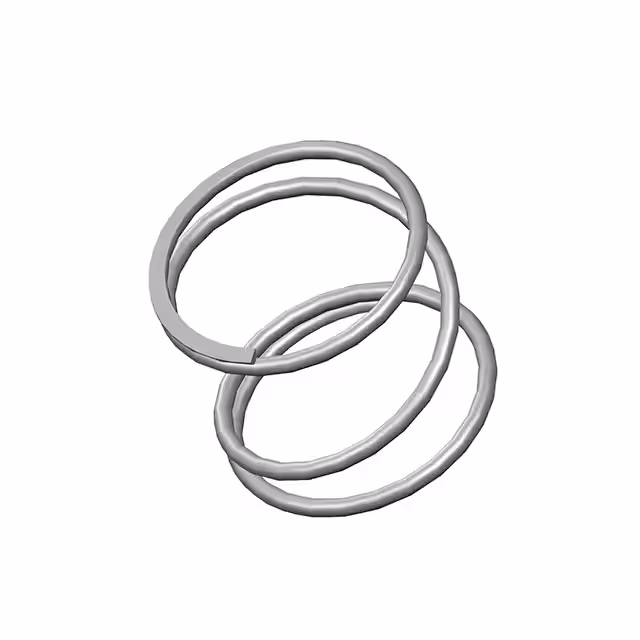

72146CSCOMP O= .850,L= .75,W= .055 |
276 | 8.75 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.850 (21.59mm) | 0.740 (18.80mm) | - | - | 0.750 (19.05mm) | - | 18.0 lbs/in | Closed & Ground |
