Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

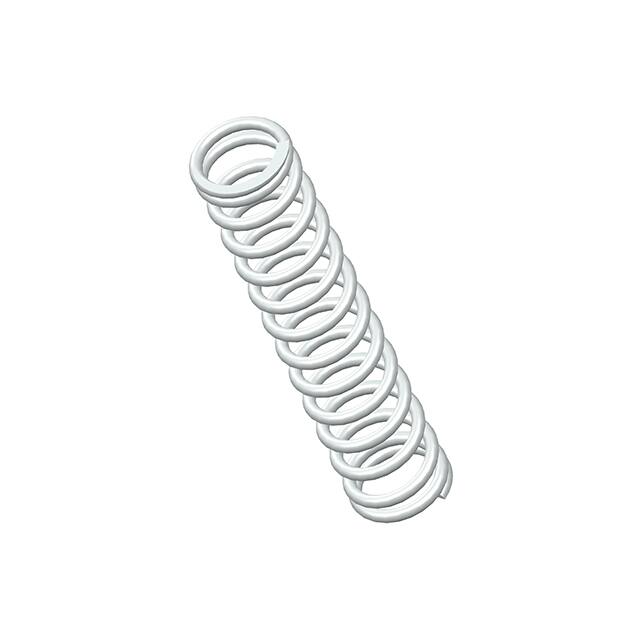

70901SCSCOMP O= .300,L= 1.50,W= .038 |
342 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.300 (7.62mm) | 0.224 (5.69mm) | - | - | 1.500 (38.10mm) | - | 12.0 lbs/in | Closed & Ground |
|

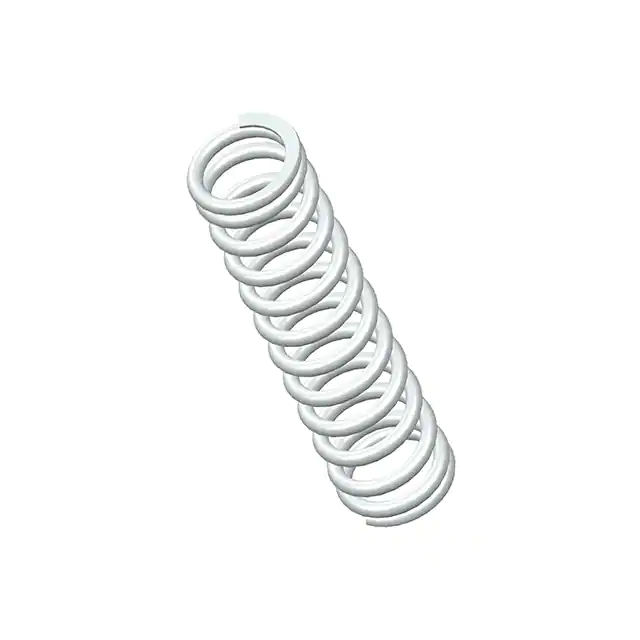

70918SCSCOMP O= .300,L= 1.25,W= .040 |
342 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.040 (1.02mm) | 0.300 (7.62mm) | 0.220 (5.59mm) | - | - | 1.250 (31.75mm) | - | 17.0 lbs/in | Closed & Ground |
|

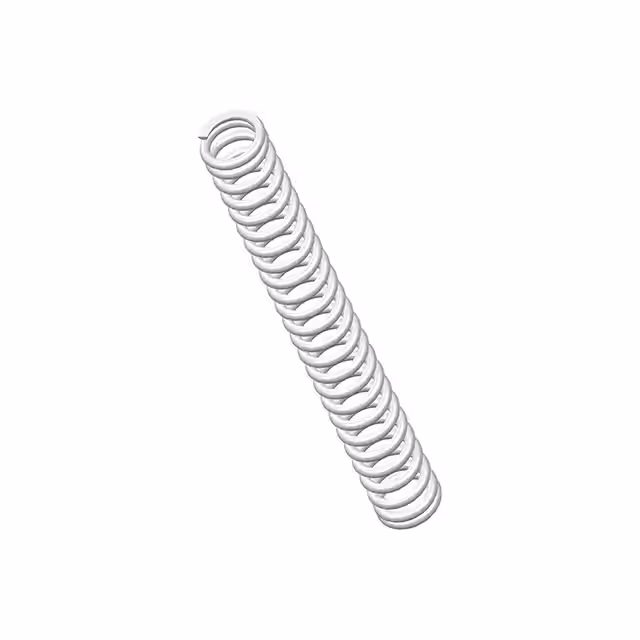

70962SCSCOMP O= .300,L= 2.50,W= .045 |
277 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.045 (1.14mm) | 0.300 (7.62mm) | 0.210 (5.33mm) | - | - | 2.500 (63.50mm) | - | 13.0 lbs/in | Closed & Ground |
|

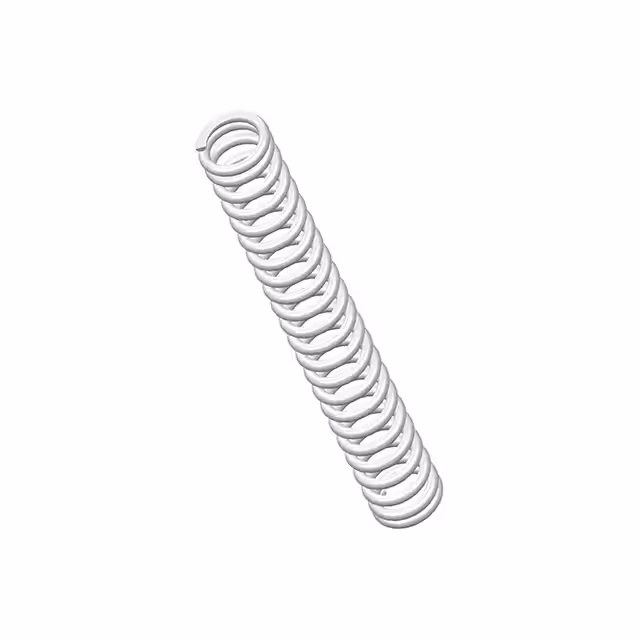

70961SCSCOMP O= .300,L= 2.25,W= .045 |
274 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.045 (1.14mm) | 0.300 (7.62mm) | 0.210 (5.33mm) | - | - | 2.250 (57.15mm) | - | 14.0 lbs/in | Closed & Ground |
|

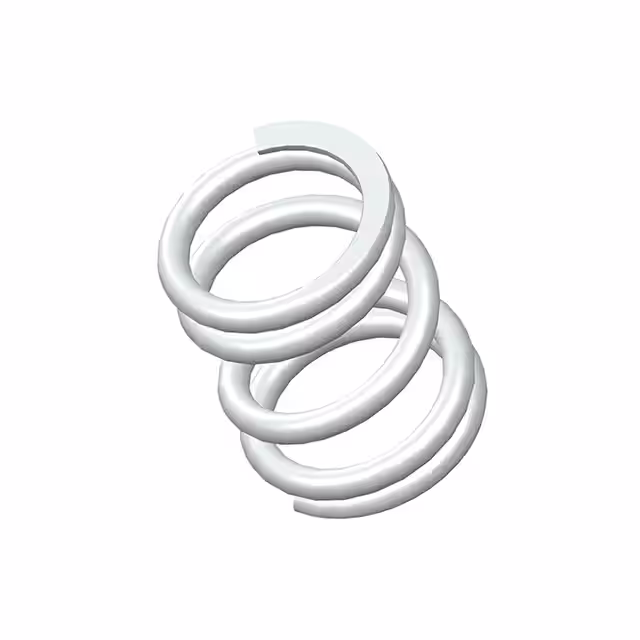

70887SCSCOMP O= .300,L= .38,W= .038 |
267 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.300 (7.62mm) | 0.224 (5.69mm) | - | - | 0.380 (9.65mm) | - | 55.0 lbs/in | Closed & Ground |
|

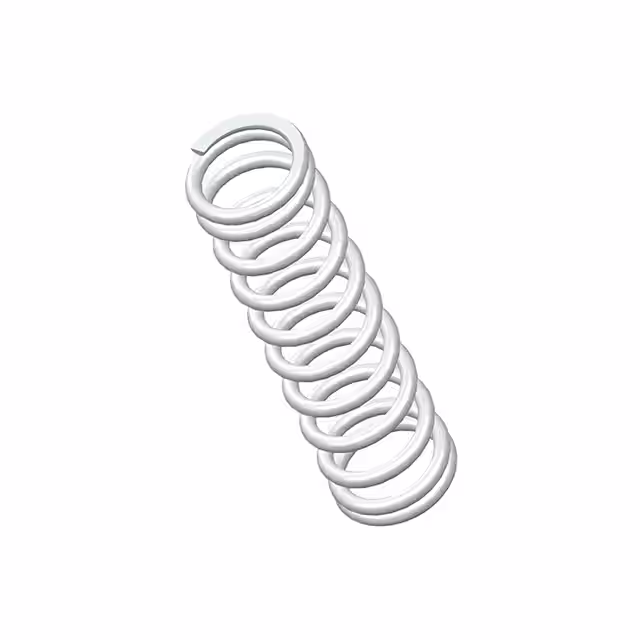

70898SCSCOMP O= .300,L= 1.13,W= .038 |
250 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.300 (7.62mm) | 0.224 (5.69mm) | - | - | 1.130 (28.70mm) | - | 16.0 lbs/in | Closed & Ground |
|

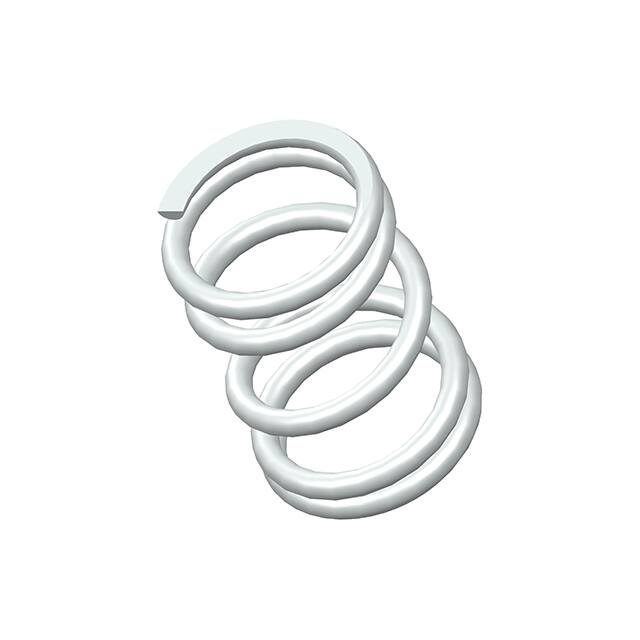

70869SCSCOMP O= .300,L= .44,W= .035 |
243 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.300 (7.62mm) | 0.230 (5.84mm) | - | - | 0.440 (11.18mm) | - | 33.0 lbs/in | Closed & Ground |
|

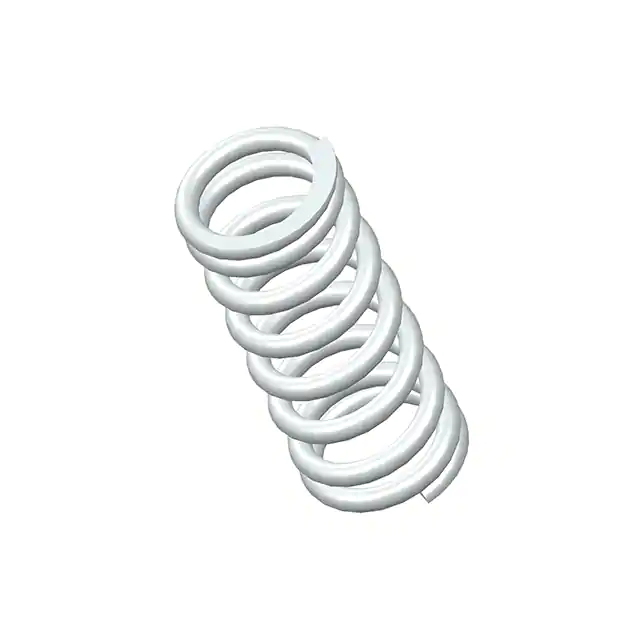

70931SCSCOMP O= .300,L= .75,W= .042 |
242 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.042 (1.07mm) | 0.300 (7.62mm) | 0.216 (5.49mm) | - | - | 0.750 (19.05mm) | - | 36.0 lbs/in | Closed & Ground |
|

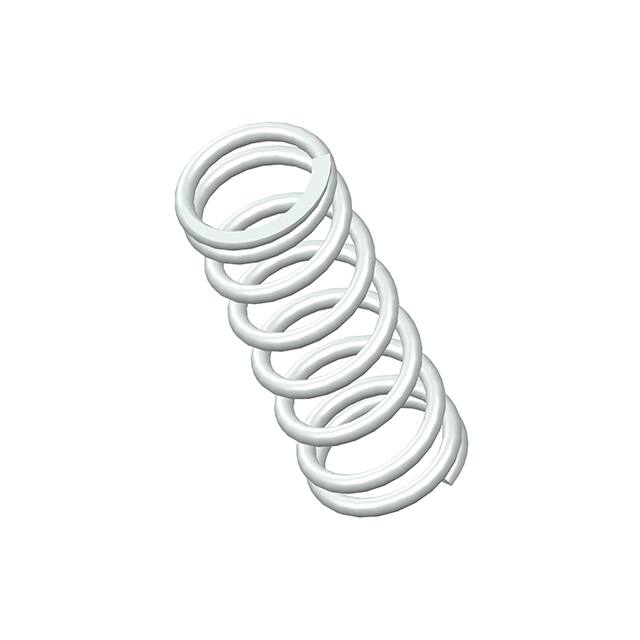

70875SCSCOMP O= .300,L= .81,W= .035 |
209 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.300 (7.62mm) | 0.230 (5.84mm) | - | - | 0.810 (20.57mm) | - | 16.0 lbs/in | Closed & Ground |
|

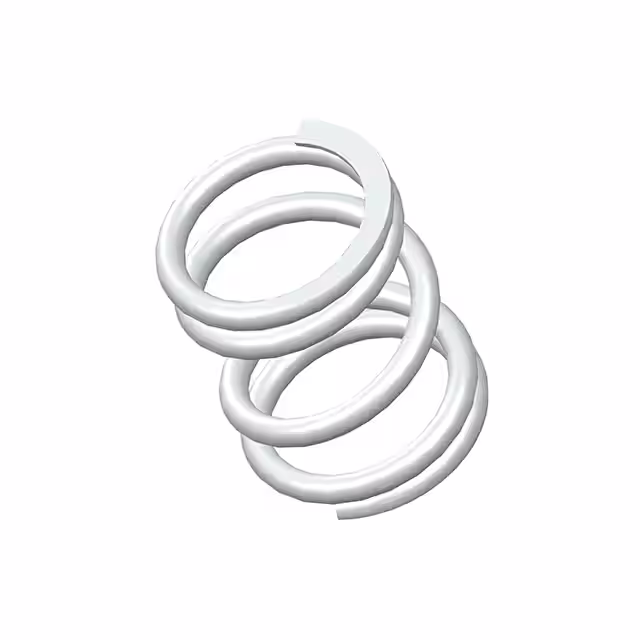

70868SCSCOMP O= .300,L= .38,W= .035 |
193 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.300 (7.62mm) | 0.230 (5.84mm) | - | - | 0.380 (9.65mm) | - | 39.0 lbs/in | Closed & Ground |
|

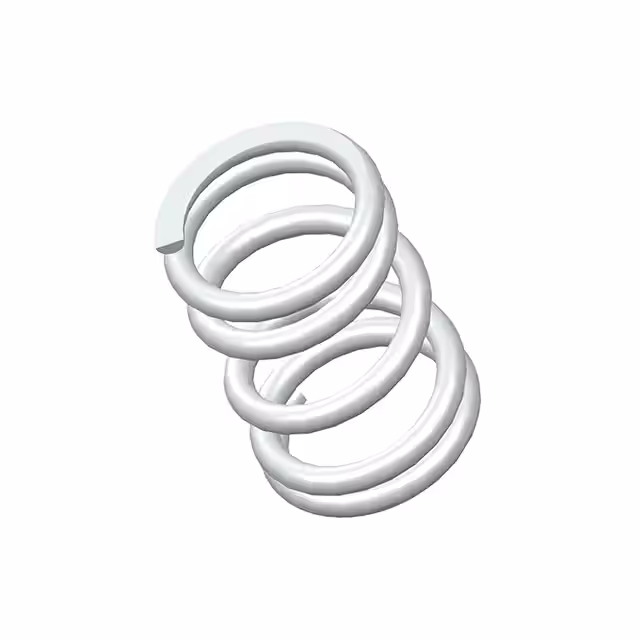

70888SCSCOMP O= .300,L= .44,W= .038 |
180 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.300 (7.62mm) | 0.224 (5.69mm) | - | - | 0.440 (11.18mm) | - | 45.0 lbs/in | Closed & Ground |
|

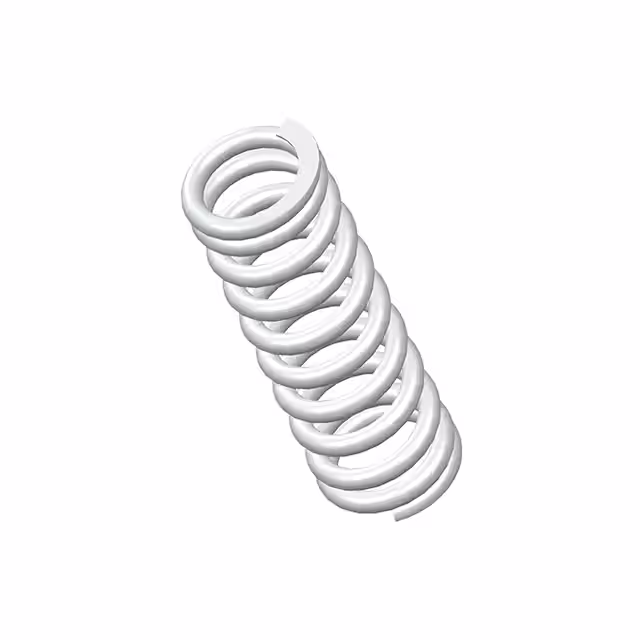

70953SCSCOMP O= .300,L= .94,W= .045 |
177 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.045 (1.14mm) | 0.300 (7.62mm) | 0.210 (5.33mm) | - | - | 0.940 (23.88mm) | - | 36.0 lbs/in | Closed & Ground |
|

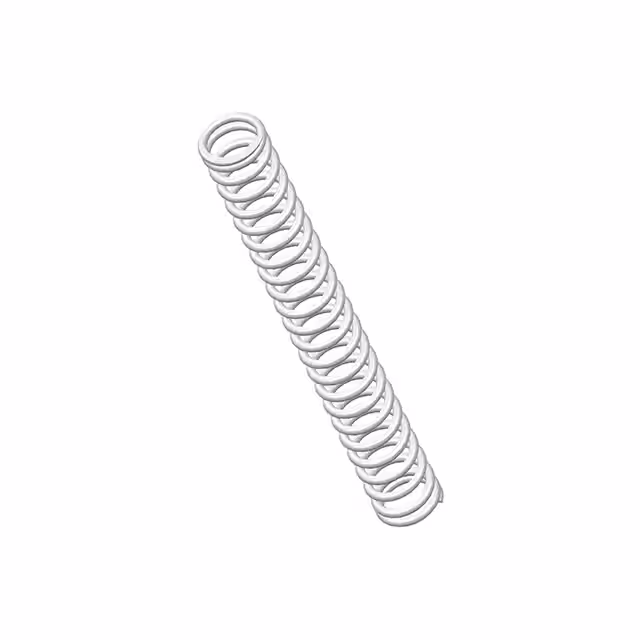

70924SCSCOMP O= .300,L= 2.50,W= .040 |
130 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.040 (1.02mm) | 0.300 (7.62mm) | 0.220 (5.59mm) | - | - | 2.500 (63.50mm) | - | 8.1 lbs/in | Closed & Ground |
|

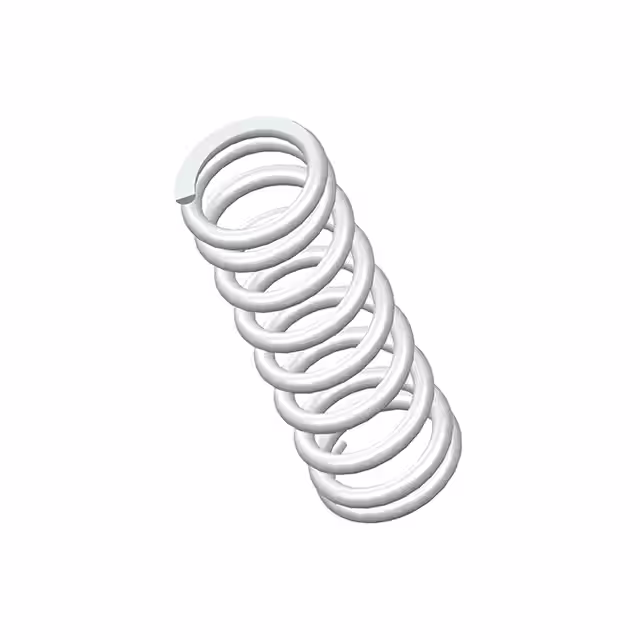

70914SCSCOMP O= .300,L= .88,W= .040 |
128 | 7.72 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.040 (1.02mm) | 0.300 (7.62mm) | 0.220 (5.59mm) | - | - | 0.880 (22.35mm) | - | 25.0 lbs/in | Closed & Ground |
|

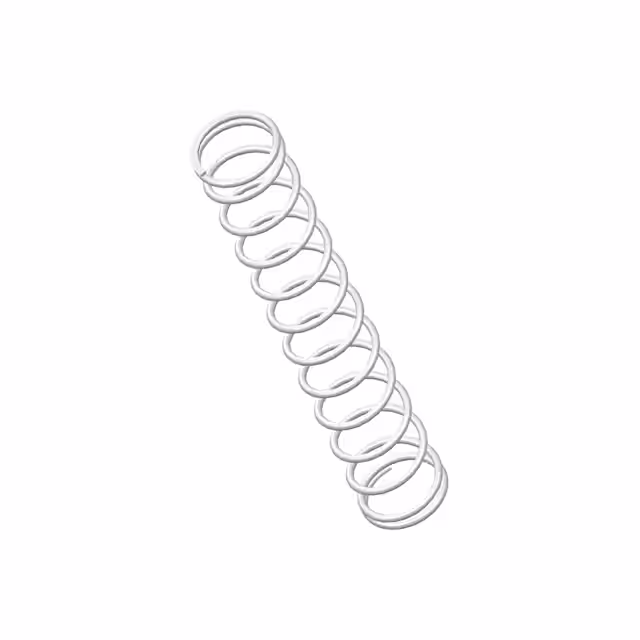

70472SCSCOMP O= .210,L= 1.25,W= .018 |
2,041 | 7.73 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.210 (5.33mm) | 0.174 (4.42mm) | - | - | 1.250 (31.75mm) | - | 1.6 lbs/in | Closed & Ground |
|

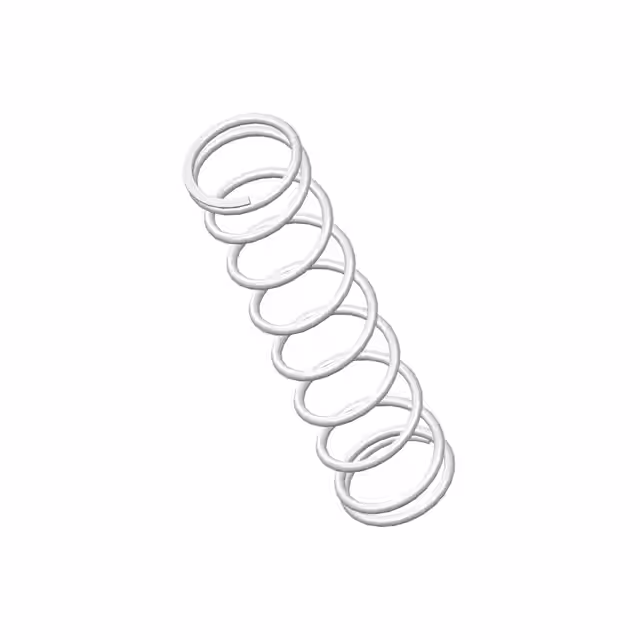

70470SCSCOMP O= .210,L= .88,W= .018 |
3,088 | 7.73 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.210 (5.33mm) | 0.174 (4.42mm) | - | - | 0.880 (22.35mm) | - | 2.4 lbs/in | Closed & Ground |
|

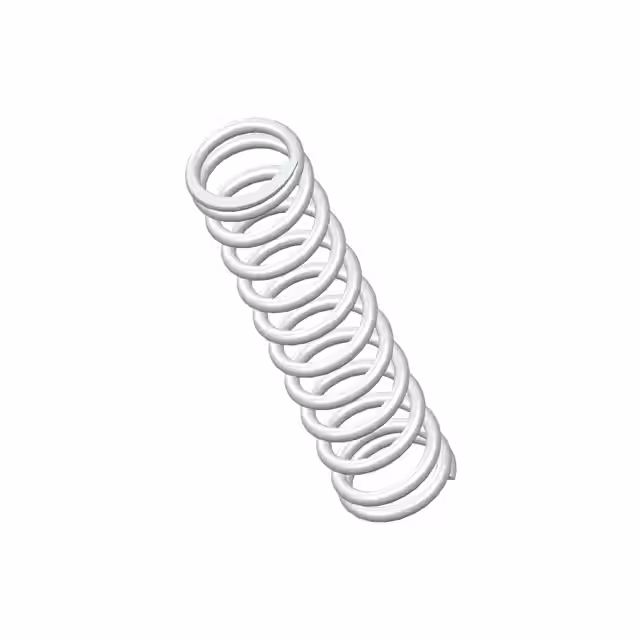

70508SCSCOMP O= .210,L= .88,W= .026 |
870 | 7.73 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.210 (5.33mm) | 0.158 (4.01mm) | - | - | 0.880 (22.35mm) | - | 8.9 lbs/in | Closed & Ground |
|

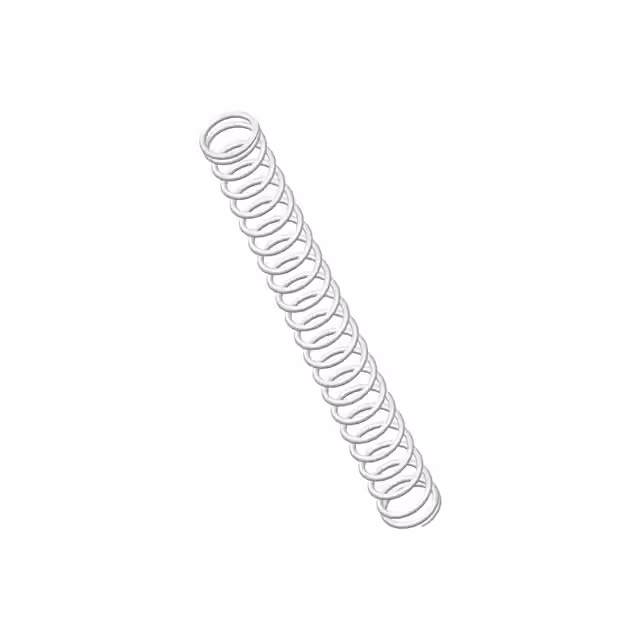

70497SCSCOMP O= .210,L= 2.00,W= .022 |
330 | 7.73 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.210 (5.33mm) | 0.166 (4.22mm) | - | - | 2.000 (50.80mm) | - | 2.1 lbs/in | Closed & Ground |
|

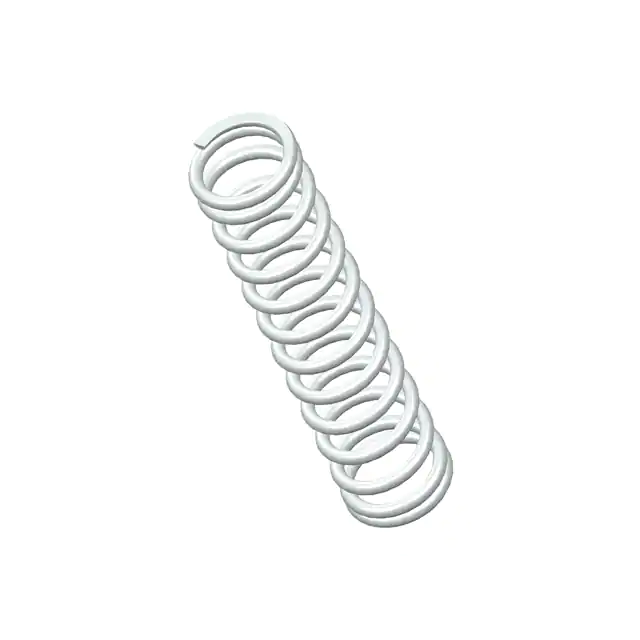

70510SCSCOMP O= .210,L= .94,W= .026 |
220 | 7.73 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.210 (5.33mm) | 0.158 (4.01mm) | - | - | 0.940 (23.88mm) | - | 8.2 lbs/in | Closed & Ground |
|

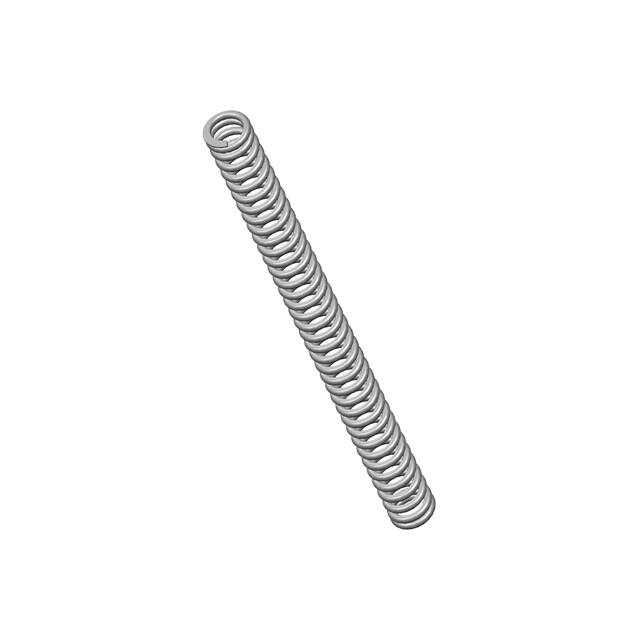

70170CSCOMP O= .120,L= 1.50,W= .020 |
3,315 | 7.74 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.020 (0.51mm) | 0.120 (3.05mm) | 0.080 (2.03mm) | - | - | 1.500 (38.10mm) | - | 6.5 lbs/in | Closed & Ground |
