Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

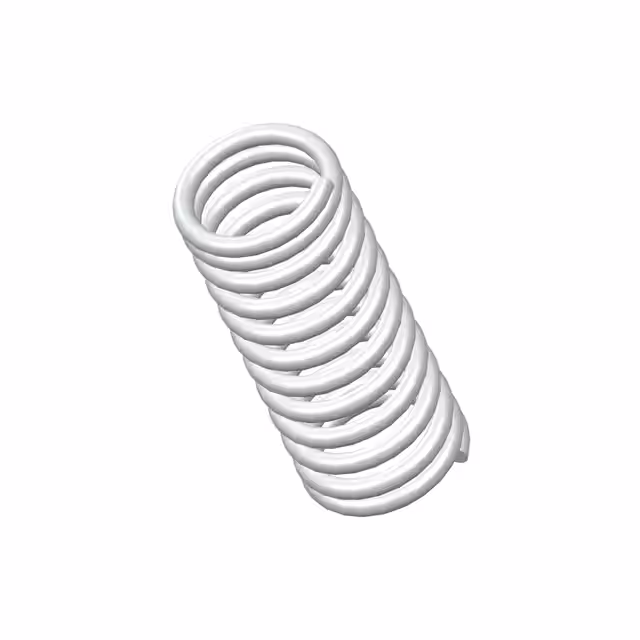

S-1215CSCOMP O= .812,L= 2.13,W= .100 |
3,223 | 7.01 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.100 (2.54mm) | 0.812 (20.62mm) | 0.612 (15.54mm) | - | - | 2.130 (54.10mm) | - | 35.0 lbs/in | Closed & Ground |
|

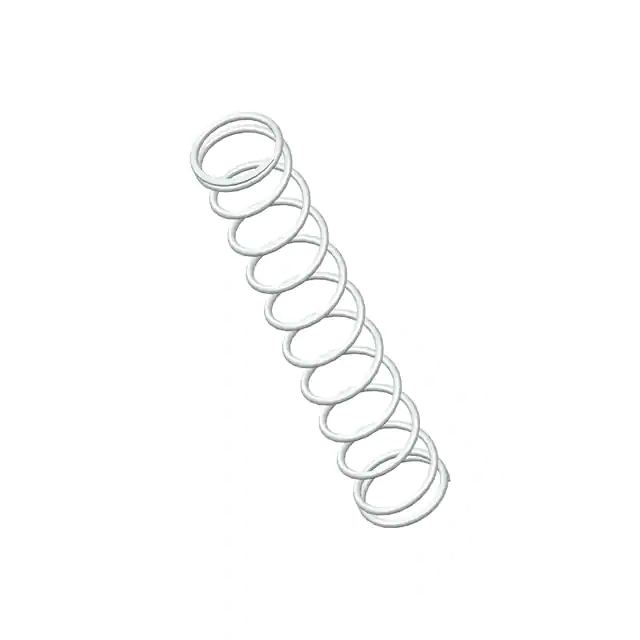

70573SCSCOMP O= .240,L= 1.38,W= .020 |
871 | 7.02 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.020 (0.51mm) | 0.240 (6.10mm) | 0.200 (5.08mm) | - | - | 1.380 (35.05mm) | - | 1.9 lbs/in | Closed & Ground |
|

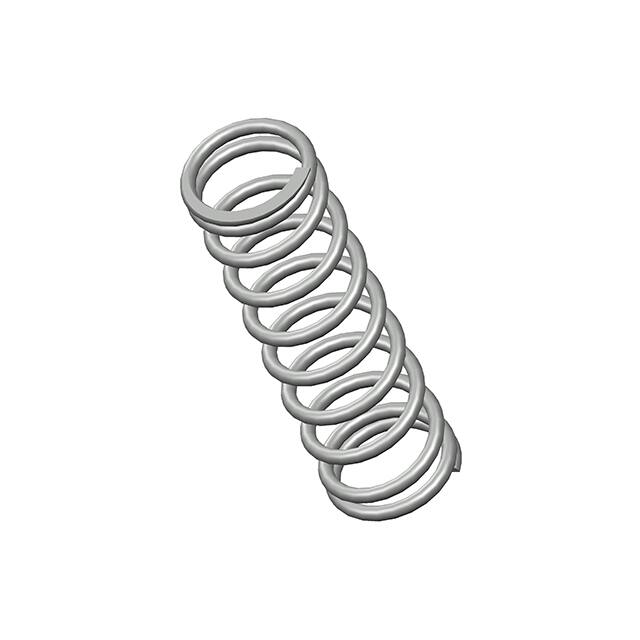

71130CSCOMP O= .360,L= 1.25,W= .040 |
2,123 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.040 (1.02mm) | 0.360 (9.14mm) | 0.280 (7.11mm) | - | - | 1.250 (31.75mm) | - | 14.0 lbs/in | Closed & Ground |
|

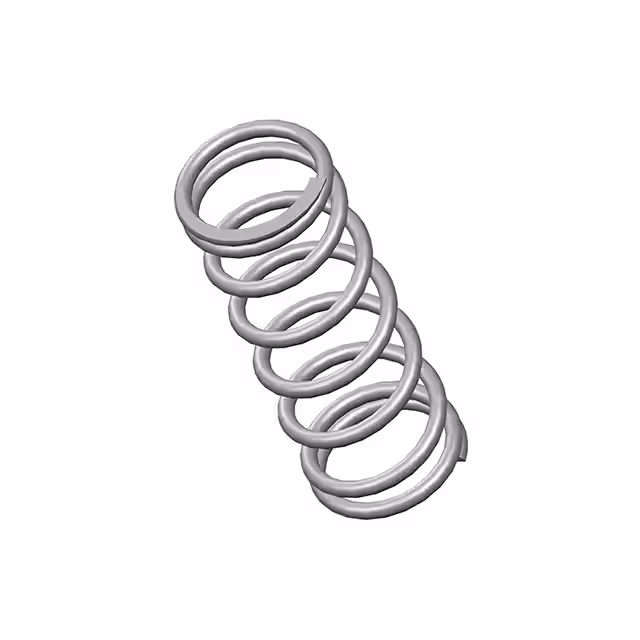

71110CSCOMP O= .360,L= 1.00,W= .038 |
2,944 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 1.000 (25.40mm) | - | 15.0 lbs/in | Closed & Ground |
|

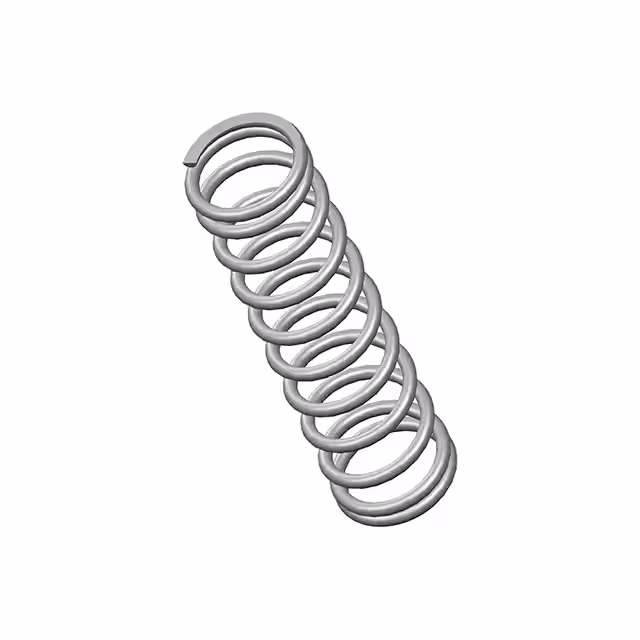

71131CSCOMP O= .360,L= 1.38,W= .040 |
2,353 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.040 (1.02mm) | 0.360 (9.14mm) | 0.280 (7.11mm) | - | - | 1.380 (35.05mm) | - | 13.0 lbs/in | Closed & Ground |
|

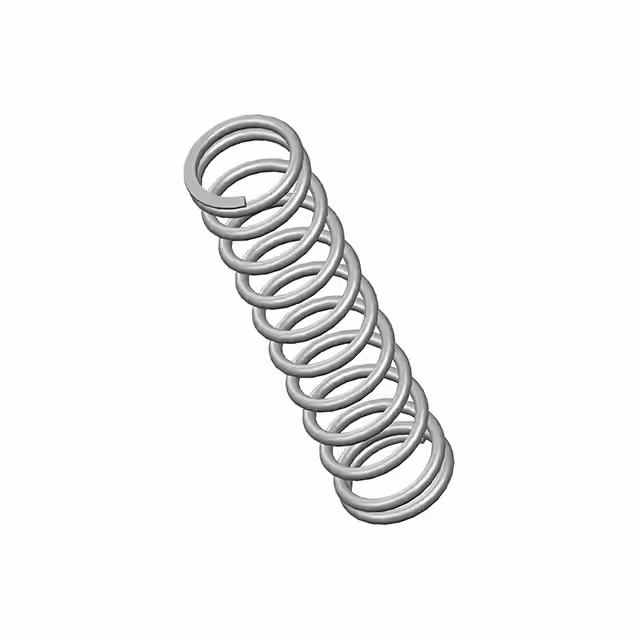

71132CSCOMP O= .360,L= 1.50,W= .040 |
2,934 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.040 (1.02mm) | 0.360 (9.14mm) | 0.280 (7.11mm) | - | - | 1.500 (38.10mm) | - | 12.0 lbs/in | Closed & Ground |
|

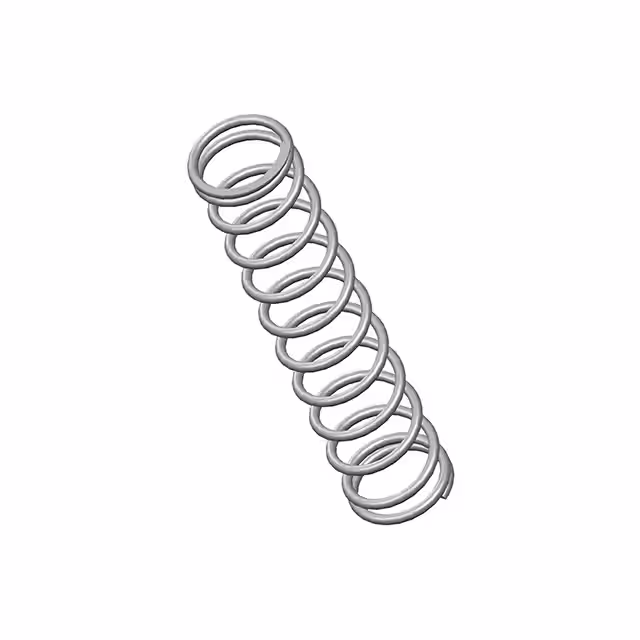

71097CSCOMP O= .360,L= 1.75,W= .035 |
3,609 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.360 (9.14mm) | 0.290 (7.37mm) | - | - | 1.750 (44.45mm) | - | 6.2 lbs/in | Closed & Ground |
|

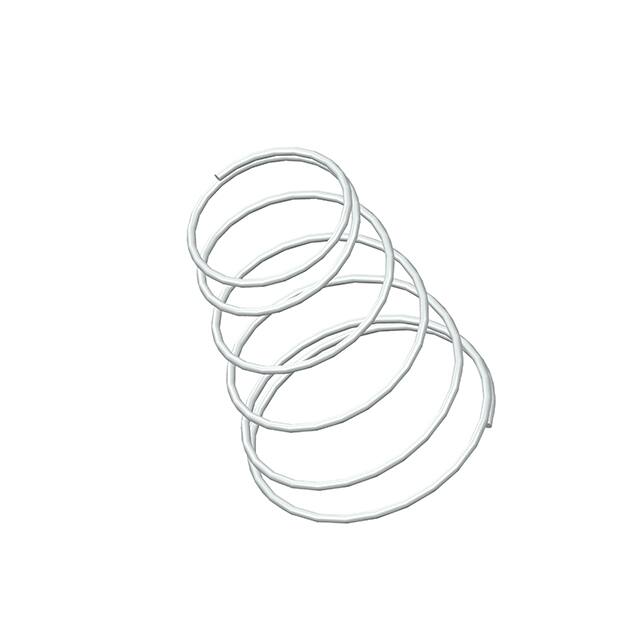

TA-2121CSLO= 1.5, SO= 1, W= 0.05 |
3,243 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.050 (1.27mm) | - | 0.900 (22.86mm) | 1.000 (25.40mm) | 1.500 (38.10mm) | 2.000 (50.80mm) | - | 1.1 lbs/in | Closed |
|

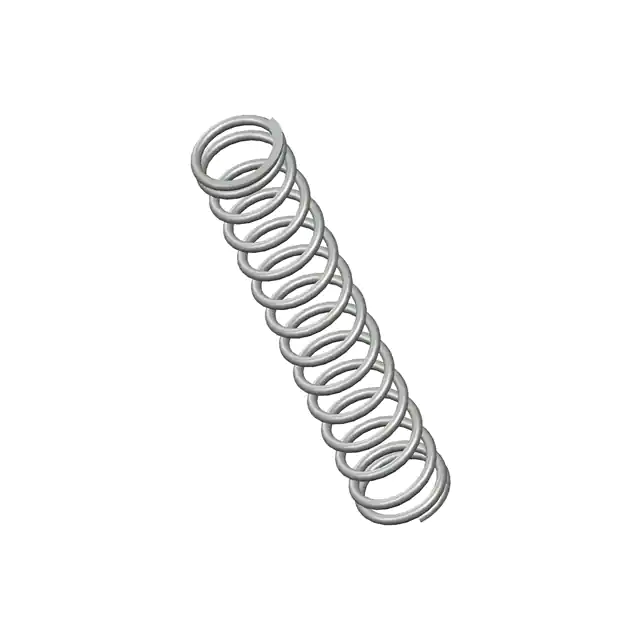

71116CSCOMP O= .360,L= 2.00,W= .038 |
3,388 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 2.000 (50.80mm) | - | 7.4 lbs/in | Closed & Ground |
|

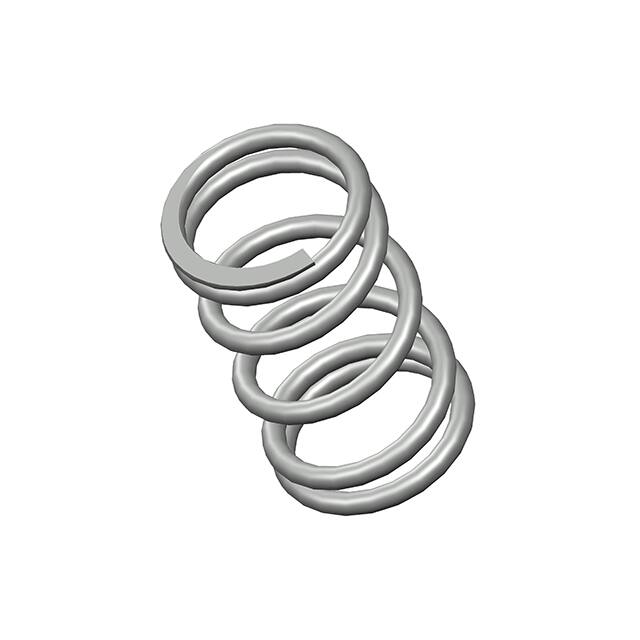

71122CSCOMP O= .360,L= .63,W= .040 |
3,212 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.040 (1.02mm) | 0.360 (9.14mm) | 0.280 (7.11mm) | - | - | 0.630 (16.00mm) | - | 30.0 lbs/in | Closed & Ground |
|

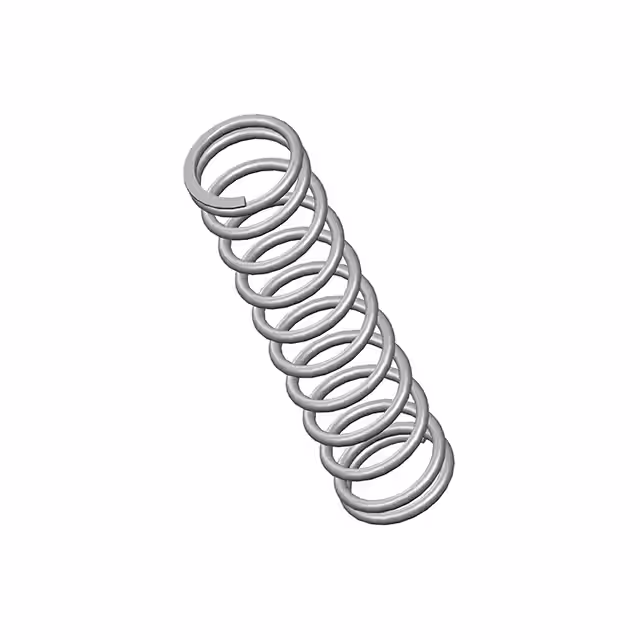

71114CSCOMP O= .360,L= 1.50,W= .038 |
3,895 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 1.500 (38.10mm) | - | 9.3 lbs/in | Closed & Ground |
|

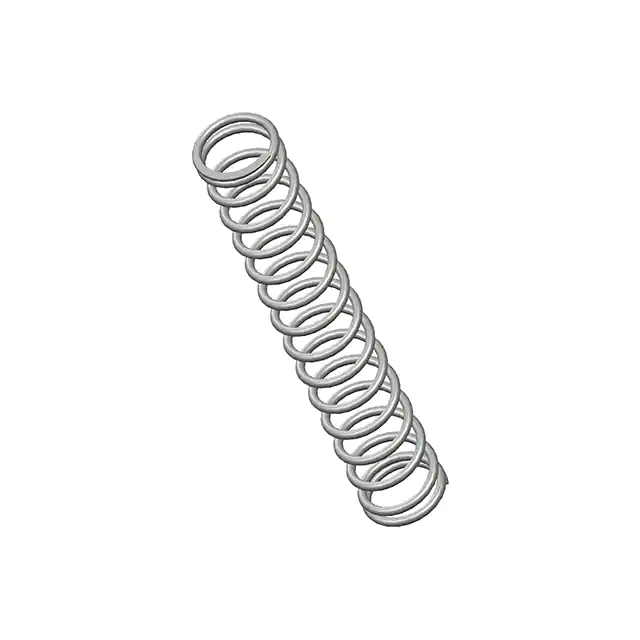

71117CSCOMP O= .360,L= 2.25,W= .038 |
811 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 2.250 (57.15mm) | - | 6.5 lbs/in | Closed & Ground |
|

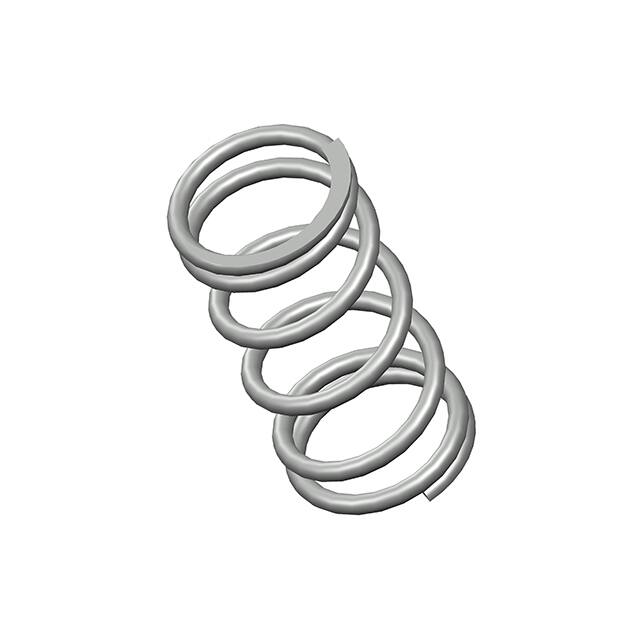

71106CSCOMP O= .360,L= .75,W= .038 |
536 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 0.750 (19.05mm) | - | 21.0 lbs/in | Closed & Ground |
|

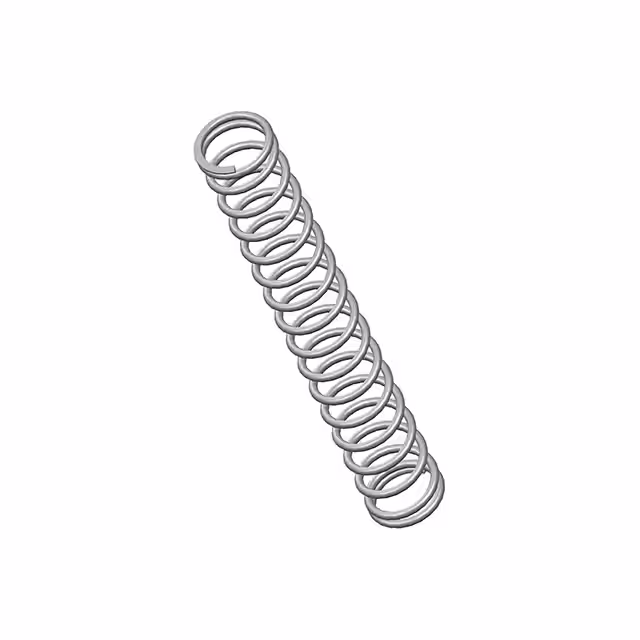

71118CSCOMP O= .360,L= 2.50,W= .038 |
526 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 2.500 (63.50mm) | - | 5.8 lbs/in | Closed & Ground |
|

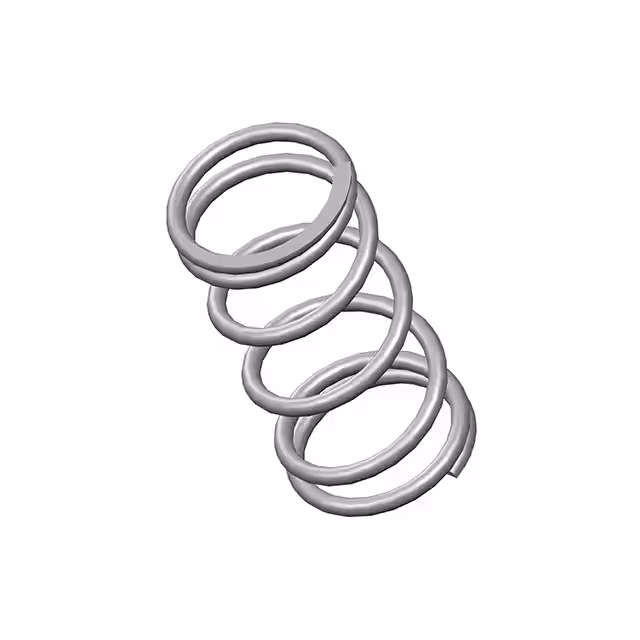

71088CSCOMP O= .360,L= .75,W= .035 |
471 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.360 (9.14mm) | 0.290 (7.37mm) | - | - | 0.750 (19.05mm) | - | 15.0 lbs/in | Closed & Ground |
|

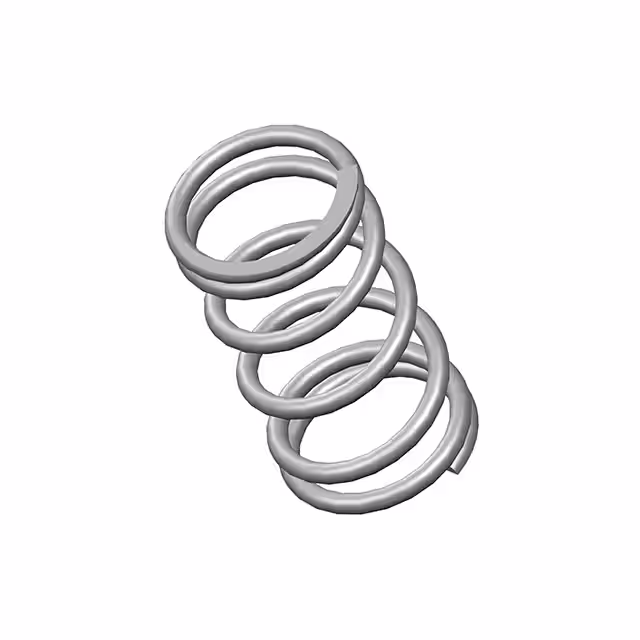

71105CSCOMP O= .360,L= .69,W= .038 |
474 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 0.690 (17.53mm) | - | 22.0 lbs/in | Closed & Ground |
|

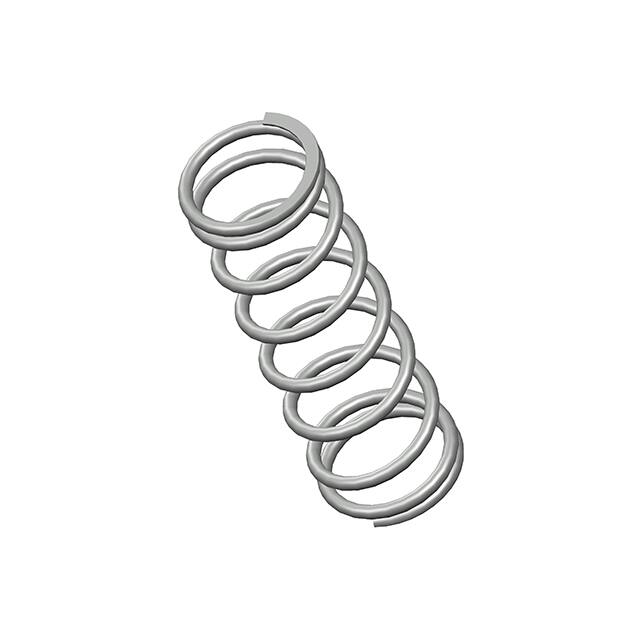

71093CSCOMP O= .360,L= 1.13,W= .035 |
406 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.360 (9.14mm) | 0.290 (7.37mm) | - | - | 1.130 (28.70mm) | - | 9.8 lbs/in | Closed & Ground |
|

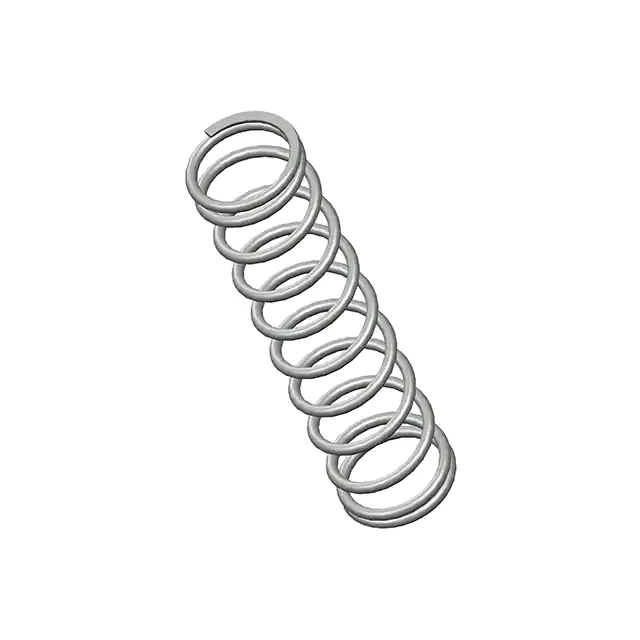

71096CSCOMP O= .360,L= 1.50,W= .035 |
358 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.360 (9.14mm) | 0.290 (7.37mm) | - | - | 1.500 (38.10mm) | - | 7.2 lbs/in | Closed & Ground |
|

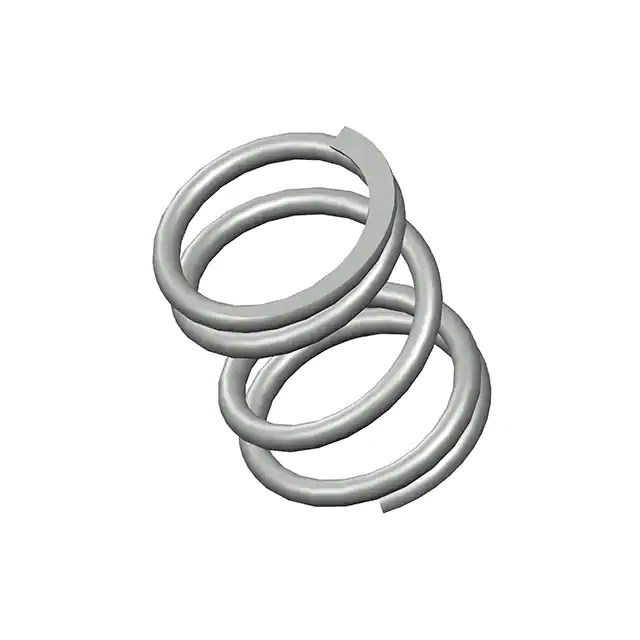

71101CSCOMP O= .360,L= .44,W= .038 |
342 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 0.440 (11.18mm) | - | 38.0 lbs/in | Closed & Ground |
|

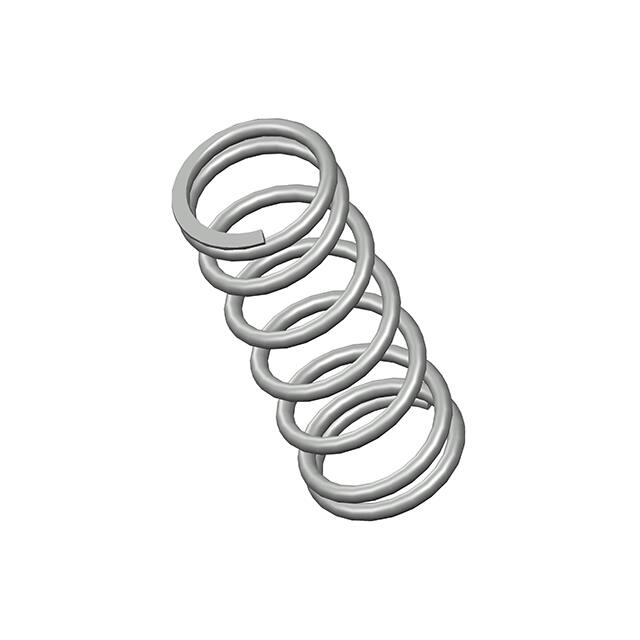

71109CSCOMP O= .360,L= .94,W= .038 |
332 | 7.04 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 0.940 (23.88mm) | - | 16.0 lbs/in | Closed & Ground |
