Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

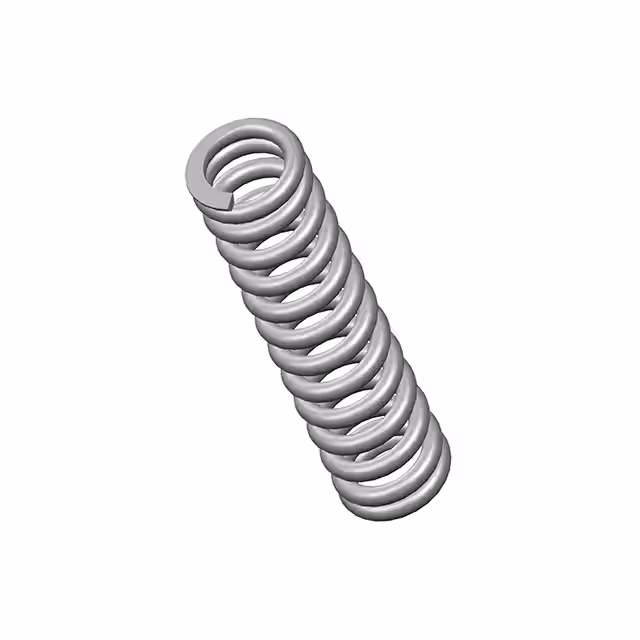

71017CSCOMP O= .300,L= 1.25,W= .051 |
2,891 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.051 (1.30mm) | 0.300 (7.62mm) | 0.198 (5.03mm) | - | - | 1.250 (31.75mm) | - | 55.0 lbs/in | Closed & Ground |
|

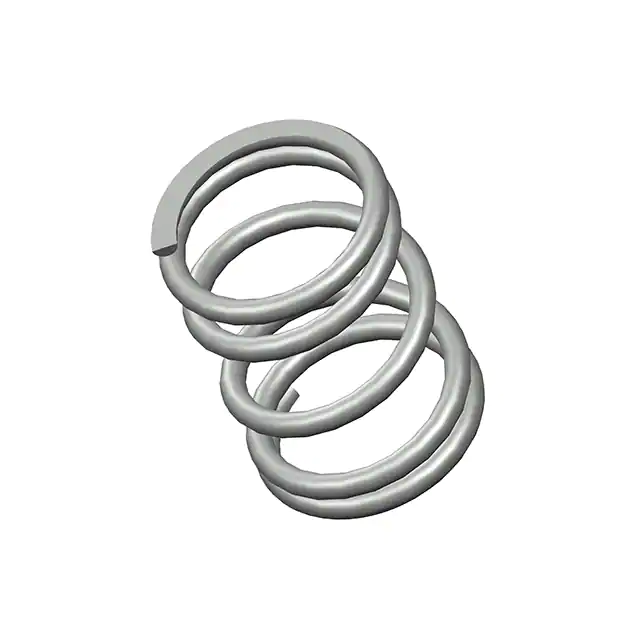

71674CSCOMP O= .540,L= .75,W= .058 |
3,351 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.058 (1.47mm) | 0.540 (13.72mm) | 0.424 (10.77mm) | - | - | 0.750 (19.05mm) | - | 46.0 lbs/in | Closed & Ground |
|
70965CSCOMP O= .300,L= .50,W= .047 |
2,081 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 0.500 (12.70mm) | - | 112.0 lbs/in | Closed & Ground |
|

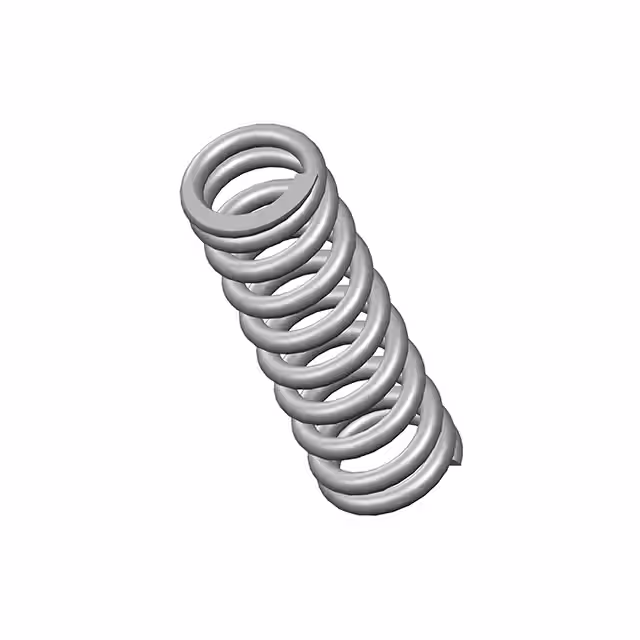

70972CSCOMP O= .300,L= .94,W= .0475 |
2,353 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 0.940 (23.88mm) | - | 54.0 lbs/in | Closed & Ground |
|

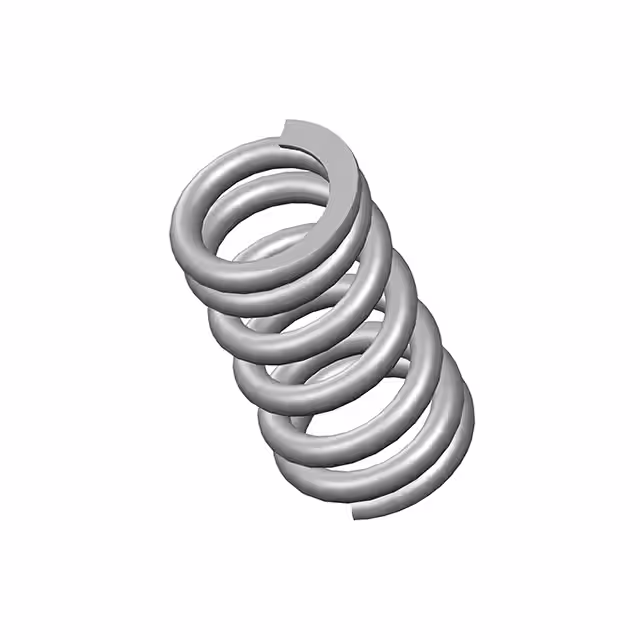

70966CSCOMP O= .300,L= .56,W= .047 |
3,520 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 0.560 (14.22mm) | - | 97.0 lbs/in | Closed & Ground |
|

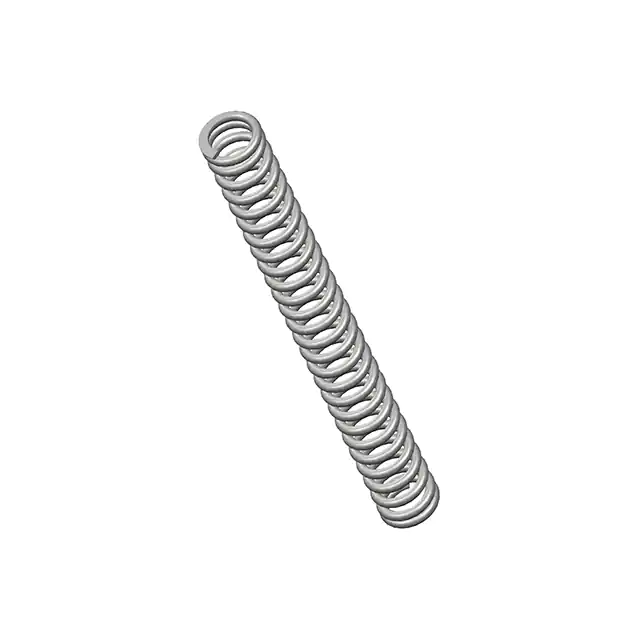

70982CSCOMP O= .300,L= 2.75,W= .047 |
2,540 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 2.750 (69.85mm) | - | 17.0 lbs/in | Closed & Ground |
|

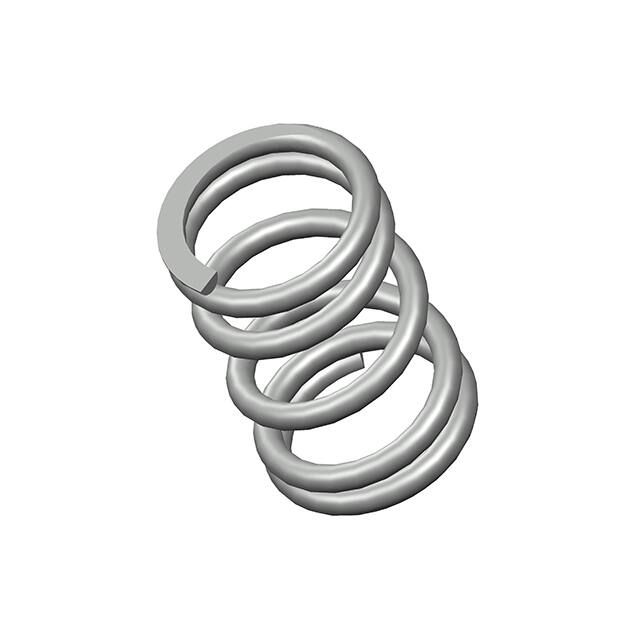

71157CSCOMP O= .360,L= .56,W= .045 |
2,142 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.045 (1.14mm) | 0.360 (9.14mm) | 0.270 (6.86mm) | - | - | 0.560 (14.22mm) | - | 56.0 lbs/in | Closed & Ground |
|

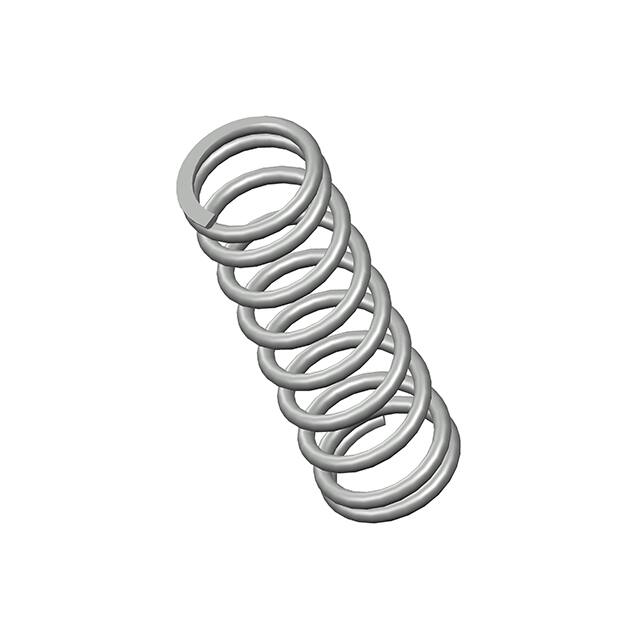

71147CSCOMP O= .360,L= 1.13,W= .042 |
3,088 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.360 (9.14mm) | 0.276 (7.01mm) | - | - | 1.130 (28.70mm) | - | 19.0 lbs/in | Closed & Ground |
|

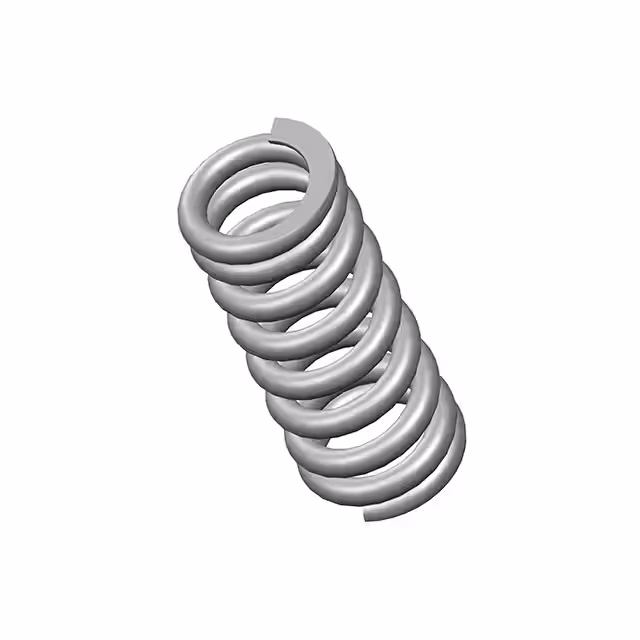

71011CSCOMP O= .300,L= .75,W= .051 |
3,015 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.051 (1.30mm) | 0.300 (7.62mm) | 0.198 (5.03mm) | - | - | 0.750 (19.05mm) | - | 97.0 lbs/in | Closed & Ground |
|

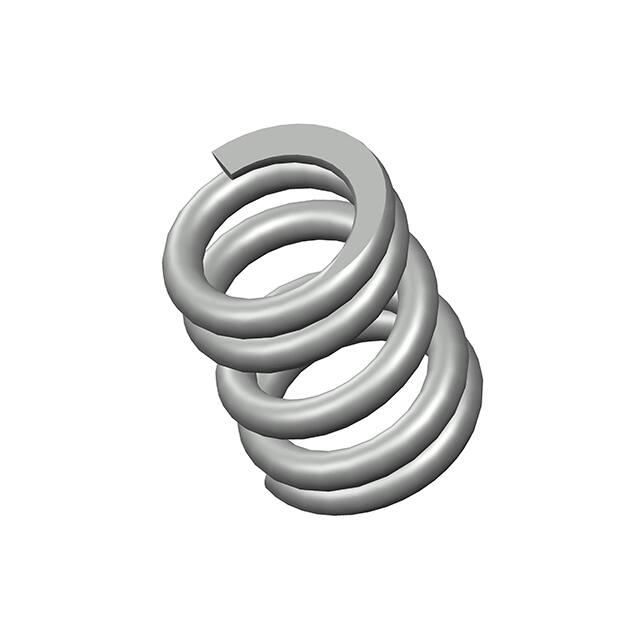

70984CSCOMP O= .300,L= .38,W= .049 |
846 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.049 (1.24mm) | 0.300 (7.62mm) | 0.202 (5.13mm) | - | - | 0.380 (9.65mm) | - | 190.0 lbs/in | Closed & Ground |
|

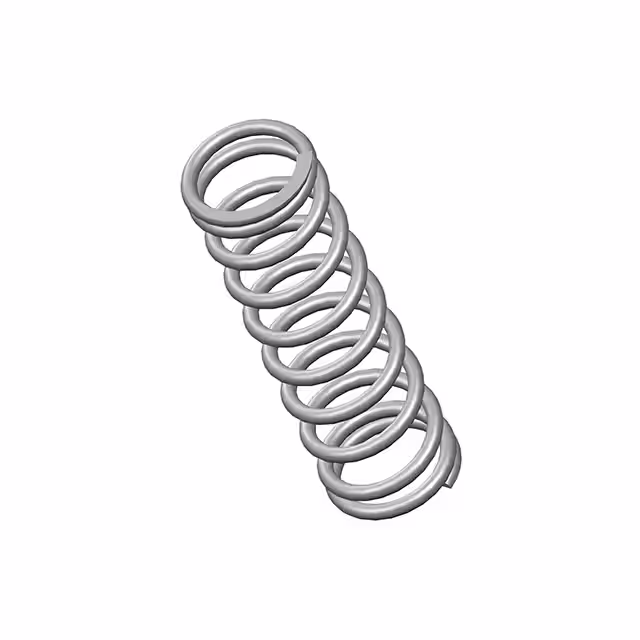

71148CSCOMP O= .360,L= 1.25,W= .042 |
806 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.360 (9.14mm) | 0.276 (7.01mm) | - | - | 1.250 (31.75mm) | - | 17.0 lbs/in | Closed & Ground |
|

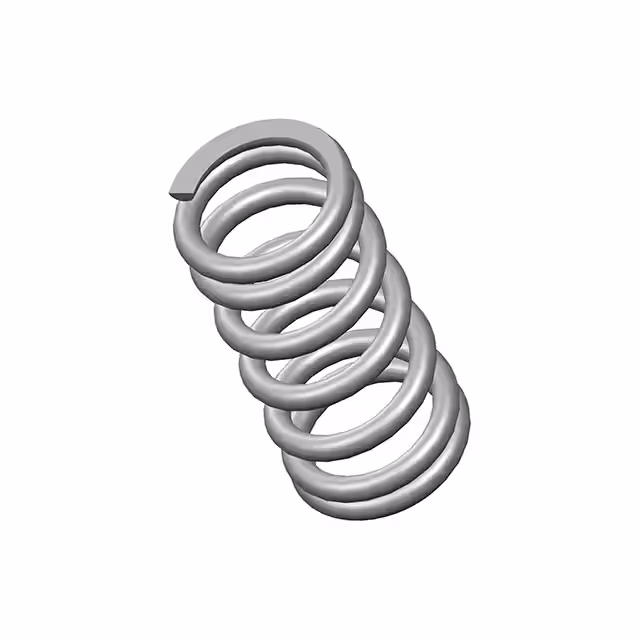

70929CSCOMP O= .300,L= .63,W= .042 |
804 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.300 (7.62mm) | 0.216 (5.49mm) | - | - | 0.630 (16.00mm) | - | 52.0 lbs/in | Closed & Ground |
|

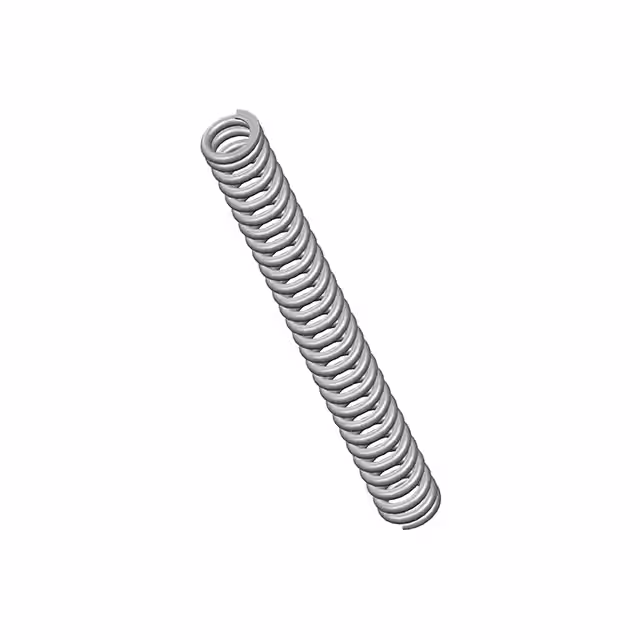

71024CSCOMP O= .300,L= 2.75,W= .051 |
776 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.051 (1.30mm) | 0.300 (7.62mm) | 0.198 (5.03mm) | - | - | 2.750 (69.85mm) | - | 24.0 lbs/in | Closed & Ground |
|

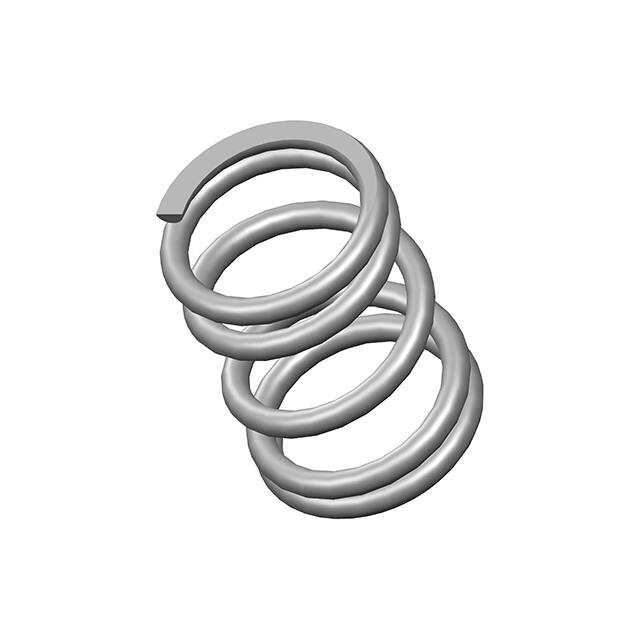

71138CSCOMP O= .360,L= .50,W= .042 |
648 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.360 (9.14mm) | 0.276 (7.01mm) | - | - | 0.500 (12.70mm) | - | 47.0 lbs/in | Closed & Ground |
|

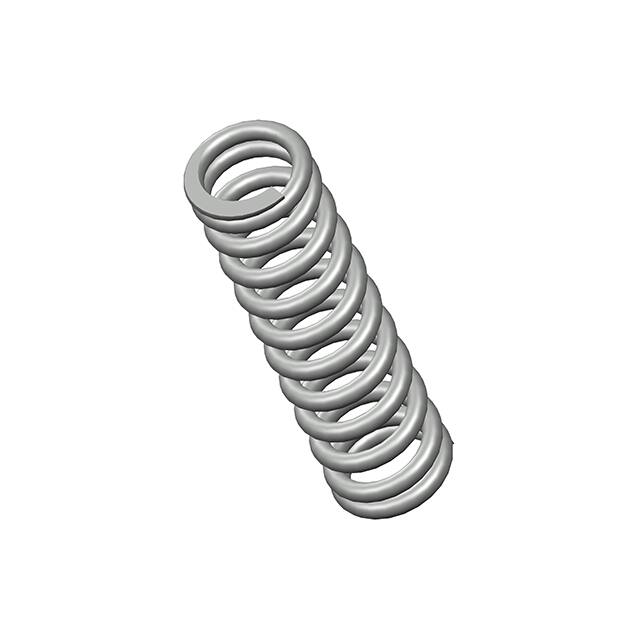

70974CSCOMP O= .300,L= 1.13,W= .047 |
624 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 1.130 (28.70mm) | - | 44.0 lbs/in | Closed & Ground |
|

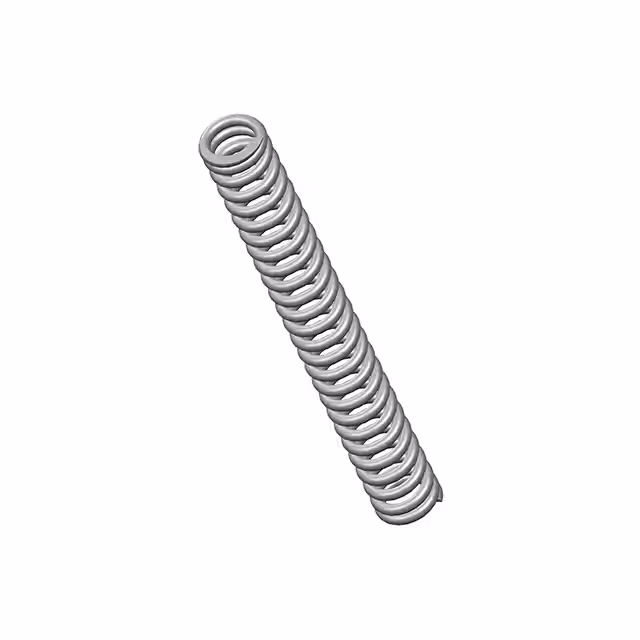

71023CSCOMP O= .300,L= 2.50,W= .051 |
595 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.051 (1.30mm) | 0.300 (7.62mm) | 0.198 (5.03mm) | - | - | 2.500 (63.50mm) | - | 26.0 lbs/in | Closed & Ground |
|

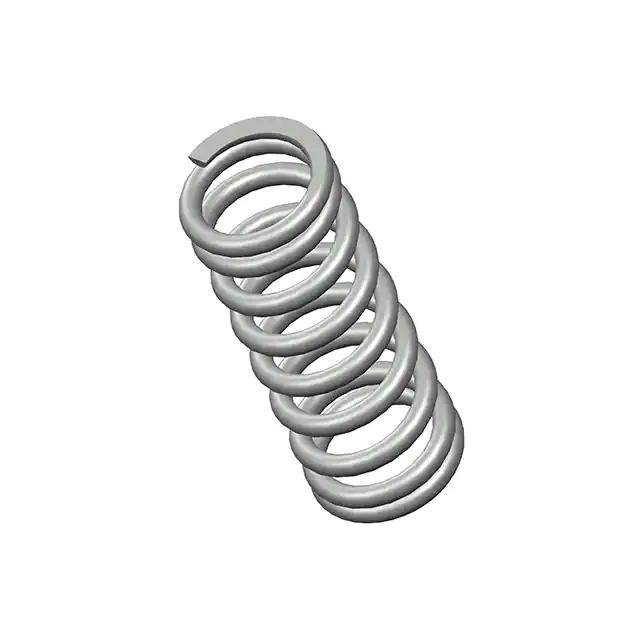

70932CSCOMP O= .300,L= .81,W= .042 |
590 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.042 (1.07mm) | 0.300 (7.62mm) | 0.216 (5.49mm) | - | - | 0.810 (20.57mm) | - | 38.0 lbs/in | Closed & Ground |
|

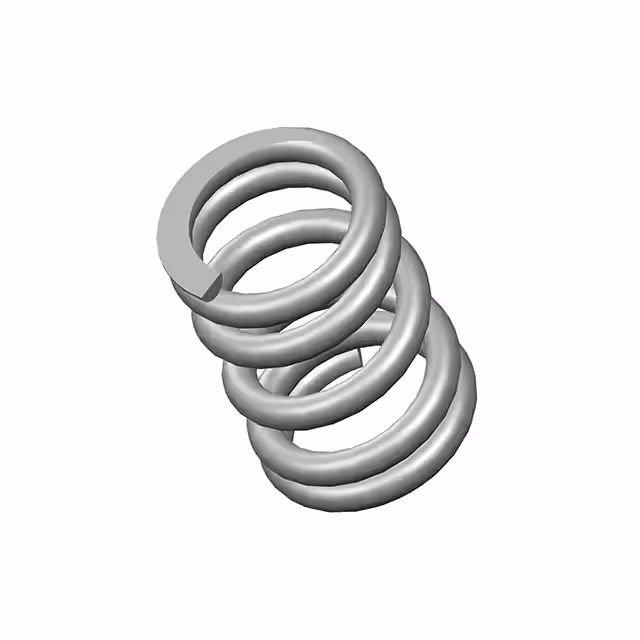

70945CSCOMP O= .300,L= .44,W= .045 |
586 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.045 (1.14mm) | 0.300 (7.62mm) | 0.210 (5.33mm) | - | - | 0.440 (11.18mm) | - | 105.0 lbs/in | Closed & Ground |
|

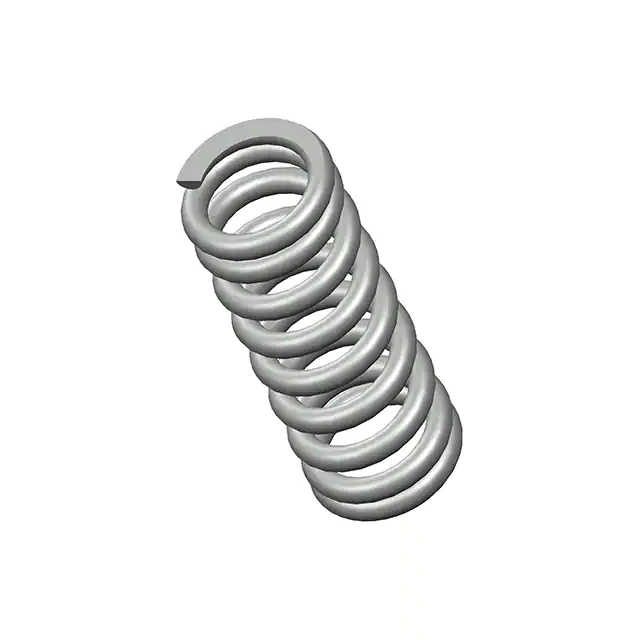

70991CSCOMP O= .300,L= .81,W= .049 |
569 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.049 (1.24mm) | 0.300 (7.62mm) | 0.202 (5.13mm) | - | - | 0.810 (20.57mm) | - | 75.0 lbs/in | Closed & Ground |
|

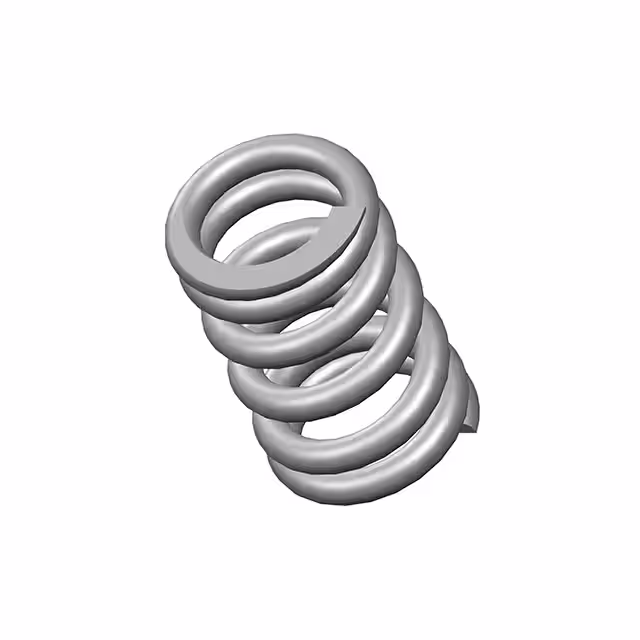

70986CSCOMP O= .300,L= .50,W= .049 |
555 | 6.84 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.049 (1.24mm) | 0.300 (7.62mm) | 0.202 (5.13mm) | - | - | 0.500 (12.70mm) | - | 133.0 lbs/in | Closed & Ground |
