Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

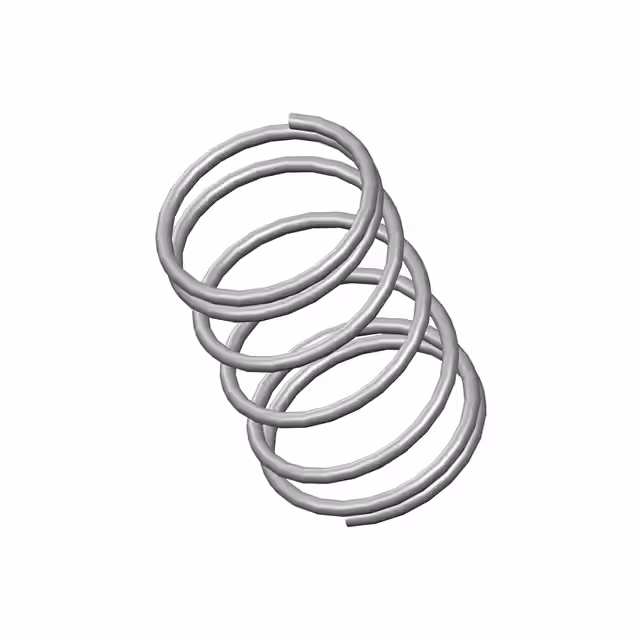

3031CSCOMP O= .625,L= 1.00,W= .043 |
188 | 3.23 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.043 (1.09mm) | 0.625 (15.88mm) | 0.539 (13.69mm) | - | - | 1.000 (25.40mm) | - | 5.5 lbs/in | Closed |
|

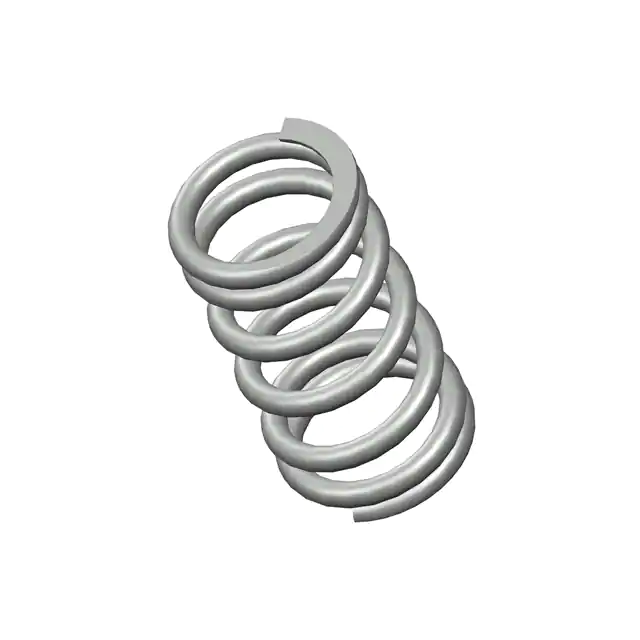

NN-95CSCOMP O= .609,L= 1.16,W= .080 |
162 | 3.23 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.080 (2.03mm) | 0.609 (15.47mm) | 0.449 (11.40mm) | - | - | 1.160 (29.46mm) | - | 88.0 lbs/in | Closed & Ground |
|

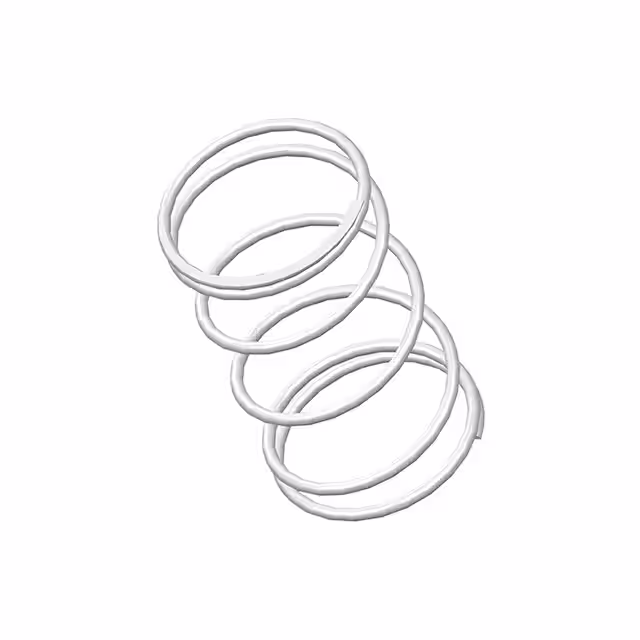

Y-38CSCOMP O= .578,L= 1.00,W= .034 |
106 | 3.23 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - | - | - |
|
10538CSCOMP O= .593,L= .66,W= .087 |
2,851 | 3.24 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.087 (2.21mm) | 0.593 (15.06mm) | 0.419 (10.64mm) | - | - | 0.660 (16.76mm) | - | 231.0 lbs/in | Closed & Ground |
|

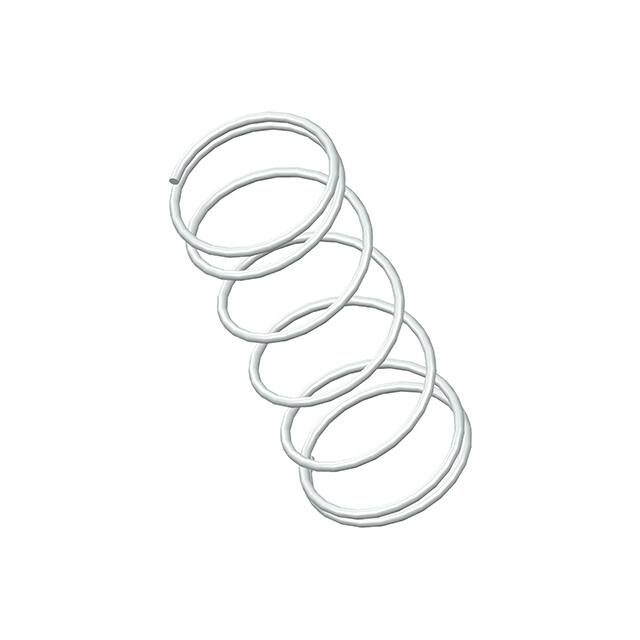

Z-26CSCOMP O= .531,L= 1.34,W= .030 |
3,235 | 3.24 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - | - | - |
|

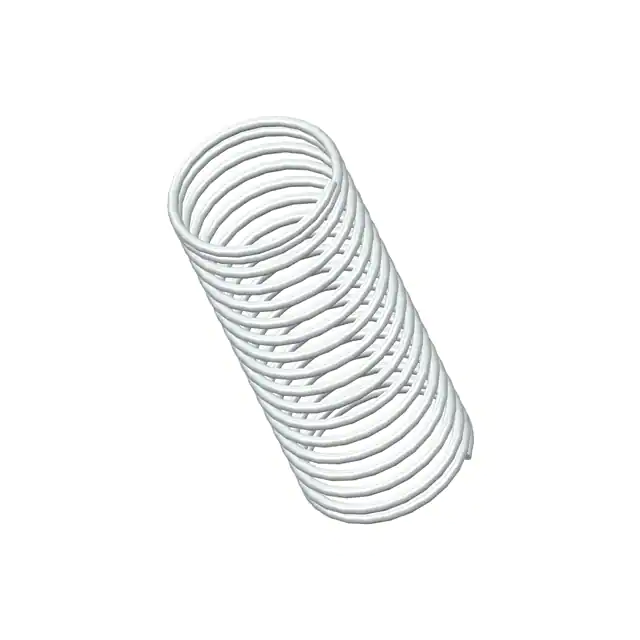

S-477CSCOMP O= .406,L= 1.00,W= .024 |
3,623 | 3.24 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.406 (10.31mm) | 0.358 (9.09mm) | - | - | 1.000 (25.40mm) | - | 0.46 lbs/in | Closed |
|
S-751CSCOMP O= .437,L= 1.00,W= .055 |
2,410 | 3.24 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.055 (1.40mm) | 0.437 (11.10mm) | 0.327 (8.31mm) | - | - | 1.000 (25.40mm) | - | 34.0 lbs/in | Closed |
|
EE-43CSCOMP O= .266,L= 1.13,W= .050 |
835 | 3.25 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.050 (1.27mm) | 0.266 (6.76mm) | 0.166 (4.22mm) | - | - | 1.130 (28.70mm) | - | 63.0 lbs/in | Closed & Ground |
|
B2-63CSCOMP O= .609,L= 2.50,W= .062 |
829 | 3.25 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.062 (1.57mm) | 0.609 (15.47mm) | 0.485 (12.32mm) | - | - | 2.500 (63.50mm) | - | 12.0 lbs/in | Closed |
|

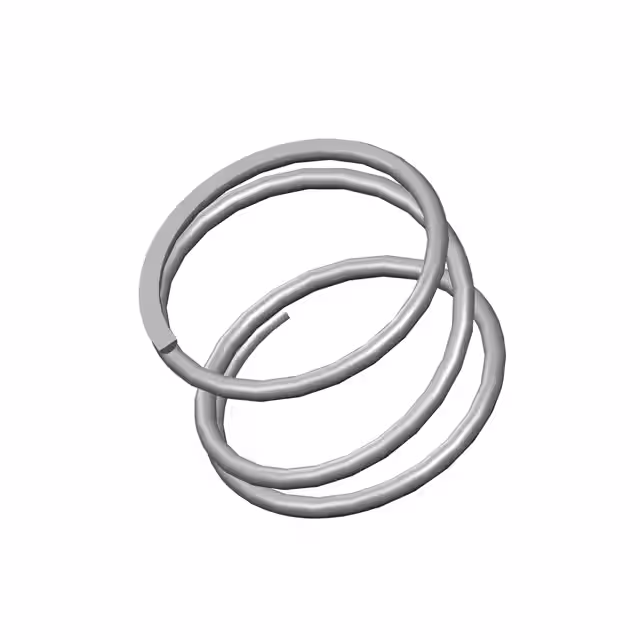

B4-20CSCOMP O= .750,L= .50,W= .050 |
631 | 3.25 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.050 (1.27mm) | 0.750 (19.05mm) | 0.650 (16.51mm) | - | - | 0.500 (12.70mm) | - | 21.0 lbs/in | Closed & Ground |
|

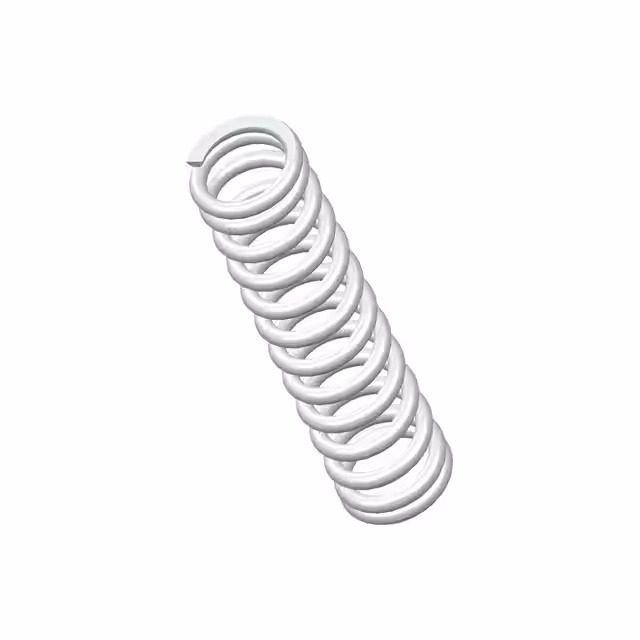

B4-33CSCOMP O= .180,L= .75,W= .026 |
115 | 3.25 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.180 (4.57mm) | 0.128 (3.25mm) | - | - | 0.750 (19.05mm) | - | 14.0 lbs/in | Closed & Ground |
|

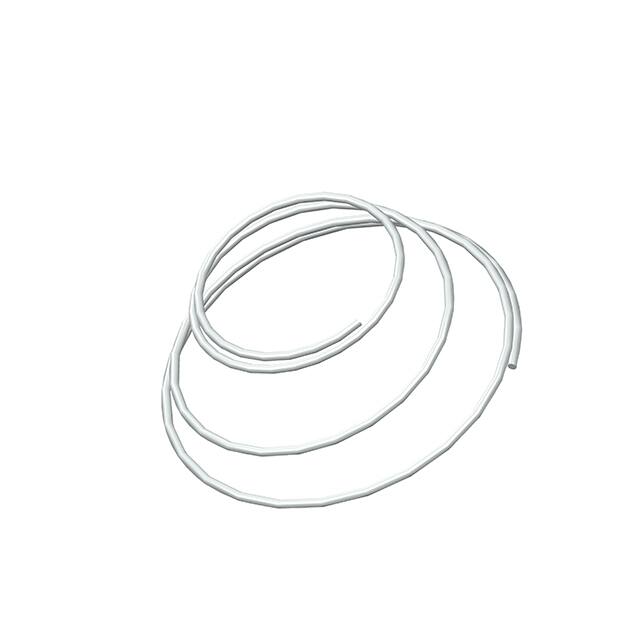

TA-2220CSLO= 1, SO= 0.562, W= 0.024 |
3,180 | 3.26 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | - | 0.510 (12.95mm) | 0.562 (14.27mm) | 1.000 (25.40mm) | 0.410 (10.41mm) | - | 0.6 lbs/in | Closed |
|

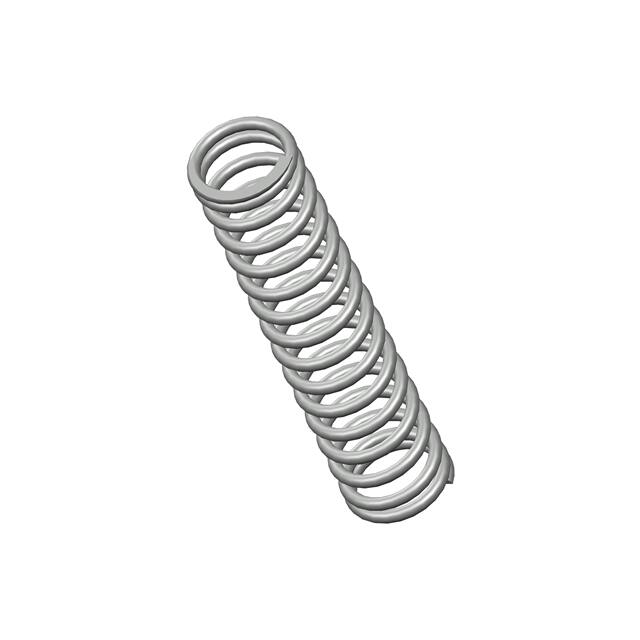

12135CSCOMP O= .625,L= 2.88,W= .075 |
2,668 | 3.26 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.075 (1.91mm) | 0.625 (15.88mm) | 0.475 (12.07mm) | - | - | 2.880 (73.15mm) | - | 20.0 lbs/in | Closed & Ground |
|

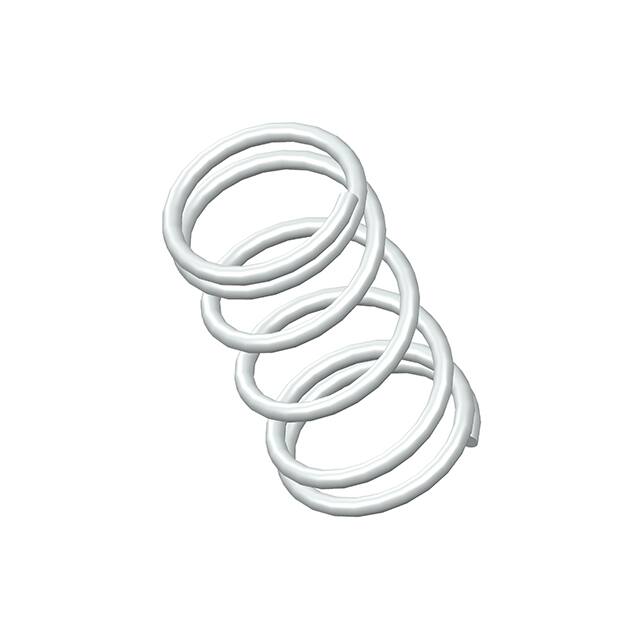

YY-53CSCOMP O= .484,L= .94,W= .045 |
3,803 | 3.26 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - | - | - |
|

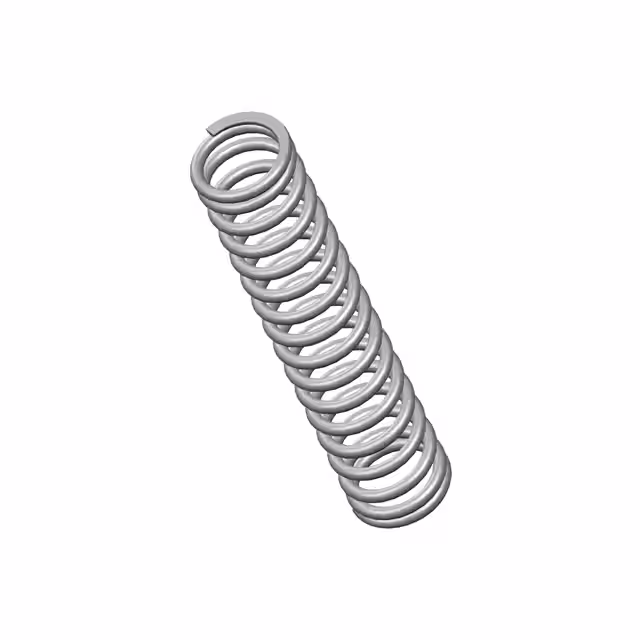

4266CSCOMP O= .500,L= 2.44,W= .062 |
3,009 | 3.26 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.062 (1.57mm) | 0.500 (13.97mm) | 0.376 (9.55mm) | - | - | 2.440 (61.98mm) | - | 17.0 lbs/in | Closed & Ground |
|
OO-84CSCOMP O= .750,L= .56,W= .050 |
3,638 | 3.26 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.050 (1.27mm) | 0.750 (19.05mm) | 0.650 (16.51mm) | - | - | 0.560 (14.22mm) | - | 9.5 lbs/in | Closed |
|

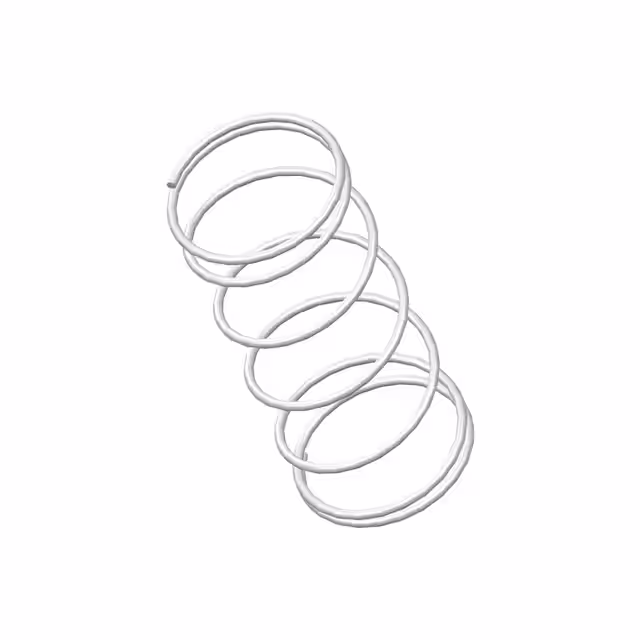

S-1092CSCOMP O= .484,L= 1.13,W= .025 |
3,163 | 3.26 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.025 (0.64mm) | 0.484 (12.29mm) | 0.434 (11.02mm) | - | - | 1.130 (28.70mm) | - | 1.0 lbs/in | Closed |
|

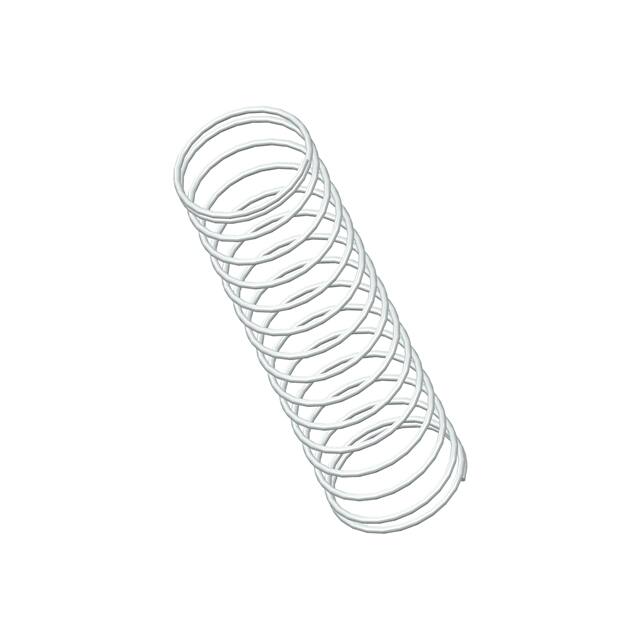

S-1204CSCOMP O= .420,L= 1.50,W= .020 |
2,901 | 3.26 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.020 (0.51mm) | 0.420 (10.67mm) | 0.380 (9.65mm) | - | - | 1.500 (38.10mm) | - | 0.22 lbs/in | Closed |
|

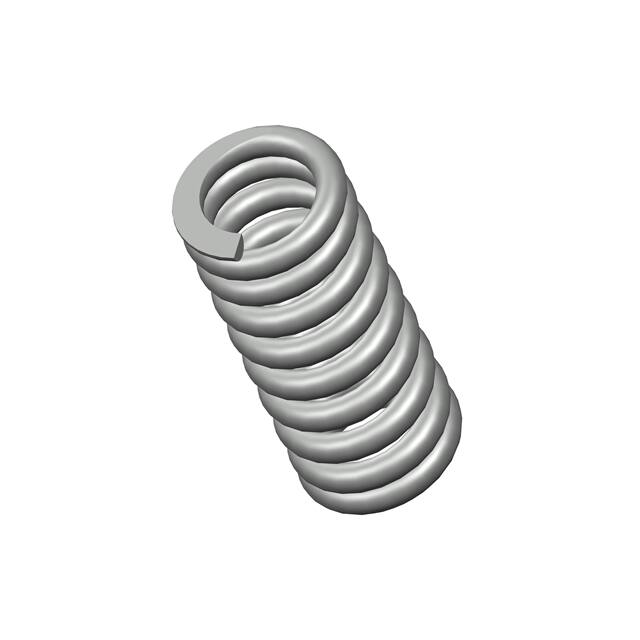

2686CSCOMP O= .593,L= 1.41,W= .105 |
3,017 | 3.26 |
RFQ |
Datasheet |
Box | - | Active | Hard Drawn | 0.105 (2.67mm) | 0.593 (15.06mm) | 0.383 (9.73mm) | - | - | 1.410 (35.81mm) | - | 200.0 lbs/in | Closed & Ground |
|

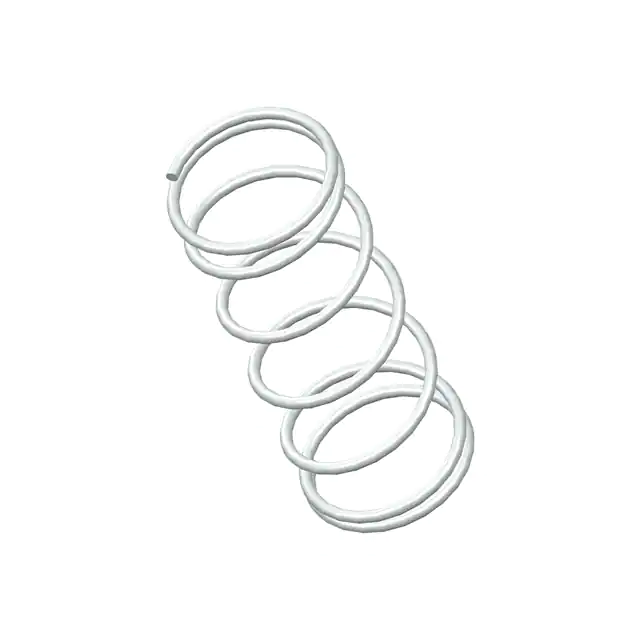

S-1164CSCOMP O= .437,L= 1.13,W= .030 |
2,382 | 3.26 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.030 (0.76mm) | 0.437 (11.10mm) | 0.377 (9.58mm) | - | - | 1.130 (28.70mm) | - | 3.0 lbs/in | Closed |
