Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

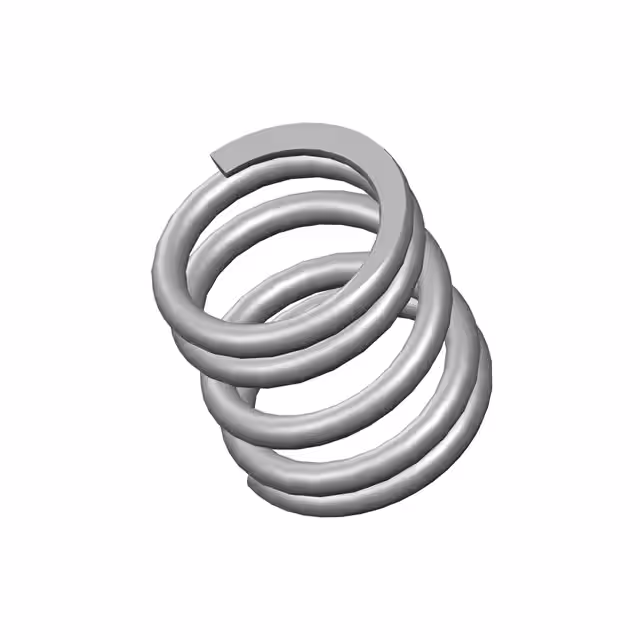

M-24CSCOMP O= .406,L= .41,W= .050 |
198 | 2.43 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.050 (1.27mm) | 0.406 (10.31mm) | 0.306 (7.77mm) | - | - | 0.410 (10.41mm) | - | 72.0 lbs/in | Closed & Ground |
|

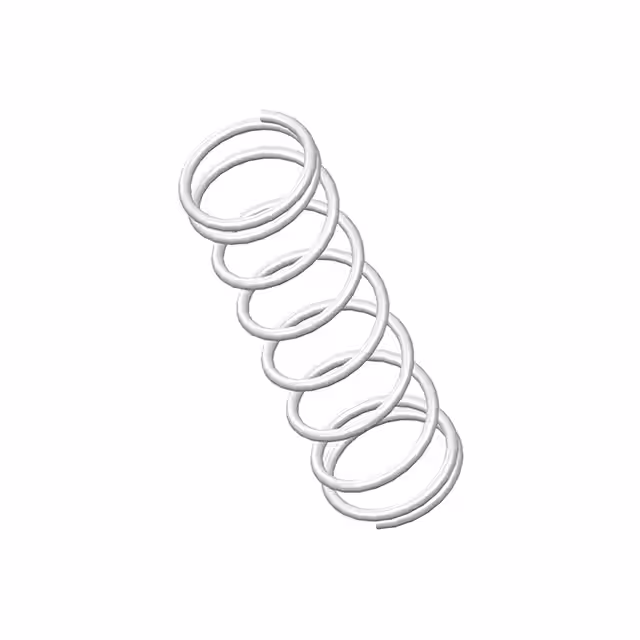

Z-49CSCOMP O= .296,L= 1.00,W= .025 |
190 | 2.43 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - | - | - |
|

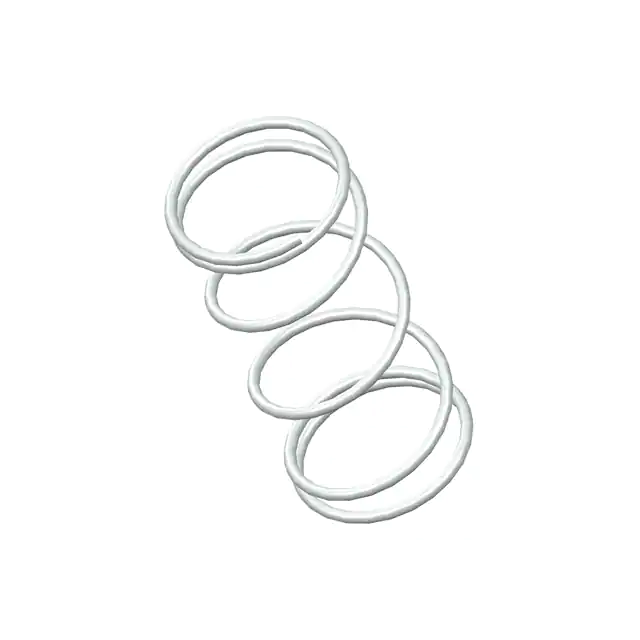

CC-78CSCOMP O= .390,L= .88,W= .025 |
169 | 2.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.025 (0.64mm) | 0.390 (9.91mm) | 0.340 (8.64mm) | - | - | 0.880 (22.35mm) | - | 2.7 lbs/in | Closed |
|

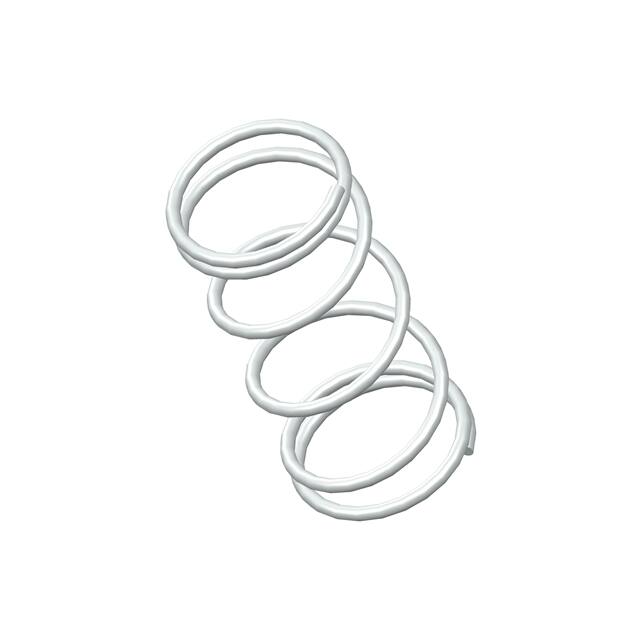

10919CSCOMP O= .390,L= .88,W= .030 |
2,355 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.030 (0.76mm) | 0.390 (9.91mm) | 0.330 (8.38mm) | - | - | 0.880 (22.35mm) | - | 5.5 lbs/in | Closed |
|

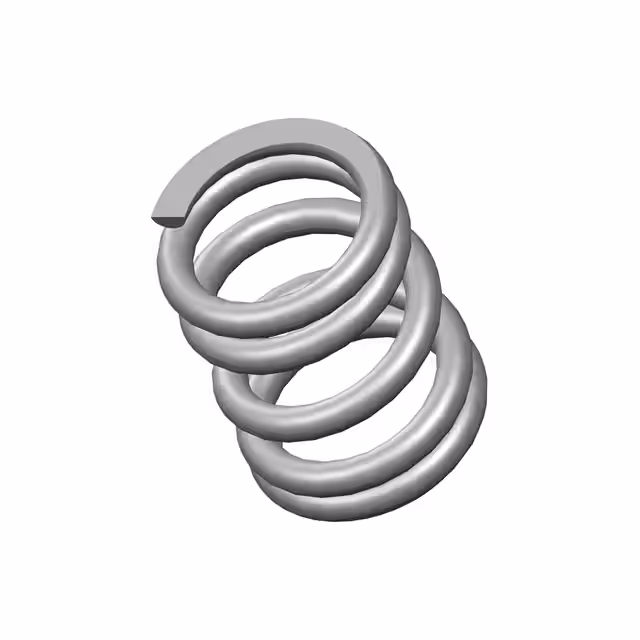

2993CSCOMP O= .437,L= .56,W= .062 |
2,179 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.062 (1.57mm) | 0.437 (11.10mm) | 0.313 (7.95mm) | - | - | 0.560 (14.22mm) | - | 133.0 lbs/in | Closed & Ground |
|

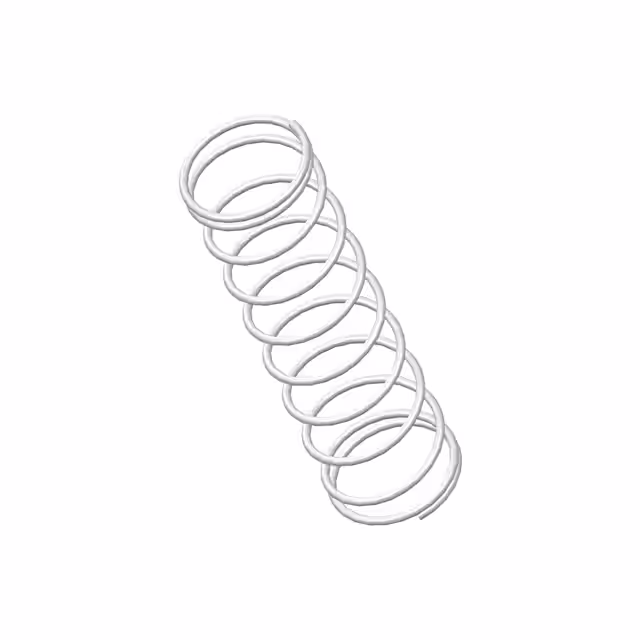

10910CSCOMP O= .312,L= 1.13,W= .020 |
3,830 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.020 (0.51mm) | 0.312 (7.92mm) | 0.272 (6.91mm) | - | - | 1.130 (28.70mm) | - | 0.99 lbs/in | Closed |
|

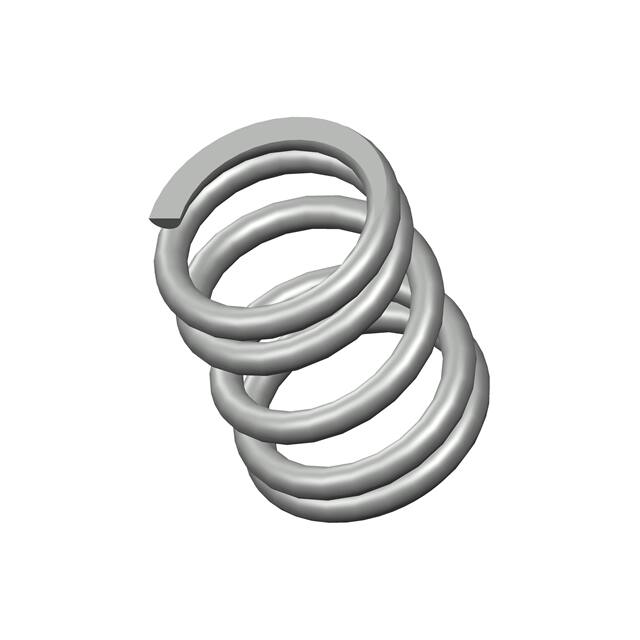

1767CSCOMP O= .453,L= .56,W= .058 |
2,615 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.058 (1.47mm) | 0.453 (11.51mm) | 0.337 (8.56mm) | - | - | 0.560 (14.22mm) | - | 88.0 lbs/in | Closed & Ground |
|

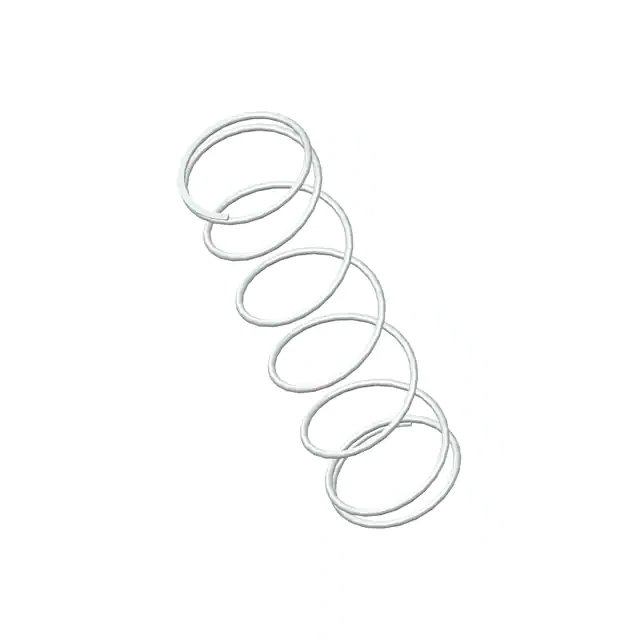

10827CSCOMP O= .281,L= 1.00,W= .015 |
3,583 | 2.44 |
RFQ |
Box | - | Active | Stainless Steel | 0.015 (0.38mm) | 0.281 (7.14mm) | 0.251 (6.38mm) | - | - | 1.000 (25.40mm) | - | 0.62 lbs/in | Closed & Ground | |
|

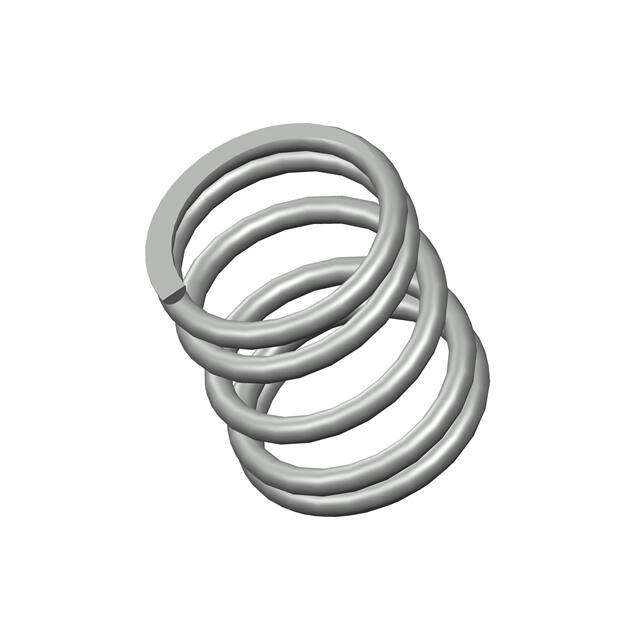

3990CSCOMP O= .562,L= .63,W= .058 |
2,072 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.058 (1.47mm) | 0.562 (14.27mm) | 0.446 (11.33mm) | - | - | 0.630 (16.00mm) | - | 39.0 lbs/in | Closed & Ground |
|

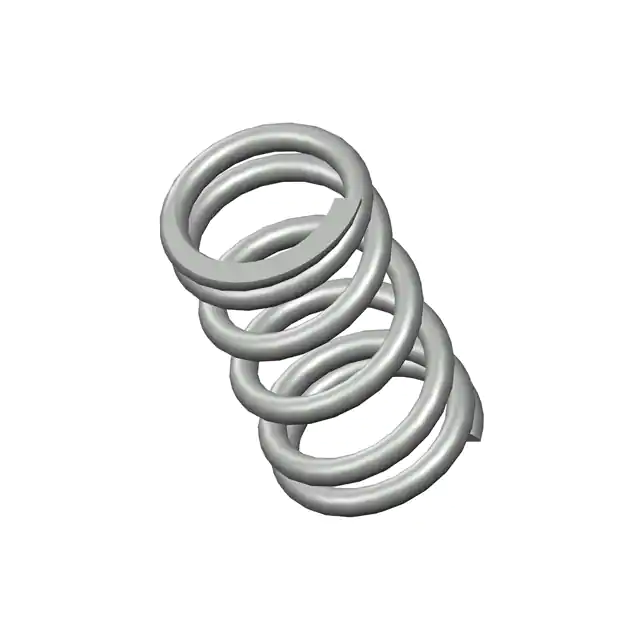

2959CSCOMP O= .420,L= .75,W= .055 |
3,609 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.055 (1.40mm) | 0.420 (10.67mm) | 0.310 (7.87mm) | - | - | 0.750 (19.05mm) | - | 67.0 lbs/in | Closed & Ground |
|
MM-72CSCOMP O= .328,L= 1.50,W= .020 |
3,832 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.020 (0.51mm) | 0.328 (8.33mm) | 0.288 (7.32mm) | - | - | 1.500 (38.10mm) | - | 0.87 lbs/in | Closed |
|

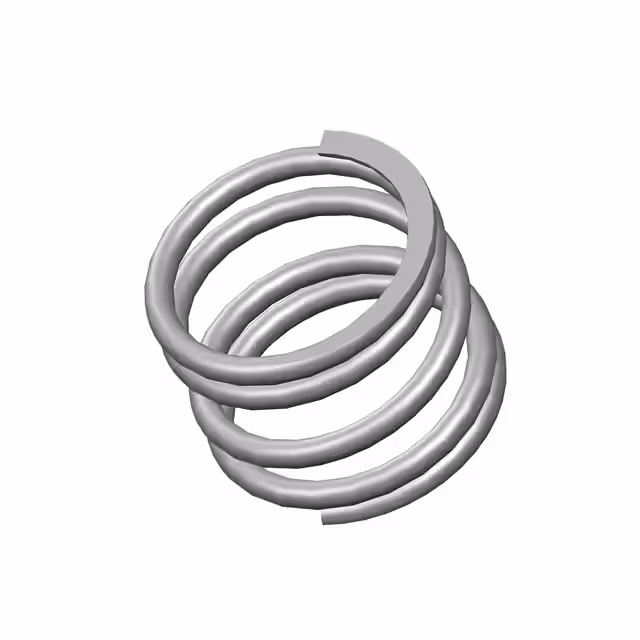

A15-44CSCOMP O= .437,L= .34,W= .041 |
2,330 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.041 (1.04mm) | 0.437 (11.10mm) | 0.355 (9.02mm) | - | - | 0.340 (8.64mm) | - | 26.0 lbs/in | Closed & Ground |
|

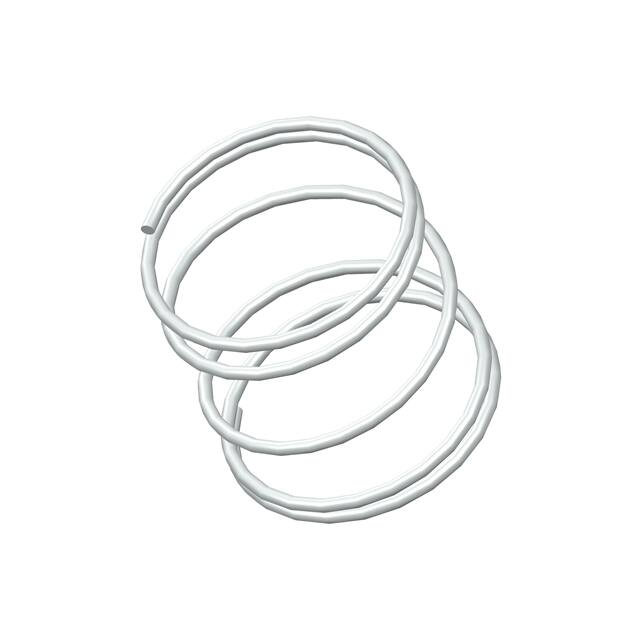

H-58CSCOMP O= .328,L= .34,W= .016 |
2,155 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.328 (8.33mm) | 0.296 (7.52mm) | - | - | 0.340 (8.64mm) | - | 0.92 lbs/in | Closed |
|

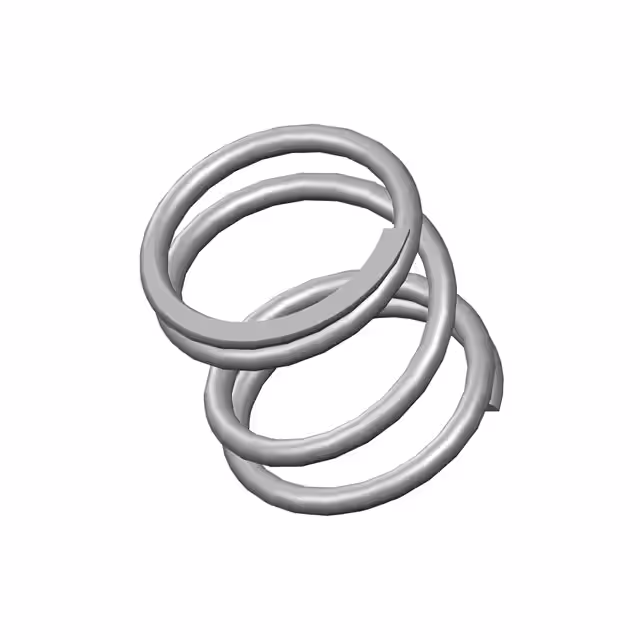

3920CSCOMP O= .437,L= .44,W= .042 |
3,783 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.042 (1.07mm) | 0.437 (11.10mm) | 0.353 (8.97mm) | - | - | 0.440 (11.18mm) | - | 36.0 lbs/in | Closed & Ground |
|

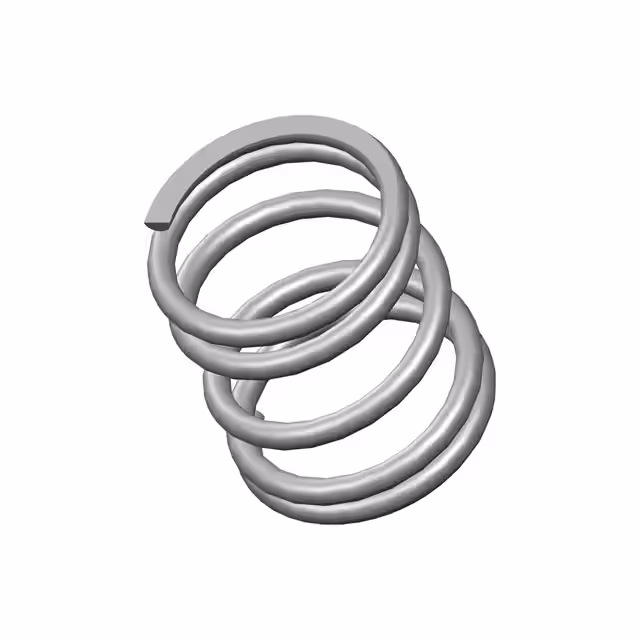

I-30CSCOMP O= .420,L= .47,W= .042 |
2,451 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 0.470 (11.94mm) | - | 27.0 lbs/in | Closed & Ground |
|

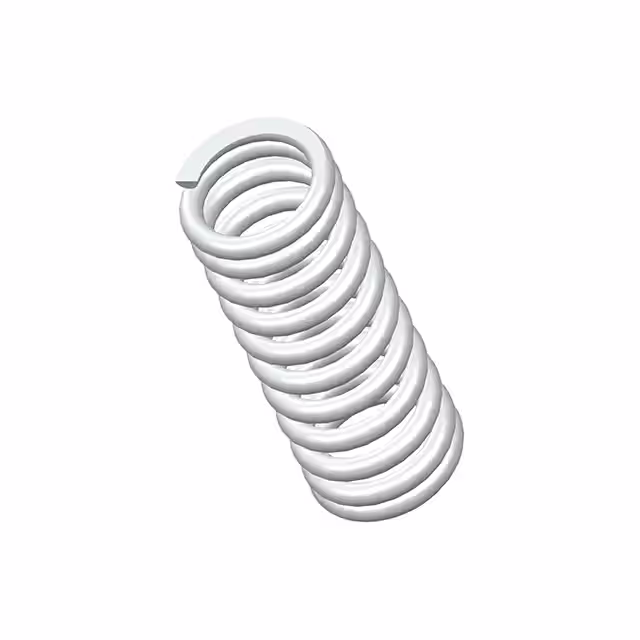

W-69CSCOMP O=.188, L=.50, W=.027 |
2,908 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.027 (0.69mm) | 0.188 (4.78mm) | 0.134 (3.40mm) | - | - | 0.500 (12.70mm) | - | 18.04 lbs/in | Closed & Ground |
|

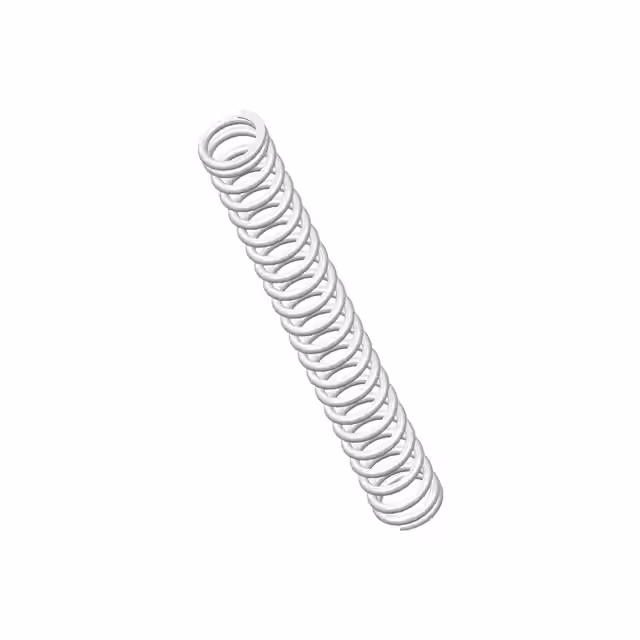

11194CSCOMP O= .188,L= 1.50,W= .025 |
775 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.025 (0.64mm) | 0.188 (4.78mm) | 0.138 (3.51mm) | - | - | 1.500 (38.10mm) | - | 5.6 lbs/in | Closed & Ground |
|

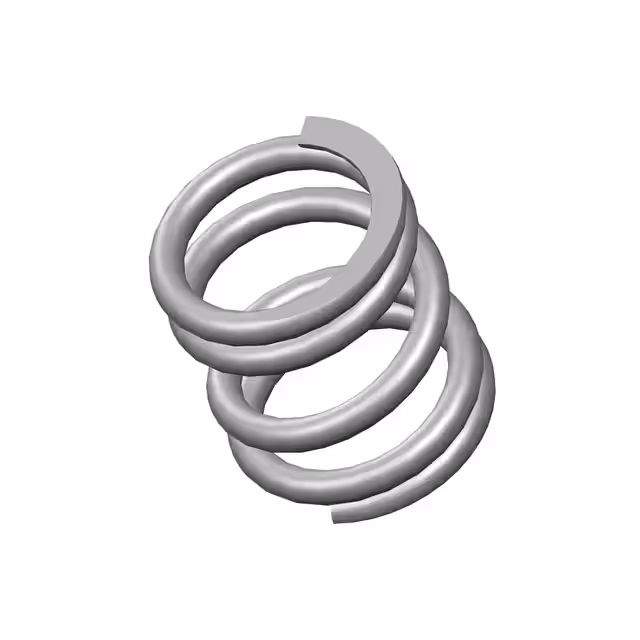

10426CSCOMP O= .420,L= .47,W= .054 |
680 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.054 (1.37mm) | 0.420 (10.67mm) | 0.312 (7.92mm) | - | - | 0.470 (11.94mm) | - | 99.0 lbs/in | Closed & Ground |
|

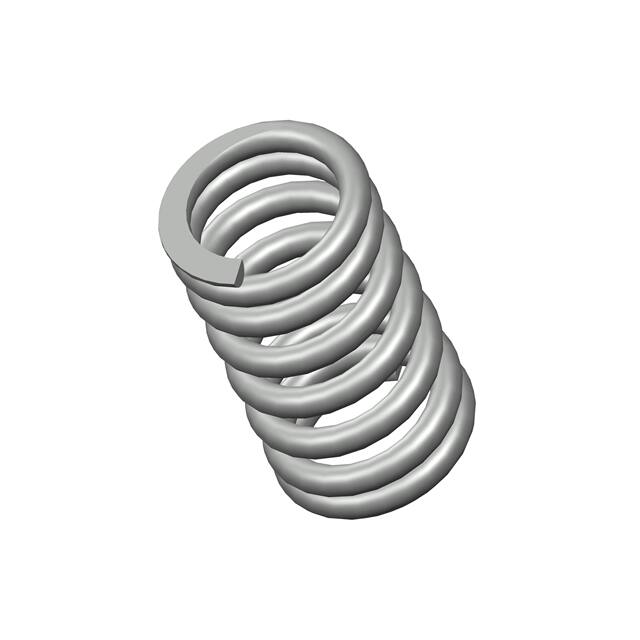

GG-97CSCOMP O= .420,L= .75,W= .062 |
649 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Hard Drawn | 0.062 (1.57mm) | 0.420 (10.67mm) | 0.296 (7.52mm) | - | - | 0.750 (19.05mm) | - | 83.0 lbs/in | Closed & Ground |
|

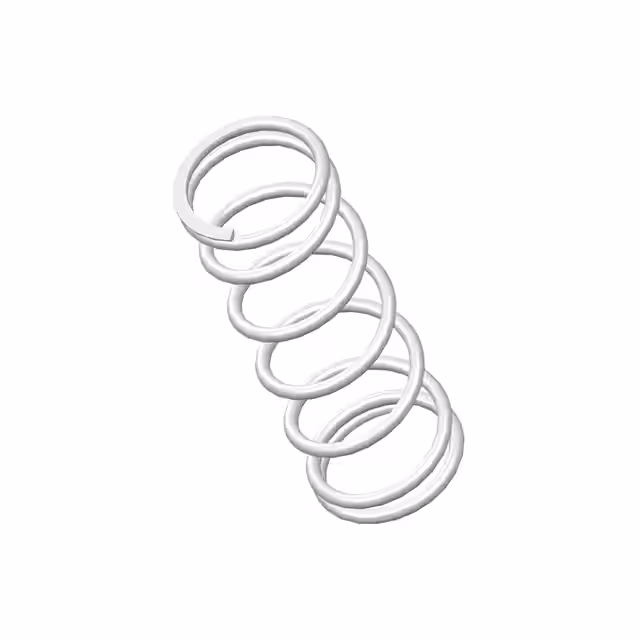

A14-49CSCOMP O= .296,L= .84,W= .027 |
640 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.027 (0.69mm) | 0.296 (7.52mm) | 0.242 (6.15mm) | - | - | 0.840 (21.34mm) | - | 6.3 lbs/in | Closed & Ground |
