Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

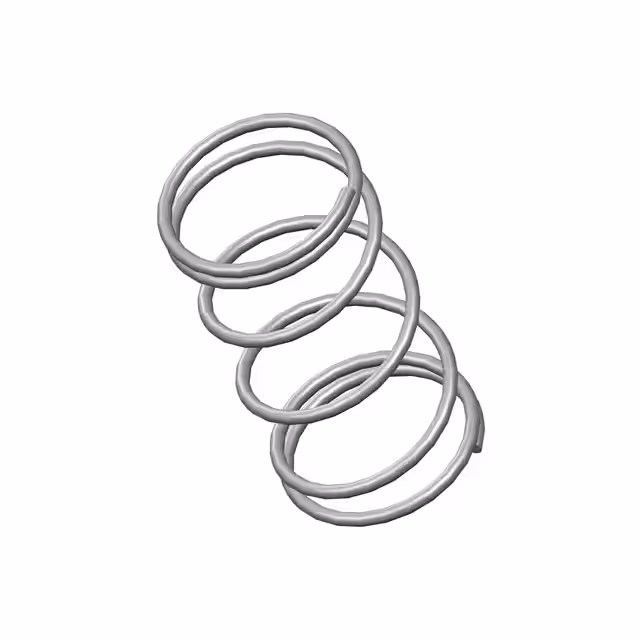

J-60-ACSCOMP O= .468,L= .94,W= .032 |
3,017 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.032 (0.81mm) | 0.468 (11.89mm) | 0.404 (10.26mm) | - | - | 0.940 (23.88mm) | - | 4.5 lbs/in | Closed |
|

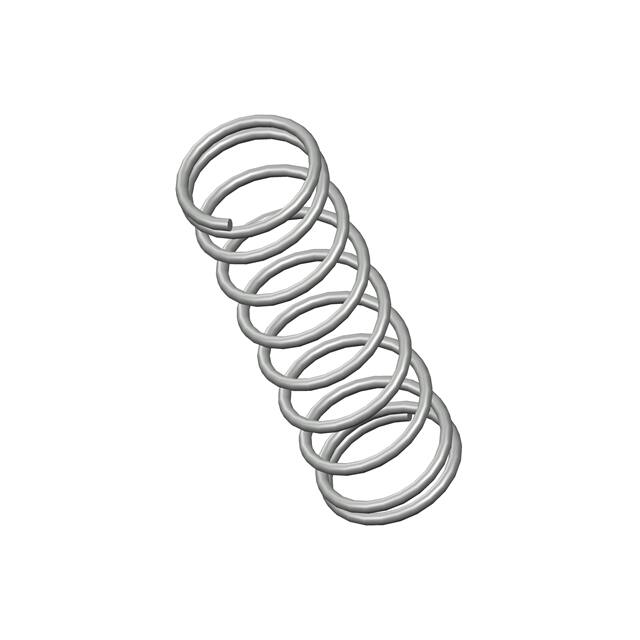

HH-56CSCOMP O= .500,L= 1.63,W= .042 |
3,625 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.042 (1.07mm) | 0.500 (13.97mm) | 0.416 (10.57mm) | - | - | 1.630 (41.40mm) | - | 6.2 lbs/in | Closed |
|

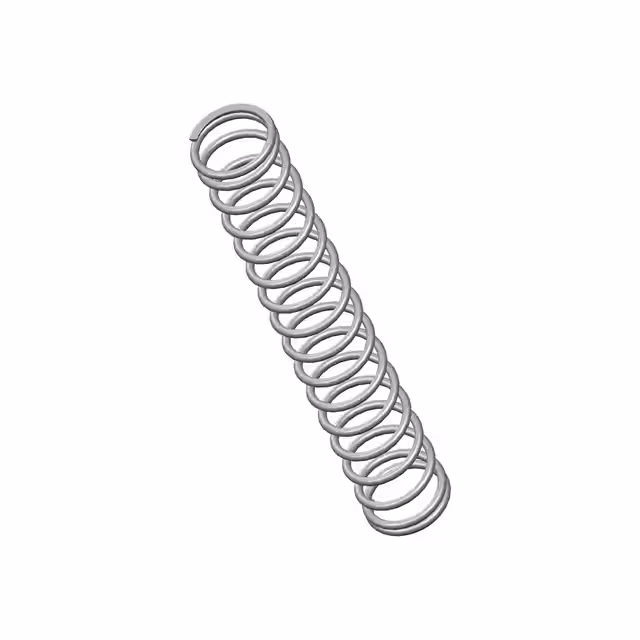

A9-51CSCOMP O= .420,L= 2.66,W= .041 |
3,076 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.041 (1.04mm) | 0.420 (10.67mm) | 0.338 (8.59mm) | - | - | 2.660 (67.56mm) | - | 4.9 lbs/in | Closed & Ground |
|

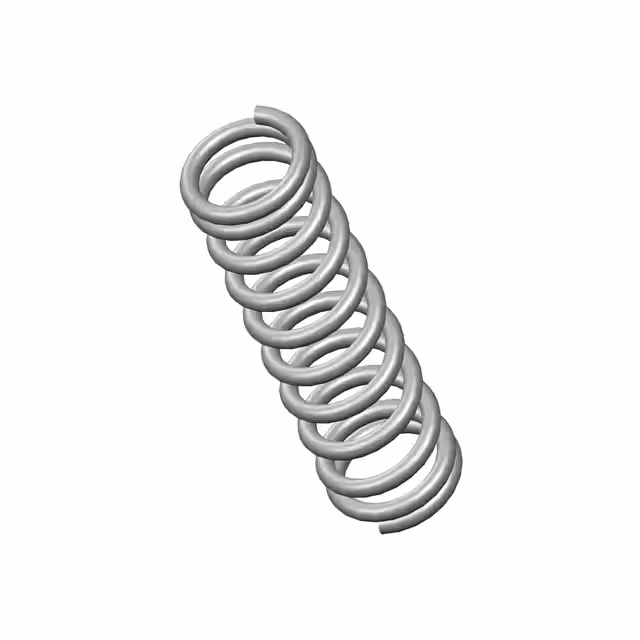

3775CSCOMP O= .453,L= 1.69,W= .062 |
2,506 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Hard Drawn | 0.062 (1.57mm) | 0.453 (11.51mm) | 0.329 (8.36mm) | - | - | 1.690 (42.93mm) | - | 42.0 lbs/in | Closed |
|

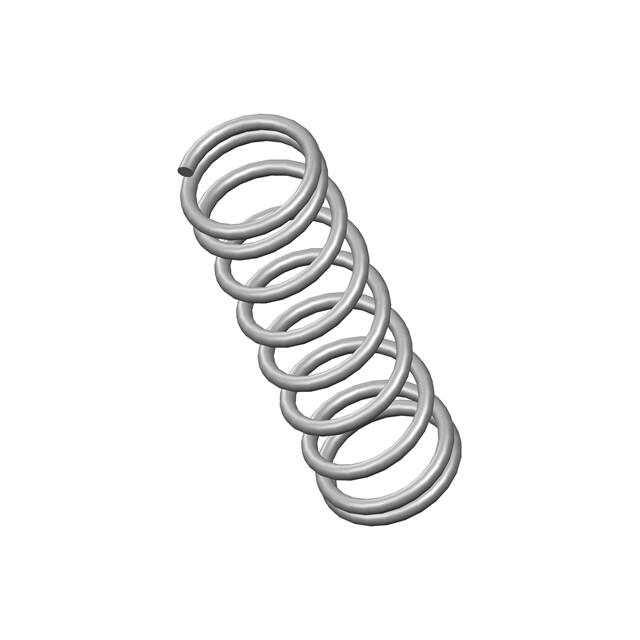

4124CSCOMP O= .500,L= 1.63,W= .054 |
3,302 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.054 (1.37mm) | 0.500 (13.97mm) | 0.392 (9.96mm) | - | - | 1.630 (41.40mm) | - | 20.0 lbs/in | Closed |
|

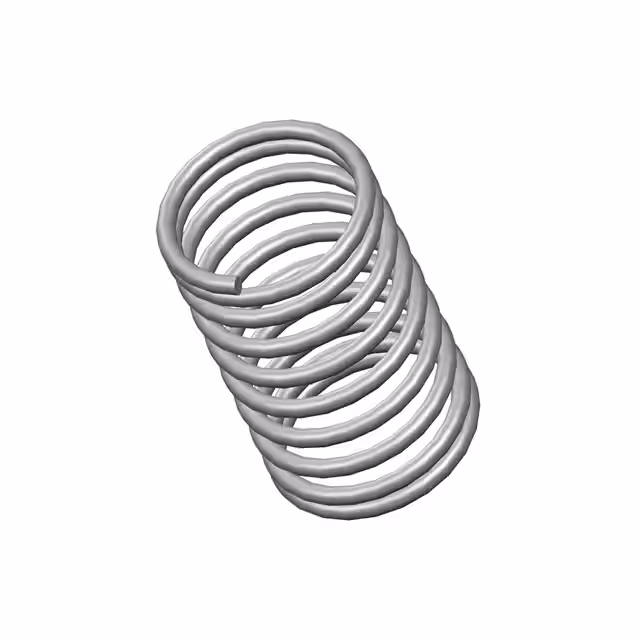

10176CSCOMP O= .546,L= .94,W= .047 |
2,991 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.047 (1.19mm) | 0.546 (13.87mm) | 0.452 (11.48mm) | - | - | 0.940 (23.88mm) | - | 7.5 lbs/in | Closed |
|

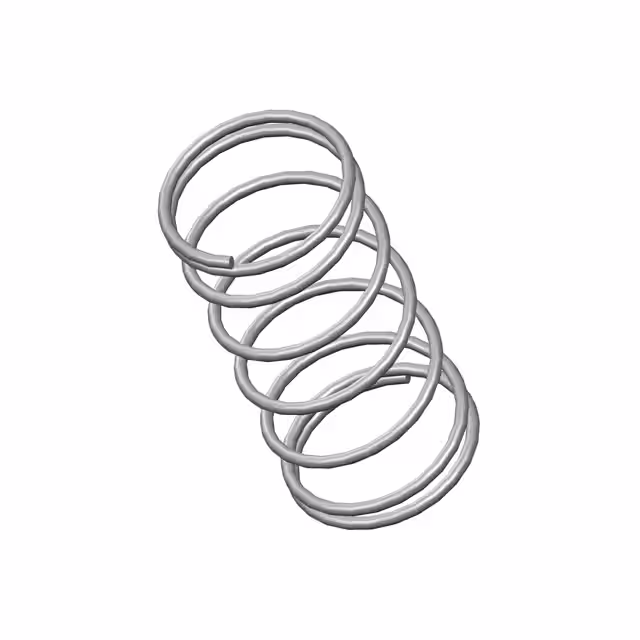

2598CSCOMP O= .468,L= 1.00,W= .030 |
3,050 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.030 (0.76mm) | 0.468 (11.89mm) | 0.408 (10.36mm) | - | - | 1.000 (25.40mm) | - | 2.5 lbs/in | Closed |
|

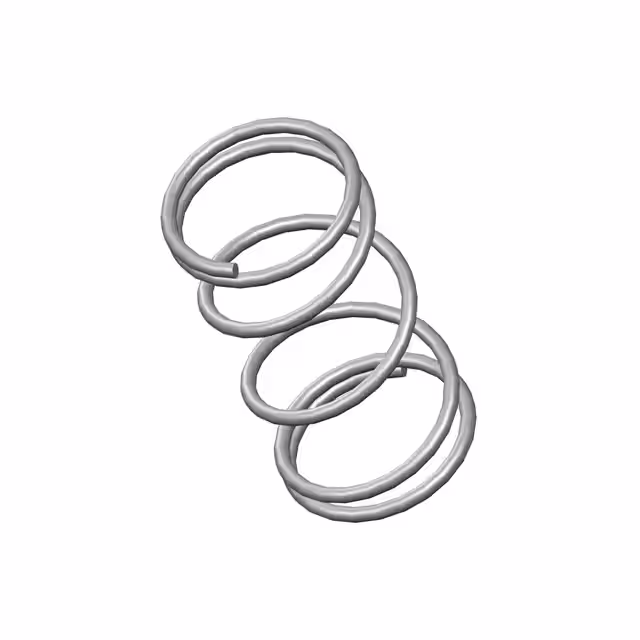

MM-89CSCOMP O= .500,L= 1.00,W= .038 |
2,276 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.500 (13.97mm) | 0.424 (10.77mm) | - | - | 1.000 (25.40mm) | - | 8.7 lbs/in | Closed |
|

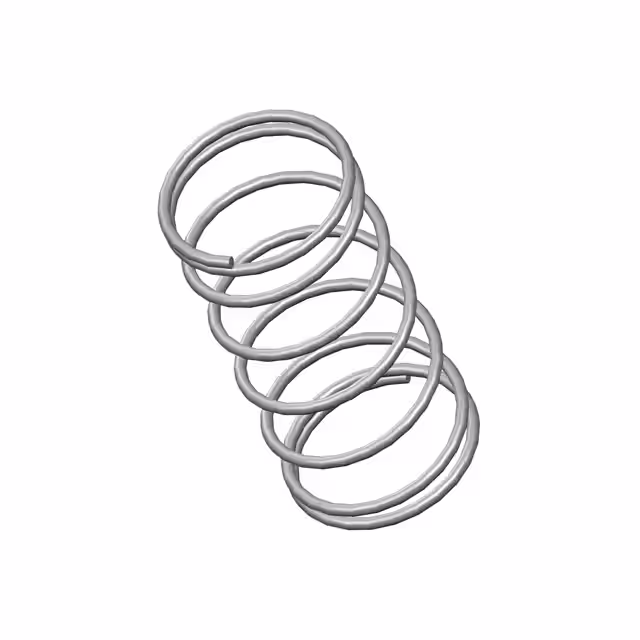

1511CSCOMP O= .468,L= 1.00,W= .029 |
2,229 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.029 (0.74mm) | 0.468 (11.89mm) | 0.410 (10.41mm) | - | - | 1.000 (25.40mm) | - | 2.2 lbs/in | Closed |
|

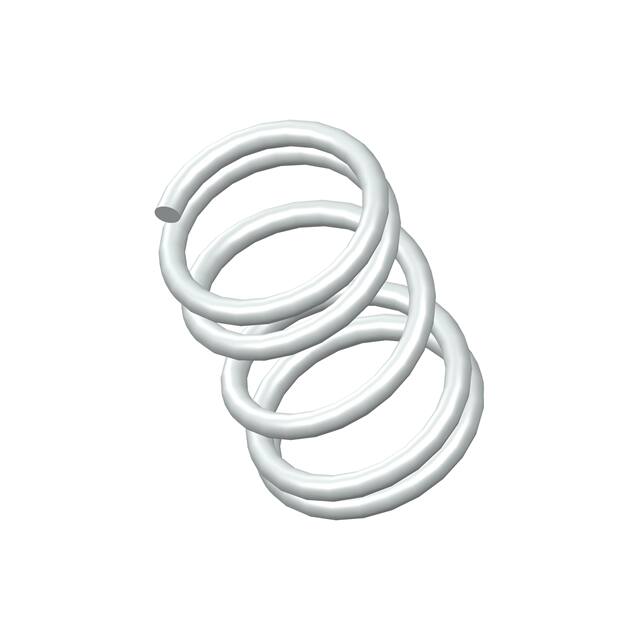

II-98CSCOMP O= .296,L= .44,W= .032 |
2,317 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.032 (0.81mm) | 0.296 (7.52mm) | 0.232 (5.89mm) | - | - | 0.440 (11.18mm) | - | 20.0 lbs/in | Closed |
|

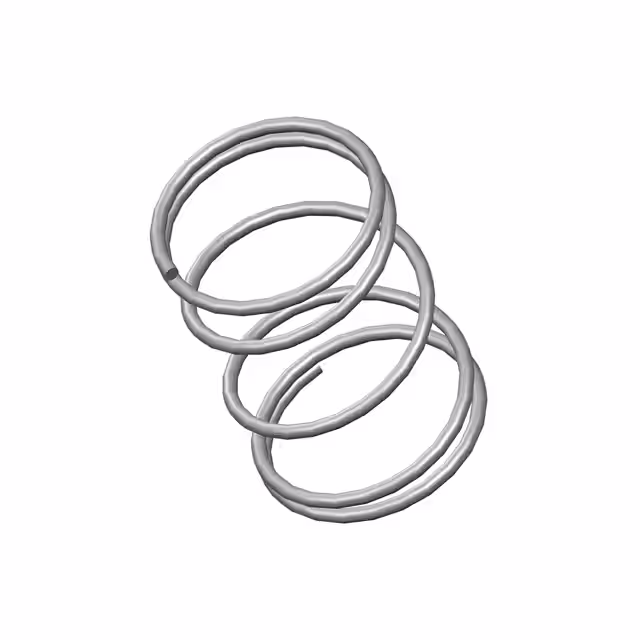

3967CSCOMP O= .500,L= .75,W= .031 |
2,897 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.031 (0.79mm) | 0.500 (13.97mm) | 0.438 (11.13mm) | - | - | 0.750 (19.05mm) | - | 4.0 lbs/in | Closed |
|

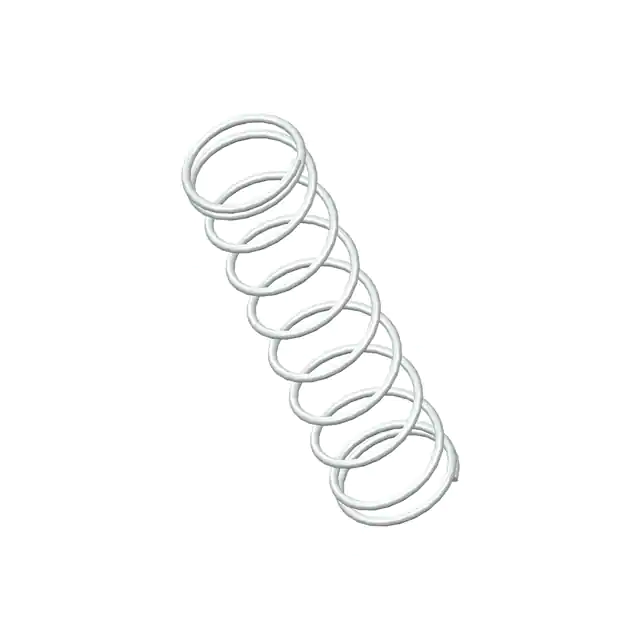

L-44CSCOMP O= .343,L= 1.38,W= .024 |
3,535 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.343 (8.71mm) | 0.295 (7.49mm) | - | - | 1.380 (35.05mm) | - | 1.6 lbs/in | Closed |
|

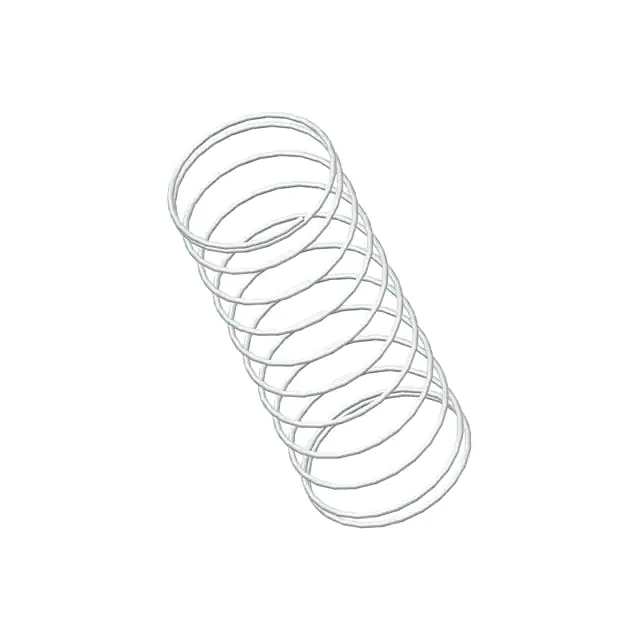

N-12CSCOMP O= .266,L= .69,W= .009 |
948 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.009 (0.23mm) | 0.266 (6.76mm) | 0.248 (6.30mm) | - | - | 0.690 (17.53mm) | - | 0.05 lbs/in | Closed |
|

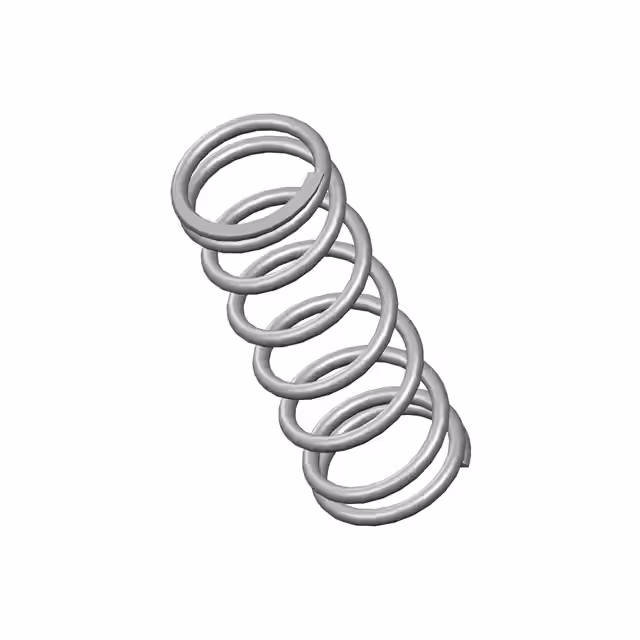

10202CSCOMP O= .437,L= 1.25,W= .045 |
713 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.045 (1.14mm) | 0.437 (11.10mm) | 0.347 (8.81mm) | - | - | 1.250 (31.75mm) | - | 16.0 lbs/in | Closed & Ground |
|

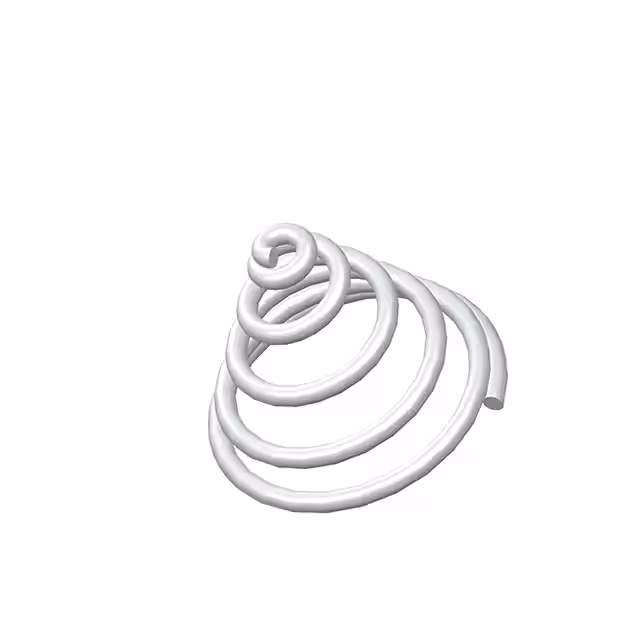

TA-7058SCSLO= 0.72, SO= 0.281, W= 0.049 |
690 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.049 (1.24mm) | - | - | 0.281 (7.14mm) | 0.720 (18.29mm) | - | - | - | Closed |
|

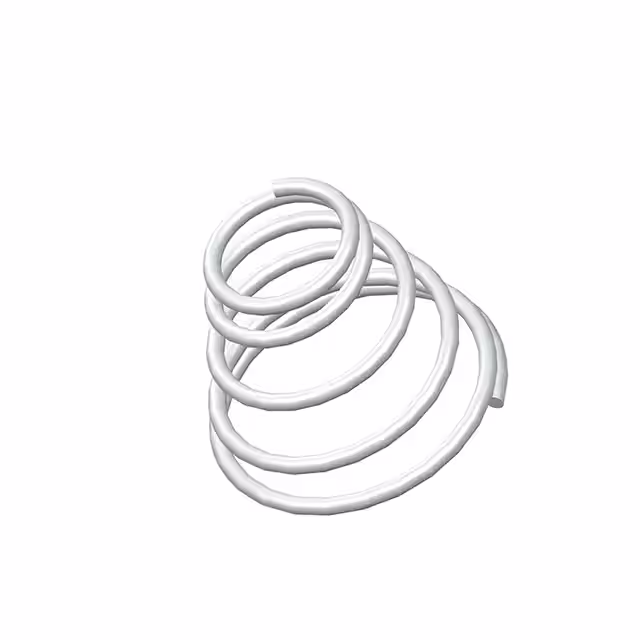

TA-7072SCSLO= 0.85, SO= 0.438, W= 0.049 |
440 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.049 (1.24mm) | - | - | 0.438 (11.13mm) | 0.850 (21.59mm) | - | - | - | Closed |
|

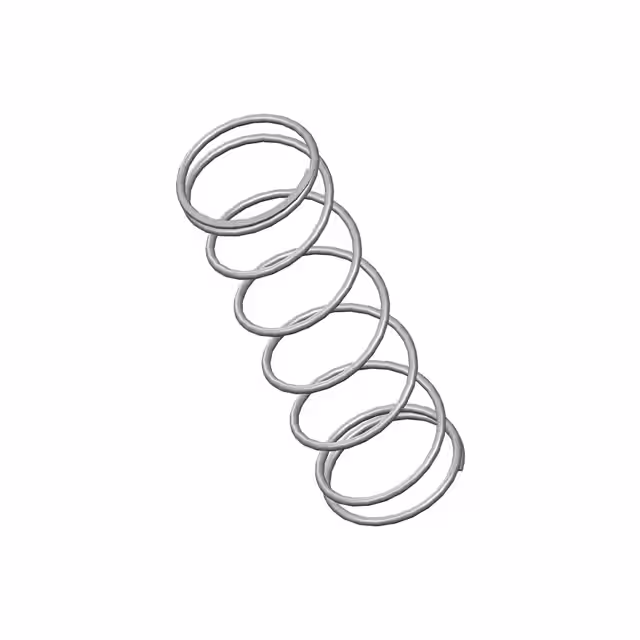

BB-58CSCOMP O= .500,L= 1.63,W= .030 |
418 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.030 (0.76mm) | 0.500 (13.97mm) | 0.440 (11.18mm) | - | - | 1.630 (41.40mm) | - | 1.9 lbs/in | Closed & Ground |
|

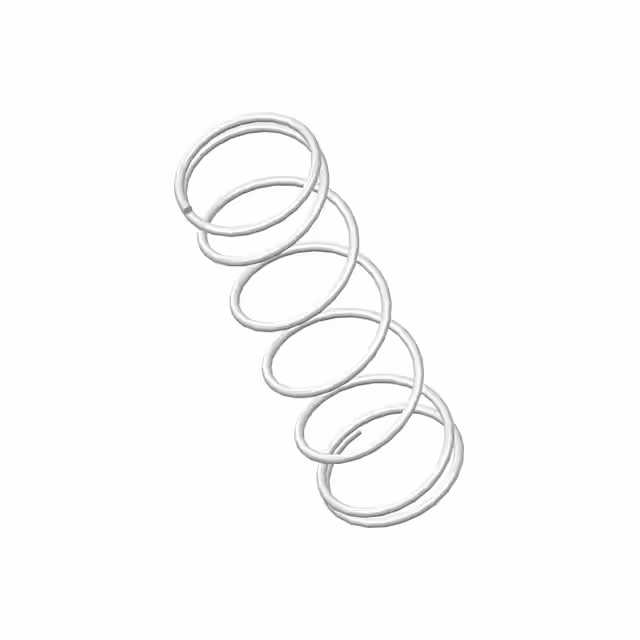

10917CSCOMP O= .312,L= 1.00,W= .020 |
405 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.020 (0.51mm) | 0.312 (7.92mm) | 0.272 (6.91mm) | - | - | 1.000 (25.40mm) | - | 1.6 lbs/in | Closed |
|

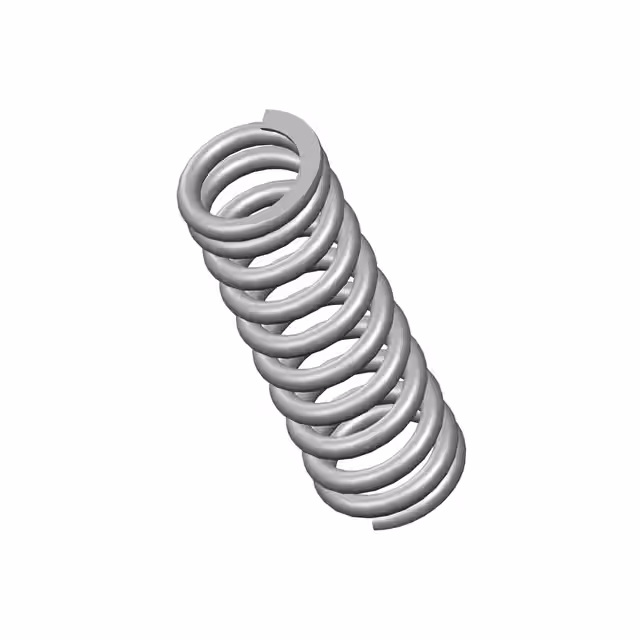

A11-47CSCOMP O= .420,L= 1.28,W= .063 |
366 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.063 (1.60mm) | 0.420 (10.67mm) | 0.294 (7.47mm) | - | - | 1.280 (32.51mm) | - | 58.0 lbs/in | Closed & Ground |
|

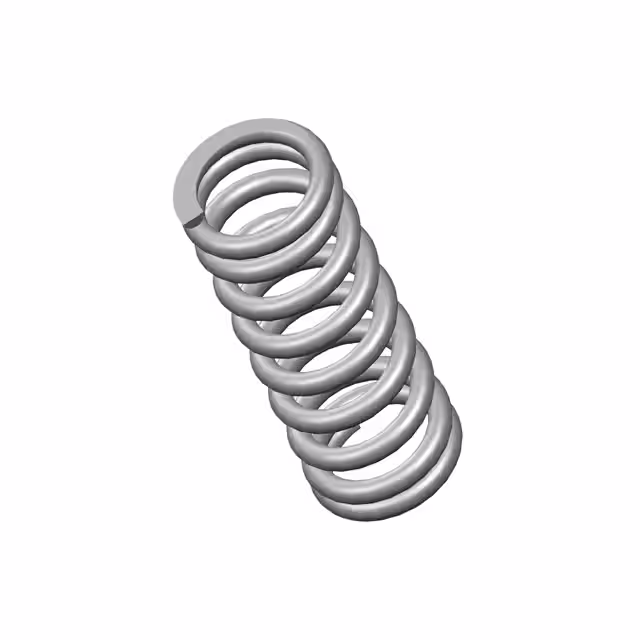

A15-58CSCOMP O= .296,L= .81,W= .044 |
349 | 2.38 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.044 (1.12mm) | 0.296 (7.52mm) | 0.208 (5.28mm) | - | - | 0.810 (20.57mm) | - | 46.0 lbs/in | Closed & Ground |
