| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | Type | FrequencyRange | Frequency-SelfResonant | Impedance | Efficiency-dBA | Efficiency-Testing | Efficiency-Type | Power-Rated | Power-Max | PortLocation | Shape | Material-Cone | Material-Magnet | IngressProtection | Ratings | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-30205-158L120-6730 X 20 MM, RECTANGULAR, 1.5 W |
851 | 851.00 |
RFQ |
Datasheet |
Tray | CMS | Active | Magnetic | General Purpose | 720 Hz ~ 20 kHz | 900Hz | 8 Ohms | 96.00 | 1W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | Wire Leads with Connector |
|
GF0501SPEAKER 8OHM 250MW TOP PORT 87DB |
598 | 4.21 |
RFQ |
Datasheet |
Tray | GF | Active | Magnetic | General Purpose | 450 Hz ~ 5.9 kHz | 450Hz | 8 Ohms | 87.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 1.969 Dia (50.00mm) |
|
CDS-20144-L100SPEAKER 4OHM 1W TOP PORT 92DB |
2,561 | 4.23 |
RFQ |
Datasheet |
Tray | CDS | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 600Hz | 4 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787 L x 0.551 W (20.00mm x 14.00mm) |
|
CMS-30205-124L40-6730 X 20 MM, RECTANGULAR, 1.2 W |
2,674 | 0.00 |
RFQ |
Datasheet |
Tray | CMS | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 95.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | Wire Leads with Connector |
|
CSS-66668NSPEAKER 8OHM 3W TOP PORT 104DB |
2,794 | 3.90 |
RFQ |
Datasheet |
Tray | CSS | Active | Magnetic | General Purpose | 160 Hz ~ 15 kHz | 200Hz | 8 Ohms | 101.00 | 1W/100mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Square Frame | Paper/Foam | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.598 L x 2.598 W (66.00mm x 66.00mm) |
|
CMS-40504N-L152B40 MM, ROUND FRAME, 2 W, 4 OHM |
333 | 333.00 |
RFQ |
Datasheet |
Tray | CMS | Active | Magnetic | General Purpose | 400 Hz ~ 7 kHz | 500Hz | 4 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | Wire Leads with Connector |
|
GF0401MSPEAKER 8OHM 100MW TOP PORT 99DB |
2,131 | 3.92 |
RFQ |
Datasheet |
Tray | GF | Active | Magnetic | General Purpose | 144 Hz ~ 20 kHz | 180Hz | 8 Ohms | 99.00 | 100mW/100mm | Sound Pressure Level (SPL) | 40 mW | 100 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.575 Dia (40.00mm) |
|
CMS-23558N-L152SPEAKER 8OHM 1W ENCLOSED 94DB |
3,593 | 3.95 |
RFQ |
Datasheet |
Tray | CMS | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.906 Dia (23.00mm) |
|

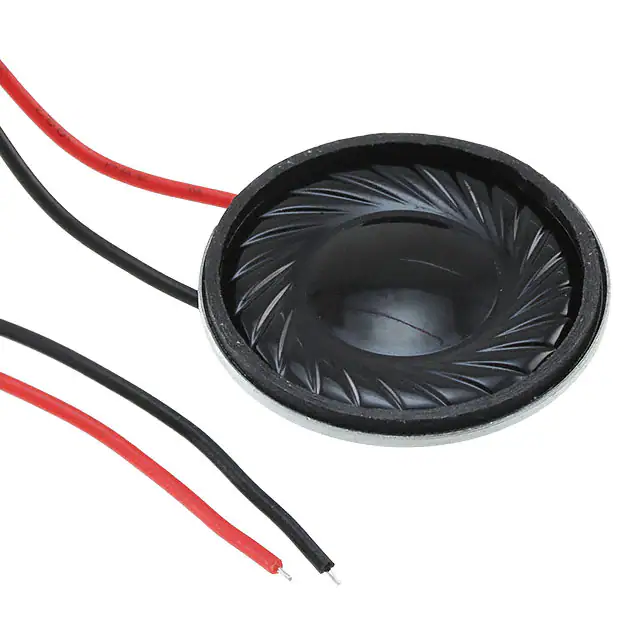

CMS-28588N-L152SPEAKER 8OHM 2W ENCLOSED 99DB |
3,344 | 3.97 |
RFQ |
Datasheet |
Tray | CMS | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102 Dia (28.00mm) |
|

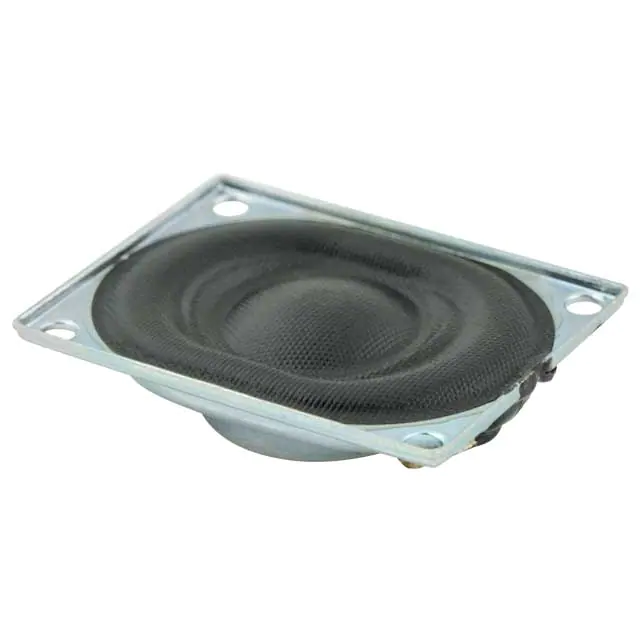

CDS-27204SPEAKER 4OHM 2W TOP PORT 93DB |
2,752 | 3.97 |
RFQ |
Datasheet |
Box | CDS | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.063 L x 0.787 W (27.00mm x 20.00mm) |
|

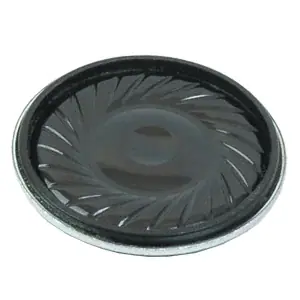

CLS0201MA-L152SPEAKER 8OHM 500MW TOP PORT 86DB |
3,945 | 4.15 |
RFQ |
Datasheet |
Tray | CLS | Active | Magnetic | Low Profile | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 86.00 | 1W/50mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787 Dia (20.00mm) |
|

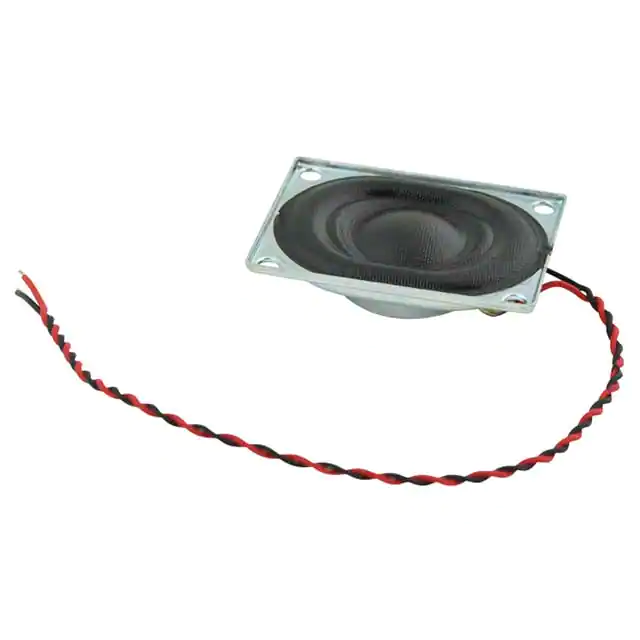

CDS-27208-L100SPEAKER 8OHM 2W TOP PORT 95DB |
2,432 | 4.50 |
RFQ |
Datasheet |
Box | CDS | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063 L x 0.787 W (27.00mm x 20.00mm) |
|

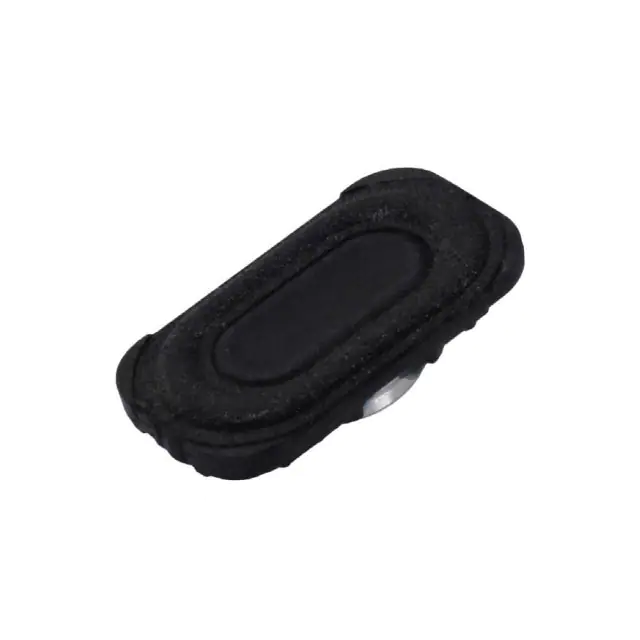

CMS-25145-28SP-6725 X 14 MM, RECTANGULAR, 2 W, 8 |
388 | 3.72 |
RFQ |
Datasheet |
Tray | CMS | Active | Magnetic | General Purpose | 560 Hz ~ 20 kHz | 700Hz | 8 Ohms | 81.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyurethane (PU), Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984 L x 0.551 W (25.00mm x 14.00mm) |
|

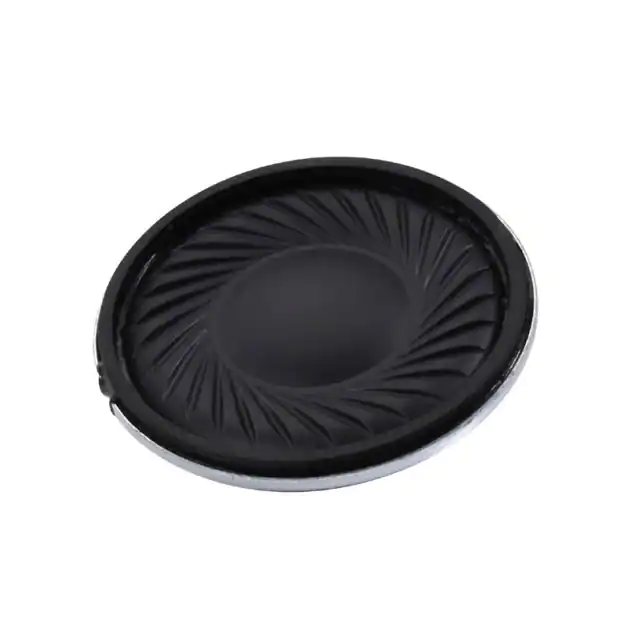

CMS-305-158SP-6730 MM, ROUND, 1.5 W, 8 OHM, NEOD |
345 | 3.78 |
RFQ |
Datasheet |
Tray | CMS | Active | Magnetic | General Purpose | 440 Hz ~ 10 kHz | 550Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.181 Dia (30.00mm) |
|
CLS0231-L152SPEAKER 8OHM 1W TOP PORT 89DB |
2,816 | 4.87 |
RFQ |
Datasheet |
Tray | CLS | Active | Magnetic | Low Profile | 520 Hz ~ 18 kHz | 650Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 0.906 Dia (23.00mm) |
|

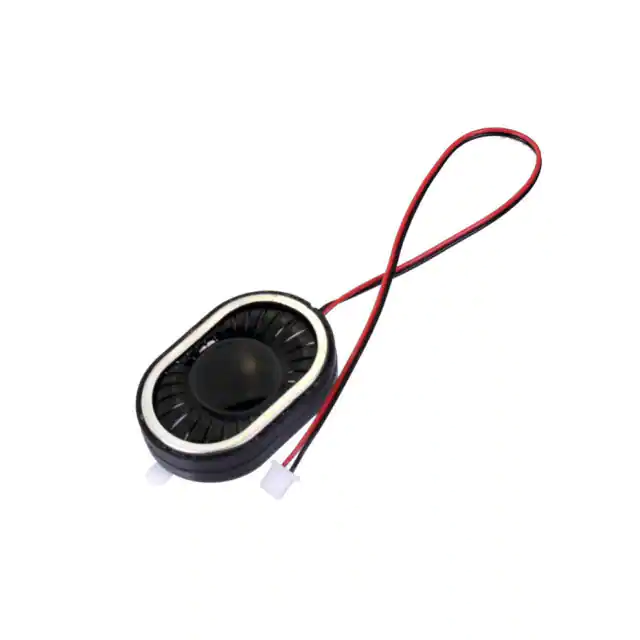

CES-30207-158L120-6730 X 20 MM, ENCLOSED, RECTANGULA |
473 | 5.15 |
RFQ |
Datasheet |
Tray | CES | Active | Magnetic | General Purpose, Enclosure Included | 1.36 kHz ~ 20 kHz | 1.7kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181 L x 0.787 W (30.00mm x 20.00mm) |
|

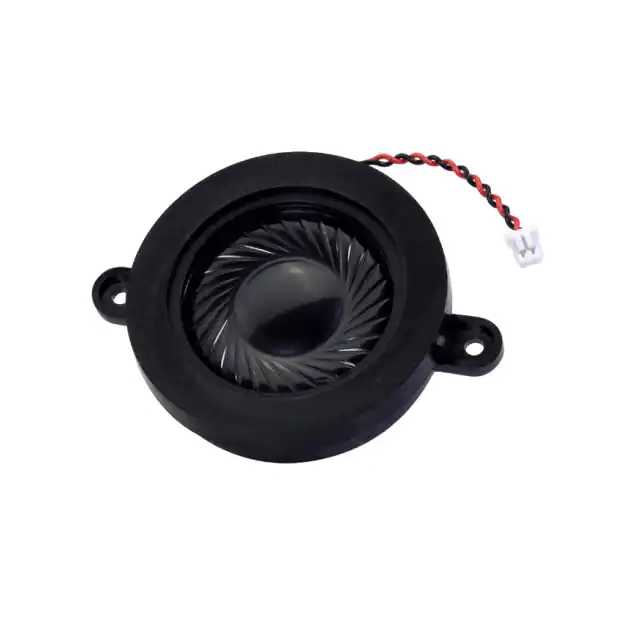

CES-3990-158PM-6739 X 9 MM, ENCLOSED, ROUND CASE |
404 | 404.00 |
RFQ |
Datasheet |
Tray | CES | Active | Magnetic | General Purpose, Enclosure Included | 1.08 kHz ~ 20 kHz | 1.35kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | Wire Leads with Connector |
|

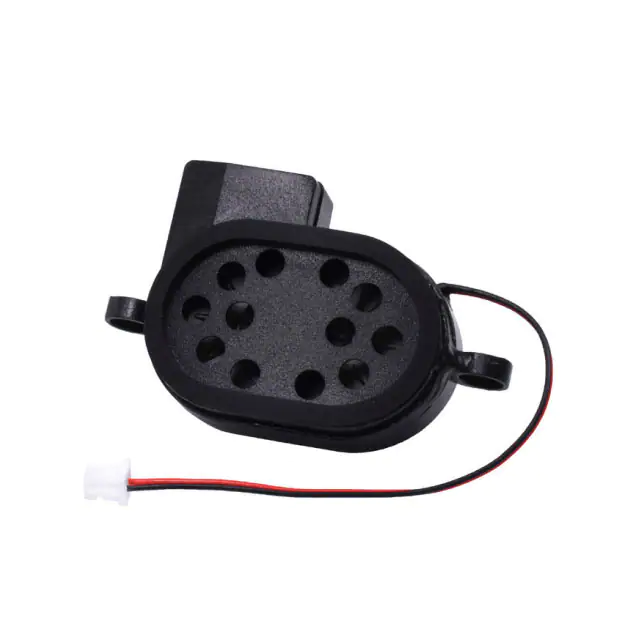

CES-302611-158PM-6730 X 25.6 MM, ENCLOSED, RECTANGU |
357 | 5.15 |
RFQ |
Datasheet |
Tray | CES | Active | Magnetic | General Purpose, Enclosure Included | 720 Hz ~ 15 kHz | 900Hz | 8 Ohms | 95.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.8 W | Top | Rectangular | Polyurethane (PU), Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181 L x 0.984 W (30.00mm x 25.00mm) |
|
CMS-40288NSPEAKER 8OHM 2W ENCLOSED 85DB |
3,651 | 5.36 |
RFQ |
Datasheet |
Tray | CMS | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 85.00 | 1W/300mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575 L x 1.102 W (40.00mm x 28.00mm) |
|
CES-434313-28PM-6743.5 X 43.5 MM, ENCLOSED, SQUARE |
2,092 | 5.48 |
RFQ |
Datasheet |
Tray | CES | Active | Magnetic | General Purpose, Enclosure Included | 1.12 kHz ~ 8 kHz | 1.4kHz | 8 Ohms | 106.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Square | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.713 L x 1.713 W (43.50mm x 43.50mm) |
