| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1617150-4JMGSCD-5M = M39016/42-033M |
2,535 | 69.80 |
RFQ |
Bulk | Military, MIL-R-39016/42, MGSD, CII | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
5-1617352-6JMGSP-5M=M39016/41-041M |
2,389 | 69.80 |
RFQ |
Bulk | MGS | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
3-1617352-3JMGSPD-18M=M39016/42-048M |
2,337 | 69.80 |
RFQ |
Datasheet |
Bulk | MGS | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 11.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
|
|
MSW-12MSW-12 = MS T05 RELAY |
2,521 | 69.99 |
RFQ |
Bulk | MS, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | - | - | - | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
JMGACD-12MWRELAY GEN PURPOSE DPDT 1A 12VDC |
3,591 | 70.09 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/18, MGA, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 30.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - |
|
|
JMGACD-26LWJMGACD-26LW = M39016/18-042L |
2,393 | 70.09 |
RFQ |
Bulk | Military, MIL-R-39016/18, MGA, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - | |
|
|
JMACD-26XLS2JMACD-26XLS2 = M39016/15-129L |
3,194 | 70.09 |
RFQ |
Bulk | MAC | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
JMACD-26XMS2JMACD-26XMS2 = M39016/15-129M |
2,788 | 70.09 |
RFQ |
Datasheet |
Bulk | MAC | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
|
|
JMACD-5XMS2JMACD-5XMS2 = M39016/15-130M |
2,359 | 70.09 |
RFQ |
Bulk | MAC | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
JMGACD-5LWJMGACD-5LW = M39016/18-037L |
3,432 | 70.09 |
RFQ |
Bulk | Military, MIL-R-39016/18, MGAD, CII | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
JMGACD-26MWJMGACD-26MW = M39016/18-042M |
2,084 | 70.09 |
RFQ |
Bulk | Military, MIL-R-39016/18, MGAD, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
1617146-2JMGACD-12LW = M39016/18-040L |
2,141 | 81.32 |
RFQ |
Bulk,Bulk | Military, MIL-R-39016/17, MGA, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | - | - | - | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
JMAW-30XPJMAW-30XP = M39016/9-051P |
2,123 | 70.17 |
RFQ |
Bulk | Military, MIL-R-39016/9, MA, CII | Active | Through Hole | 30VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 17.7 VDC | 1.5 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|

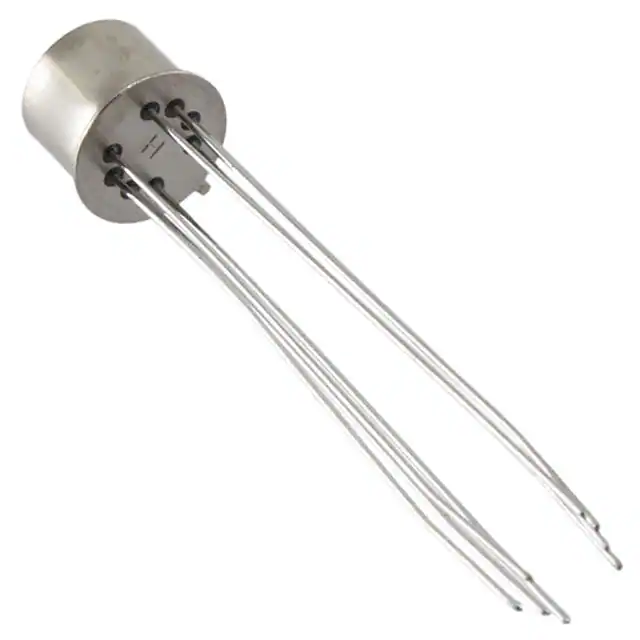

JMAW-26XPRELAY GEN PURPOS DPDT 1A 26.5VDC |
2,364 | 70.20 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/9, MA, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
|
|
JMAP-18XPJMAP-18XP = M39016/9-023P |
3,451 | 70.20 |
RFQ |
Bulk | MAP | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 20.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
JMAC-5XPJMAC-5XP = M39016/9-057P |
2,164 | 70.20 |
RFQ |
Bulk | MAC | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
JMAC-18XPJMAC-18XP = M39016/9-061P |
2,467 | 70.20 |
RFQ |
Bulk | MAC | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 20.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
2-1617351-9JMAP-12XP=M39016/9-022P |
3,843 | 70.20 |
RFQ |
Bulk | MAP | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
1617125-3JMAW-12XP = M39016/9-016P |
3,815 | 70.20 |
RFQ |
Bulk | Military, MIL-R-39016/9, MA, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
1617355-1JMAW-18XP=M39016/9-017P |
2,503 | 81.45 |
RFQ |
Bulk,Bulk | MAW | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 20.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
