| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JMSCD-26XPRELAY GEN PURPOS DPDT 1A 26.5VDC |
2,335 | 91.55 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/16, MSD, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
|

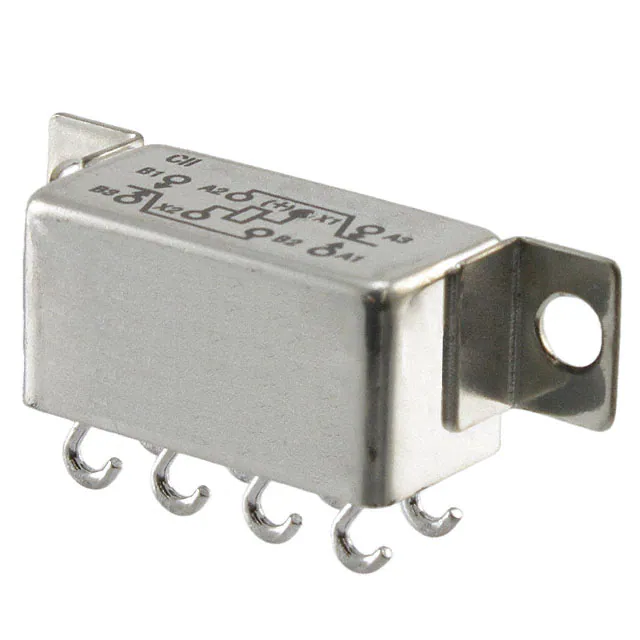

HFW1131K04RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,808 | 119.13 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

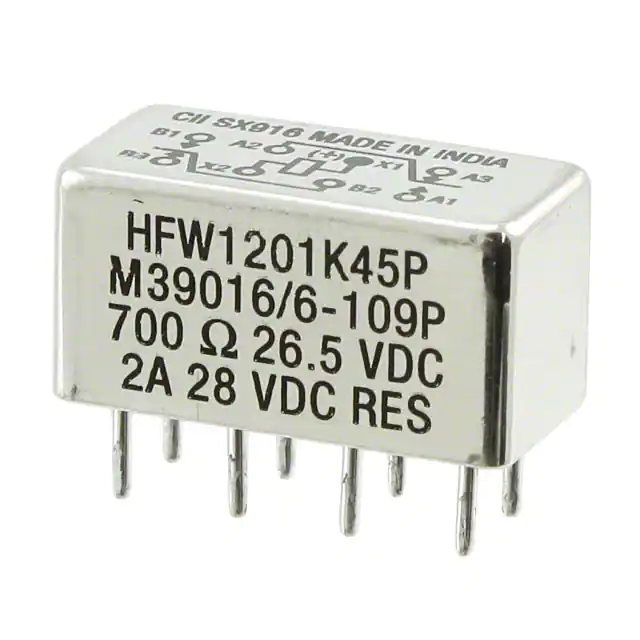

HFW1201K45PRELAY GEN PURPOS DPDT 2A 26.5VDC |
3,748 | 127.71 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|
JMACD-26XPRELAY GEN PURPOS DPDT 1A 26.5VDC |
2,321 | 130.77 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/15, MAD, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
|

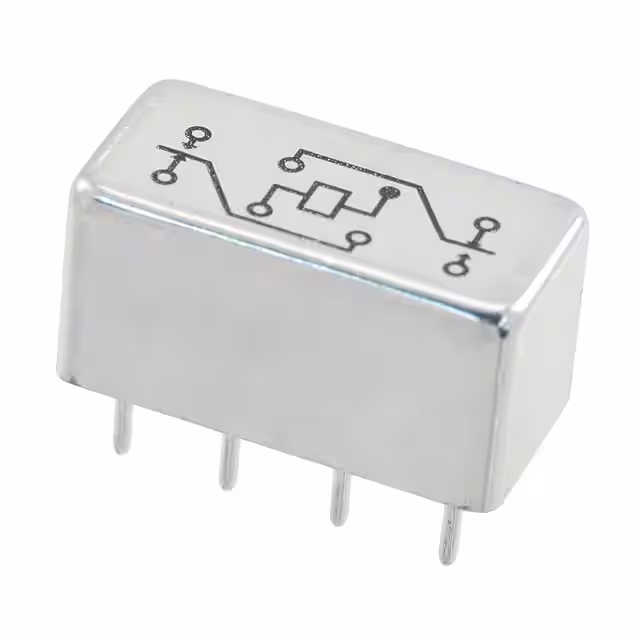

HFW1201K00RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,364 | 146.29 |
RFQ |
Datasheet |
Bulk | HFW, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

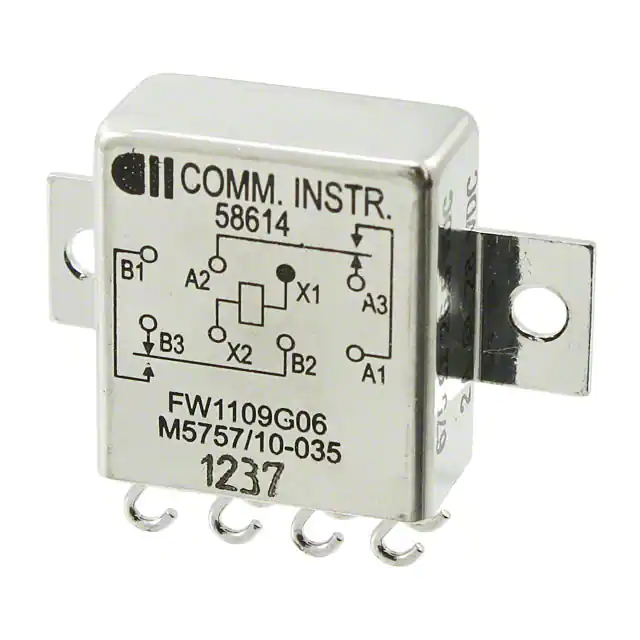

FW1109G06RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,331 | 206.57 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-5757/10, FW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | Non Latching | - | Solder Hook | - | - | 13.5 VDC | - | 5 ms | 5 ms | -65°C ~ 125°C | - |
|

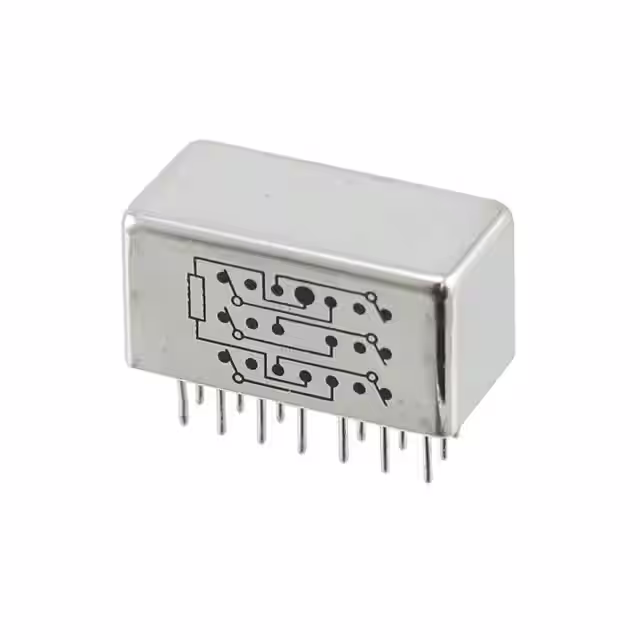

SSAW-6C-24BRELAY GEN PURPOS 6PDT 2A 26.5VDC |
2,802 | 1148.01 |
RFQ |
Datasheet |
Bulk | - | Active | Through Hole | 26.5VDC | 6PDT (6 Form C) | 2 A | 28VDC - Nom | 68 mA | Non Latching | - | PC Pin | - | - | 15.5 VDC | 1.8 VDC | 5 ms | 5 ms | -65°C ~ 125°C | - |
|
3-1617076-9RELAY GEN PURPOSE 4PDT 2A 6VDC |
2,537 | 441.48 |
RFQ |
Bulk | 3SBH, CII | Active | - | 6VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | - | Non Latching | - | - | Sealed - Hermetically | - | - | - | - | - | -65°C ~ 125°C | - | |
|
|
4-1617076-23SBH5004G6R = RELAY |
3,617 | 441.48 |
RFQ |
Bulk | 3SBH | Active | Through Hole | 18VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 64.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 8.4 VDC | 0.8 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | |
|
|
9-1617347-9RELAY GENERAL PURPOSE 4PDT 2A |
3,389 | 443.03 |
RFQ |
Bulk | 3SBH, CII | Active | - | - | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | - | Non Latching | - | - | Sealed - Hermetically | - | - | - | - | - | -65°C ~ 125°C | - | |
|
|
9-1617347-53SBH5004B5=RELAY |
3,905 | 443.03 |
RFQ |
Bulk | 3SBH | Active | Through Hole | 6VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 214.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.3 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | |
|
|
PR1MSCD-5YPR1MSCD-5Y=RELAY |
2,391 | 44.33 |
RFQ |
Bulk | PR1MSCD | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 28VDC - Max | 40 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.22 VDC | 3.5 ms | 7.5 ms | -65°C ~ 125°C | - | |
|
|
PR1MSPD-5XPR1MSPD-5X=RELAY |
2,883 | 45.98 |
RFQ |
Bulk | PR1MSPD | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 28VDC - Max | 40 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.22 VDC | 3.5 ms | 7.5 ms | -65°C ~ 125°C | - | |
|
|
MGAP-26MGAP-26 = MGA .100 GRID RELAY |
3,064 | 46.72 |
RFQ |
Bulk | MGA, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | - | - | - | - | PC Pin | - | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
PRMGSC-18XWPRMGSC-18XW = PRMGS SENSITIVE |
3,359 | 48.88 |
RFQ |
Datasheet |
Bulk | MGS | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 11.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
|
|
PRMAC-18YPRMAC-18Y = PRMA COTS TO-5 REL |
3,666 | 48.90 |
RFQ |
Bulk | PRMAC | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 20.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.93 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
PRMAC-26YPRMAC-26Y= PRMA COTS TO-5 RELA |
2,253 | 48.90 |
RFQ |
Bulk | PRMAC | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
PRMGSC-26XWPRMGSC-26XW = PRMGS .100 GRID |
2,267 | 49.81 |
RFQ |
Bulk | MGS | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
PRMSC-12XPRMSC-12X = PRMS COTS SENSITIV |
2,577 | 50.87 |
RFQ |
Bulk | PRMS, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | - | - | - | - | PC Pin | - | - | 7 VDC | 4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | - | |
|
|
MAC-9WMAC-9W = MA TO-5 RELAY |
2,085 | 50.90 |
RFQ |
Bulk | MAC | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 28VDC - Max | 40.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.3 VDC | 0.54 VDC | 1.5 ms | 4 ms | -65°C ~ 125°C | - |
