| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7-1617789-5MGACDD-8053=.100 GRID TO-5 RELAY |
3,065 | 137.67 |
RFQ |
Bulk | MGACDD | Active | Through Hole | - | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | - | - | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
HFW1201B00RELAY GEN PURPOSE DPDT 2A 12VDC |
3,314 | 137.68 |
RFQ |
Bulk | HFW, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 47.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.8 VDC | 0.68 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
HFW1131K00HFW1131K00 = HFW 1/2 SIZE RELA |
3,374 | 137.68 |
RFQ |
Datasheet |
Bulk | HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | - | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) |
|
|
HFW1230K00HFW1230K00 = HFW 1/2 SIZE RELA |
2,929 | 137.68 |
RFQ |
Datasheet |
Bulk | HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | - | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) |
|
|
HFW1101K00HFW1101K00 = HFW 1/2 SIZE RELA |
2,522 | 137.68 |
RFQ |
Bulk | HFW, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | - | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
HFW1131G00HFW1131G00 = HFW 1/2 SIZE RELA |
3,825 | 137.68 |
RFQ |
Bulk | HFW, CII | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | - | - | - | - | Solder Hook | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
HFW1201A00HFW1201A00 = HFW 1/2 SIZE RELA |
3,558 | 137.68 |
RFQ |
Bulk | HFW, CII | Active | Through Hole | 6 ~ 8VDC | DPDT (2 Form C) | 2 A | - | - | - | - | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.35 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
HFW1201F00HFW1201F00 = HFW 1/2 SIZE RELA |
2,317 | 137.68 |
RFQ |
Bulk | HFW, CII | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | - | - | - | - | PC Pin | Sealed - Hermetically | - | 3.2 VDC | 0.35 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
HFW1230D00HFW1230D00 = HFW 1/2 SIZE RELA |
2,911 | 137.68 |
RFQ |
Bulk | HFW, CII | Active | Chassis Mount | 26.5 ~ 32VDC | DPDT (2 Form C) | 2 A | - | - | - | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
1-1617030-5HFW1201D27 = HFW 1/2 SIZE RELA |
3,602 | 137.68 |
RFQ |
Bulk | HFW | Active | Through Hole | 26.5 ~ 32VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
2-1617033-3HFW1230B00 = HFW 1/2 SIZE RELA |
3,279 | 160.77 |
RFQ |
Bulk,Box | HFW | Active | Through Hole | 12 ~ 15VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.8 VDC | 0.68 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
HFW1131D00HFW1131D00 = HFW 1/2 SIZE RELA |
3,587 | 137.68 |
RFQ |
Bulk | HFW, CII | Active | Chassis Mount | 26.5 ~ 32VDC | DPDT (2 Form C) | 2 A | - | - | - | - | Solder Hook | Sealed - Hermetically | - | 14 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
2-1617029-2HFW1131B00 = HFW 1/2 SIZE RELA |
2,099 | 137.68 |
RFQ |
Bulk | HFW | Active | Through Hole | 12 ~ 15VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.8 VDC | 0.68 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
2-1617033-2HFW1230A00 = HFW 1/2 SIZE RELA |
3,733 | 137.68 |
RFQ |
Bulk | HFW | Active | Through Hole | 6 ~ 8VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.35 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|

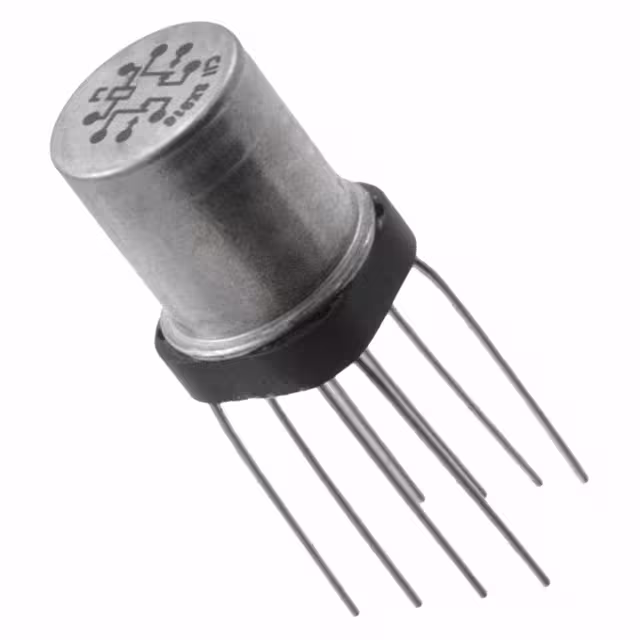

JMSC-26XPSRELAY GEN PURPOS DPDT 1A 26.5VDC |
2,652 | 139.12 |
RFQ |
Bulk | Military, MIL-R-39016/11, MS, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
3-1617564-6J1MACDD-12XMS=M39016/24-034M |
2,149 | 139.62 |
RFQ |
Bulk | 1MA | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 24 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 8 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
|
|
1617031-9HFW1201K139 = HFW 1/2 SIZE REL |
2,787 | 139.85 |
RFQ |
Bulk | HFW, CII | Active | Through Hole | 26.5VDC | - | 2 A | - | - | Non Latching | - | PC Pin | - | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | |
|
|
3-1617030-7HFW1201J300 = 2100 HFW RELAY |
2,638 | 163.22 |
RFQ |
Bulk,Bulk | HFW | Active | Through Hole | 18VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 34.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.5 VDC | 0.95 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
1-1617032-4HFW1201S171 = HFW 1/2 SIZE REL |
2,597 | 164.24 |
RFQ |
Bulk,Bulk | HFW, CII | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | |
|
|
1617569-4JMSCD-6XPS=M39016/16-042P |
2,996 | 141.59 |
RFQ |
Bulk | MSC | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 30 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
