| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CouplerType | Frequency | CouplingFactor | Applications | InsertionLoss | Power-Max | Isolation | ReturnLoss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPL-5220-20-SMA-79RF DIR COUPLER 500MHZ-1GHZ |
3,828 | 1127.55 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 500MHz ~ 1GHz | 20dB ± 1dB | - | 0.4dB | 50W | - | - |
|
|
CPL-5232-06-SMA-79RF DIR COUPLER 2GHZ-18GHZ |
2,114 | 1170.93 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 2GHz ~ 18GHz | 6dB ± 1dB | - | 0.8dB | 50W | - | - |
|
|
CPL-5232-10-SMA-79RF DIR COUPLER 2GHZ-18GHZ |
3,088 | 1170.93 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 2GHz ~ 18GHz | 10dB ± 1dB | - | 0.8dB | 50W | - | - |
|
|
CPL-5232-16-SMA-79RF DIR COUPLER 2GHZ-18GHZ |
3,096 | 1170.93 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 2GHz ~ 18GHz | 16dB ± 1dB | - | 0.8dB | 50W | - | - |
|
|
CPL-5232-20-SMA-79RF DIR COUPLER 2GHZ-18GHZ |
2,215 | 1170.93 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 2GHz ~ 18GHz | 20dB ± 1dB | - | 0.8dB | 50W | - | - |
|
|
CPL-5230-20-SMA-79RF DIR COUPLER 500MHZ-18GHZ |
3,790 | 1204.39 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 500MHz ~ 18GHz | 20dB ± 1.5dB | - | 0.8dB | 50W | - | - |
|
|
CPL-5230-16-SMA-79RF DIR COUPLER 500MHZ-18GHZ |
2,304 | 1259.15 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 500MHz ~ 18GHz | 16dB ± 1.5dB | - | 0.8dB | 50W | - | - |
|
CPL-5536-20-29M-792.92MM COUPLER 20 DB 6-40 GHZ |
2,929 | 3264.81 |
RFQ |
Datasheet |
Box | - | Active | Standard | 6GHz ~ 40GHz | 20dB | General Purpose | 1.3dB | 20W | - | - |
|

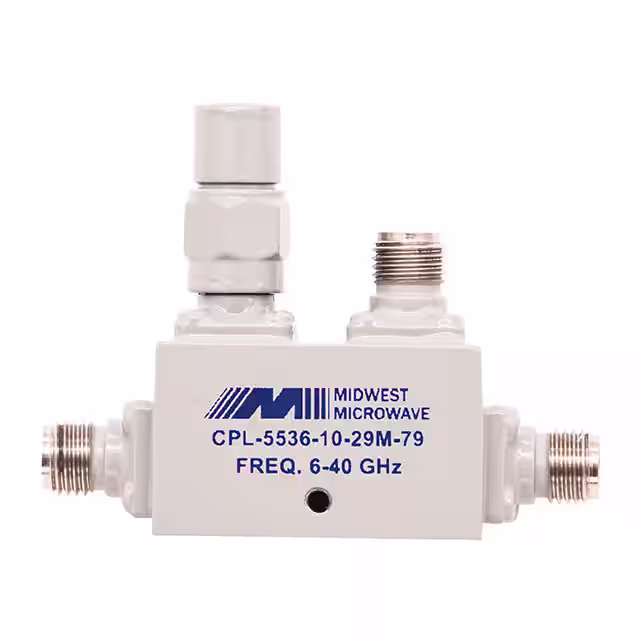

CPL-5536-10-29M-792.92MM COUPLER 10 DB 6-40 GHZ |
3,033 | 3264.81 |
RFQ |
Datasheet |
Box | - | Active | Standard | 6GHz ~ 40GHz | 10dB | General Purpose | 1.5dB | 20W | - | - |
|
|
CPL-5028-30-NNN-79RF DIR COUPLER 2GHZ-18GHZ |
2,929 | 0.00 |
RFQ |
Bulk | - | Active | Standard | 2GHz ~ 18GHz | 30dB ± 1dB | - | 0.6dB | 100W | - | - | |
|
|
CPL-5028-30-TNC-79RF DIR COUPLER 2GHZ-18GHZ |
3,968 | 0.00 |
RFQ |
Bulk | - | Active | Standard | 2GHz ~ 18GHz | 30dB ± 1dB | - | 0.6dB | 100W | - | - | |
|
|
CPL-5044-10-NNN-79RF DIR COUPLER 500MHZ-1GHZ |
3,055 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 500MHz ~ 1GHz | 10dB ± 1dB | - | 0.2dB | 200W | - | - |
|
|
CPL-5044-20-NNN-79RF DIR COUPLER 500MHZ-1GHZ |
3,370 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 500MHz ~ 1GHz | 20dB ± 1dB | - | 0.2dB | 500W | - | - |
|
|
CPL-5044-30-NNN-79RF DIR COUPLER 500MHZ-1GHZ |
3,686 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 500MHz ~ 1GHz | 30dB ± 1dB | - | 0.2dB | 500W | - | - |
|
|
CPL-5045-10-NNN-79RF DIR COUPLER 1GHZ-2GHZ |
2,318 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 1GHz ~ 2GHz | 10dB ± 1dB | - | 0.2dB | 200W | - | - |
|
|
CPL-5045-20-NNN-79RF DIR COUPLER 1GHZ-2GHZ |
2,532 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 1GHz ~ 2GHz | 20dB ± 1dB | - | 0.2dB | 500W | - | - |
|
|
CPL-5045-30-NNN-79RF DIR COUPLER 1GHZ-2GHZ |
3,706 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 1GHz ~ 2GHz | 30dB ± 1dB | - | 0.2dB | 500W | - | - |
|
|
CPL-5045-30-TNC-79RF DIR COUPLER 1GHZ-2GHZ |
2,935 | 0.00 |
RFQ |
Bulk | - | Active | Standard | 1GHz ~ 2GHz | 30dB ± 1dB | - | 0.2dB | 500W | - | - | |
|
|
CPL-5046-10-NNN-79RF DIR COUPLER 2GHZ-4GHZ |
3,558 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 2GHz ~ 4GHz | 10dB ± 1dB | - | 0.2dB | 200W | - | - |
|
|
CPL-5046-20-NNN-79RF DIR COUPLER 2GHZ-4GHZ |
2,982 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 2GHz ~ 4GHz | 20dB ± 1dB | - | 0.2dB | 500W | - | - |
