RF Antennas(10890)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | RFFamily/Standard | FrequencyGroup | Frequency(Center/Band) | FrequencyRange | AntennaType | NumberofBands | VSWR | ReturnLoss | Gain | Power-Max | Features | Termination | IngressProtection | MountingType | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG.35.8113RF ANT 700MHZ/850MHZ WHIP TILT |
976 | 28.09 |
RFQ |
Datasheet |
Bulk | APEX II | Active | Cellular, Navigation, WiFi | Wide Band | 700MHz, 850MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz, 5.8GHz | 698MHz ~ 960MHz, 1.565GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz, 4.8GHz ~ 6GHz | Whip, Tilt | 10 | - | - | 4.42dBi, 1.59dBi, 3.15dBi, 2.7dBi, 4.93dBi, 4.43dBi, 2.55dBi | 5 W | - | SMA Male | - | Connector Mount | 8.740 (222.00mm) |
|
GGSFTP.50.7.A.08GPS L1,L2 SINGLE FEED STACKED 50 |
2,057 | 35.48 |
RFQ |
Datasheet |
Tray | - | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.588GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | - | -10dB | 2.6dBi, 4.6dBi | - | - | Pin | - | Adhesive | 0.276 (7.00mm) |
|
G30.B.108111.WMRF ANT 829MHZ/1.94GHZ DOME SMA |
851 | 39.90 |
RFQ |
Datasheet |
Bulk | - | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 1.94GHz, 2.65GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.8GHz | Dome | 3 | - | - | 3.2dBi | 5 W | - | SMA Male | IP67 | Bracket Mount | 1.890 (48.00mm) |
|
AA.171.301111RF ANT 1.561/1.575GHZ CER PATCH |
244 | 43.99 |
RFQ |
Datasheet |
Bulk | MagmaX | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 3 | 2 | - | 4.16dBi, 2.06dBi, 1.43dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP65 | Magnetic | 0.673 (17.10mm) |
|
TLS.01.1F11RF ANT 829MHZ/1.575GHZ WHIP STR |
3,473 | 46.97 |
RFQ |
Datasheet |
Bag | Shockwave | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | - | 4dBi | 100 W | - | N Type Male | IP69K | Base Mount | 3.134 (79.60mm) |
|
MB.TG30.A.305111RF ANT 700/850MHZ WHIP STR MAGNT |
852 | 48.52 |
RFQ |
Datasheet |
Bulk | Apex Magforce | Active | Cellular, Navigation, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 8 | - | -5dB, -6dB, -5dB, -10dB, -5dB | 2.97dBi, 1.45dBi, 0.62dBi, 1.61dBi, 1.23dBi, 1.19dBi, 1.23dBi, 2.84dBi | 50 W | Cable - 3m | SMA Male | IP67 | Magnetic | 7.720 (196.10mm) |
|
TLS.01.1F21RF ANT 829MHZ/1.575GHZ WHIP STR |
766 | 49.85 |
RFQ |
Datasheet |
Bag | Shockwave | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | -10dB | 4.7dB | 100 W | - | N Type Female | IP69K | Base Mount | 3.134 (79.60mm) |
|
WS.02.B.205111RF ANT 2.4GHZ DOME SMA ML PNL MT |
341 | 51.06 |
RFQ |
Datasheet |
Bulk | - | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.38 | -15.86dB | 4.42dBi | - | Cable - 2m | SMA Male | IP67, IP69K | Panel Mount | 1.122 (28.50mm) |
|
G21.B.301111RF ANT 892MHZ/1.9GHZ DOME SMA ML |
249 | 51.06 |
RFQ |
Datasheet |
Bulk | - | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -13.6dB, -19.5dB | 1.8dBi, 1.5dBi | 10 W | - | SMA Male | IP69K | Panel Mount | 1.142 (29.00mm) |
|

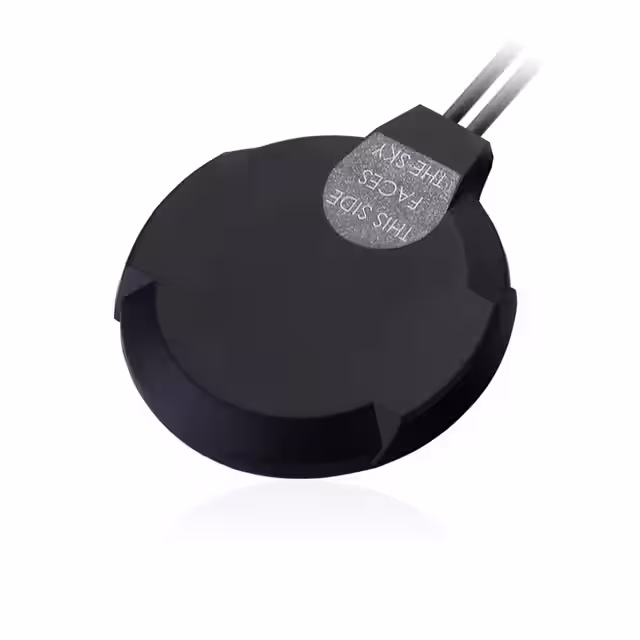

MA220.LB.001RF ANT 700MHZ/800MHZ MOD SMA ADH |
408 | 52.76 |
RFQ |
Datasheet |
Bulk | Optimus | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz | Module | 11 | 1.92 | -5dB | -1.54dBi, -0.53dBi, -0.53dBi, -1.07dBi, 3dBic, -0.1dBi, 0.72dBi, 0.89dBi, -2.4dBi, -1.59dBi | 5 W | Cable - 3m, LNA | SMA Male (2) | IP67 | Adhesive | 0.472 (12.00mm) |
|
AGPSF.36C.07.0100CACTIVE GPS L1/L2 LOW PROFILE STA |
489 | 53.38 |
RFQ |
Datasheet |
Tray | - | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2267GHz, 1.575GHz | 1.2257GHz ~ 1.2277GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | - | -10dB, -10dB | 2.73dBi, 3.57dBi | - | Cable - 100mm, LNA, Filter | U.FL (UMCC), IPEX MHF1 | - | Surface Mount | 0.433 (11.00mm) |
|
G35.A.305111IDAS LTE MIMO CEILING MOUNT ANTE |
311 | 53.55 |
RFQ |
Datasheet |
Bag | - | Active | Cellular | Wide Band | 752MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Dome | 7 | - | -4dB, -10dB, -6dB, -7dB, -6dB, -6dB, -4dB | 1.32dBi, 2.05dBi, 1.88dBi, 3.83dBi, 4.67dBi, 4.89dBi, 4.91dBi | 2 W | Cable - 3m | SMA Male | IP67 | Surface Mount | 0.685 (17.40mm) |
|
MA111.C.LB.001RF ANT 850MHZ/900MHZ DOME PNL MT |
313 | 54.75 |
RFQ |
Datasheet |
Bulk | Ultima | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz | Dome | 7 | 2.5, 2, 2, 3.5, 3, 3 | - | 1.5dBi, 3dBi, -1.4dB, -1.3dBi, 2dBi, 4dBi, 2.5dBi | - | Cable - 3m, LNA, Filter | SMA Male (2) | IP67 | Panel Mount | 0.772 (19.60mm) |
|
AA.175.301111MAGMAX2 GPS L1/L2 MAG MOUNT ANTE |
338 | 55.30 |
RFQ |
Datasheet |
Bag | - | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.575GHz, 1.602GHz | 1.2257GHz ~ 1.2277GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz | Module | 3 | 2 | -10dB | 3.78dBi, 2.22dBi, 2.05dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | Surface Mount | 0.669 (17.00mm) |
|
LMA101.A.BI.001RF ANT 829MHZ/2.2GHZ MOD SMA MAL |
579 | 61.46 |
RFQ |
Datasheet |
Bulk | GEMINI | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 2 | - | - | 5.1dBi | - | - | SMA Male | IP67 | Magnetic, Chassis Mount | 1.437 (36.50mm) |
|
MA145.A.LBC.0013IN1 GNSS, LTE & WIFI ANT 2.4GHZ |
155 | 65.12 |
RFQ |
Datasheet |
Bag | Olympian II | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz | Dome | 11 | 2 | - | -0.2dBi, 1.3dBi, 0.4dBi, 3.6dBi, -1.98dBi, -1.67dBi, 3.8dBi, 3.5dBi, 2.7dBi, 3.1dBi, 3.6dBi | 10 W | Cable - 1m, LNA, Filter | RP-SMA Male, SMA Male | IP67 | Panel Mount | 1.909 (48.50mm) |
|
MA170.A.BI.001MONSOON 3M LTE MIMO(1&2) SMA(M)S |
238 | 74.69 |
RFQ |
Datasheet |
Tray | - | Active | Cellular | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.45GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Dome | 8 | 5 | - | 1.47dBi, 2.28dBi, 2.36dBi, 2.74dBi, 3.28dBi, 4.43dBi, 5.93dBi | - | - | SMA Male | - | Base Mount | 1.218 (30.93mm) |
|
IAA.01.121111RF ANT 1.6GHZ MODULE SMA ML MAG |
3,197 | 79.14 |
RFQ |
Datasheet |
Bulk | - | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.616GHz ~ 1.626GHz | Module | 1 | 1.5 | - | - | - | - | SMA Male | IP67 | Magnetic | 0.484 (12.30mm) |
|
MA250.A.LBI.001RF ANT 750MHZ/892MHZ MOD SMA ADH |
327 | 81.12 |
RFQ |
Datasheet |
Bulk | - | Active | Cellular, Navigation | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 698MHz ~ 803MHz, 824MHz ~ 960MHz, 1575.42MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Module | 4 | 3, 2 | -10dB, -6dB | 28dB | 5 W | Cable - 2m, LNA, Filter | SMA Male | IP67 | Adhesive | 0.551 (14.00mm) |
|
MA241.BI.001RF ANT 797MHZ/2.2GHZ FLAT BAR |
2,690 | 82.93 |
RFQ |
Datasheet |
Bulk | Genesis | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 797MHz, 2.2GHz | 698MHz ~ 896MHz, 1.71GHz ~ 2.7GHz | Flat Bar | 2 | 3.5 | -10dB | 5.87dBi | - | - | SMA Male | IP67 | Adhesive | 0.488 (12.40mm) |
