RF Antennas(10890)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | RFFamily/Standard | FrequencyGroup | Frequency(Center/Band) | FrequencyRange | AntennaType | NumberofBands | VSWR | ReturnLoss | Gain | Power-Max | Features | Termination | IngressProtection | MountingType | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W1095ANT EXT 2.4-2.5GHZ SMA IP65 |
3,621 | 3.96 |
RFQ |
Datasheet |
Bag | External Stubby | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2.5 | - | 1dBi | - | - | SMA Male | IP67 | Connector Mount | 1.996 (50.69mm) |
|
ANT-900-RP-2-ARF ANT 900MHZ WHIP TILT RP-SMA |
3,934 | 3.99 |
RFQ |
Datasheet |
Bulk | - | Active | General ISM | UHF (300MHz ~ 1GHz) | 900MHz | 880MHz ~ 960MHz | Whip, Tilt | 1 | 1.5 | - | 2.1dBi | 30 W | - | RP-SMA Male | - | Connector Mount | 4.528 (115.00mm) |
|
ANT-916-JJB-RARF ANT 916MHZ DOME SLD TH 7MM |
713 | 4.07 |
RFQ |
Datasheet |
Bulk | JJB | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 901MHz ~ 931MHz | Whip, Right Angle | 1 | 2 | - | -0.5dBi | - | - | Solder | - | Through Hole | 0.571 (14.50mm) |
|
ANT-433-SPRF ANT 433MHZ CHIP SOLDER SMD |
2,806 | 4.20 |
RFQ |
Datasheet |
Tube | Splatch® | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 429MHz ~ 437MHz | Chip | 1 | 1.9 | - | -6.4dBi | - | - | Solder | - | Surface Mount | 0.059 (1.50mm) |
|

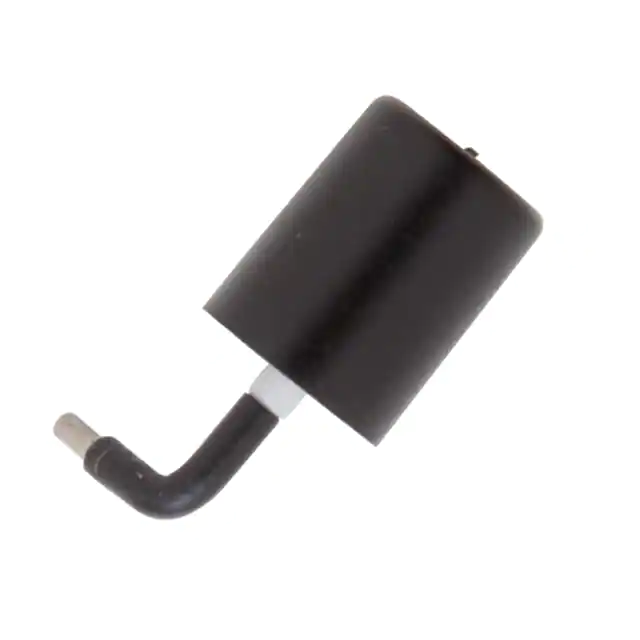

ANT-868-JJB-RARF ANT 868MHZ DOME SLD TH |
2,228 | 4.21 |
RFQ |
Datasheet |
Bulk | JJB | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | -1dBi | - | - | Solder | - | Through Hole | 0.571 (14.50mm) |
|
W1010RF ANT 2.4GHZ WHIP TILT SMA 3 |
2,724 | 4.27 |
RFQ |
Datasheet |
Bulk | - | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | SMA Male | - | Connector Mount | 4.274 (108.55mm) |
|
SRFC011-100RF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,936 | 4.27 |
RFQ |
Datasheet |
Bulk | - | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -12dB | 4dBi | - | - | U.FL (UMCC), IPEX MHF1 | - | Adhesive | 0.006 (0.15mm) |
|
W1095KANT EXT 2.4-2.5GHZ RA SMA IP65 |
2,506 | 4.27 |
RFQ |
Datasheet |
Bag | External Stubby | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2.5 | - | 1dBi | - | - | SMA Male | IP67 | Connector Mount | 1.890 (48.00mm) |
|
W3229RF ANT 2.45GHZ CER PATCH PIN ADH |
3,721 | 4.30 |
RFQ |
Datasheet |
Bulk | Ceramic Patch Antenna | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | -7dB | 6.5dBi | - | - | Pin | - | Adhesive | 0.157 (4.00mm) |
|
ANT-916-JJB-HT-TRF ANT 916MHZ DOME SLD TH |
3,089 | 4.48 |
RFQ |
Datasheet |
Strip | JJB-HT | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | -12.3dBi | - | - | Solder | - | Through Hole | 0.480 (12.20mm) |
|
P522309RF ANT 850MHZ/900MHZ FLAT PATCH |
2,283 | 4.49 |
RFQ |
Datasheet |
Bulk | Prestta™ | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 5 | 3 | - | 2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi | 2 W | Cable - 100mm | U.FL (UMCC), IPEX MHF1 | - | Adhesive | 0.049 (1.25mm) |
.jpg)
|
ANT-433-PW-RARF ANT 433MHZ WHIP TILT SCREW-MT |
2,147 | 4.54 |
RFQ |
Datasheet |
Bulk | RA | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 413MHz ~ 443MHz | Whip, Tilt | 1 | 2 | - | -0.7dBi | - | - | Screw-Mount | - | Panel Mount | 5.180 (131.57mm) |
|

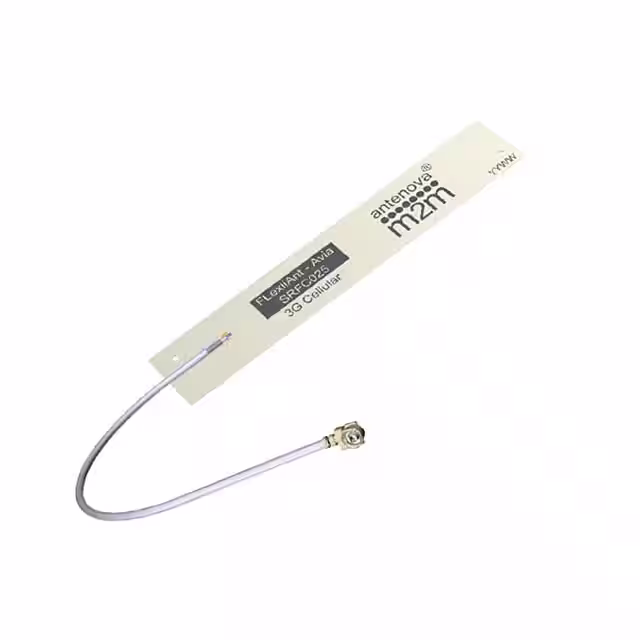

SRFC025-100RF ANT 892MHZ/1.9GHZ FLAT 100MM |
3,887 | 4.58 |
RFQ |
Datasheet |
Bulk | - | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -17dB | 5.4dBi | - | - | U.FL (UMCC), IPEX MHF1 | - | Adhesive | 0.006 (0.15mm) |
|
ANT-ELE-S01-005RF ANT 892MHZ WHIP STR M5 CONN |
468 | 4.58 |
RFQ |
Datasheet |
Bulk | MAG | Active | - | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz, 900MHz | 824MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 3.8dBi | - | - | M5 | - | Magnetic | 11.630 (295.40mm) |
|
ANT-868-JJB-STRF ANT 868MHZ DOME SLD TH |
2,992 | 4.60 |
RFQ |
Datasheet |
Bulk | JJB | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 2 | - | -8.9dBi | - | - | Solder | - | Through Hole | 0.693 (17.60mm) |
|
ANT-LPC-FPC-100RF ANT LTE CBRS FLEX ADHES UFL |
3,298 | 4.68 |
RFQ |
Datasheet |
Bag | FPC | Active | Cellular, Navigation | Wide Band | 750MHz, 876MHz, 1.58GHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz | 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 8 | 8.2, 4.8, 1.7, 4.9, 3.5, 2.7, 3.1, 2 | -3.7dB, -11.7dB, -3.6dB, -5.1dB, -5.8dB, -9.5dB | 0.1dBi, 3.7dBi, 3.3dBi, 2.2dBi, 3.3dBi, 3.9dBi, 5dBi, 5.7dBi | 2 W | Cable - 100mm | IPEX MHF1 (U.FL) | - | Adhesive | 0.010 (0.20mm) |
|
1052620001RF ANT 866MHZ/915MHZ FLAT 100MM |
3,515 | 4.81 |
RFQ |
Datasheet |
Tray | 105262 | Active | - | UHF (300MHz ~ 1GHz) | 866MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -11dB, -13dB | 0.4dBi, 1.4dBi | 2 W | Cable - 100mm | U.FL (UMCC), IPEX MHF1 | - | Adhesive | 0.004 (0.10mm) |
|
RST-W1B6-5008-23M-FY-002RF ANT 915MHZ WHIP RA SMA 47.5MM |
127 | 4.92 |
RFQ |
Datasheet |
Bulk | RST | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Right Angle | 1 | 2 | -10dB | 2dBi | 1 W | - | SMA Male | - | Connector Mount | 1.850 (47.00mm) |
|
W3907B0100RF ANT 2.15GHZ FLAT PATCH CAB |
3,681 | 4.97 |
RFQ |
Datasheet |
Bulk | GEMINI | Active | Cellular | Wide Band | 2.15GHz | 698MHz ~ 3.6GHz | Flat Patch | 6 | - | -7.5dB | 4.2dBi | 3 W | Cable - 100mm | U.FL (UMCC), IPEX MHF1 | - | Adhesive | - |
|
F56NBAAA-G150ULTE FLEX ANTENNA |
3,860 | 5.00 |
RFQ |
Datasheet |
Bag | Profile Contour | Active | Cellular | Wide Band | - | 617MHz ~ 960MHz, 1.7GHz ~ 6GHz | FlexPIFA | 7 | 01:02.5 | - | 1.7dBi, 3.5dBi, 3dBi, 4.2dBi, 4dBi, 5.1dBi, 6.9dBi | - | - | U.FL | - | Adhesive | - |
