| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | ConnectorType | ContactType | Pitch-Mating | NumberofPositions | NumberofRows | RowSpacing-Mating | NumberofPositionsLoaded | Style | Shrouding | MountingType | Termination | FasteningType | ContactLength-Mating | ContactLength-Post | OverallContactLength | InsulationHeight | ContactShape | ContactFinish-Mating | ContactFinishThickness-Mating | ContactFinish-Post | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0874371543CONN HEADER SMD 15POS 1.5MM |
2,131 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Pico-SPOX 87437 | Active | Header | Male Pin | 0.059 (1.50mm) | 15 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount | Solder | Push-Pull | 0.106 (2.70mm) | - | - | 0.199 (5.05mm) | Square | Tin | 100.0µin (2.54µm) | Tin | Brass Alloy |
|
0535170610CONN HEADER VERT 6POS 2.5MM |
5,968 | 1.33 |
RFQ |
Datasheet |
Tray | Mini-Lock 53517 | Last Time Buy | Header | Male Pin | 0.098 (2.50mm) | 6 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Through Hole | Kinked Pin, Solder | Locking Ramp | 0.157 (4.00mm) | 0.138 (3.50mm) | 0.610 (15.50mm) | 0.689 (17.50mm) | Circular | Tin | - | Tin | Phosphor Bronze |
|
0874371273CONN HEADER SMD 12POS 1.5MM |
1,460 | 1.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Pico-SPOX 87437 | Active | Header | Male Pin | 0.059 (1.50mm) | 12 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount | Solder | Push-Pull | 0.106 (2.70mm) | - | - | 0.199 (5.05mm) | Square | Tin | 100.0µin (2.54µm) | Tin | Brass Alloy |
|
0537801270CONN HEADER SMD R/A 12POS 1.25MM |
2,819 | 2.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PanelMate 53780 | Obsolete | Header | Male Pin | 0.049 (1.25mm) | 12 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount, Right Angle | Solder | Detent Lock | 0.102 (2.60mm) | - | - | 0.073 (1.85mm) | Square | Gold | 8.00µin (0.203µm) | Tin | Phosphor Bronze |
|
0022281091CONN HEADER R/A 9POS 2.54MM |
1,885 | 1.46 |
RFQ |
Datasheet |
Bulk | KK254, 42228 | Obsolete | Header, Breakaway | Male Pin | 0.100 (2.54mm) | 9 | 1 | - | All | Board to Board or Cable | Shrouded - 1 Wall | Through Hole, Right Angle | Solder | Friction Lock | 0.295 (7.49mm) | 0.120 (3.05mm) | - | 0.284 (7.21mm) | Square | Gold | 15.0µin (0.38µm) | Tin | - |
|
05591710302.0 WTB DUAL CONN DIP PLG HSG AS |
5,545 | 1.57 |
RFQ |
Datasheet |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
0532617006CONN HEADER SMD R/A 6POS 1.25MM |
970 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PicoBlade 53261 | Active | Header | Male Blade | 0.049 (1.25mm) | 6 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount, Right Angle | Solder | Detent Lock | - | - | - | 0.134 (3.40mm) | Rectangular | Gold | 15.0µin (0.38µm) | Tin | Phosphor Bronze |
|
50543310911.25MM PCB HDR VERT 0.10UM GOLD |
668 | 1.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Micro-Lock PLUS 505433 | Active | Header | Male Pin | 0.049 (1.25mm) | 10 | 2 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount | Solder | Latch Holder | - | - | - | 0.285 (7.25mm) | Square | Gold | 3.94µin (0.100µm) | Gold | Brass |
|
1718571006CONN HEADER R/A 6POS 2.54MM |
1,589 | 1.73 |
RFQ |
Datasheet |
Bulk | KK254, 171857 | Active | Header | Male Pin | 0.100 (2.54mm) | 6 | 1 | - | All | Board to Board or Cable | Shrouded - 1 Wall | Through Hole, Right Angle | Solder | Friction Lock | 0.265 (6.73mm) | 0.100 (2.54mm) | - | 0.250 (6.35mm) | Square | Gold | 15.0µin (0.38µm) | Tin | Brass |
|
0874371063CONN HEADER SMD 10POS 1.5MM |
2,698 | 1.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Pico-SPOX 87437 | Active | Header | Male Pin | 0.059 (1.50mm) | 10 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount | Solder | Push-Pull | 0.106 (2.70mm) | - | - | 0.199 (5.05mm) | Square | Tin | 100.0µin (2.54µm) | Tin | Brass Alloy |
|
1723101302CONN HEADER R/A 2POS 3.5MM |
1,791 | 1.89 |
RFQ |
Datasheet |
Bulk | Ultra-Fit 172310 | Obsolete | Header | Male Pin | 0.138 (3.50mm) | 2 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Through Hole, Right Angle | Solder | Latch Holder | - | 0.126 (3.20mm) | - | 0.353 (8.96mm) | Square | Gold | 30.0µin (0.76µm) | Tin | Copper Alloy |
|
0533980867CONN 1.25MM PCB HDR 8 CIRC |
980 | 1.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PicoBlade 53398 | Active | Header | Male Blade | 0.049 (1.25mm) | 8 | 1 | - | All | Board to Cable/Wire | Shrouded - 3 Wall | Surface Mount | Solder | Detent Lock | - | - | - | 0.185 (4.70mm) | Rectangular | Tin | 39.4µin (1.00µm) | Tin | Phosphor Bronze |
|
5041892070CONN HEADER SMD R/A 20POS 1.25MM |
1,248 | 2.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Micro-Lock 504189 | Active | Header | Male Blade | 0.049 (1.25mm) | 20 | 2 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount, Right Angle | Solder | Latch Lock | - | - | - | 0.241 (6.13mm) | Rectangular | Tin | 39.4µin (1.00µm) | Tin | Brass |
|
1718133003CONN HEADER VERT 3POS 3.96MM |
1,023 | 2.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | KK396, 171813 | Active | Header | Male Pin | 0.156 (3.96mm) | 3 | 1 | - | All | Board to Board or Cable | Shrouded - 1 Wall | Through Hole | Solder | Friction Lock | 0.448 (11.38mm) | 0.093 (2.35mm) | 0.671 (17.05mm) | 0.446 (11.33mm) | Square | Tin | 60.0µin (1.52µm) | Tin | Brass |
|
0537800470CONN HEADER SMD R/A 4POS 1.25MM |
986 | 2.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PanelMate 53780 | Active | Header | Male Pin | 0.049 (1.25mm) | 4 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount, Right Angle | Solder | Detent Lock | 0.102 (2.60mm) | - | - | 0.073 (1.85mm) | Square | Gold | 8.00µin (0.203µm) | Tin | Phosphor Bronze |
|
|
0026645120CONN HEADER R/A 12POS 3.96MM |
3,000 | 2.38 |
RFQ |
Datasheet |
Bulk | KK396, 42492 | Active | Header | Male Pin | 0.156 (3.96mm) | 12 | 1 | - | All | Board to Board or Cable | Shrouded - 1 Wall | Through Hole, Right Angle | Solder | Friction Lock | 0.450 (11.43mm) | 0.156 (3.96mm) | - | 0.394 (10.00mm) | Square | Tin | 60.0µin (1.52µm) | Tin | Brass |
|
0879200830CONN HEADER SMD 8POS 2.54MM |
1,078 | 2.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | C-Grid 87920 | Active | Header, Breakaway | Male Pin | 0.100 (2.54mm) | 8 | 2 | 0.100 (2.54mm) | All | Board to Board or Cable | Unshrouded | Surface Mount | Solder | Push-Pull | 0.320 (8.13mm) | - | - | 0.090 (2.29mm) | Square | Tin | 100.0µin (2.54µm) | Tin | Copper Alloy |
|

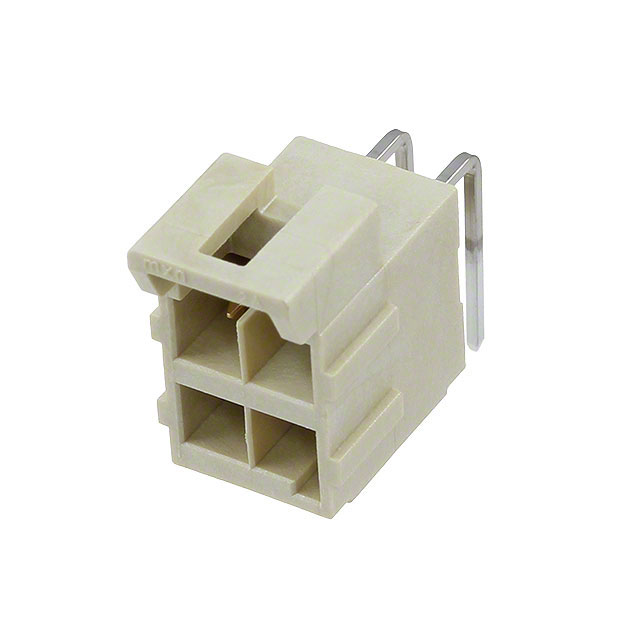

1723162204CONN HEADER R/A 4POS 3.5MM |
1,798 | 2.40 |
RFQ |
Datasheet |
Bulk | Ultra-Fit 172316 | Obsolete | Header | Male Pin | 0.138 (3.50mm) | 4 | 2 | 0.181 (4.60mm) | All | Board to Cable/Wire | Shrouded - 4 Wall | Through Hole, Right Angle | Solder | Latch Holder | - | 0.126 (3.20mm) | - | 0.534 (13.56mm) | Square | Gold | 15.0µin (0.38µm) | Tin | Copper Alloy |
|
1723101304CONN HEADER R/A 4POS 3.5MM |
899 | 2.44 |
RFQ |
Datasheet |
Bulk | Ultra-Fit 172310 | Obsolete | Header | Male Pin | 0.138 (3.50mm) | 4 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Through Hole, Right Angle | Solder | Latch Holder | - | 0.126 (3.20mm) | - | 0.353 (8.96mm) | Square | Gold | 30.0µin (0.76µm) | Tin | Copper Alloy |
|
5041893270CONN HEADER SMD R/A 32POS 1.25MM |
1,046 | 2.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Micro-Lock 504189 | Active | Header | Male Blade | 0.049 (1.25mm) | 32 | 2 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount, Right Angle | Solder | Latch Lock | - | - | - | 0.241 (6.13mm) | Rectangular | Tin | 39.4µin (1.00µm) | Tin | Brass |
