Rectangular Cable Assemblies(65535)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | ConnectorType | NumberofPositions | NumberofRows | Pitch-Connector | Pitch-Cable | Length | Features | Color | Shielding | Usage | CableTermination | ContactFinish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1451350510MINI-FIT 5 CIRCUIT 1M |
3,061 | 11.57 |
RFQ |
Datasheet |
Bag | Mini-Fit Jr 145135 | Active | Socket to Socket | 5 | 1 | 0.165 (4.19mm) | - | 3.28' (1.00m) | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin |
|
MF1010C3M0MF10CABLE ASSY 10 POS 3M |
3,613 | 11.76 |
RFQ |
Datasheet |
Bulk | - | Active | Socket to Socket | 10 | 2 | 0.118 (3.00mm) | - | 9.83' (3.00m) | Latch Lock | Black, Individual (Round) | Unshielded | - | Crimp | Tin |
|

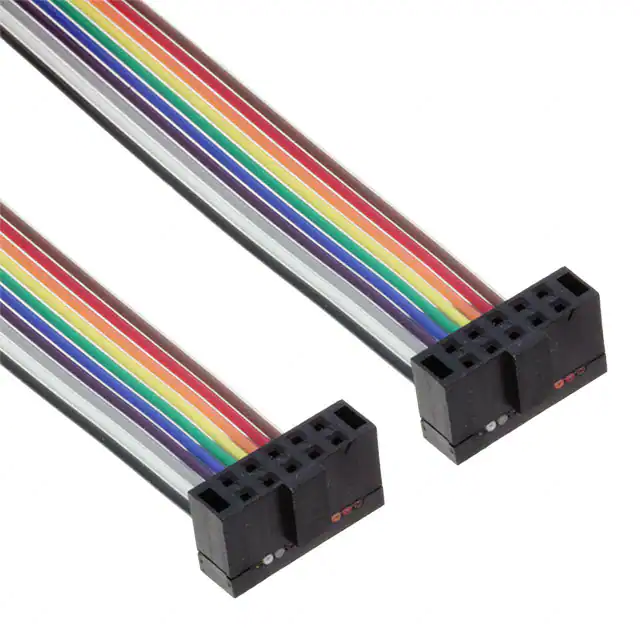

HCSD-05-D-10.00-01-N.100 C.L. MOLD TO POS. DOUBLE RO |
3,080 | 12.33 |
RFQ |
Datasheet |
Bulk | HCS | Active | Socket to Socket | 10 | 2 | 0.100 (2.54mm) | 0.050 (1.27mm) | 0.833' (254.00mm, 10.00) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold |
|

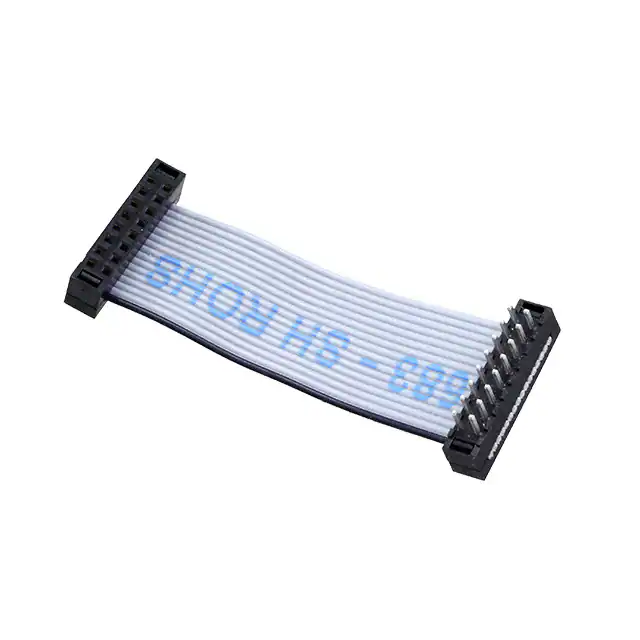

TCMD-08-T-02.00-012MM DOUBLE ROW MALE IDC ASSY |
3,523 | 12.35 |
RFQ |
Datasheet |
Bulk | Tiger Eye™ TCMD | Active | Socket to Plug | 16 | 2 | 0.079 (2.00mm) | 0.039 (1.00mm) | 0.167' (50.80mm, 2.00) | - | Gray, Ribbon | Unshielded | - | IDC | Tin |
|
FFMD-05-T-02.00-01-NCABLE ASSEM .05 10POS M-F 2 |
3,050 | 12.51 |
RFQ |
Datasheet |
Bulk | Tiger Eye™ FFMD | Active | Socket to Plug | 10 | 2 | 0.050 (1.27mm) | 0.025 (0.64mm) | 0.167' (50.80mm, 2.00) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin |
|

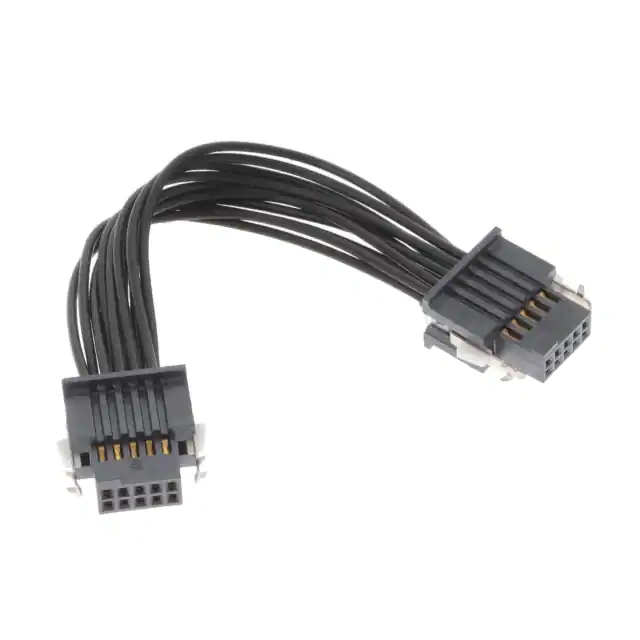

SFSD-05-28-H-03.25-DR-NDXCABLE ASSY SOCKET 10POS 28AWG |
2,125 | 12.73 |
RFQ |
Datasheet |
Bulk | Tiger Eye™ SFSD | Active | Socket to Socket | 10 | 2 | 0.050 (1.27mm) | - | 0.271' (82.55mm, 3.25) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold |
|
M50-9012542IDC F/M 25POS RIBBON CBL ASSY |
2,506 | 12.78 |
RFQ |
Datasheet |
Bag | Archer M50 | Active | Socket to Plug | 50 | 2 | 0.050 (1.27mm) | 0.025 (0.64mm) | 0.492' (150.00mm, 5.91) | - | Gray, Ribbon | Unshielded | - | IDC | Gold |
|
M50-9021342CABLE ASSY MALE TO FMALE 26 POS |
3,186 | 13.10 |
RFQ |
Datasheet |
Bag | Archer M50 | Active | Socket to Plug | 26 | 2 | 0.050 (1.27mm) | 0.025 (0.64mm) | 0.984' (300.00mm, 11.81) | - | Gray, Ribbon | Unshielded | - | IDC | Gold |
.jpg)
|

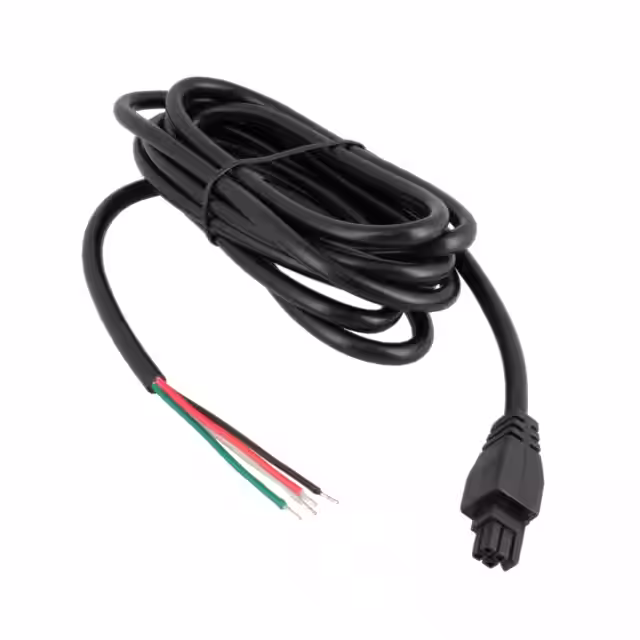

ML424642M1TTT(R)CABLE ASSY 4 POS 2.1M |
2,222 | 13.12 |
RFQ |
Datasheet |
Bulk | - | Active | Socket to Socket | 4 | 2 | 0.118 (3.00mm) | - | 6.89' (2.10m) | Latch Lock | Black, Individual (Round) | Unshielded | - | Crimp | Tin |
|
TCMD-05-T-12.00-01-NCABLE ASSEM 2MM 10POS M-F 12 |
3,123 | 13.73 |
RFQ |
Datasheet |
Bulk | Tiger Eye™ TCMD | Active | Socket to Plug | 10 | 2 | 0.079 (2.00mm) | 0.039 (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin |
|
24513006056 CIRCUIT 500MM NANOFIT OVERMOLD |
2,013 | 13.90 |
RFQ |
Datasheet |
Bag | Nano-Fit 245130 | Active | Socket to Socket | 6 | 2 | 0.098 (2.50mm) | - | 1.64' (500.00mm) | Latch Lock | Black, Individual (Round) | Unshielded | - | Crimp | Tin |
.jpg)
|

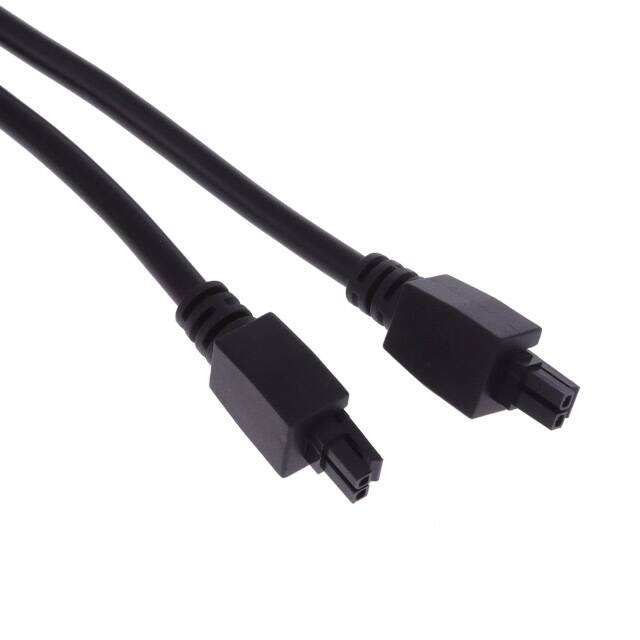

MF243645UL24641MMF24365(R)CABLE ASSY 2 POS 1M |
3,023 | 14.26 |
RFQ |
Datasheet |
Bulk | - | Active | Socket to Socket | 2 | 1 | 0.118 (3.00mm) | - | 3.28' (1.00m) | Latch Lock | Black, Individual (Round) | Unshielded | - | Crimp | Tin |
|

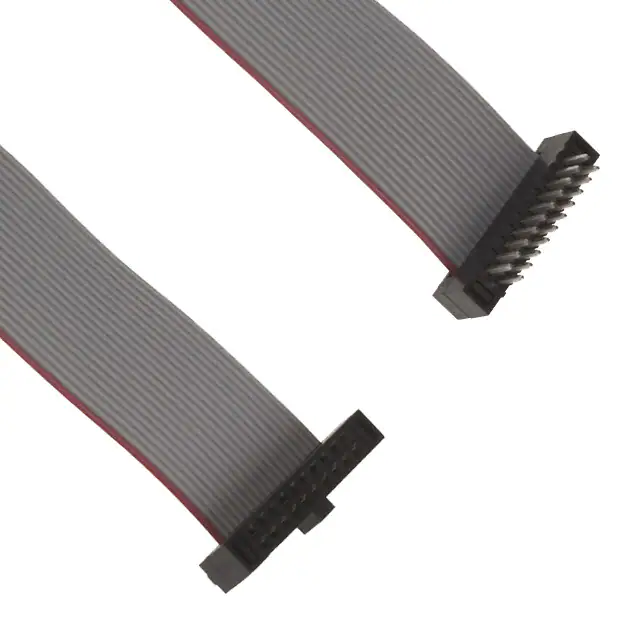

FFMD-10-T-02.00-01-NCABLE ASSEM .05 20POS M-F 2 |
3,155 | 15.20 |
RFQ |
Datasheet |
Bulk | Tiger Eye™ FFMD | Active | Socket to Plug | 20 | 2 | 0.050 (1.27mm) | 0.025 (0.64mm) | 0.167' (50.80mm, 2.00) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin |
|
33152430200002CABLE ASSY 6POS RCPT-RCPT 200MM |
2,700 | 15.27 |
RFQ |
Datasheet |
Bulk | har-flex® | Active | Socket to Socket | 6 | 2 | - | 0.025 (0.64mm) | 0.656' (200.00mm, 7.87) | Strain Relief | Gray, Ribbon | - | - | IDC | - |
|
SFSD-15-28-H-05.00-SRCABLE ASSY SOCKET 30POS 28AWG |
3,843 | 15.33 |
RFQ |
Datasheet |
Bulk | Tiger Eye™ SFSD | Active | Socket to Individual Wire Leads | 30 | 2 | 0.050 (1.27mm) | - | 0.417' (127.00mm, 5.00) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold |
|

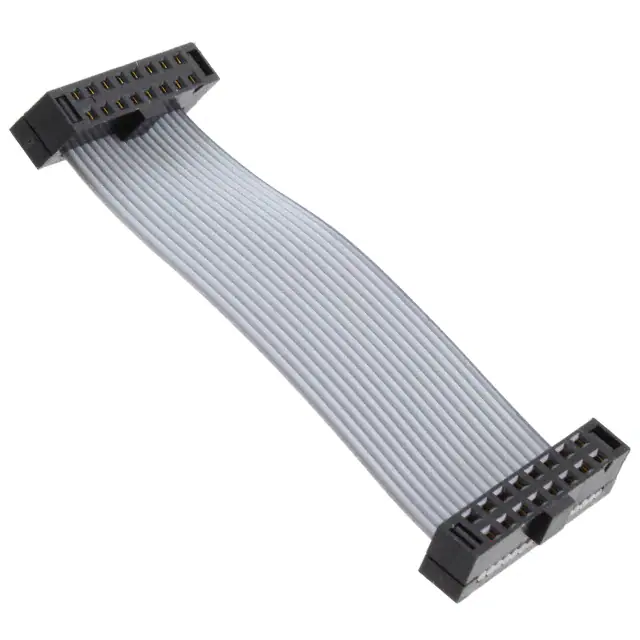

TCSD-08-D-02.00-01-N2MM DOUBLE ROW FEMALE IDC ASSY |
2,409 | 16.08 |
RFQ |
Datasheet |
Bulk | Tiger Eye™ TCSD | Active | Socket to Socket | 16 | 2 | 0.079 (2.00mm) | 0.039 (1.00mm) | 0.167' (50.80mm, 2.00) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold |
|
FFSD-05-D-06.50-01-N.050 X .050 C.L. FEMALE IDC ASSE |
3,082 | 16.42 |
RFQ |
Datasheet |
Bulk | Tiger Eye™ FFSD | Active | Socket to Socket | 10 | 2 | 0.050 (1.27mm) | 0.025 (0.64mm) | 0.542' (165.10mm, 6.50) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold |
|
33152430500006CABLE ASSY 12POS RCPT-RCPT 500MM |
2,219 | 16.44 |
RFQ |
Datasheet |
Bulk | har-flex® | Active | Socket to Socket | 12 | 2 | - | 0.025 (0.64mm) | 1.64' (500.00mm) | Strain Relief | Gray, Ribbon | - | - | IDC | - |
|

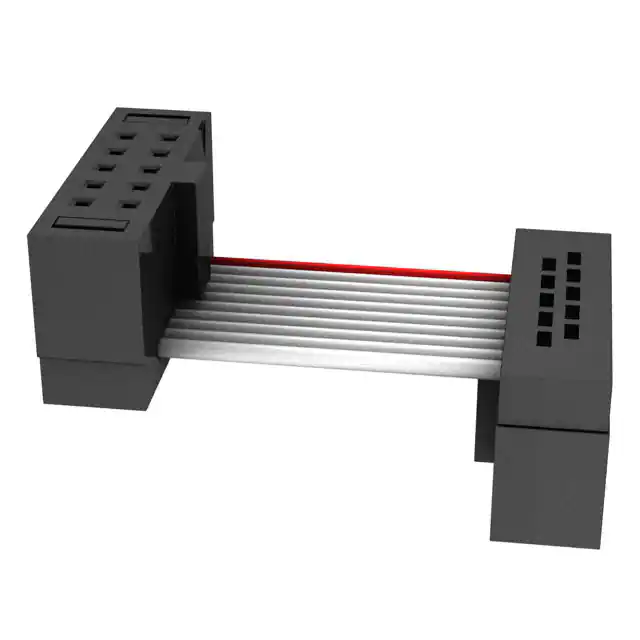

FFSD-05-D-04.00-01-N-R.050 X .050 C.L. FEMALE IDC ASSE |
2,933 | 16.44 |
RFQ |
Datasheet |
Bulk | Tiger Eye™ FFSD | Active | Socket to Socket, Reversed | 10 | 2 | 0.050 (1.27mm) | 0.025 (0.64mm) | 0.333' (101.60mm, 4.00) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold |
|
0451360803MEGA-FIT 8 CIRCUIT 300MM |
2,957 | 16.51 |
RFQ |
Datasheet |
Bag | Mega-Fit | Active | Socket to Socket | 8 | 2 | 0.224 (5.70mm) | - | 0.984' (300.00mm, 11.81) | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin |
