| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1082CPULSE XFMR 100:1 6.1MH |
3,112 | 7.24 |
RFQ |
Datasheet |
Tube | 1000 | Not For New Designs | General Purpose | 6.1mH | 280VµS | 100:1 | Through Hole | 0.593 L x 0.593 W (15.06mm x 15.06mm) | 0.640 (16.25mm) |
|
|
1024CPULSE XFMR 1.2CT:1CT 8.8MH |
2,408 | 7.24 |
RFQ |
Datasheet |
Bulk | 1000 | Not For New Designs | - | 8.8mH | 340VµS | - | Through Hole | 0.593 L x 0.593 W (15.06mm x 15.06mm) | 0.640 (16.26mm) |
|
76600/2CPULSE XFMR 1:1 492UH |
3,796 | 0.00 |
RFQ |
Datasheet |
Tube | 766 | Obsolete | General Purpose | 492µH | 8.5VµS | 1:1 | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
|
76600/3CPULSE XFMR 1:1 219UH |
2,416 | 0.00 |
RFQ |
Datasheet |
Tube | 766 | Obsolete | General Purpose | 219µH | 5.5VµS | 1:1 | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
|
76600/4CPULSE XFMR 1:1 50UH |
2,689 | 0.00 |
RFQ |
Datasheet |
Tube | 766 | Obsolete | General Purpose | 50µH | 4VµS | 1:1 | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
|
76601/20CPULSE XFMR 1:1 20.1UH |
2,199 | 0.00 |
RFQ |
Datasheet |
Tube | 766 | Obsolete | General Purpose | 20.1µH | 2.5VµS | 1:1 | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
|
76601/23CPULSE XFMR 1:1 700UH |
2,928 | 0.00 |
RFQ |
Datasheet |
Tube | 766 | Obsolete | General Purpose | 700µH | 10.5VµS | 1:1 | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
|
76601/24CPULSE XFMR 1:1 11.7MH |
2,044 | 0.00 |
RFQ |
Datasheet |
Tube | 766 | Obsolete | General Purpose | 11.7mH | 50.5VµS | 1:1 | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
|
76615/1HVCPULSE XFMR 1CT:1CT 3.2MH |
3,434 | 0.00 |
RFQ |
Datasheet |
Tube | 766 | Obsolete | General Purpose | 3.2mH | 45VµS | 1CT:1CT | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
|
76616/3CPULSE XFMR 2CT:1CT 4.35MH |
3,038 | 0.00 |
RFQ |
Datasheet |
Tube | 766 | Obsolete | General Purpose | 4.35mH | 23VµS | 2CT:1CT | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|
77203CPULSE XFMR 2:1:1 1MH |
2,887 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | SCR and Triac Trigger (Encapsulated) | 1mH | 120VµS | 2:1:1 | Through Hole | 1.000 L x 0.799 W (25.40mm x 20.30mm) | 0.484 (12.30mm) |
|
|

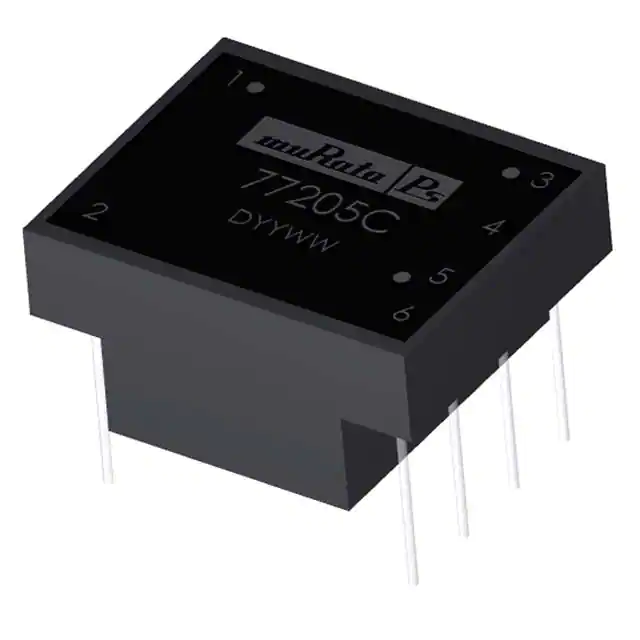

77205SCPULSE XFMR 1:1:1 4MH |
3,322 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | SCR and Triac Trigger (Encapsulated) | 4mH | 240VµS | 1:1:1 | Through Hole | 1.000 L x 0.799 W (25.40mm x 20.30mm) | 0.484 (12.30mm) |
|
|
77206CPULSE XFMR 2:1:1 4MH |
3,947 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | SCR and Triac Trigger (Encapsulated) | 4mH | 240VµS | 2:1:1 | Through Hole | 1.000 L x 0.799 W (25.40mm x 20.30mm) | 0.484 (12.30mm) |
|
|
77207CPULSE XFMR 1:1 16.3MH |
3,770 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | SCR and Triac Trigger (Encapsulated) | 16.3mH | 482VµS | 1:1 | Through Hole | 1.000 L x 0.799 W (25.40mm x 20.30mm) | 0.484 (12.30mm) |
