Home > Products > Transformers > Pulse Transformers

Pulse Transformers(7775)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
ALAN110001-3J11ET 10/100/1000BASE-T LAN XFMR POE Abracon LLC	3,677	3.72	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
ALAN110001-3J41ET 10/100/1000BASE-T LAN XFMR POE Abracon LLC	3,363	3.72	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
ALANL100X1-EFD2KT 10/100BASE-TX LAN XFMR Abracon LLC	3,129	3.81	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DE62KT 10/100BASE-TX LAN XFMR Abracon LLC	3,616	3.81	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-EF12KT 10/100BASE-TX LAN XFMR Abracon LLC	2,691	3.81	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DE12KT 10/100BASE-TX LAN XFMR Abracon LLC	2,609	3.81	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DE10KT 10/100BASE-TX LAN XFMR Abracon LLC	2,973	3.81	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-EF62KT 10/100BASE-TX LAN XFMR Abracon LLC	3,036	3.81	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DED2KT 10/100BASE-TX LAN XFMR Abracon LLC	2,263	3.81	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-EF10KT 10/100BASE-TX LAN XFMR Abracon LLC	2,208	3.81	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALAN-2202 PULSE XFMR 1CT:1CT 350UH Abracon LLC	2,497	3.87	RFQ	PDF	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)
ALAN210001-3J41ET 10/100/1000BASE-T LAN XFMR POE+ Abracon LLC	2,678	3.96	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
ALAN210001-3J61ET 10/100/1000BASE-T LAN XFMR POE+ Abracon LLC	2,024	3.96	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
ALAN110001-3J41DT 10/100/1000BASE-T LAN XFMR POE Abracon LLC	2,087	3.96	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
ALAN210001-3J60ET 10/100/1000BASE-T LAN XFMR POE+ Abracon LLC	2,360	3.96	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
ALAN110001-3J11DT 10/100/1000BASE-T LAN XFMR POE Abracon LLC	3,538	3.96	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)
ALAN210001-3JC0ET 10/100/1000BASE-T LAN XFMR POE+ Abracon LLC	2,612	3.96	RFQ	PDF	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)

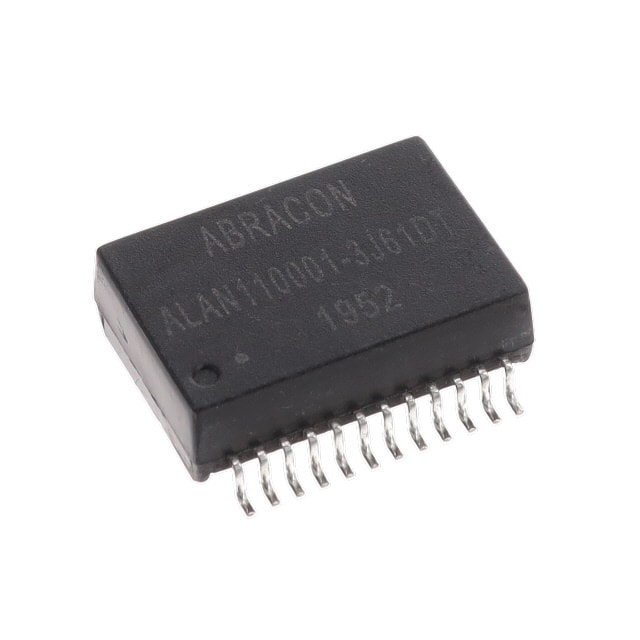

ALAN110001-3J61DT XFRMR LAN 1CT:1CT 350UH Abracon LLC	2,445	3.96	RFQ	PDF	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724 L x 0.490 W (18.38mm x 12.44mm)	0.254 (6.45mm)

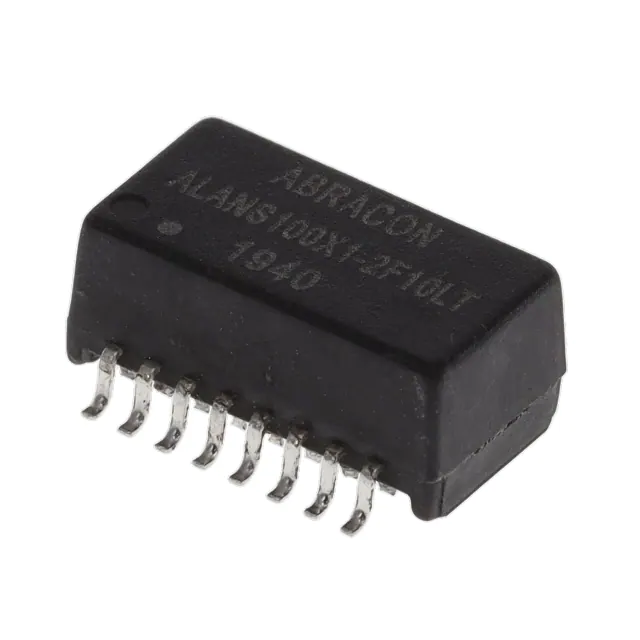

ALANS100X1-2F10LT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	2,618	3.98	RFQ	PDF	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F00LT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	3,919	3.98	RFQ	PDF	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
