| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

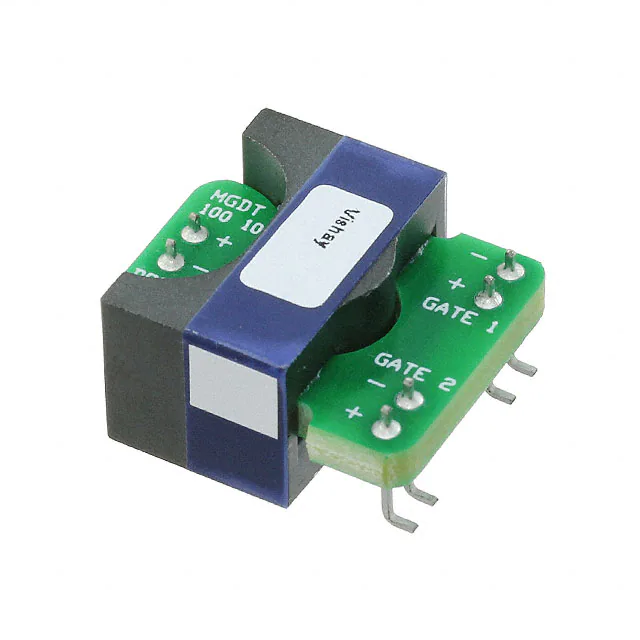

MGDT100100-SMPLANAR GATE-DRIVE XFMR, 1 : 1 : |
232 | 13.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | 240µH | - | 1:1:1 | Surface Mount | 0.810 L x 0.725 W (20.57mm x 18.42mm) | 0.450 (11.43mm) |
|

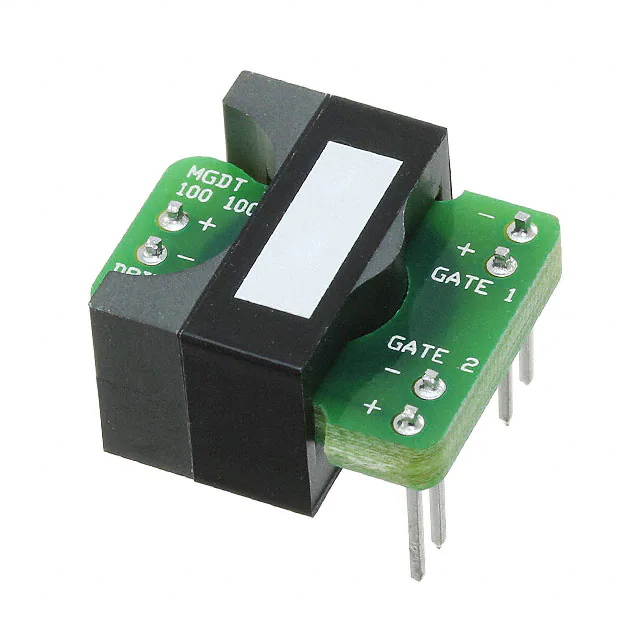

MGDT100100PLANAR GATE-DRIVE XFMR, 1 : 1 : |
295 | 12.44 |
RFQ |
Datasheet |
Tray | - | Active | Gate Drive | 240µH | - | 1:1:1 | Through Hole | 0.810 L x 0.725 W (20.57mm x 18.42mm) | 0.450 (11.43mm) |
|
|
MGDT100125-SMPLANAR GATE-DRIVE XFMR, 1 : 1.25 |
118 | 15.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | 240µH | - | 1:1.25:1.25 | Surface Mount | 0.810 L x 0.725 W (20.57mm x 18.42mm) | 0.450 (11.43mm) |
|
|
MGDT100100LFPLANAR GATE-DRIVE XFMR, 1 : 1 : |
2,807 | 12.44 |
RFQ |
Datasheet |
Tray | - | Active | Gate Drive | 240µH | - | 1:1:1 | Through Hole | 0.810 L x 0.725 W (20.57mm x 18.42mm) | 0.450 (11.43mm) |
|
|
MGDT100125LFPLANAR GATE-DRIVE XFMR, 1 : 1.25 |
2,259 | 12.51 |
RFQ |
Datasheet |
Tray | - | Active | Gate Drive | 240µH | - | 1:1.25:1.25 | Through Hole | 0.810 L x 0.725 W (20.57mm x 18.42mm) | 0.450 (11.43mm) |
|
|
MGDT100125PLANAR GATE-DRIVE XFMR, 1 : 1.25 |
2,239 | 12.51 |
RFQ |
Datasheet |
Tray | - | Active | Gate Drive | 240µH | - | 1:1.25:1.25 | Through Hole | 0.810 L x 0.725 W (20.57mm x 18.42mm) | 0.450 (11.43mm) |
|

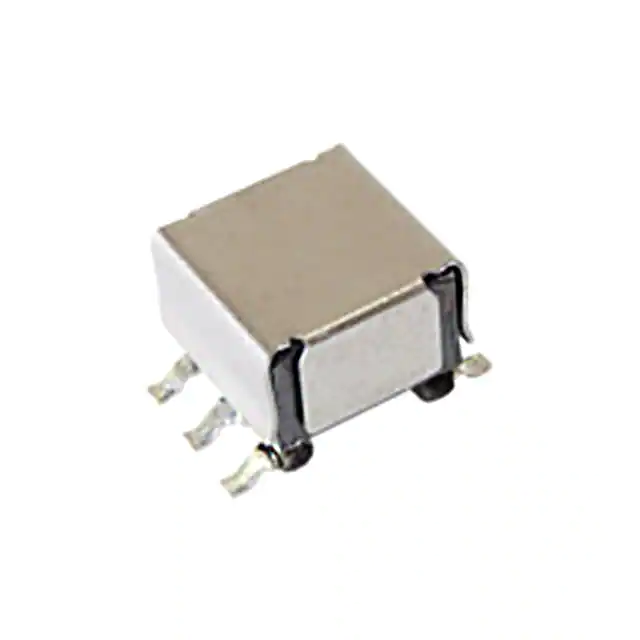

MTBAUGDT125100TRANSFORMER, MICRO GATE DRIVE, 1 |
2,559 | 17.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | 330µH | 63VµS | 1:1:1 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT250251TRANSFORMER, GATE DRIVE 5MM, 250 |
3,259 | 14.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | 473µH | 30.6VµS | 2.5:1 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT250102-LFTRANSFORMER, GATE DRIVE 5MM, 250 |
2,102 | 17.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | 264µH | 22.4VµS | 1:1:1 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT250252-LFTRANSFORMER, GATE DRIVE 5MM, 250 |
3,086 | 9.70 |
RFQ |
Datasheet |
Tape & Reel (TR) | MTBAUGDT | Active | Gate Drive | 300µH | 23.8VµS | 2.5:1:1 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT250252TRANSFORMER, GATE DRIVE 5MM, 250 |
3,580 | 9.70 |
RFQ |
Datasheet |
Tape & Reel (TR) | MTBAUGDT | Active | Gate Drive | 300µH | 23.8VµS | 2.5:1:1 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT250251-LFTRANSFORMER, GATE DRIVE 5MM, 250 |
3,502 | 14.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MTBAUGDT | Active | Gate Drive | 473µH | 30.6VµS | 2.5:1 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT125050TRANSFORMER, MICRO GATE DRIVE, 1 |
3,055 | 10.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | MTBAUGDT | Active | Gate Drive | 330µH | 63VµS | 1:0.5:0.5 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT125075TRANSFORMER, MICRO GATE DRIVE, 1 |
2,736 | 10.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | MTBAUGDT | Active | Gate Drive | 360µH | 66VµS | 1:0.75:0.75 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT125050-LFTRANSFORMER, MICRO GATE DRIVE, 1 |
2,516 | 10.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | MTBAUGDT | Active | Gate Drive | 330µH | 63VµS | 1:0.5:0.5 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT125075-LFTRANSFORMER, MICRO GATE DRIVE, 1 |
2,370 | 10.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | MTBAUGDT | Active | Gate Drive | 360µH | 66VµS | 1:0.75:0.75 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT250101TRANSFORMER, GATE DRIVE 5MM, 250 |
2,235 | 11.49 |
RFQ |
Datasheet |
Tape & Reel (TR) | MTBAUGDT | Active | Gate Drive | 350µH | 25.8VµS | 1:1 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT125100-LFTRANSFORMER, MICRO GATE DRIVE, 1 |
2,690 | 11.60 |
RFQ |
Datasheet |
Tape & Reel (TR) | MTBAUGDT | Active | Gate Drive | 330µH | 63VµS | 1:1:1 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT250101-LFTRANSFORMER, GATE DRIVE 5MM, 250 |
3,337 | 16.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MTBAUGDT | Active | Gate Drive | 350µH | 25.8VµS | 1:1 | Surface Mount | - | 0.220 (5.59mm) |
|
|
MTBAUGDT250102TRANSFORMER, GATE DRIVE 5MM, 250 |
3,798 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | MTBAUGDT | Active | Gate Drive | 264µH | 22.4VµS | 1:1:1 | Surface Mount | - | 0.220 (5.59mm) |
