| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1021NLTXFRMR 2CT:1/1.26 / 2CT:1/1.26 |
3,234 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | T1/E1 (Dual) | 1.5mH, 1.5mH | - | 2CT:1/1.26, 2CT:1/1.26 | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|
|
T1217NLTXFRMR 1CT:2.42CT/1CT:2.42CT SMD |
3,071 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.675 L x 0.456 W (17.15mm x 11.58mm) | 0.340 (8.64mm) |
|
|
H5089NLTTRANSFORMER MODULE GIGABIT 2PORT |
3,653 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.095 L x 0.480 W (27.81mm x 12.19mm) | 0.295 (7.49mm) |
|
ST6200QNLTXFRMR 1:1 SONET/SDH E4/STM-1 SMD |
3,054 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | Isolation and Data Interface (Encapsulated) | 28µH | - | 1:1 | Surface Mount | 0.455 L x 0.275 W (11.56mm x 6.99mm) | 0.225 (5.72mm) |
|
|
TX1192NLTMODULE 1CT:2.42CT 1.2MH SMD |
2,311 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | T1/E1 (Dual) | 1.2mH | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.690 L x 0.480 W (17.53mm x 12.20mm) | 0.227 (5.76mm) |
|
|
T3020NLTTRANSFORMER 1:2CT 40UH SMD |
2,391 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | T3/E3 (Dual) | 40µH, 100µH | - | 1:2CT Transmitter, 1:1 Receiver | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|
|
T3023NLTTRANSFORMER 1:1 40UH SMD |
3,024 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | T3/E3 (Dual) | 40µH, 40µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.505 L x 0.280 W (12.83mm x 7.11mm) | 0.245 (6.22mm) |
|
HX5020TTRANSFORMER MODULE GIGABIT 2PORT |
3,948 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.100 L x 0.297 W (27.94mm x 7.54mm) | 0.341 (8.66mm) |
|
H0009NLTMODULE MAGNETIC LAN 1:1 10/100 |
2,667 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.560 L x 0.560 W (14.22mm x 14.22mm) | 0.082 (2.08mm) |
|
|
TX9023NLTXFRMR 4PORT 1:2 1.2MH SMD |
3,491 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125 L x 0.485 W (28.58mm x 12.32mm) | 0.285 (7.24mm) |
|

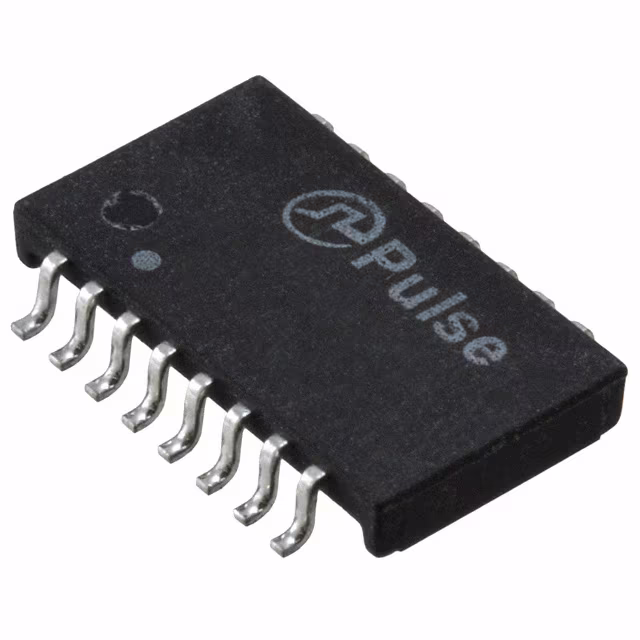

H0056NLTXFRMR MODULE 1PORT 1:1 10/100 |
3,452 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Star Magnetics™ | Active | Isolation and Data Interface (Encapsulated) | 300µH | - | 1:1 | Surface Mount | 0.504 L x 0.280 W (12.80mm x 7.11mm) | 0.088 (2.24mm) |
|
|
TX9027NLTXFRMR 4PORT 1:2 1.2MH SMD |
2,790 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125 L x 0.485 W (28.58mm x 12.32mm) | 0.285 (7.24mm) |
|
|
TX9025NLTXFRMR 4PORT 1:2 1.2MH SMD |
3,593 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125 L x 0.485 W (28.58mm x 12.32mm) | 0.285 (7.24mm) |
|
H0022NLTMODULE MAGNETIC LAN 1:1 10/100 |
3,593 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.465 L x 0.340 W (11.81mm x 8.63mm) | 0.085 (2.16mm) |
|
|
TX3051NLTXFRMR 6PORT 1:1 60UH SMD |
3,187 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | T3/E3 (Twelve) | 60µH | - | 1:1 | Surface Mount | 1.120 L x 0.480 W (28.45mm x 12.19mm) | 0.290 (7.36mm) |
|
|
TX3052NLTXFRMR 6PORT 1:2 40UH SMD |
3,158 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | T3/E3 (Twelve) | 40µH | - | 1:2 | Surface Mount | 1.120 L x 0.480 W (28.45mm x 12.19mm) | 0.290 (7.36mm) |
|
|
H0055NLTXFRMR MODULE 1PORT 1:1 10/100 |
2,227 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Star Magnetics™ | Obsolete | Isolation and Data Interface (Encapsulated) | 200µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.465 L x 0.340 W (11.81mm x 8.63mm) | 0.085 (2.16mm) |
|
H0019NLTMODULE MAGNETIC LAN 1:1 10/100 |
3,662 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.078 (1.98mm) |
|
H1174NLTXFRMR MODULE 2PORT 1:1 10/100 |
3,630 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.512 L x 0.500 W (13.08mm x 12.70mm) | 0.155 (3.93mm) |
|
|
TX1320NLTTRANSFORMER 1CT:1.36CT 1.2MH SMD |
3,162 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | T1/E1 (Single) | 1.2mH | - | 1CT:1.36CT | Surface Mount | 0.300 L x 0.276 W (7.62mm x 7.00mm) | 0.250 (6.35mm) |
