| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GH5208RY LFMDL 1G DIP QUAD PORTS N/A |
3,248 | 5.06 |
RFQ |
Tube | - | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.142 L x 1.043 W (29.00mm x 26.50mm) | 0.512 (13.00mm) | |
|
|
GH5210R LFMDL 1G DIP QUAD PORTS N/A |
3,919 | 5.06 |
RFQ |
Tube | - | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.142 L x 1.043 W (29.00mm x 26.50mm) | 0.512 (13.00mm) | |
|

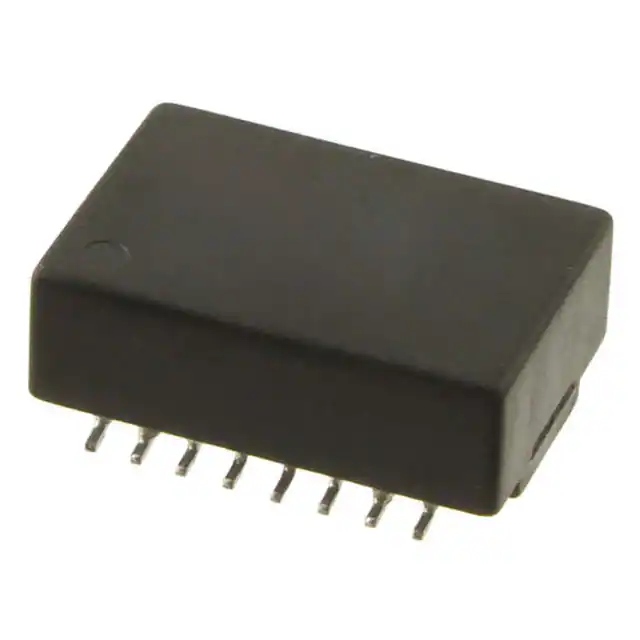

EX2024FNLTPULSE XFMR 1CT:2.5CT 1CT:1CT |
3,574 | 5.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10 Base-T | 35µH, 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498 L x 0.350 W (12.65mm x 8.89mm) | 0.200 (5.08mm) |
|
|
H5007ENLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,219 | 5.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689 L x 0.480 W (17.50mm x 12.20mm) | 0.225 (5.72mm) |
|
|
HX1339NLTMDL SIN 100D 1:1 SMT TR |
3,336 | 5.23 |
RFQ |
Tape & Reel (TR) | - | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.598 L x 0.500 W (15.20mm x 12.70mm) | 0.300 (7.62mm) | |
|
|
HM0068BNLMDL SIN 100D 1:1 SMT TU |
2,025 | 5.26 |
RFQ |
Tube | - | Active | LAN 100 Base-T | - | - | 1:1CT, 1:1CT | Surface Mount | - | - | |
|
|
HM0068BNLTMDL SIN 100D 1:1 SMT TR |
2,115 | 5.26 |
RFQ |
Tape & Reel (TR) | - | Active | LAN 100 Base-T | - | - | 1:1CT, 1:1CT | Surface Mount | - | - | |
|

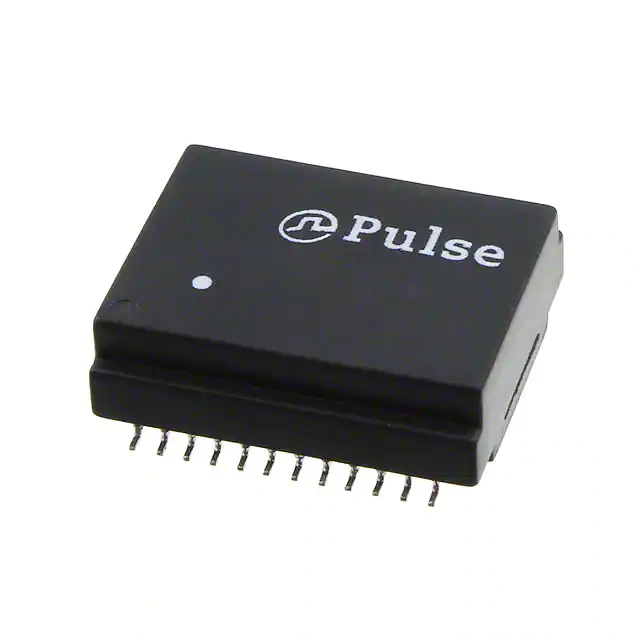

HX6096FNLTPULSE XFMR 1CT:1CT TX/RX |
2,895 | 8.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715 L x 0.595 W (18.16mm x 15.11mm) | 0.260 (6.60mm) |
|
|
GST5009G LFMDL 1G SINGLE PORT N/A |
2,591 | 5.47 |
RFQ |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | |
|
|
PE-65839NLXFRMR 1:1/1.26 1.50MH T/H |
2,419 | 5.54 |
RFQ |
Datasheet |
Tube | - | Active | T1/E1 (Single) | 1.5mH | - | 1:1/1.26 | Through Hole | 0.560 L x 0.560 W (14.22mm x 14.22mm) | 0.402 (10.20mm) |
|
|
TX1262NLXFRMR 4PORT 1:2 1.2MH SMD |
2,322 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125 L x 0.485 W (28.58mm x 12.32mm) | 0.230 (5.84mm) |
|
|
HX1332NLTXFMR SIN 100D 1:1 4KV SMT T |
2,352 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Active | LAN 100 Base-T | - | - | - | Surface Mount | - | - | |
|
H5015FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,223 | 5.70 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.695 L x 0.596 W (17.66mm x 15.14mm) | 0.180 (4.57mm) |
|
|
QGS6014RMMDL 5G DUAL PORT 4PAIR POE 60W |
2,347 | 5.70 |
RFQ |
Tape & Reel (TR) | - | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT | Surface Mount | 1.094 L x 0.480 W (27.80mm x 12.20mm) | 0.283 (7.20mm) | |
|
|
QGS6014RMDL 5G DUAL PORT 4PAIR POE 60W |
3,066 | 5.70 |
RFQ |
Tape & Reel (TR) | - | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.094 L x 0.480 W (27.80mm x 12.20mm) | 0.283 (7.20mm) | |
|
|
QGS2014RMDL 5G DUAL PORT N/A |
2,291 | 5.70 |
RFQ |
Tape & Reel (TR) | - | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.094 L x 0.480 W (27.80mm x 12.20mm) | 0.283 (7.20mm) | |
|
|
HX1305NLTXFRMR MODULE 2PORT 1:1 10/100 |
2,456 | 5.74 |
RFQ |
Datasheet |
Tape & Reel (TR) | Star Magnetics™ | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518 L x 0.595 W (13.16mm x 15.11mm) | 0.251 (6.37mm) |
|
|
HX1305NLXFRMR MODULE 2PORT 1:1 10/100 |
3,703 | 5.74 |
RFQ |
Datasheet |
Tube | Star Magnetics™ | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518 L x 0.595 W (13.16mm x 15.11mm) | 0.251 (6.37mm) |
|
|
PE-68828NLTXFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH |
3,146 | 5.76 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:1CT | Surface Mount | 0.675 L x 0.456 W (17.15mm x 11.58mm) | 0.340 (8.64mm) |
|
PE-68877NLTXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH |
2,622 | 5.76 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.675 L x 0.456 W (17.15mm x 11.58mm) | 0.340 (8.64mm) |
